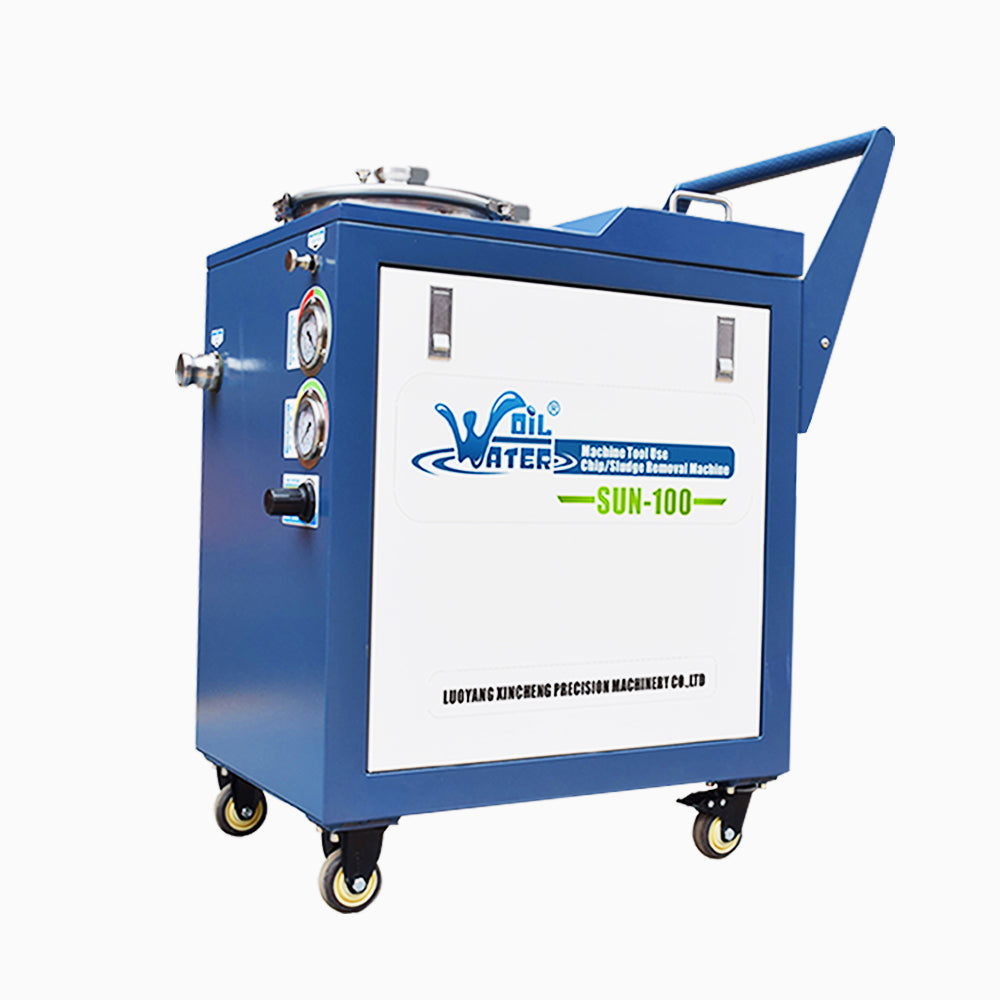

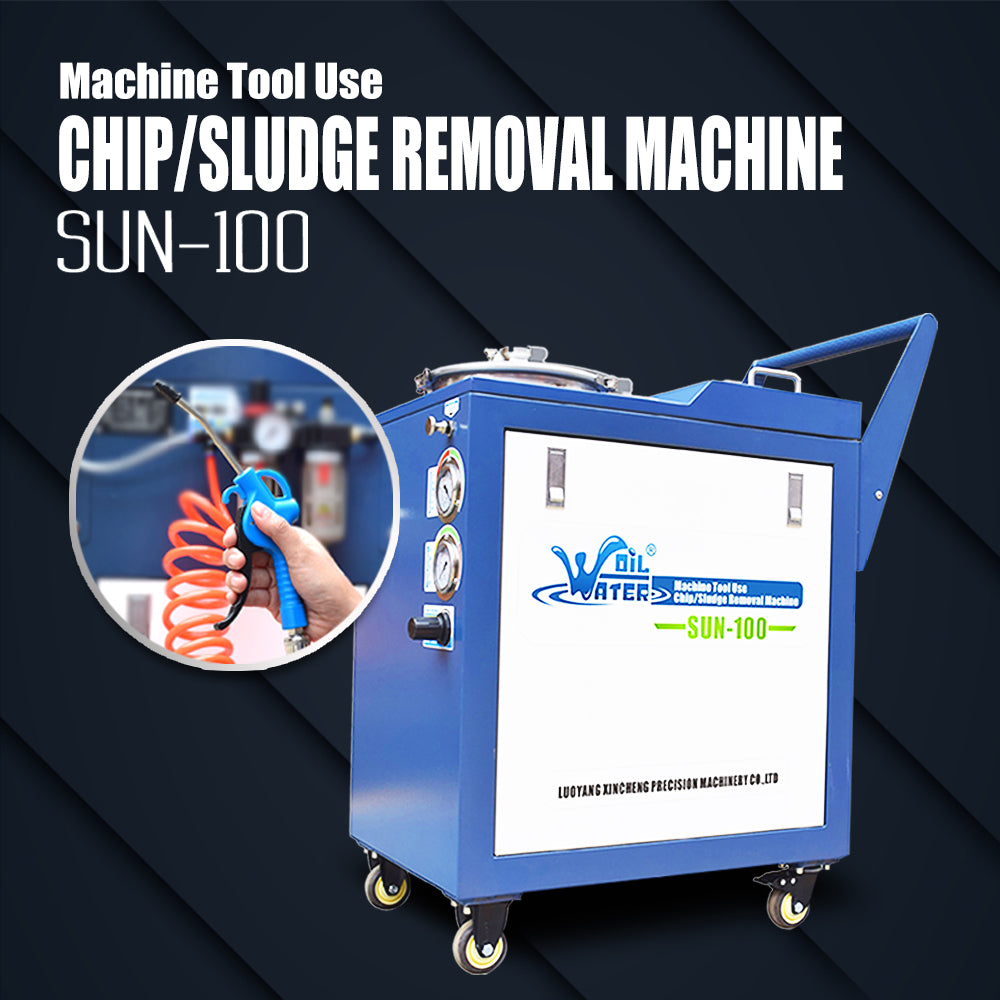

SUN-100 Chip Sludge Removal Machine for CNC Machine Cutting Fluid Clean Machine

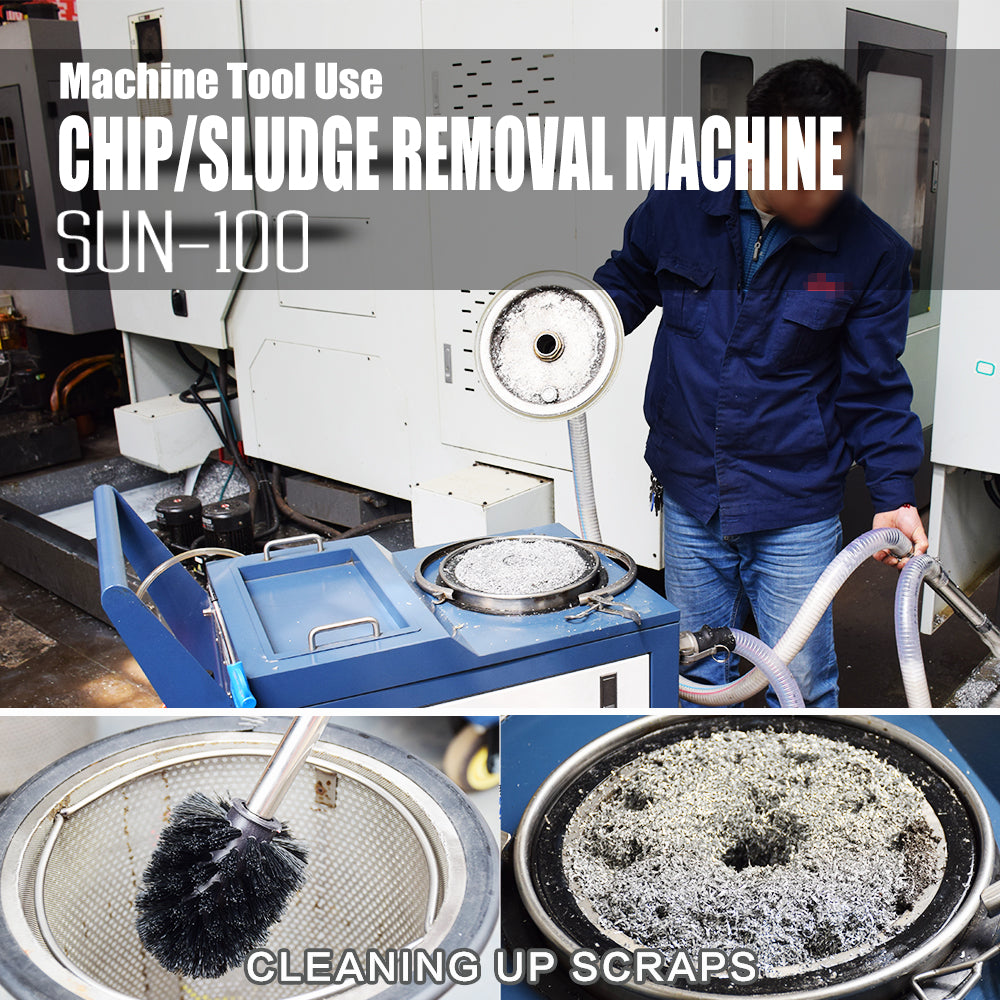

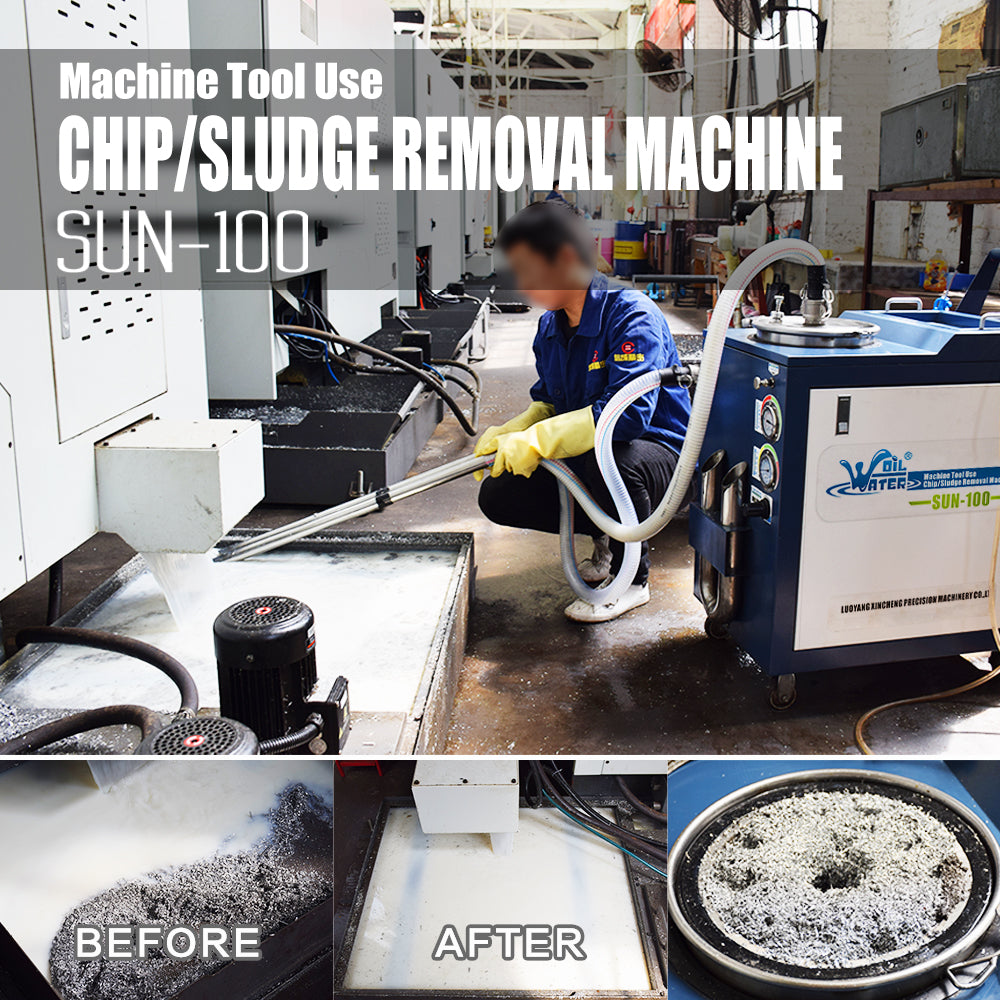

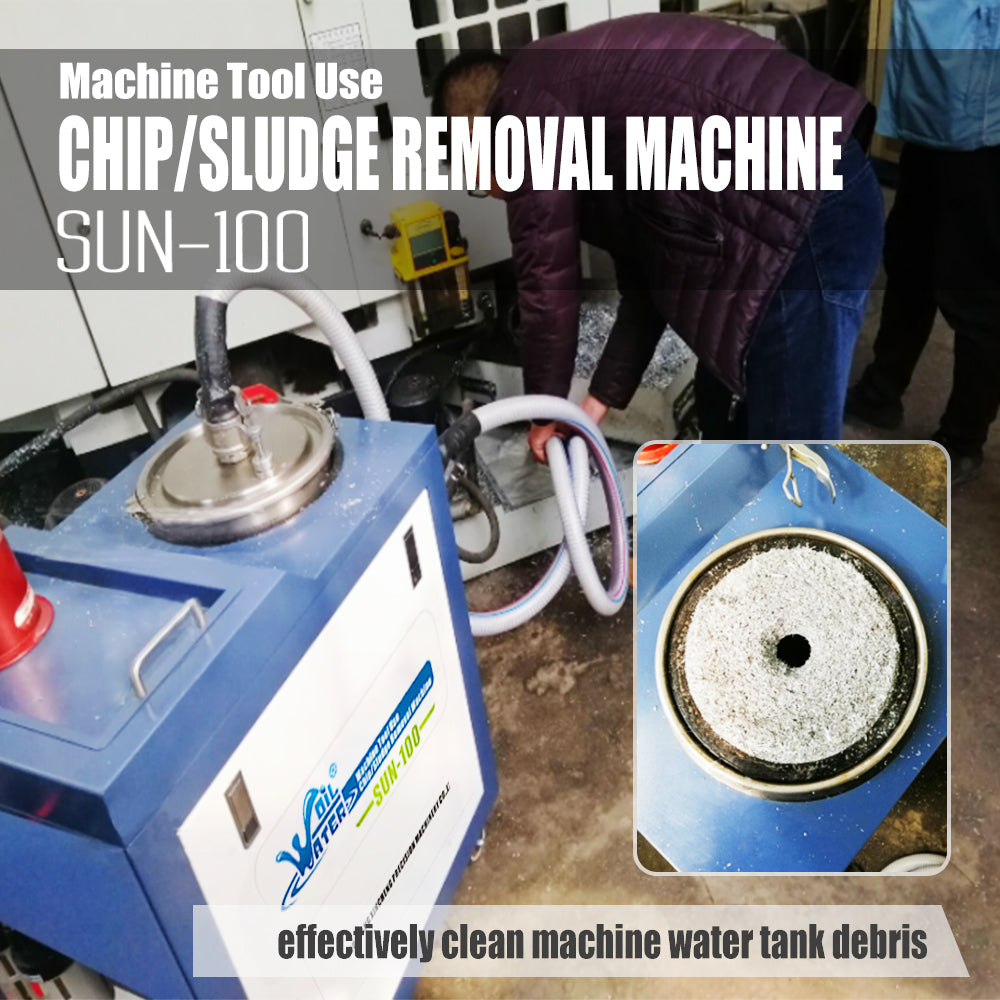

The SUN-100 is an independently developed chip and sludge removal system designed for CNC machines, machining centers, and engineering equipment coolant tanks. It enables fast and effortless cleaning of chips, sludge, and impurities from coolant tanks, ensuring effective coolant recycling. Compared with manual cleaning, it saves both time and cost.

Key Advantages:

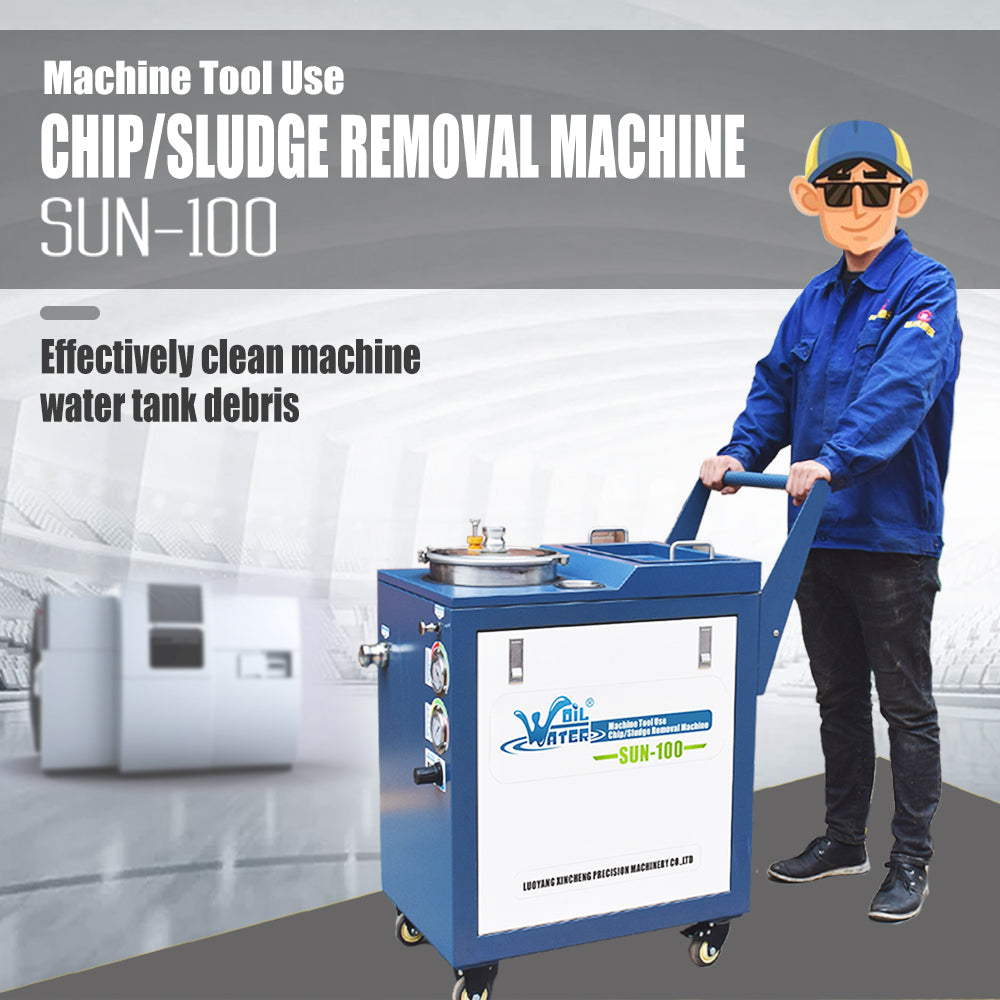

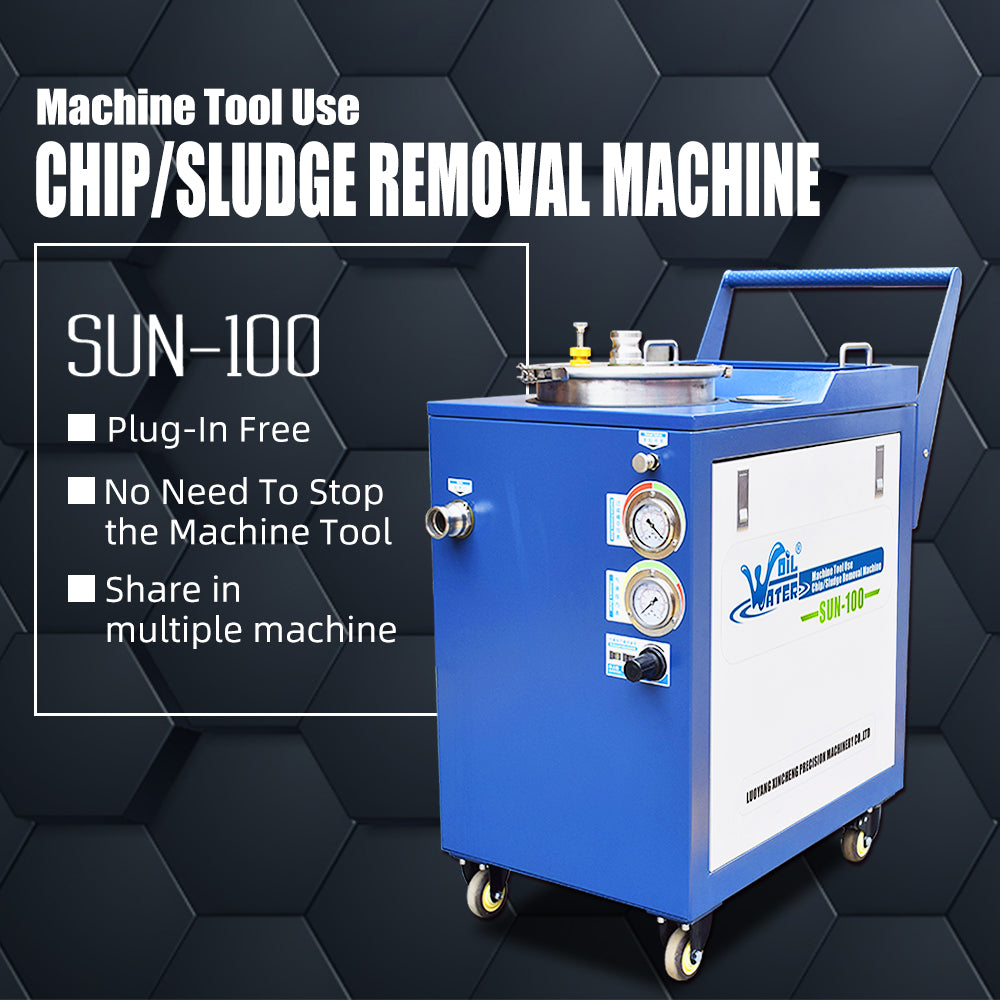

• Simple & Convenient: No need to stop the machine, no extra plugins required, portable design for multi-machine sharing.
• Powerful Performance: Equipped with a large-capacity stainless steel filter drum (304 SS), rust-proof and durable.

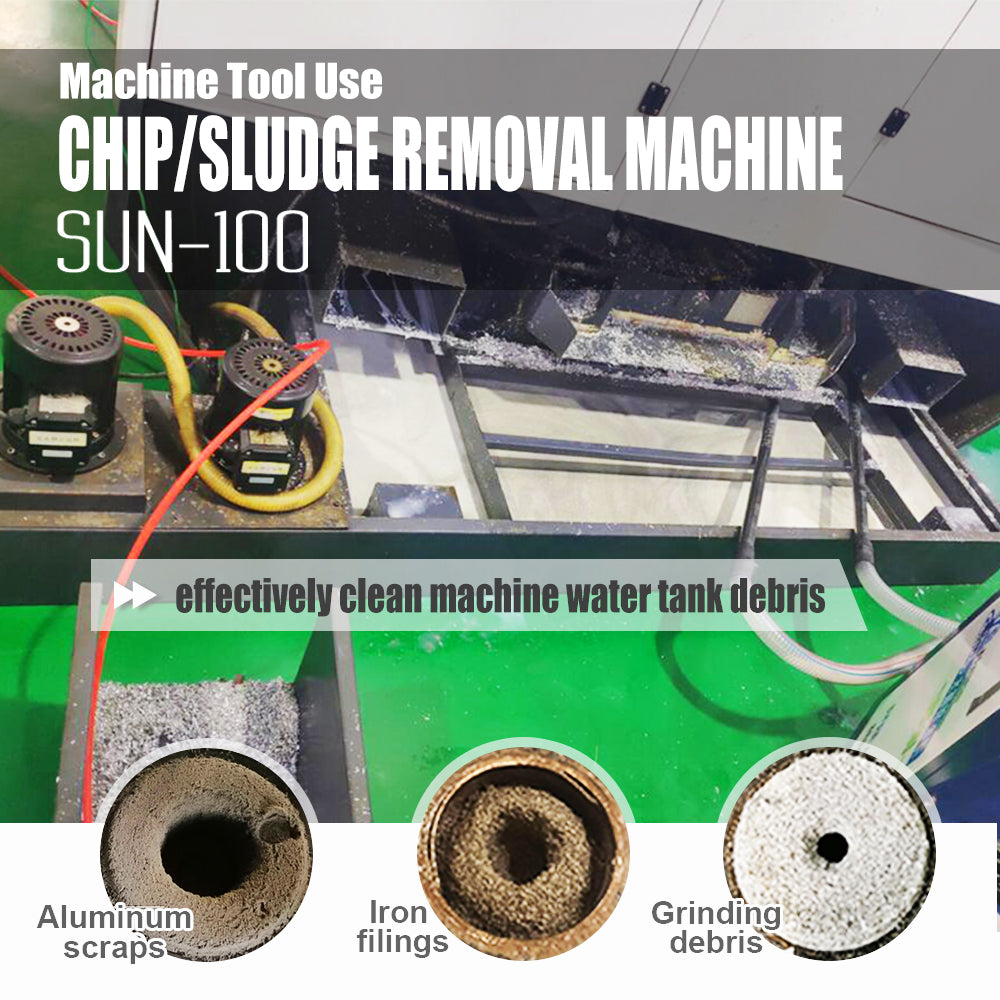

• Wide Applications: Effectively removes both metallic and non-metallic debris, sludge, and more.
• High Efficiency: Up to 100 L/min suction flow for rapid cleaning.

Parameter:

• Model: SUN-100
• Power Source: Pneumatic
• Air Pressure Range: 0.4-0.7 Mpa
• Pipe Diameter: 10mm
• Air Consumption:1-1.7m3/min
• Max Suction Distance:5m
• Max Flow rate: 100L/min
• Filter Storage Capacity: 9L
• Filter Mesh Accuracy: Standard 0.4mm Optional 1mm
• Max. Particle Dia.: 10mm
• Viscosity Range: ≤3000cps (25°C)
• Operate Temperature: 0℃--60℃
• Overall Dimension: 800*450*960mm
• N.W: 67±1Kg

Special Features:

• Patented pressure relief system – automatic release when overpressure occurs.
• Buffer design to reduce water pipe vibration.

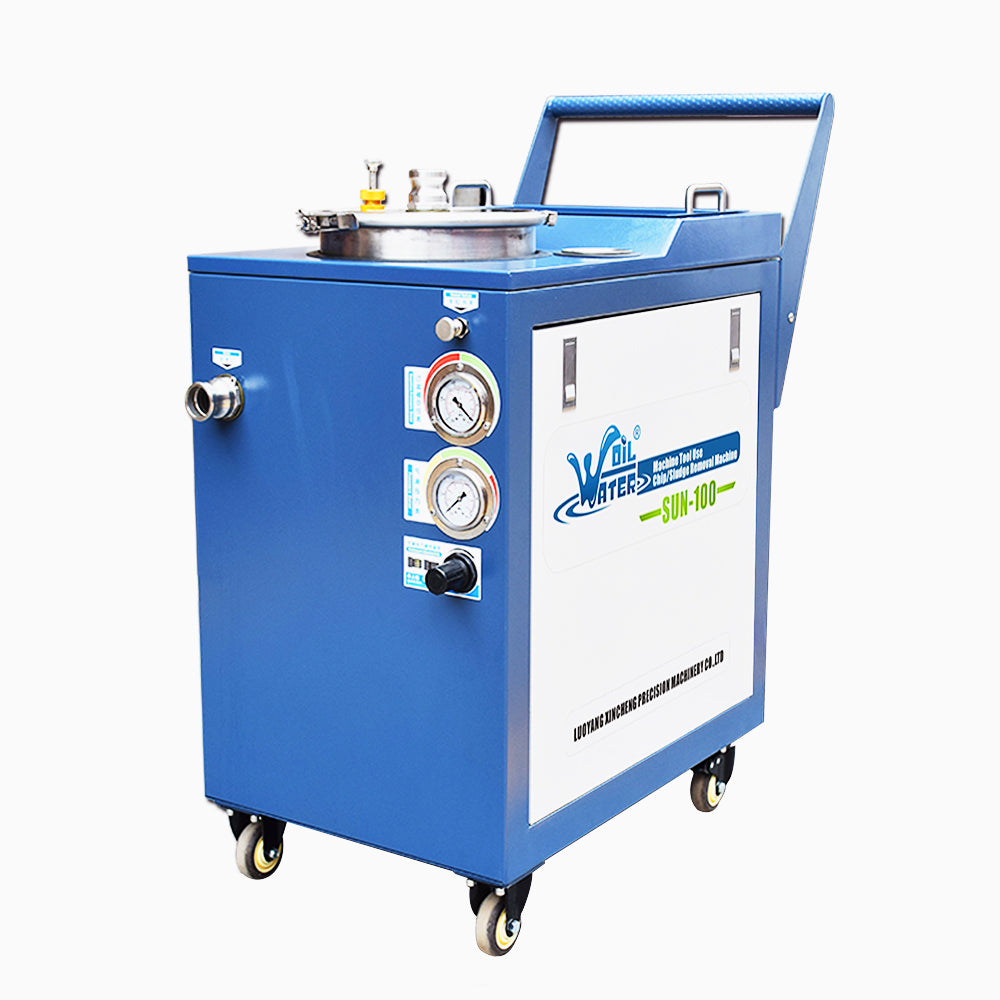

• Front-mounted switch and instruments – easy operation.
• Unique patented design developed to solve industry-specific cleaning problems.

Multi-Purpose Applications:

Compatible with various machines including lathes, grinders, milling machines, saws, and more.

Why Choose SFX Laser?

• Complete Industrial Line: Scaled production reduces cost.
• Professional Lab Testing: Each unit undergoes vibration, humidity, and high-temperature tests before shipping to ensure ready-to-use performance.
• Lifetime Technical Support: Enjoy one-on-one remote guidance and exclusive group communication for efficient problem-solving.


Kindly Note:

The machine is not suitable for corrosive liquids such as strong acids , alkalis and organic solutions.

Delivery:

The machine will be shipped by DHL/UPS, it takes about 5-10 days to your door. No import duty if you are from USA.

Warranty:

1 year warranty for the whole machine, consumable parts are not included.
