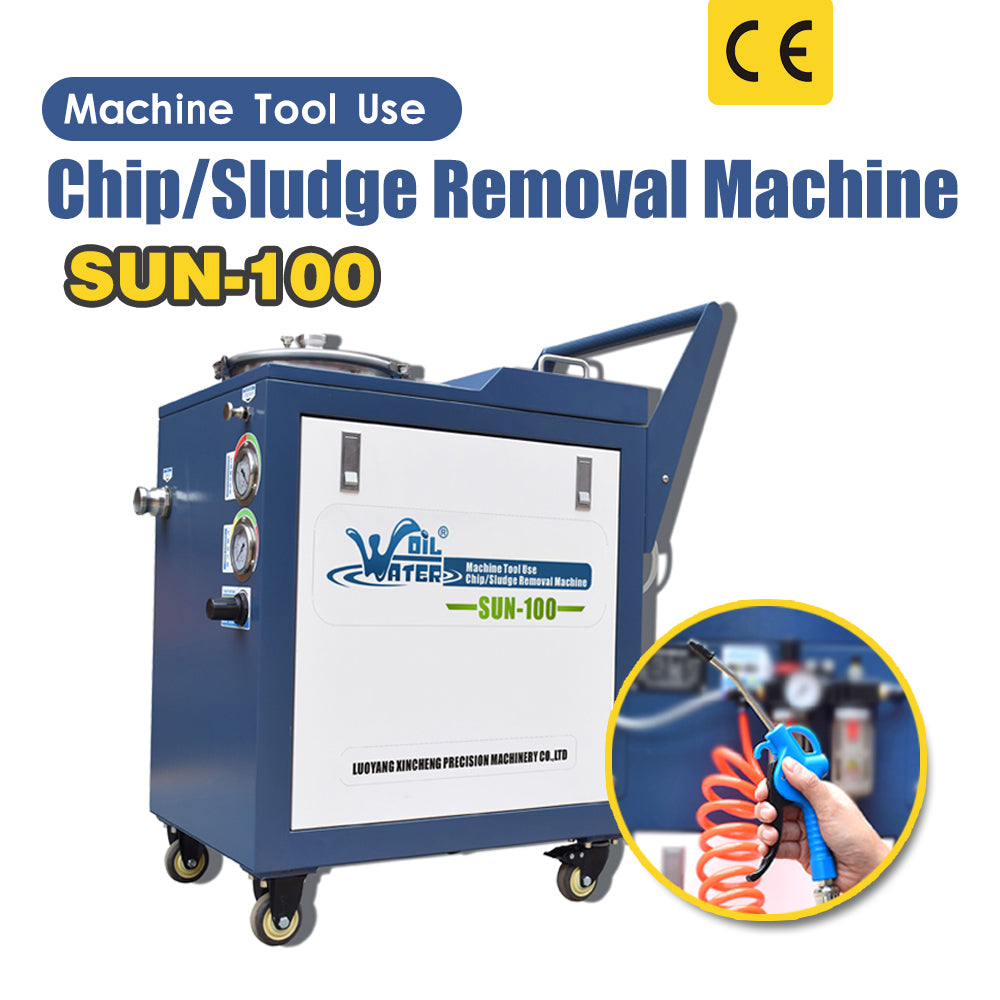

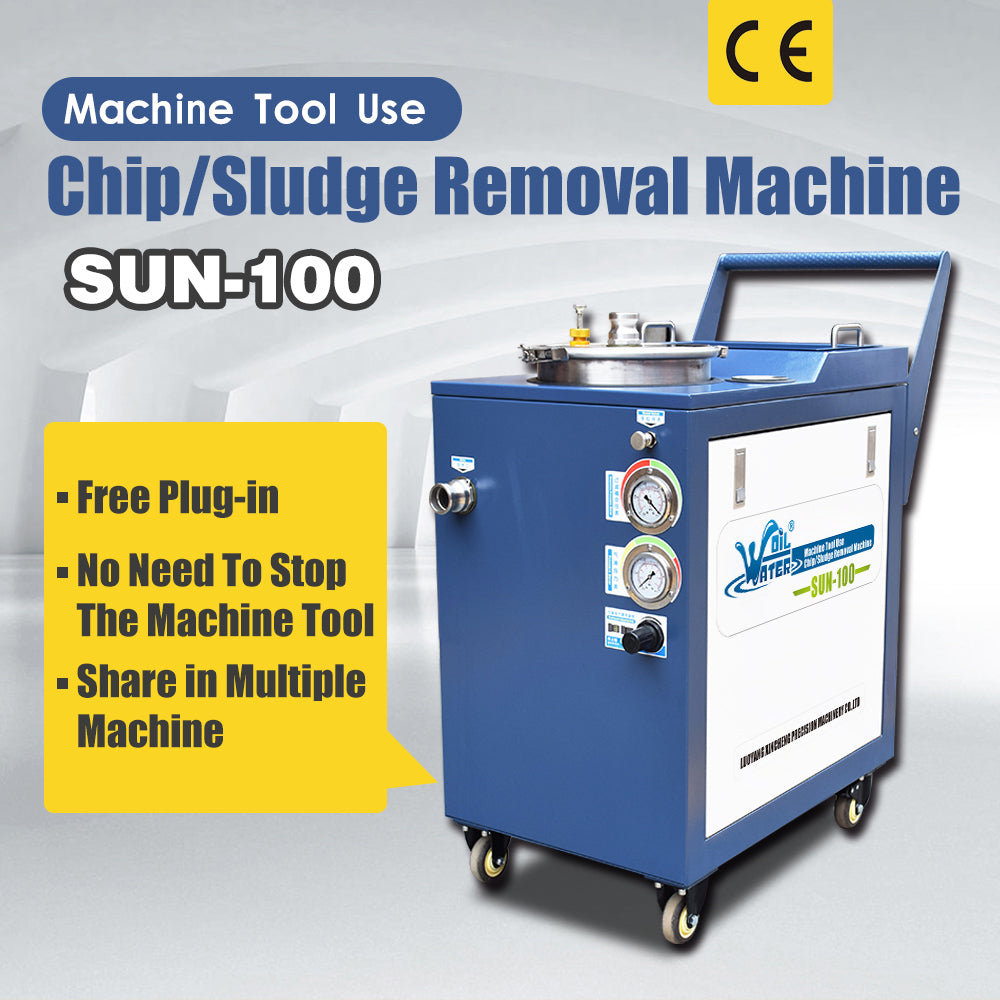

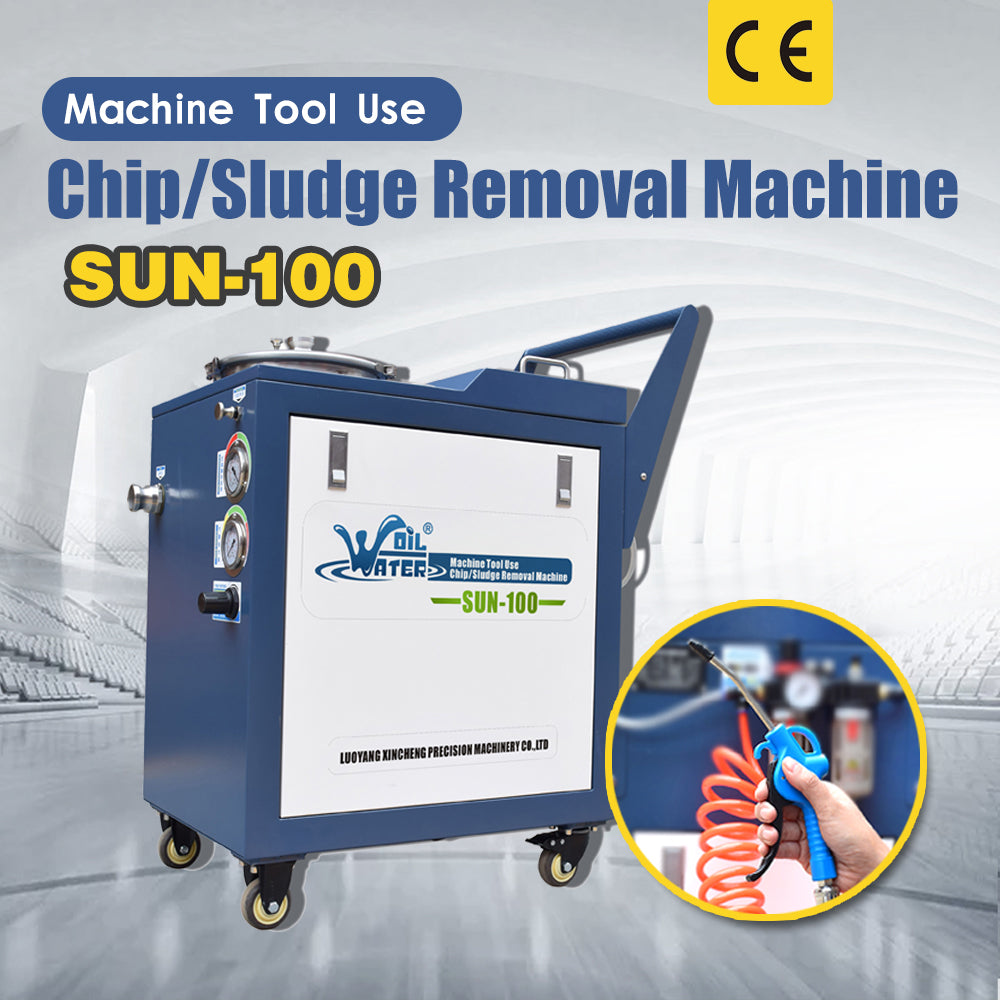

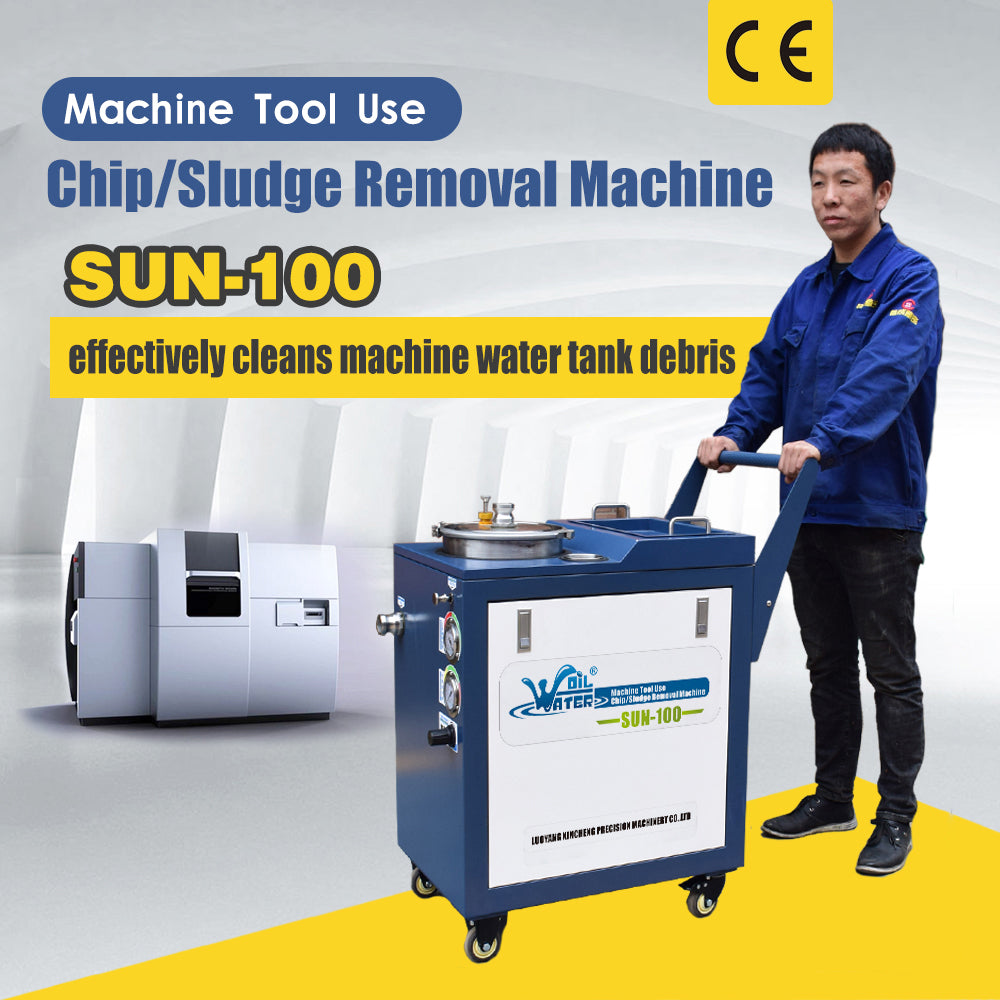

SUN-100 Chip/Sludge Removal Machine CNC Cutting Fluid Purified Cleaning Tool

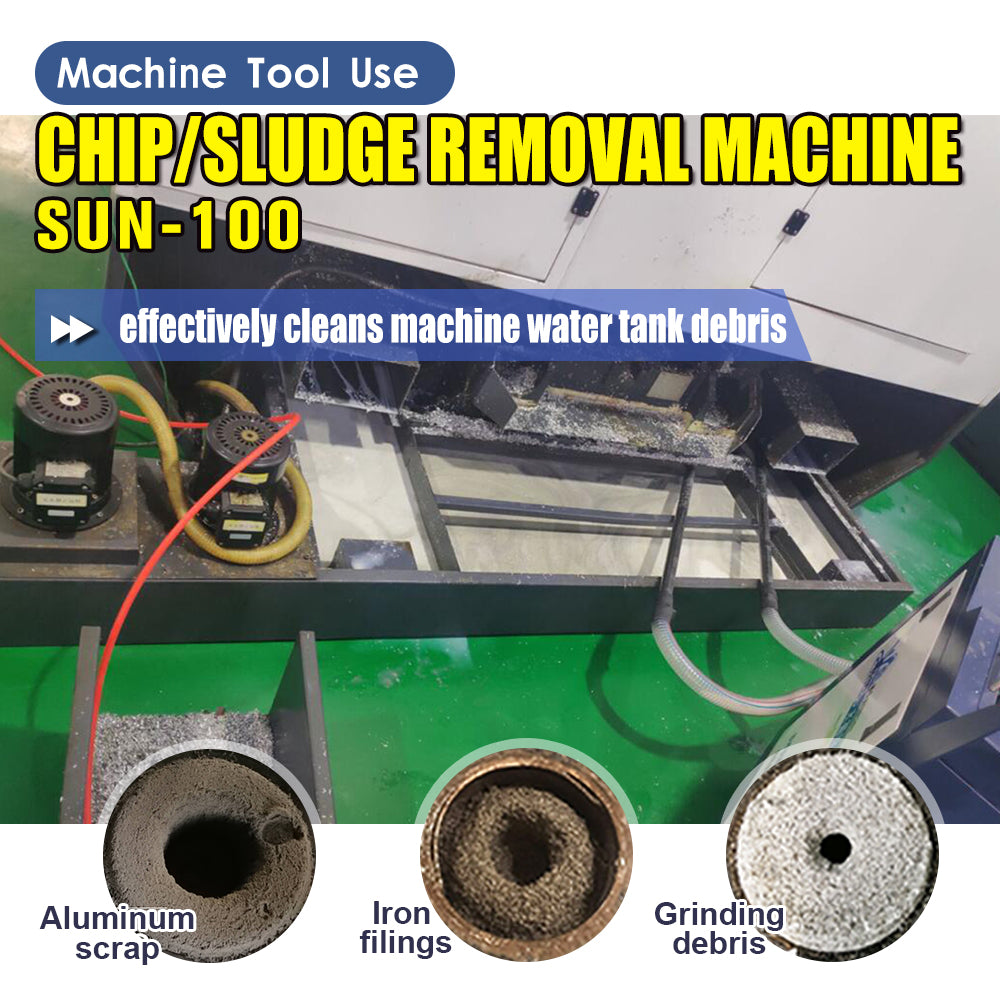

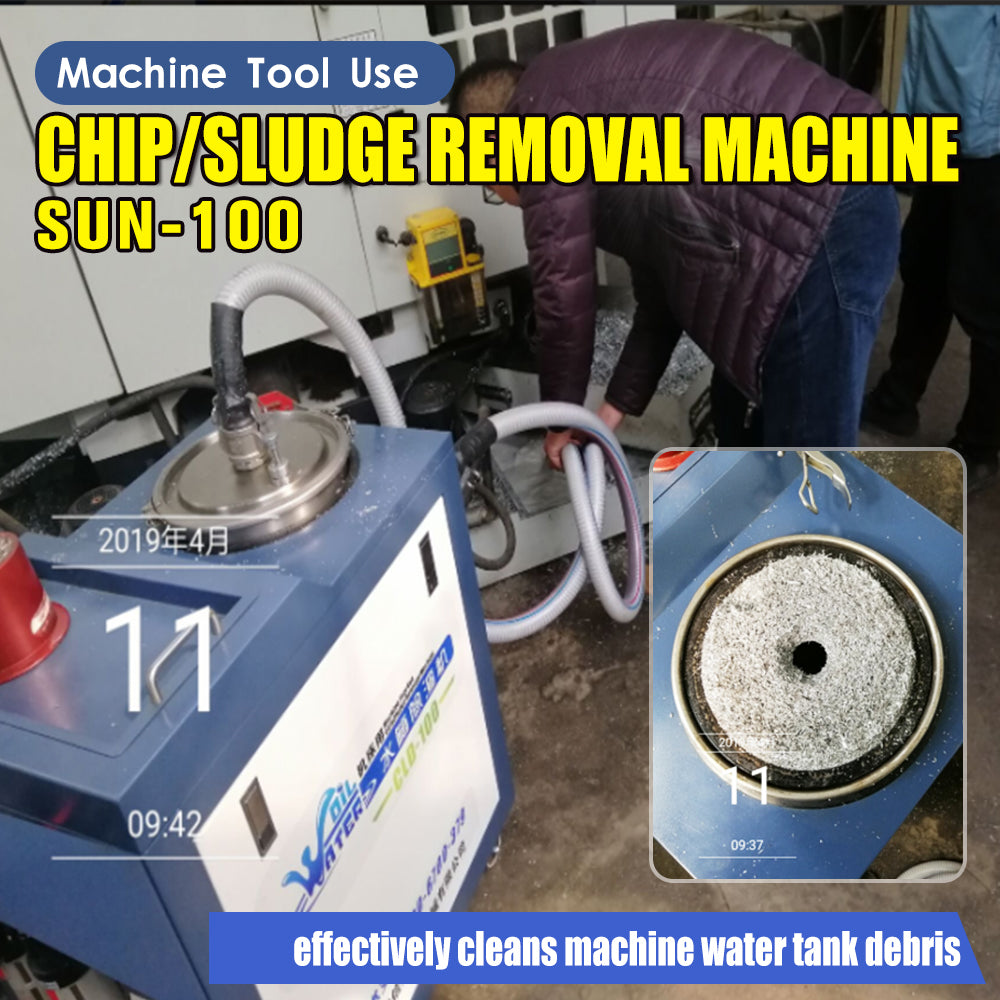

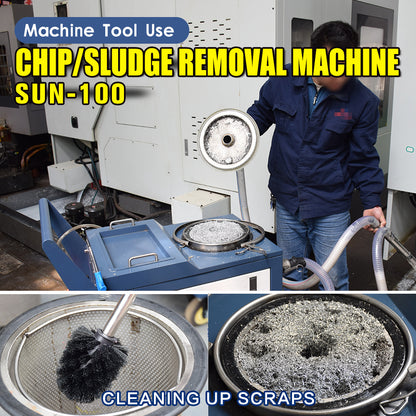

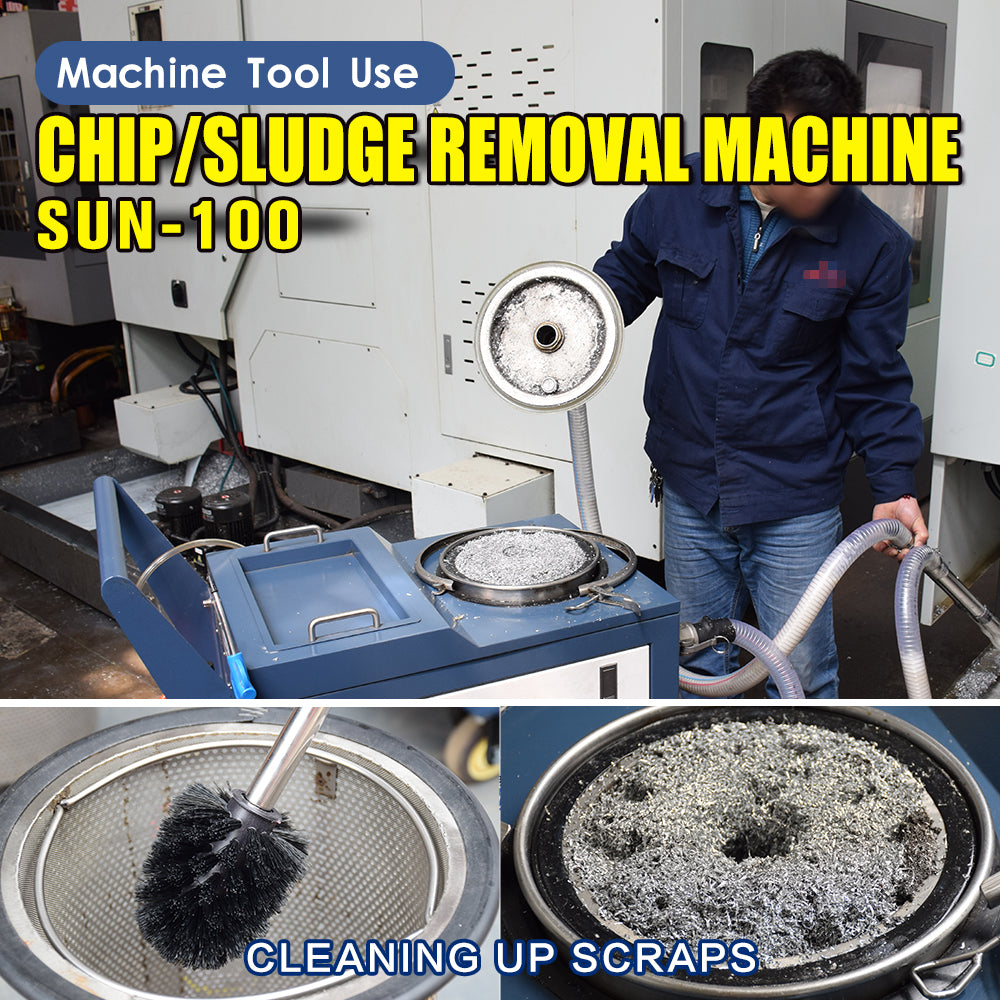

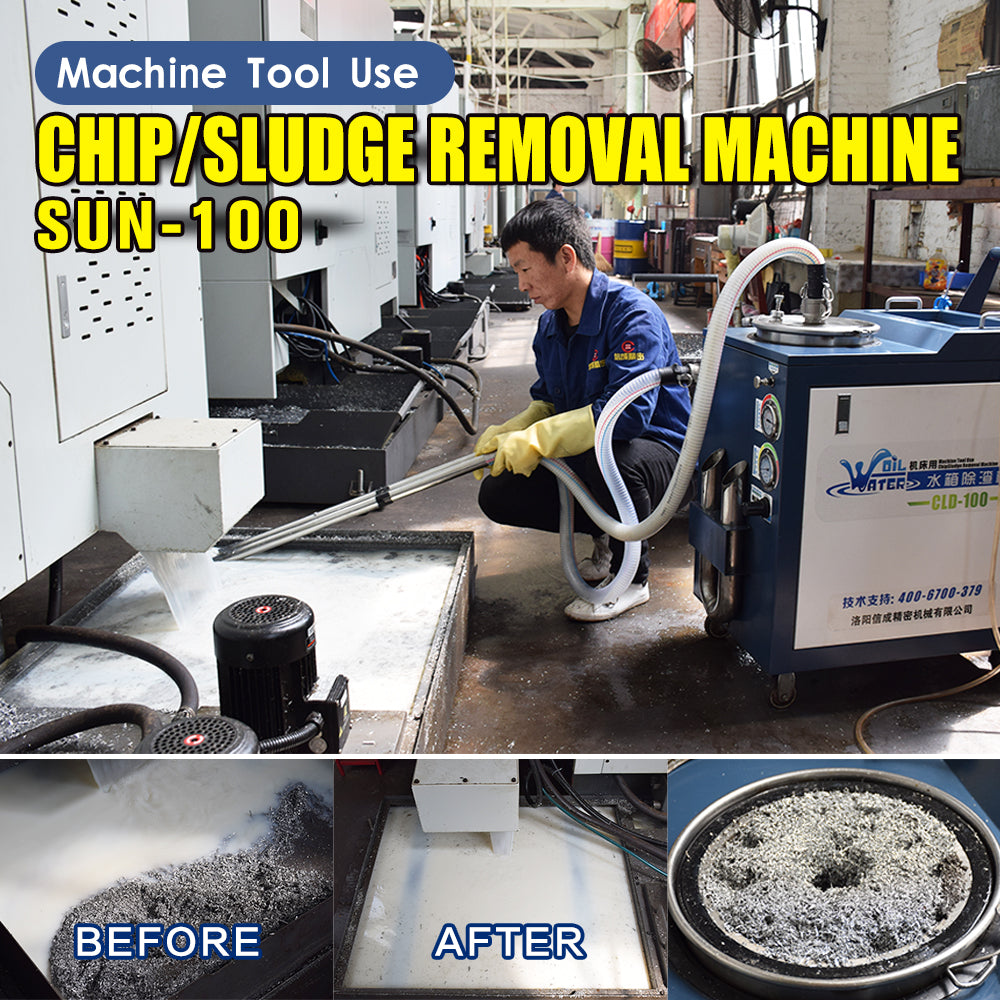

SUN-100 Chip Sludge removal machine can quickly and easily clean the metal debris, sludge and other impurities in the water tank to make the cutting fluid fully recycled, saving time and cost.

During the use of CNC machine tools, various metal scraps, powders, sludge, etc., will gradually accumulate in the cutting fluid pool. If it is not cleaned for a long time, the volume of the cutting fluid pool will become smaller, and the cutting fluid will not get cyclic utilization during the processing. If larger impurities are drawn into the pump, it will cause blockage of the pipeline, which will affect the cooling and lubrication of the parts during processing. In severe cases, the pump and parts will be scrapped.

Specification:

Model: SUN-100 Chip/Sludge Remover Machine

Power Source: Pneumatic

Air Pressure Range: 0.4-0.7MPa

Pipe Diameter: 10mm

Air Consumption: 1-1.7m3/min

Max. Suction Distance : 5m

Max. Flow Rate: 100L/min

Filter Mesh Standard: 0.4mm(1mm optional )

Max. Particle Dia.: 10mm

Viscosity Range: ≤3000cps(25℃)

Operation Temperature: 0℃-60℃

Overall Dimension: 800*450*960mm

Net Weight: 67±1kg

Gross Weight: 98kg

Warranty:

1 year warranty for the whole machine.
