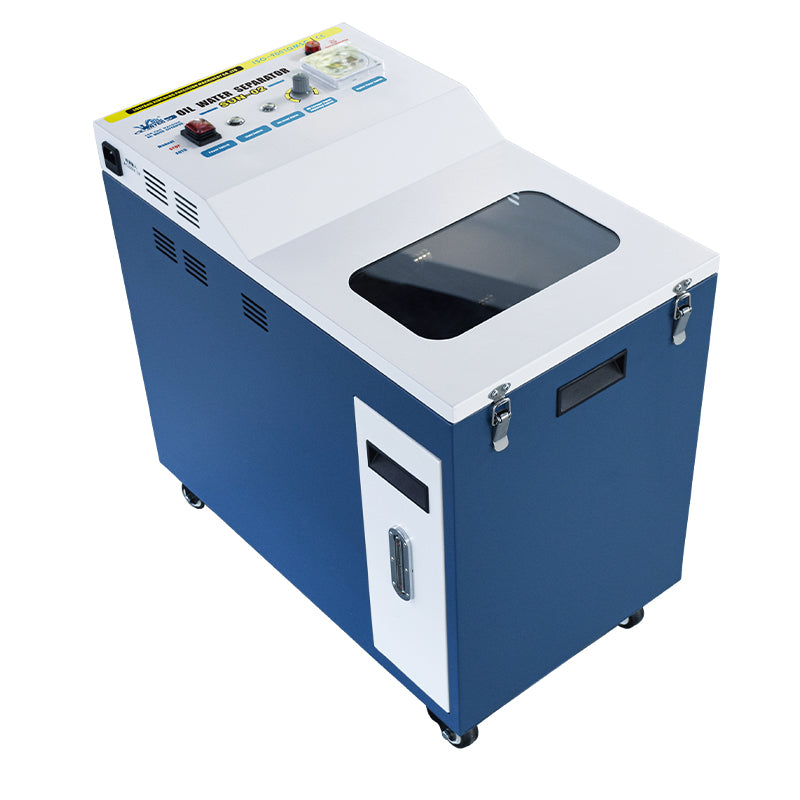

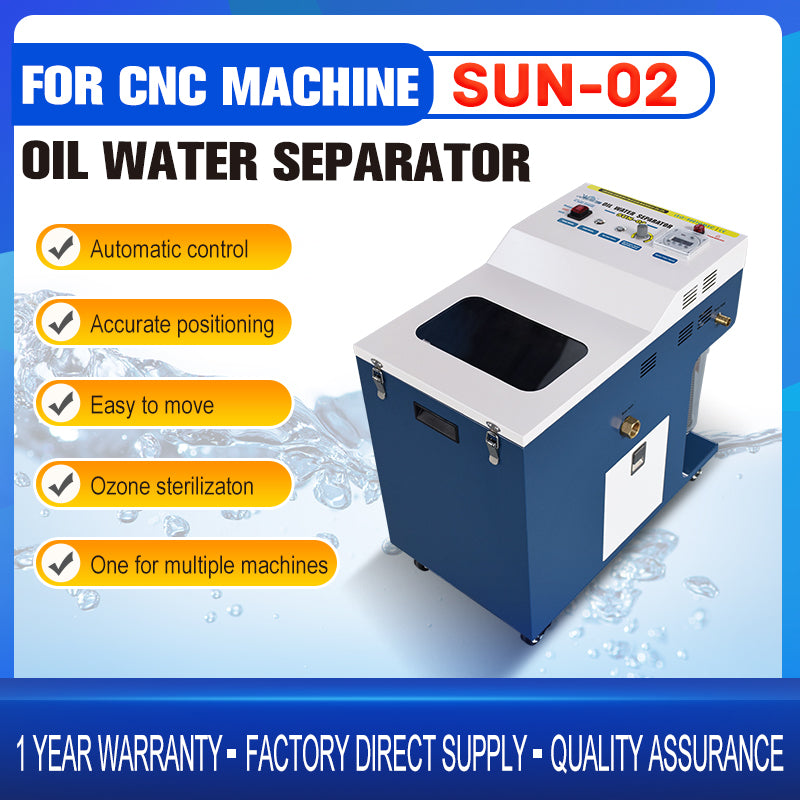

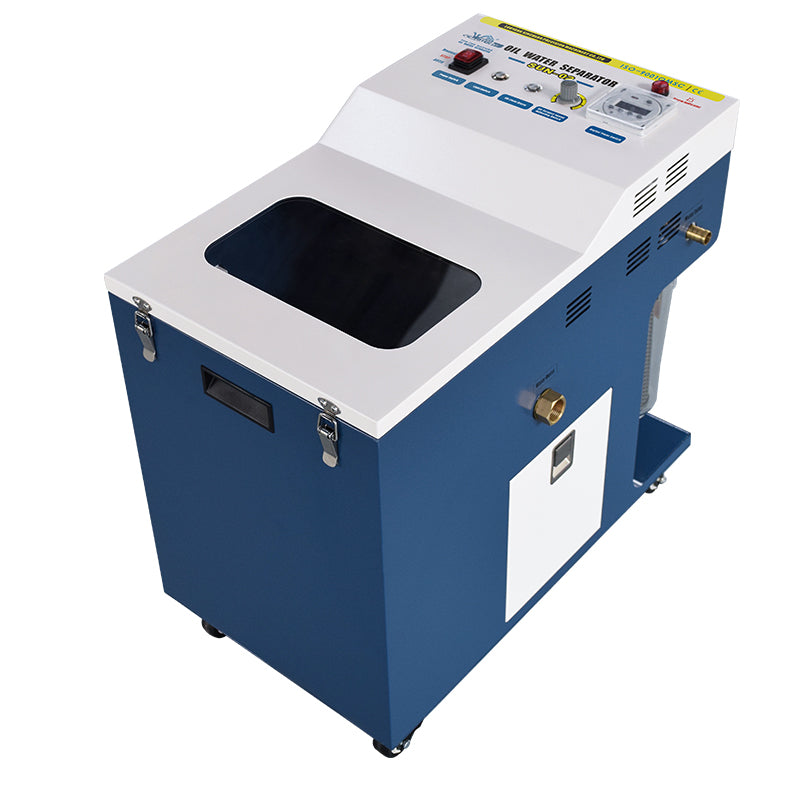

110V/220V SUN-02 CNC Oil Skimmer Water Separator For All Types CNC Machine

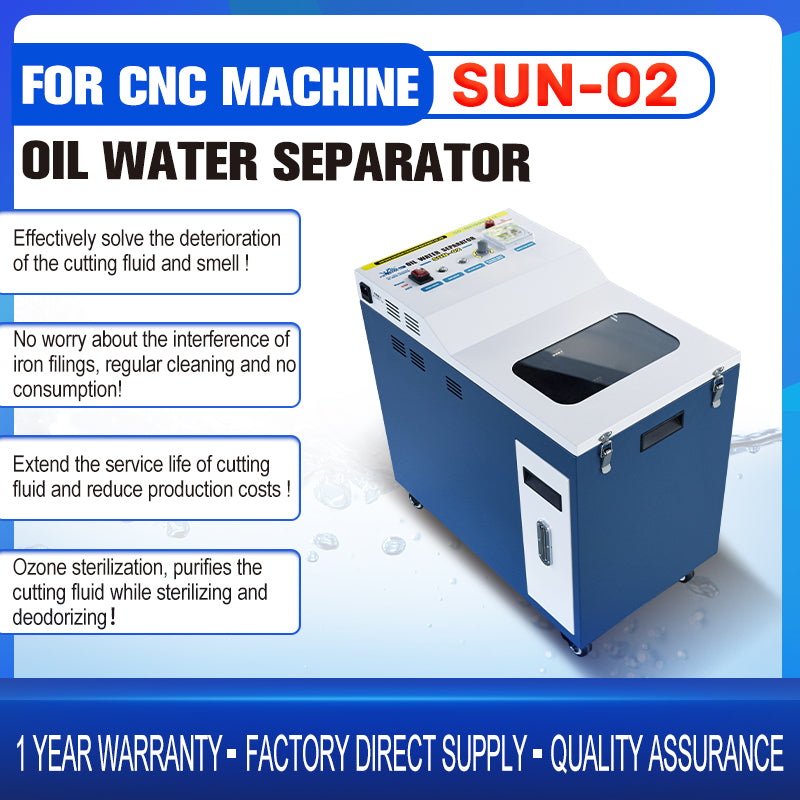

SUN-02 Oil water separator Machine is used for CNC machine to separate floating oil from cutting fluid, thus greatly extend the service life of cutting fluid. Meanwhile, the service life span of cutting tools could be prolonged, so as to ensure machining accuracy, guarantee work environment and staff health. It is applicable to most of lathes, milling machines and machine centers.

Reduce the cost by mass production. Offer quality oil water separator machine at a competitive price.

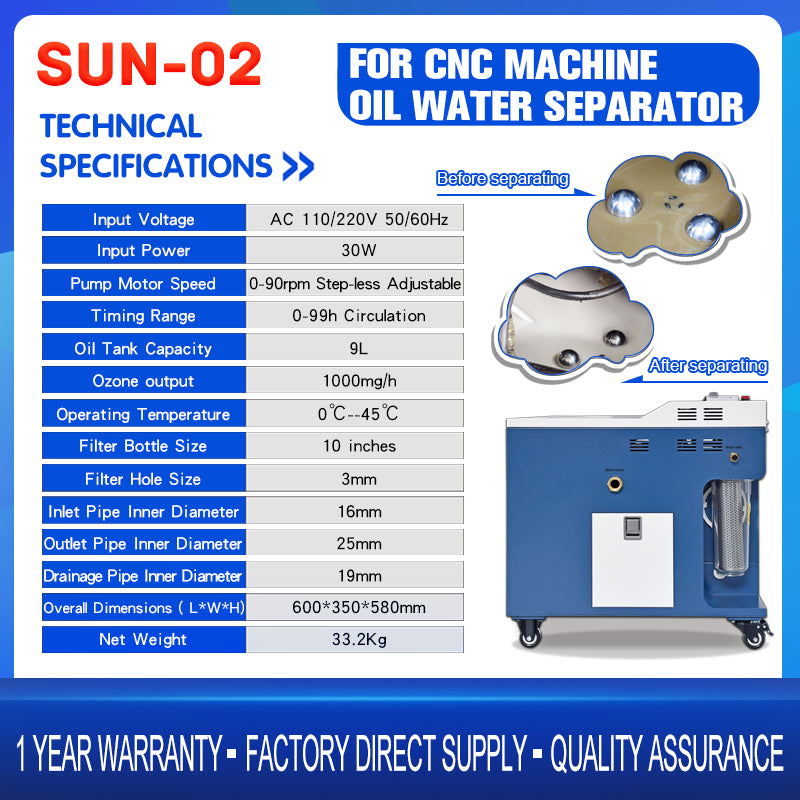

Specification:

Input Voltage: AC110/220V 50/60HZ

Input Power: 30W

Air Source Pressure Range: 0.2-0.7MPa

Pump Motor Speed: 0-90rpm Stepless adjustable

Time Setting Range: 0-99h Circulation

Oil Tank Capacity: 9L

Operating Temperature: 0℃-45℃

Filter Bottle Size: 25.4cm

Diameter of filter hole: 3mm

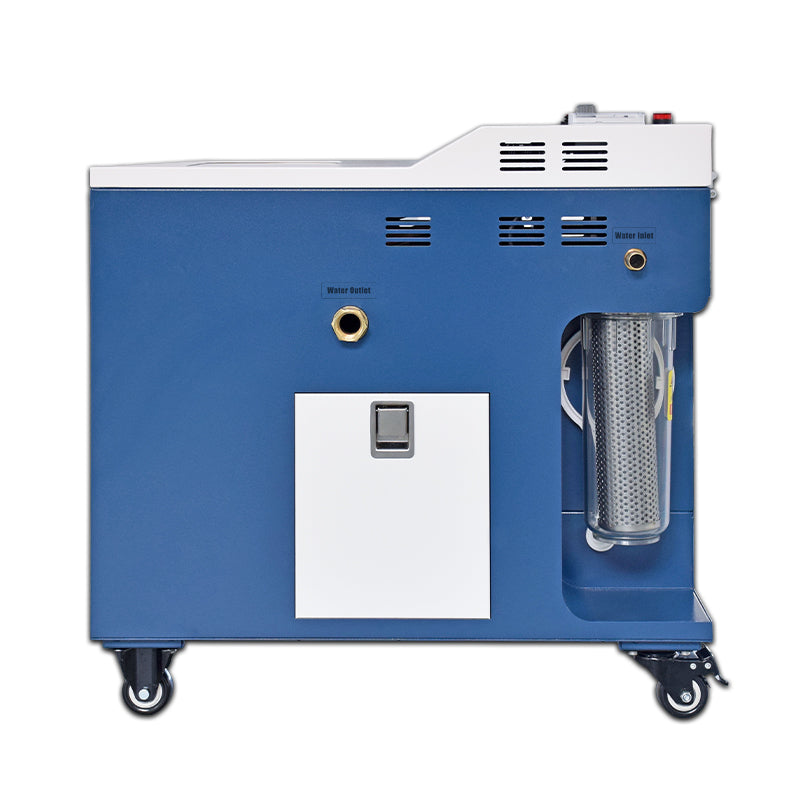

Inner Diameter of Water Inlet Pipe: 16mm

Inner Diameter of Water outlet Pipe: 25mm

Inner Diameter of Pollution Discharge Pipe: 19mm

Dimension: L600*W350*H580mm

Net Weight: 33.2KG

Application:

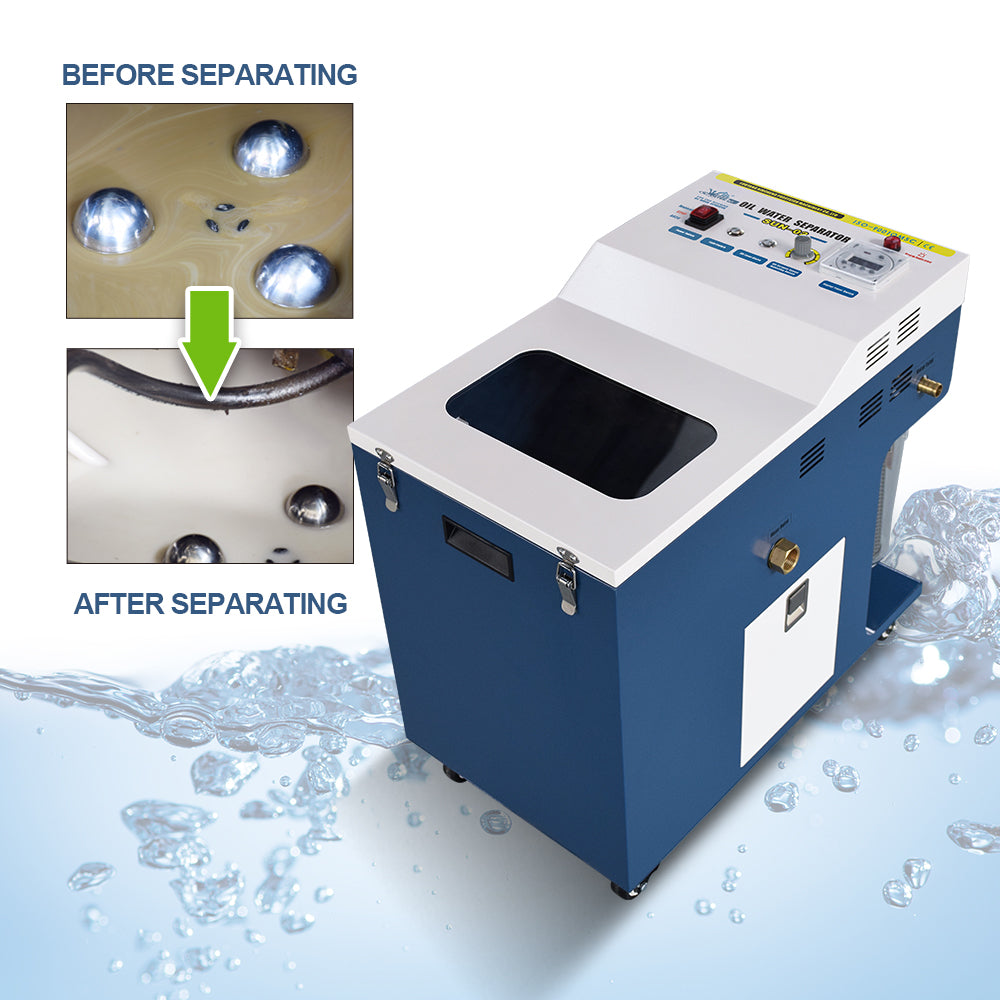

1. This product can separate the oil slick from the surface of cutting fluid in the machine tool water tank.

2. This product can also separate the oil slick from of other water, water-based cutting fluid and water-based liquids.

3. This products is not suitable for the liquids of grinding machine and wire cutting machine containing power, organic solutions and other corrosion liquids containing acid and alkali.
