SFX Pneumatic Dot Peen Marking Machine 80*40/120*50/150*80mm Metal Dot Peen Engraving Machine

SFX Pneumatic Dot Peen Marking Machine 80*40/120*50/150*80mm Metal Dot Peen Engraving Machine

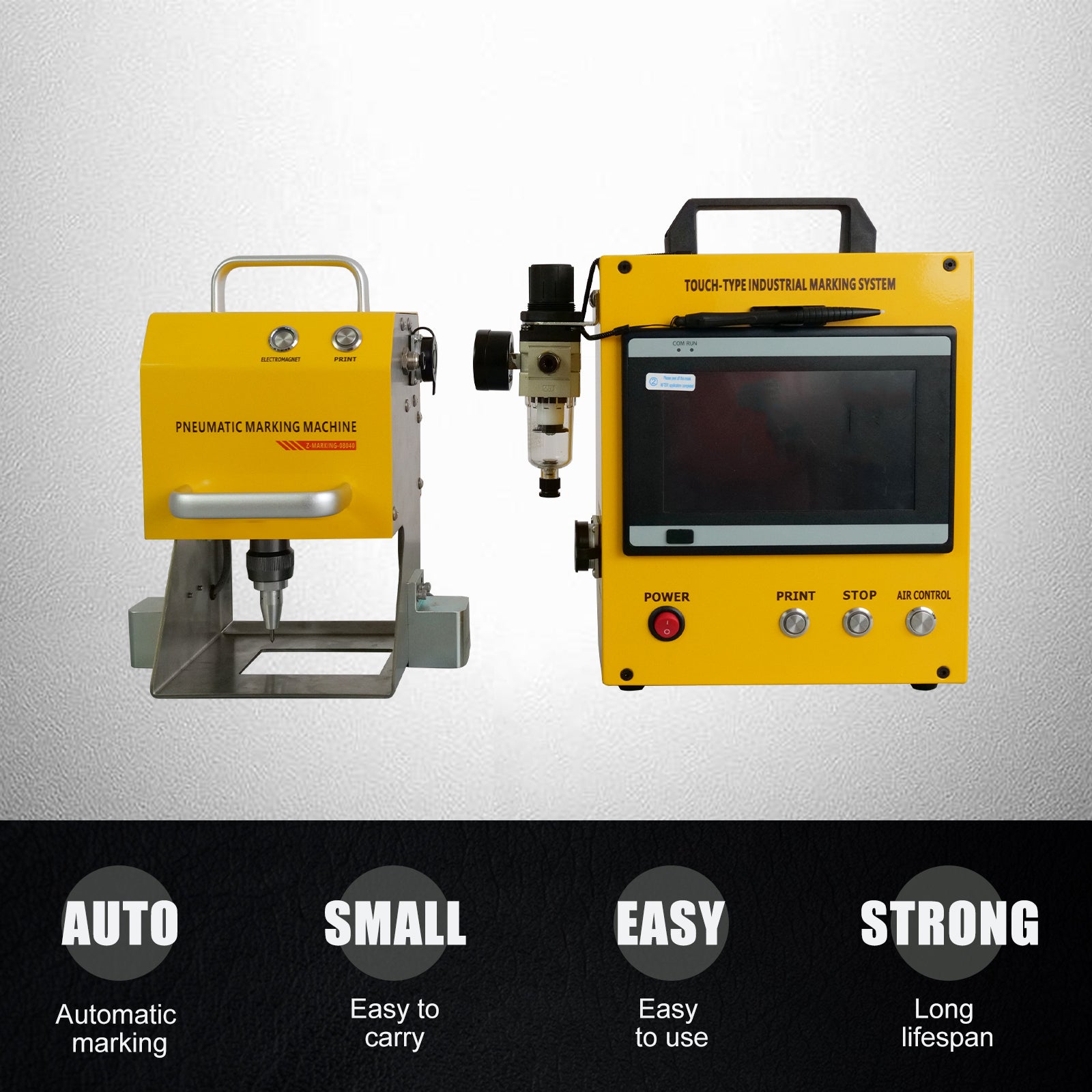

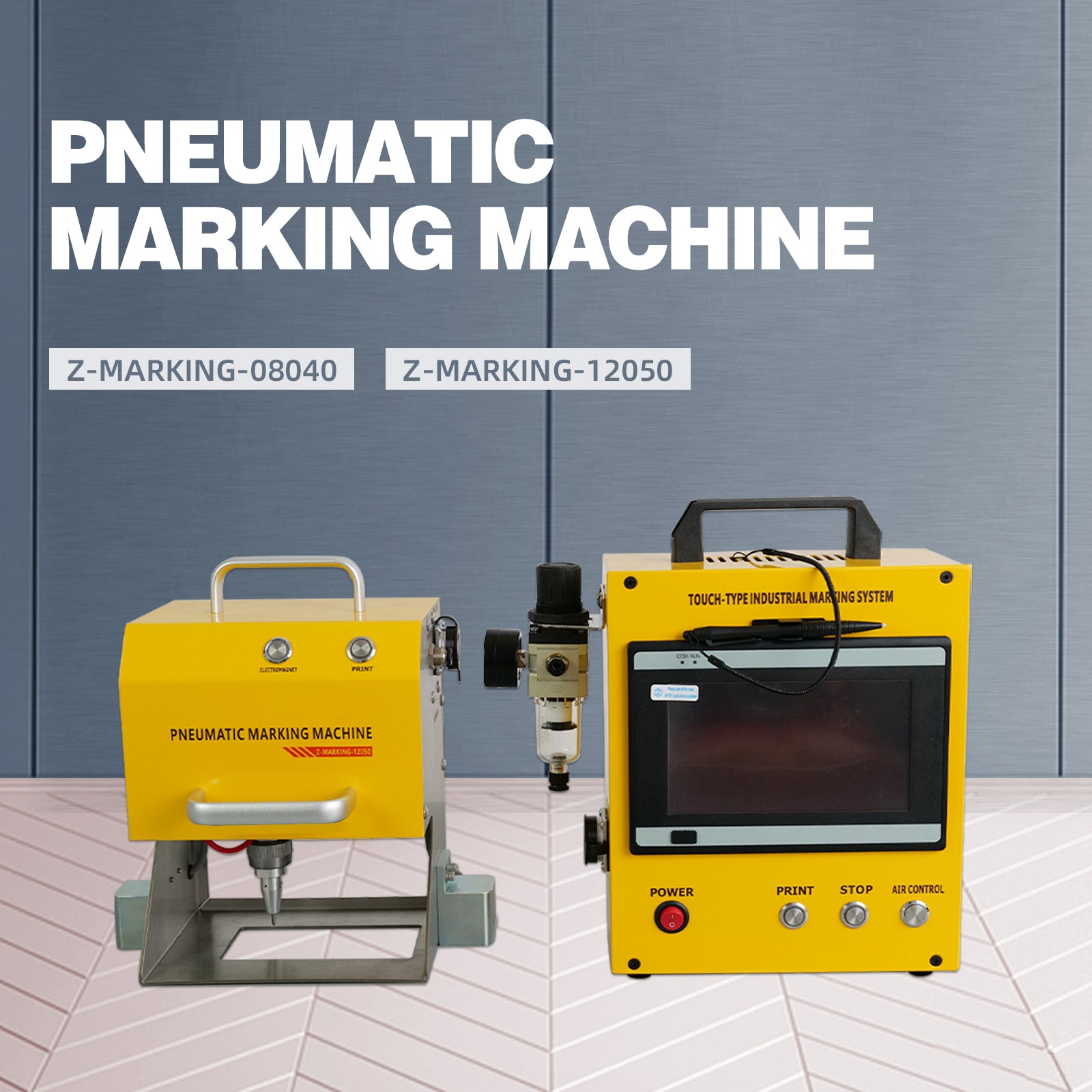

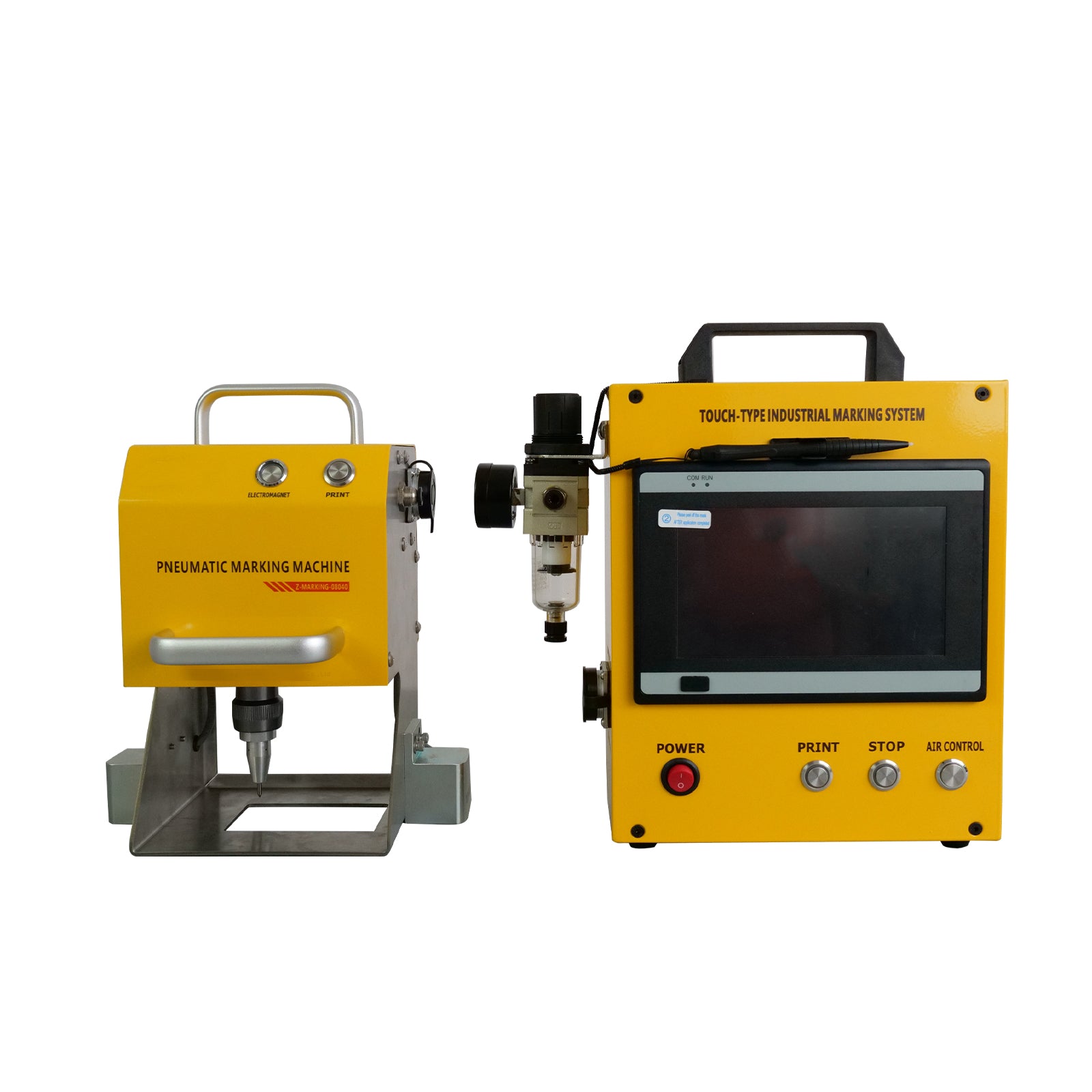

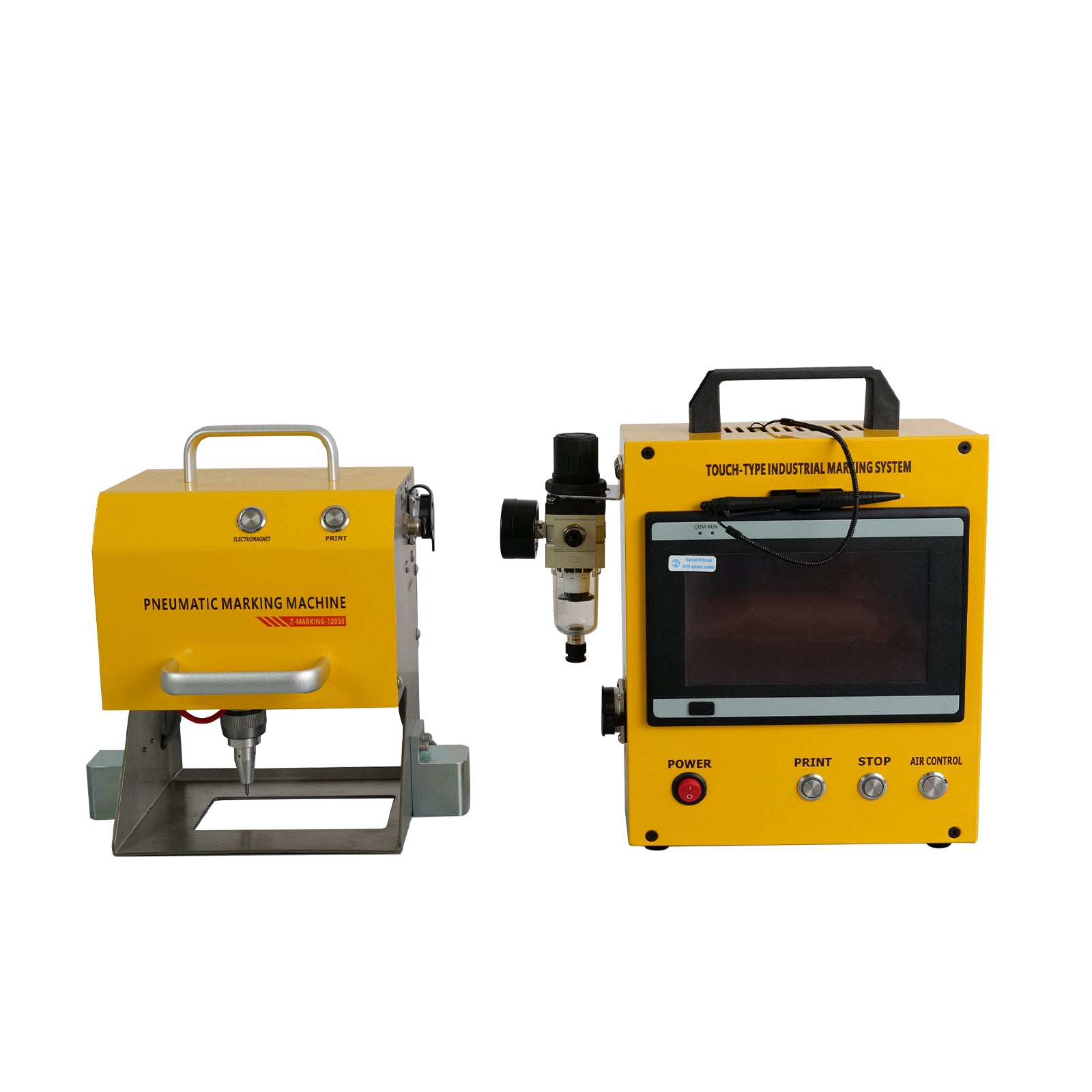

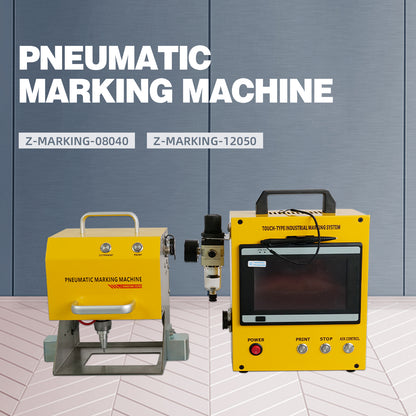

Pneumatic marking machine has three specifications, Z-MARKING-08040, Z-MARKING-12050, and ZS-MARKING-15080. Easy to operate, no computer required, comes with a 7-inch touch screen controller. Automatic marking, can mark fixed characters, serial numbers, VIN, date graphics, etc.

 Feature:

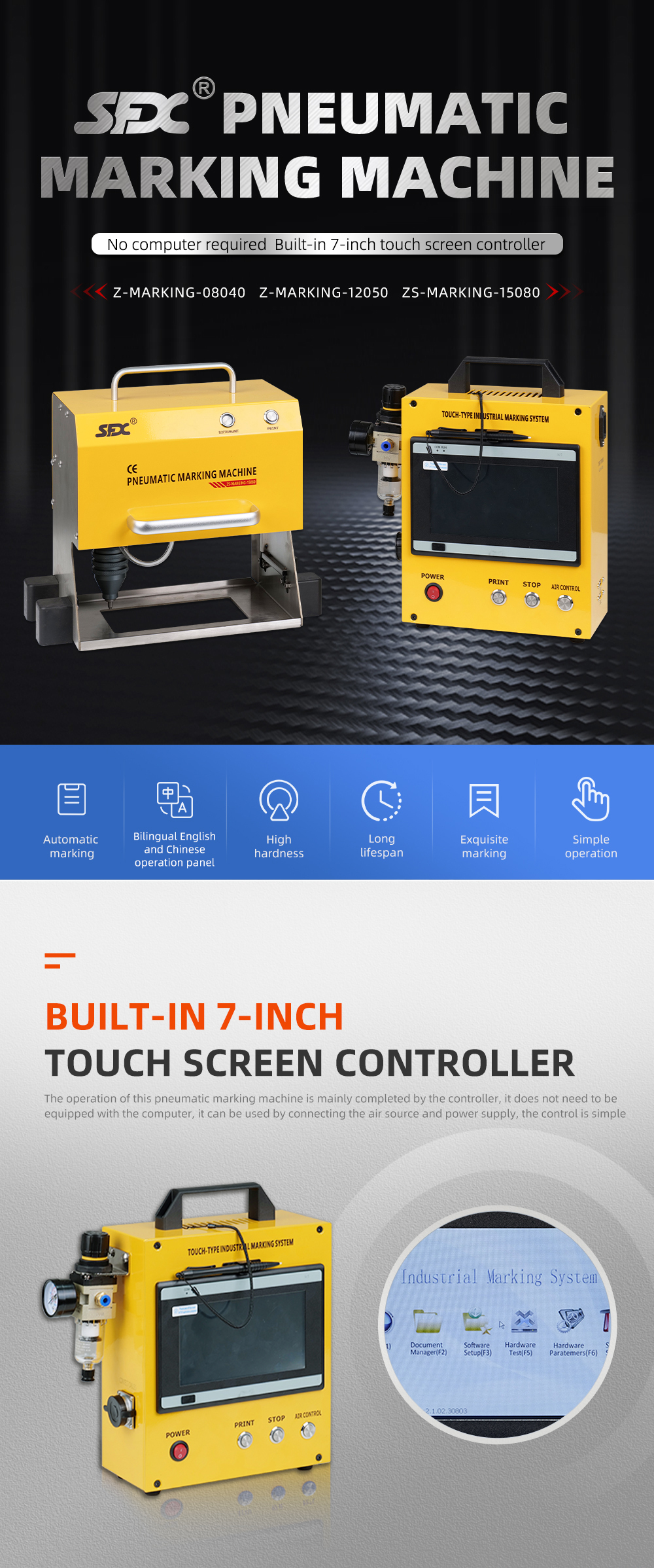

• Comes with 7-inch touch screen controller, easy to operate.
• No need for a computer, it can be used by connecting the pneumatic power supply, and the control is simple
• The machine head comes with a magnetic base, which can be firmly adsorbed on the surface of the magnetic workpiece without holding it, saving manpower and improving marking efficiency

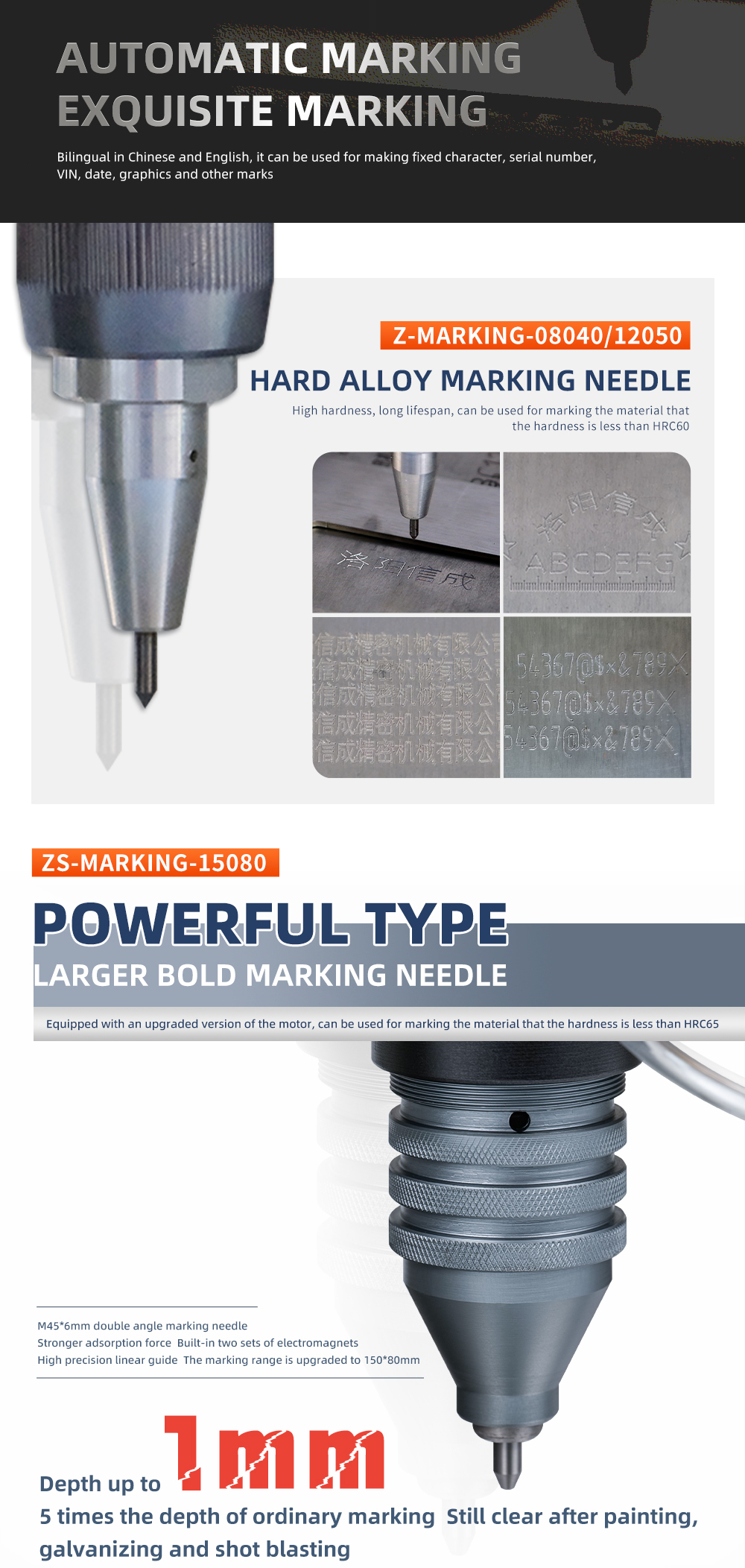

• Tungsten carbide standard needle, high hardness, long life, can be used for materials within HRC60
• Use shipbuilding, auto parts, rubber molds, high-end machine tools, tire molds, rails, environmental protection and other industries

Advantages:

• Automatic Engrave the Beautiful Marking-Can be Used for Marking Fixed Character, Serial Number, VIN, Date, Graphics and other Marks.
• High Hardness-Hard Alloy Marking Needle can be Used for Marking＜HRC60 Material
• Long Service life-Put Through Strict Quality Controls, Such As 40℃ High Temperature Tests Before Delivery
• Simple Operation-7" Touch Screen Controller can Adjust the Machine. No Need to be Equipped with the Computer. Only to Connect the Air Source.
• Visually Adjust the Air Flow to Adjust the Depth and Thickness of the Marking Content
• 7" Touch Screen Controller with Touch Pen Can Easily Preview the Effect and Track the Marking Footprint.

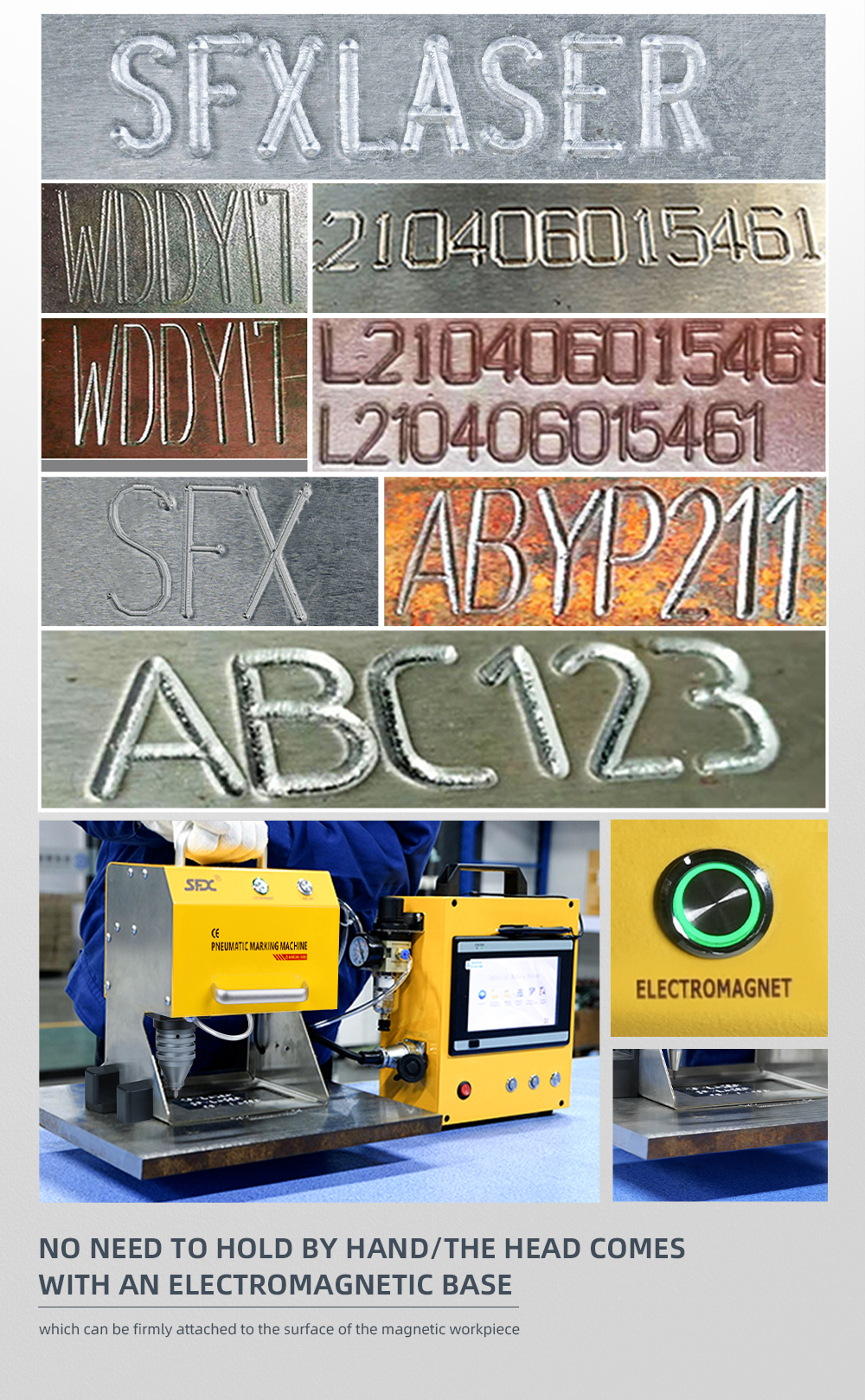

• Electric magnet Base Can Be Firmly Adsorb to the Metal Surface.Suitable for Large Machinery and Equipment.
• No processing direction restrictions, 360° can be marked.
• Portable models can be operated separately within 5M.
• The Intelligent Database with Automatic Memory Has Stored the Working Condition Parameter Settings, Which Can Be Used Directly After Modification.

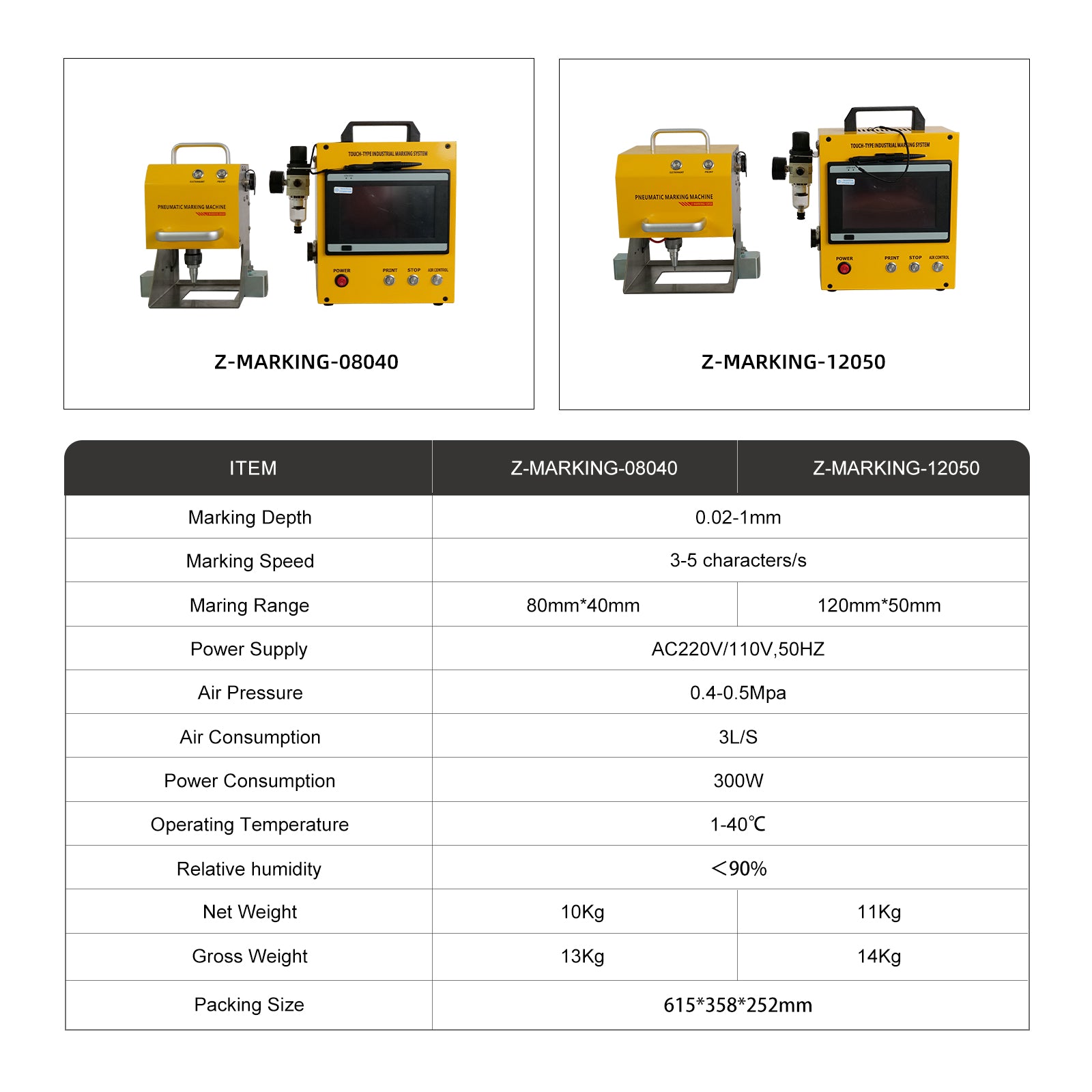

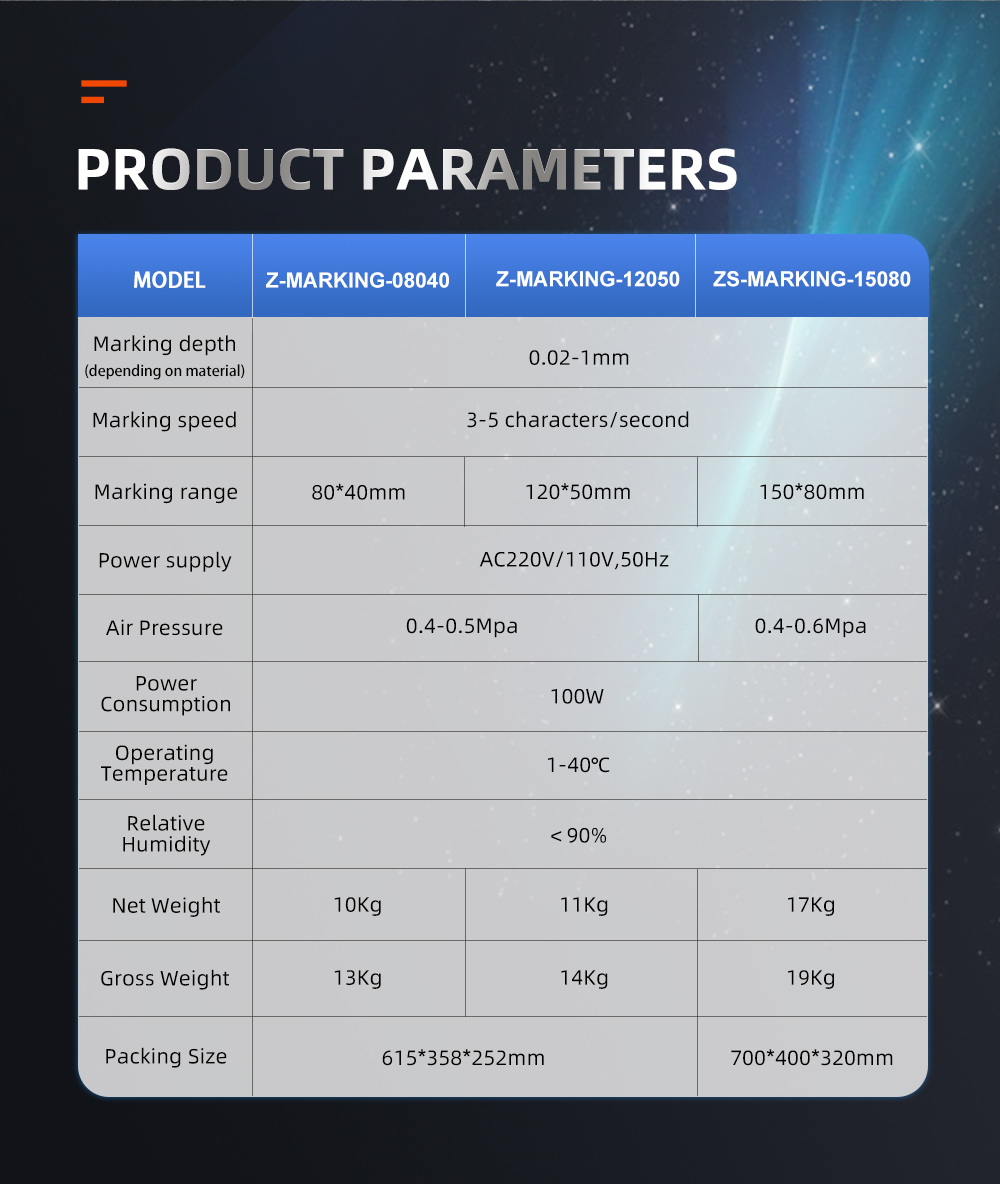

Parameters:

• Model:Z-Marking 12050 Z-Marking 08040 ZS-MARKING 15080
• Marking Depth:0.02-1mm
• Marking Speed:3-5 characters/second

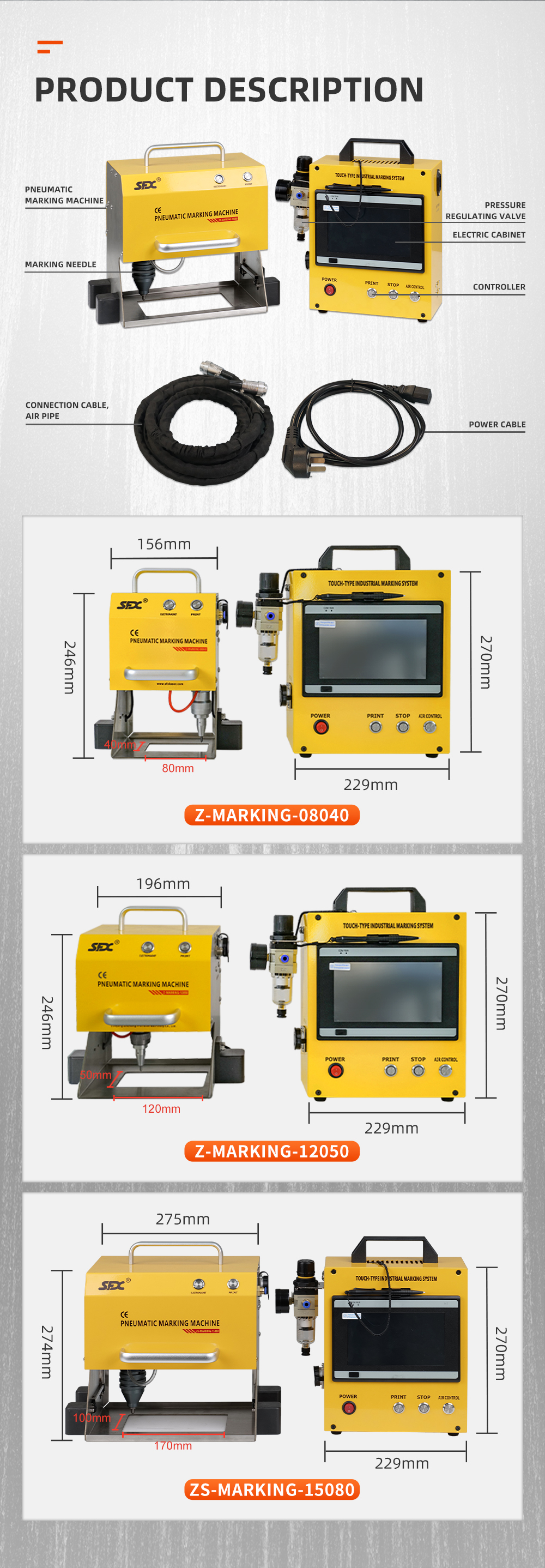

• Marking Range: 80*40mm for Z-Marking 08040 120*50mm for Z-Marking 12050 150*80mm for Z-Marking 15080
• Power Supply:AC220V/110V.50HZ
• Air Pressure:0.4-0.5mpa for Z-Marking 08040 and Z-Marking 12050,0.4-0.6mpa for ZS-Marking 15080
• Power Consumption:100W
• Operating Temperature:1-40℃
• Relativy Humidity:＜90%
• Net Weight 10kg for Z-Marking 08040,11kg for Z-Marking 12050,17KG for ZS-Marking 15080
• Gross Weight:13kg for Z-Marking 08040,14kg for Z-Marking 12050,19kg for ZS-Marking 15080
• Packing size:615*358*252mm for Z-Marking 08040 and Z-Marking 12050,700*400*320mm for ZS-Marking 15080

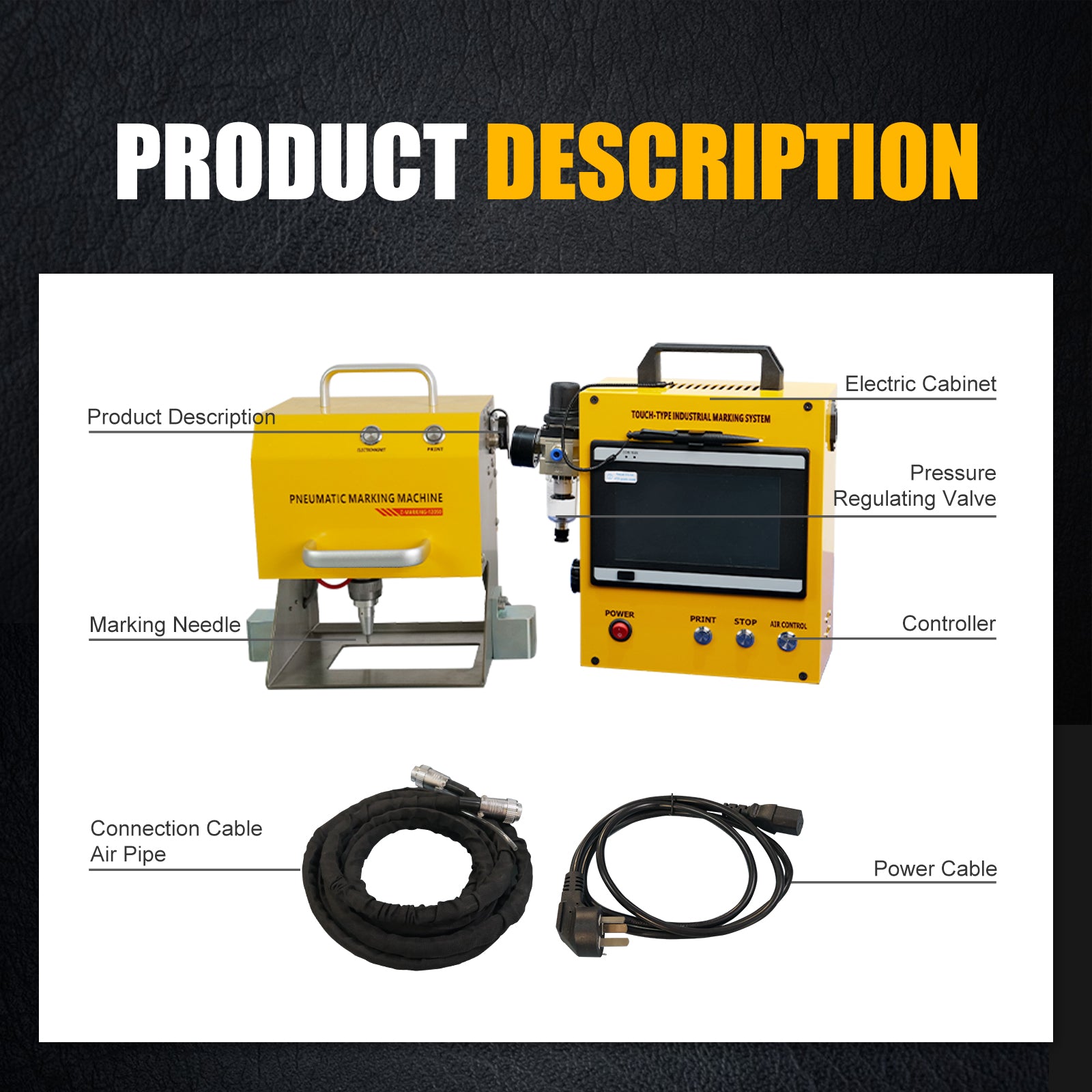

Packing List:

• Pneumatic Marking Machine 1pc
• Marking Needle
• Connection Cable
• Power Cable
• Pressure Regulating Valve
• Electric Cabinet
• Controller
