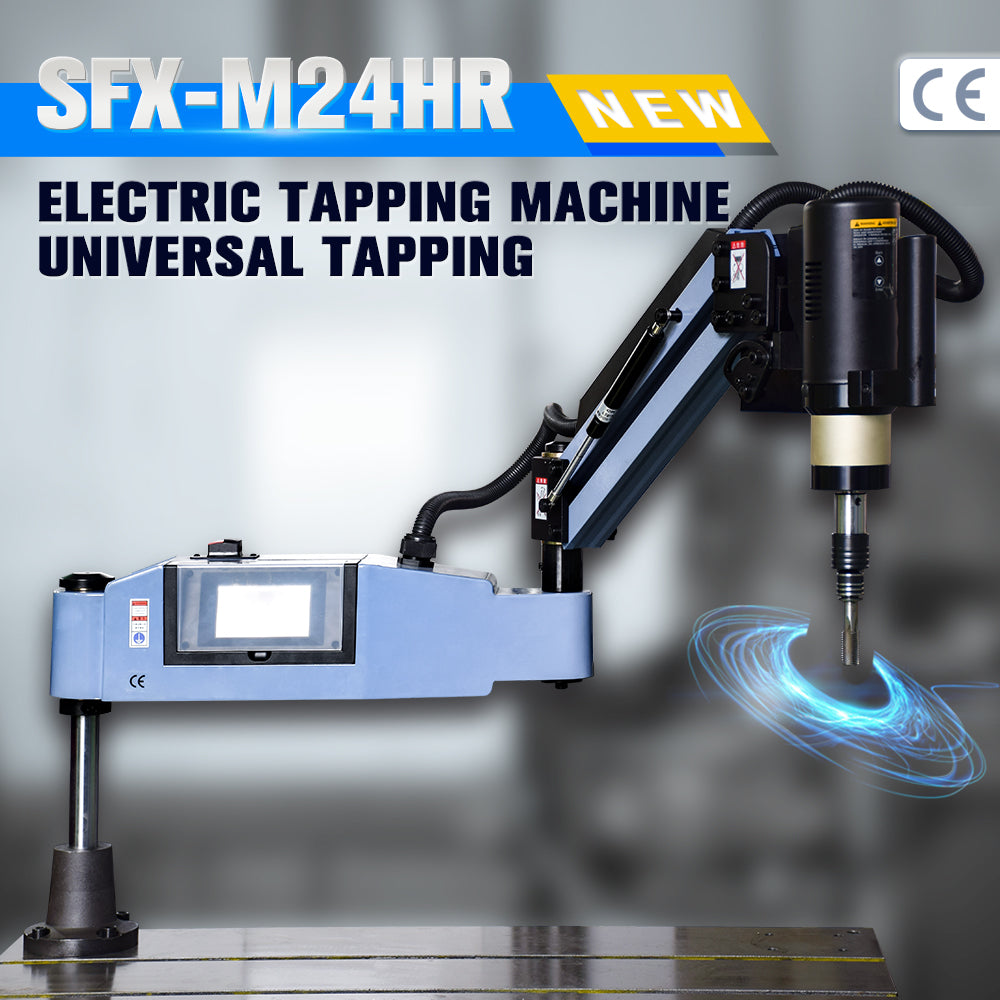

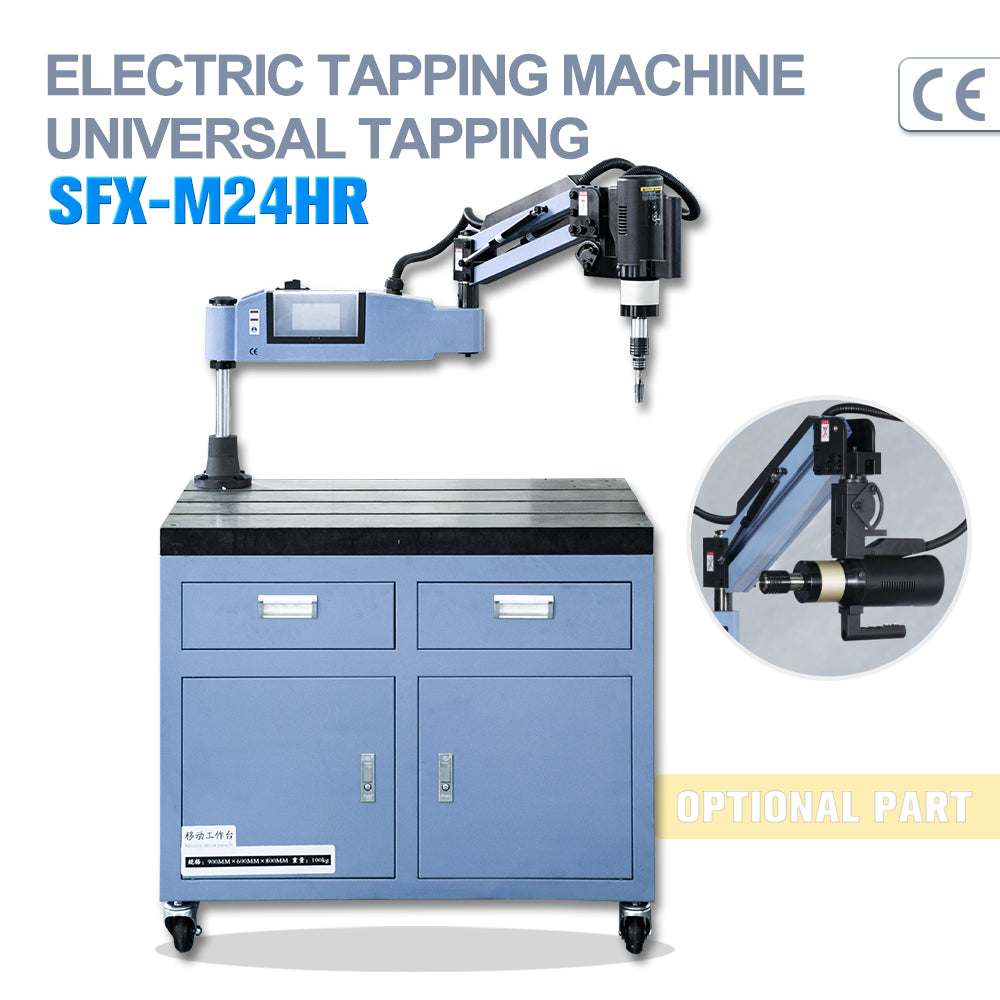

SFX M4-M20 Tap Collets 1180mm Arm 360° Universal Tapping Machine Electric Tapper

SFX M4-M20 Tap Collets 1180mm Arm 360° Universal Tapping Machine Electric Tapper

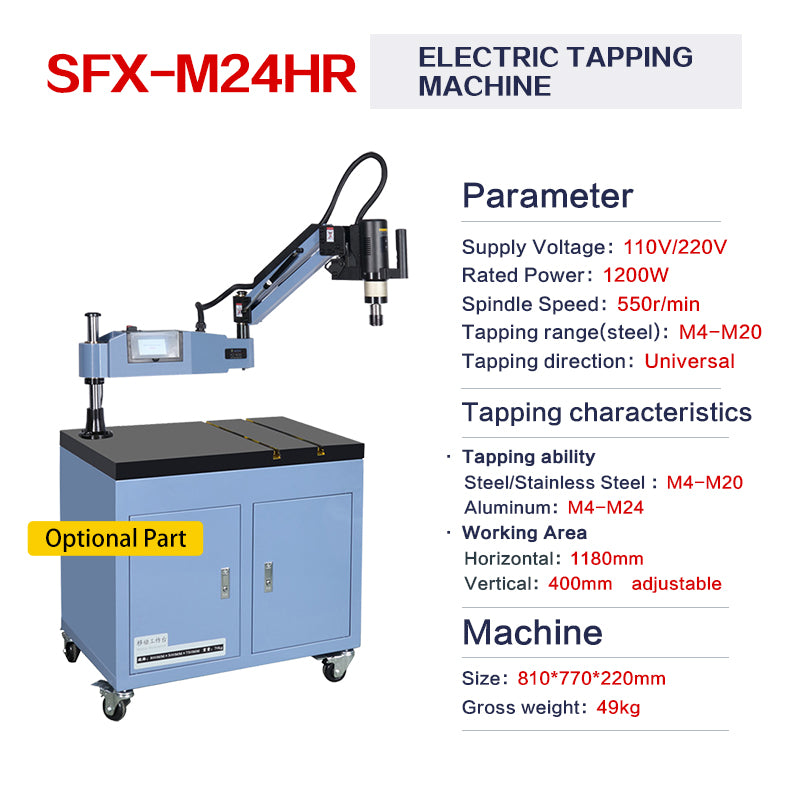

Specification:

Model: SFX-M24HR

Tapping range: M4-M20 for stainless steel and steel, M4-M24 for aluminum

Tapping direction: Universal

Spindle speed: 550RPM

Working area: 1180mm for horizontal direction, 400mm for vertical direction (Adjustable)

Applicable material: aluminum, copper, A3 steel, 45steel, cast iron, Q235, S136, mold steel, 718H, 40Cr, stainless steel and other metal materials, wooden, plastic etc.
Applicable materials: aluminum, copper, A3 steel, 45 steel, cast iron, pig iron, Q235, S136, mold steel, 718H, 40Cr, stainless steel and other metal materials.

Standard Accessories:

Tapping Arm 1 set

Servo Motor And Reducer 1set

ANSI Tap Holder 1 set (8,5/32", 10,3/16", 14,1/4", 5/16", 3/8", 1/2", 9/16", 5/8", 11/16", 13/16")

Universal Joint (Tapping for a Vertical/Horizontal)

Please note: If you need ISO, JIS or DIN Chuck, please contact us. The working table is not included.

Warranty:

1 year. We would repair the machine for free if there is any technical problems caused, man-made errors are not included.
