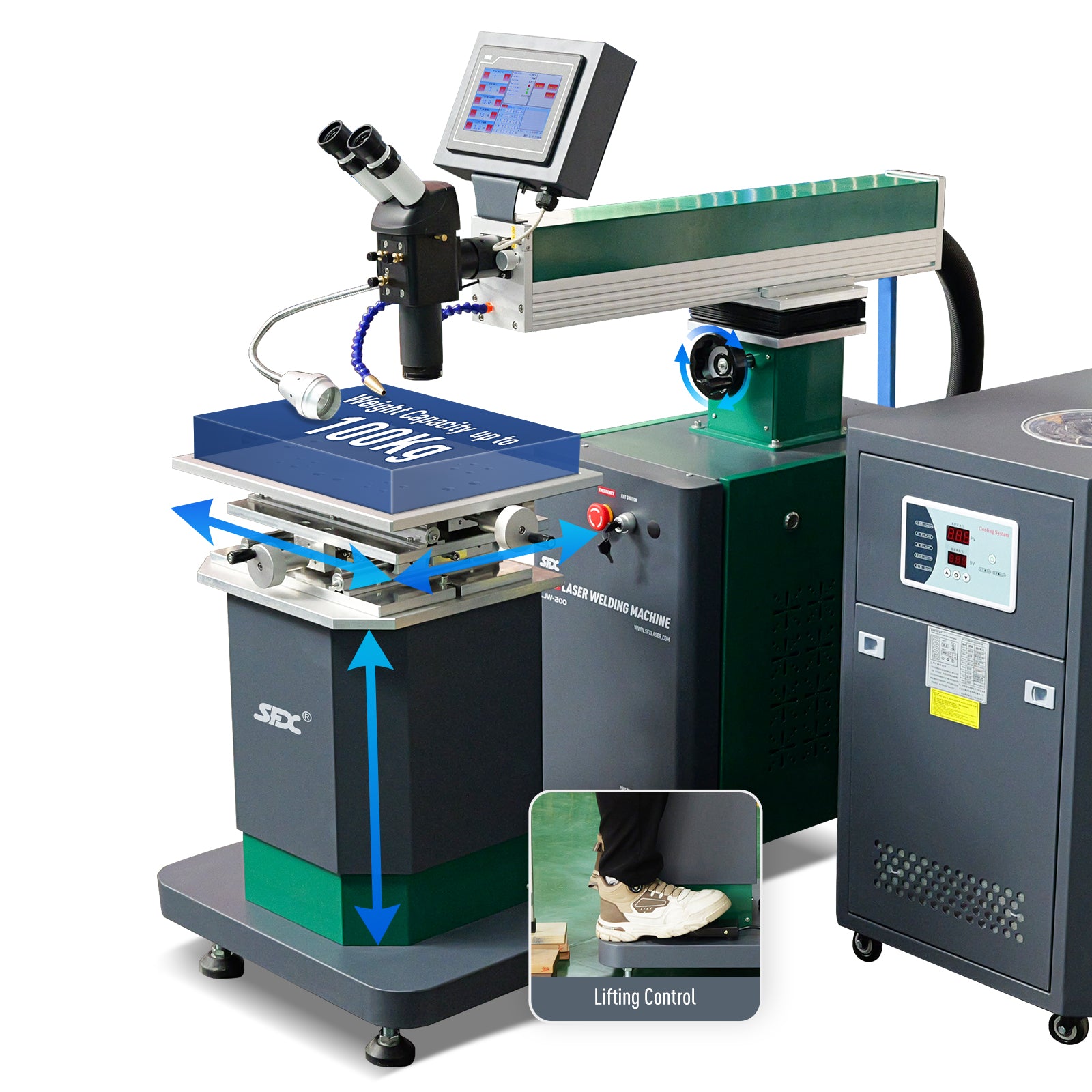

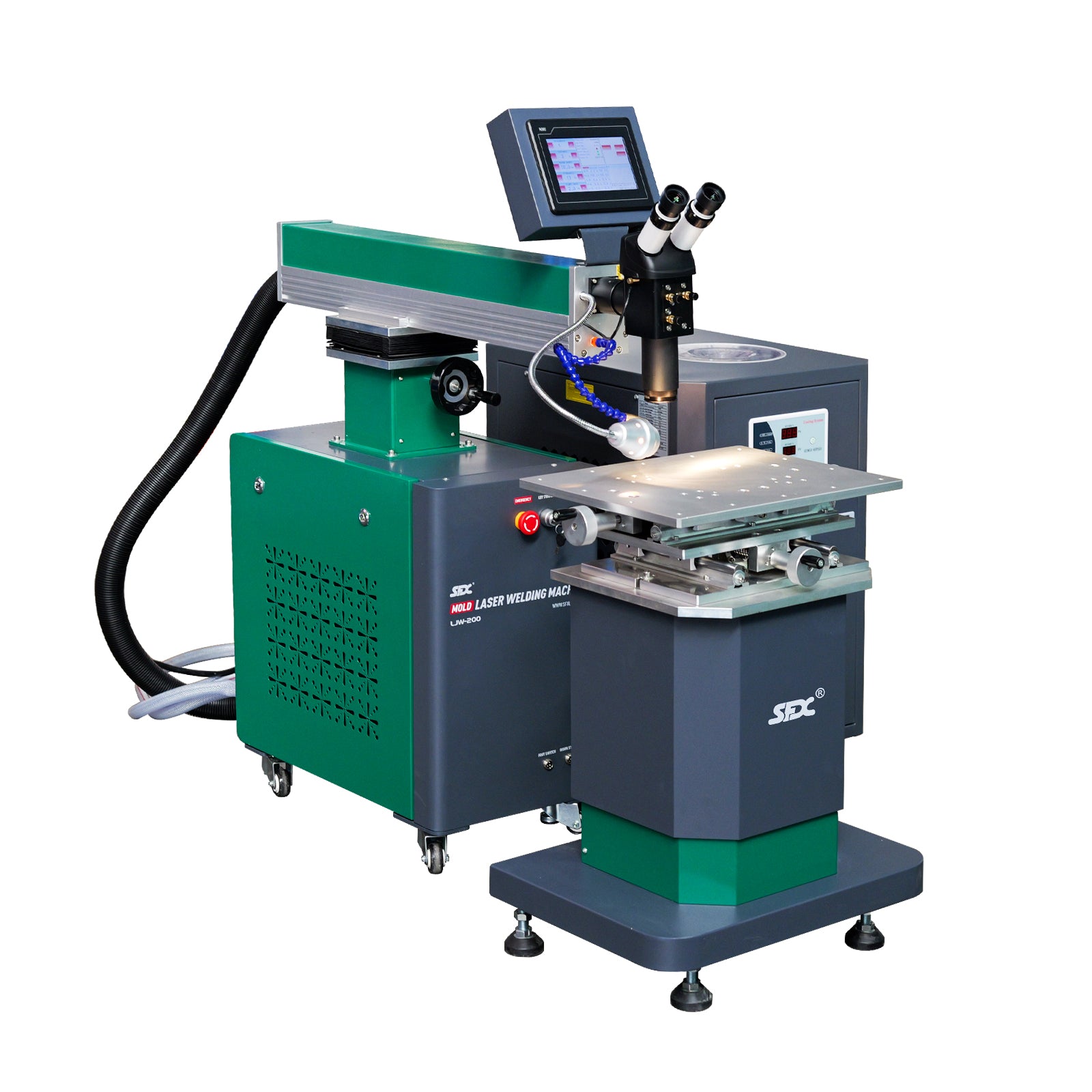

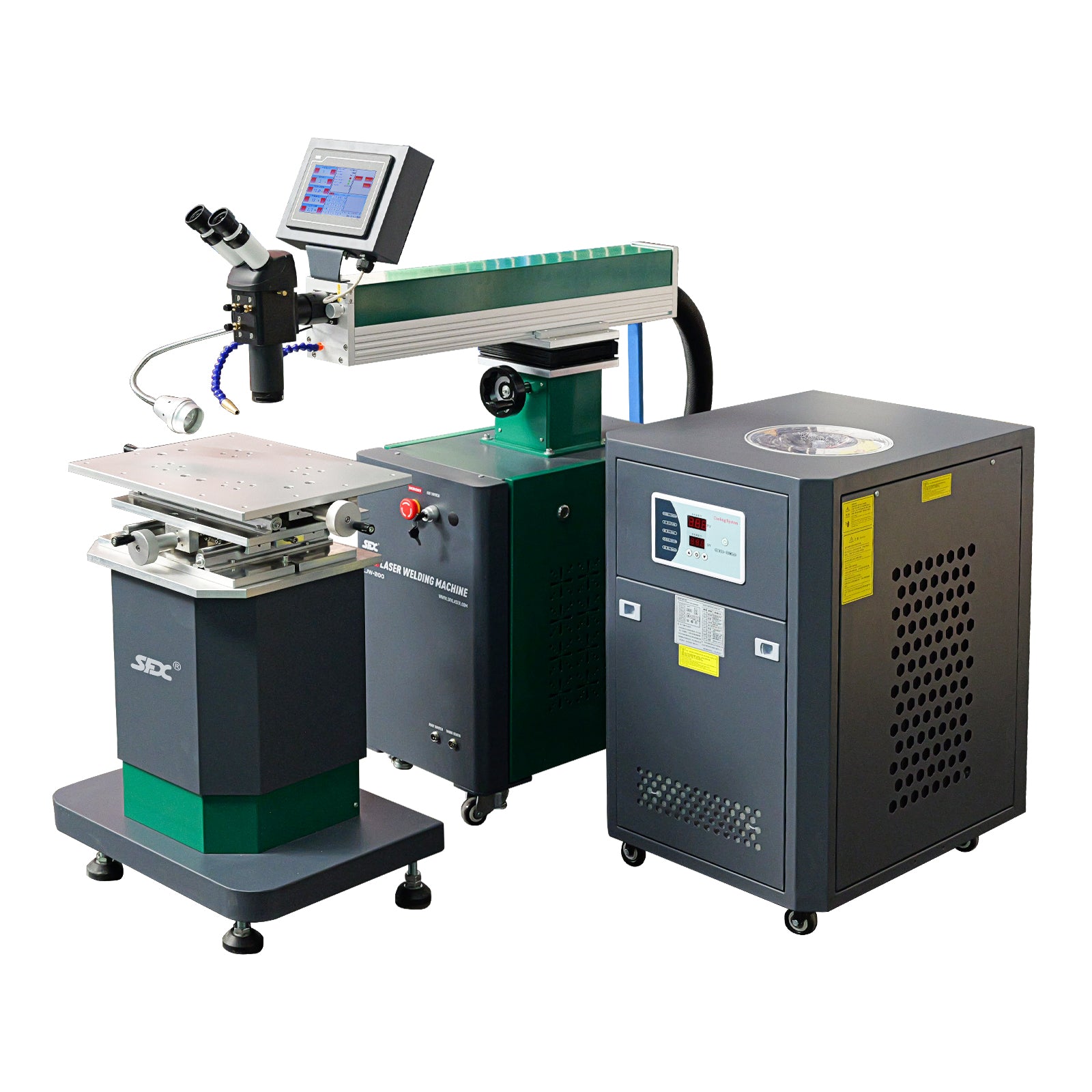

SFX LJW-200/400 Mold Laser Welding Machine Precision Mold Repair with Minimal Deformation

The LJW-200/400 Mold Laser Welding Machine is the ultimate solution for high-precision mold repair and metal welding. Whether you're dealing with porosity, edge breakage, or overcut processing, this machine ensures quick, strong, and precise welding results. Designed with advanced features like an imported ceramic focusing cavity, a high-speed optical filter, and a user-friendly interface, it allows for minimal deformation and an aesthetic finish. With 15 preset parameters, users can easily adjust settings and achieve consistent results with ease.

This machine’s high-energy laser power (200W for LJW-200, 400W for LJW-400) combined with its cutting-edge technology ensures that even complex repairs are completed with high accuracy. Perfect for precision injection molds, die-casting molds, and various metal structural components, the LJW-200/400 is ideal for anyone in need of a reliable, easy-to-operate welding solution.

Key Features:

Powerful Laser Technology: The LJW-200/400 is equipped with a high-power laser source that provides reliable welding for precision repairs, making it perfect for a wide variety of applications.

Reduced Deformation: Its minimal heat-affected zone ensures that your workpieces remain intact without warping, even when dealing with complex and delicate materials.

Long-Lasting Performance: Featuring an imported ceramic focusing cavity, this machine is designed to withstand high temperatures and corrosion, ensuring a long lifespan.

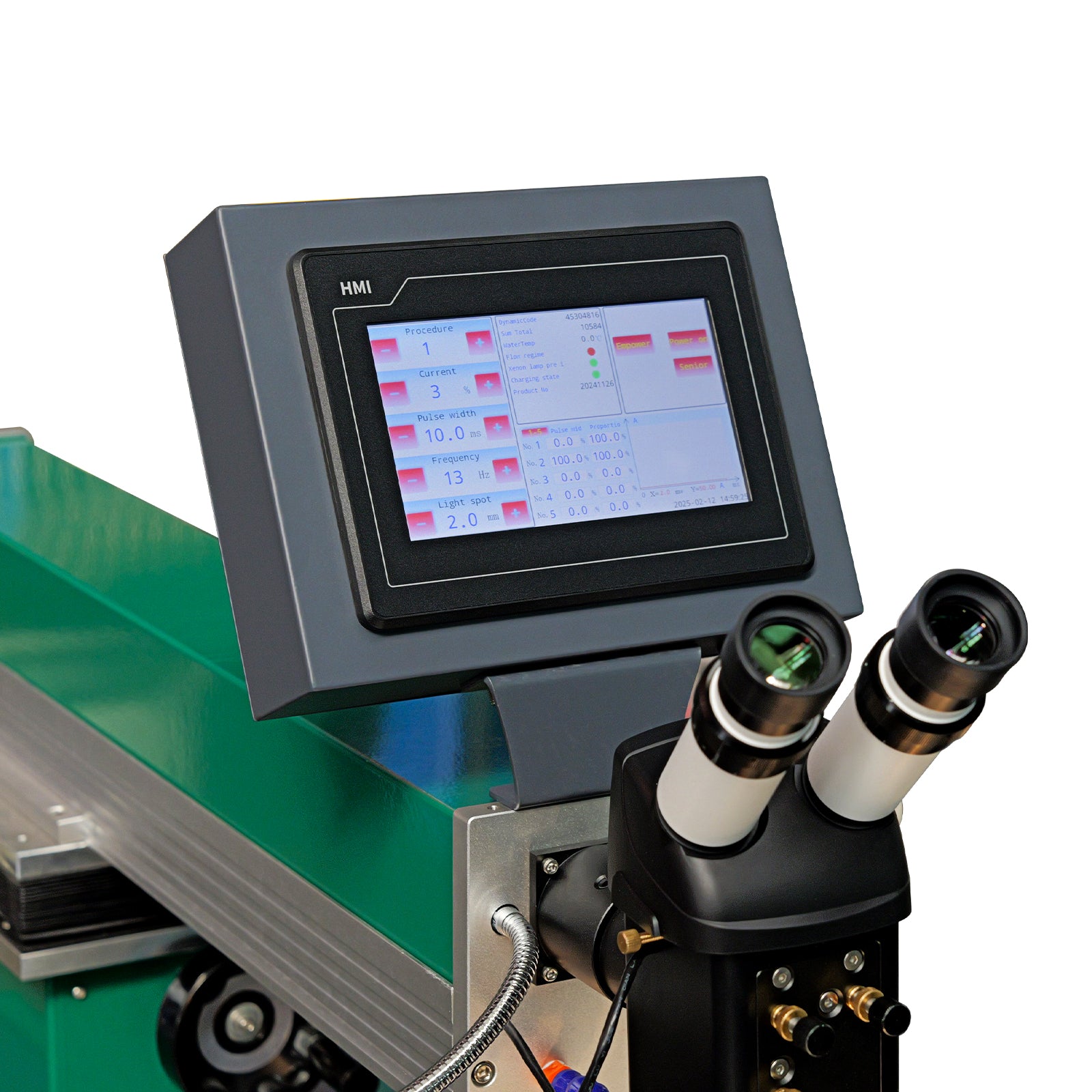

Ease of Use: With 15 preset parameters and a simple one-click recall function, this laser welding machine is easy to operate, even for those new to mold repairs.

Versatile Applications: Suitable for welding and repairing a wide range of molds and metal parts, including casting and machined components, it’s an essential tool for professional repair shops and manufacturers.

Parameters:

Model LJW-200/LJW-400

Laser Wavelength,1064nm

Focusing Cavity Reflector,Ceramic

Maximum Laser Power,200w for LJW-200,400W for LJW-400

Crystal Rod 7*145mm Yellow Rod for LJW-200,8*165mm Yellow Rod for LJW-400

Pulse Width,1-20ms

Laser Frequency,1-20Hz

Spot Adjustment Range,0.3-2mm

Aiming & Positioning,Crosshair

Chiller Cooling Power,1.5P for LJW-200,3P for JJW-200

Total Power Consumption,7kw for LJW-200,14kw for LJW-400

Power Requirement,220V±5%/ 50Hz for LJW-200,380V±5% / 50Hz for LJW-400

Welding Wire Diameter,0.2-0.5mm for LJW-200,0.2-0.8mm for LJW-400

Main Unit Dimensions,1040*340*980mm

Main Unit Weight,66kg

Worktable Dimensions,550*400*740mm

Worktable Weight,58kg

Worktable Stroke,125*100*150mm

Chiller Dimensions,580*450*800mm for LJW-200,630*590*1160mm for LJW-400

Chiller Weight,75kg for LJW-200,135kg for LJW-400

Packaging Dimensions,1250*750*1050mm for LJW-200,1220*1002*1380mm for LJW-400

Total Weight,240kg for LJW-200,322kg for LJW-400
