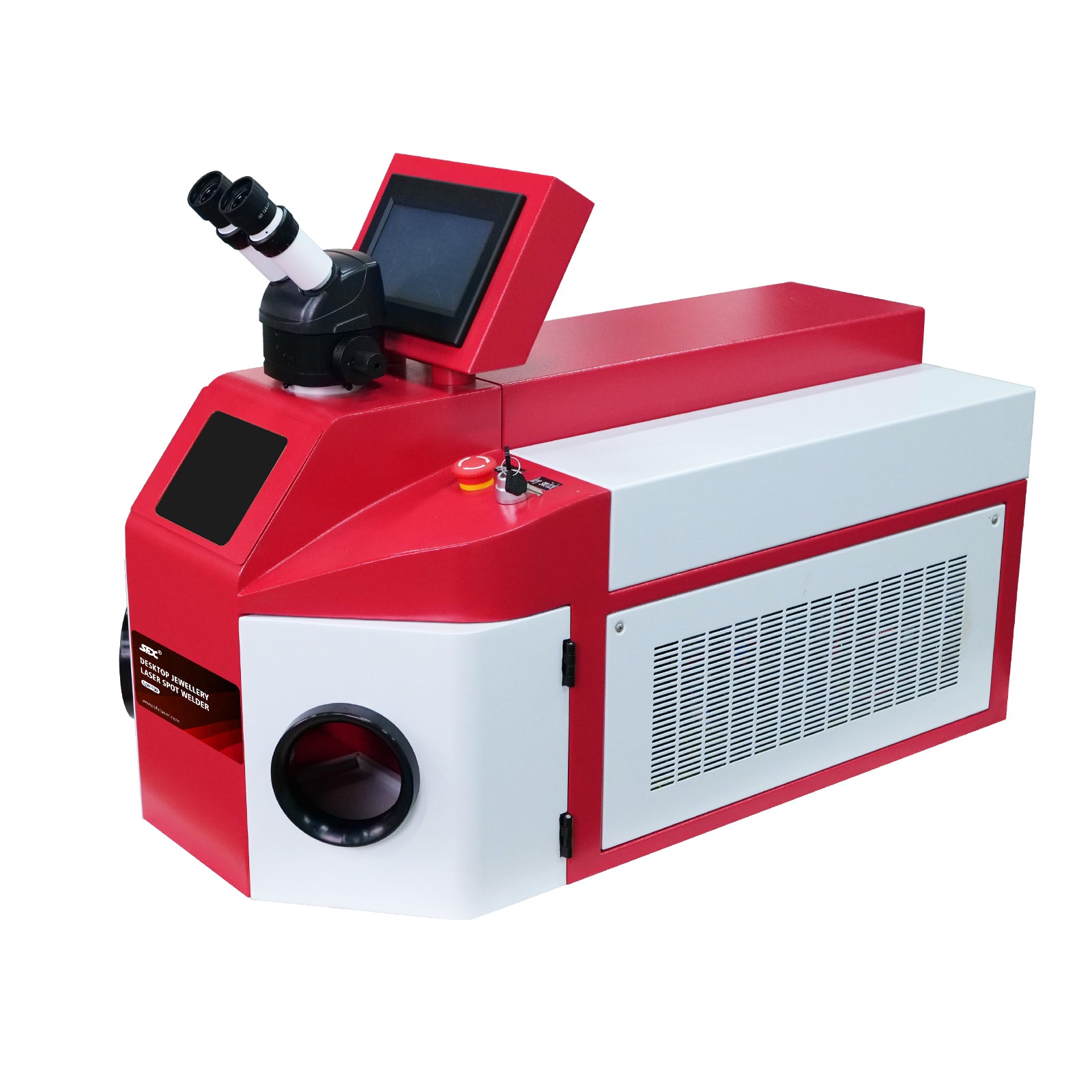

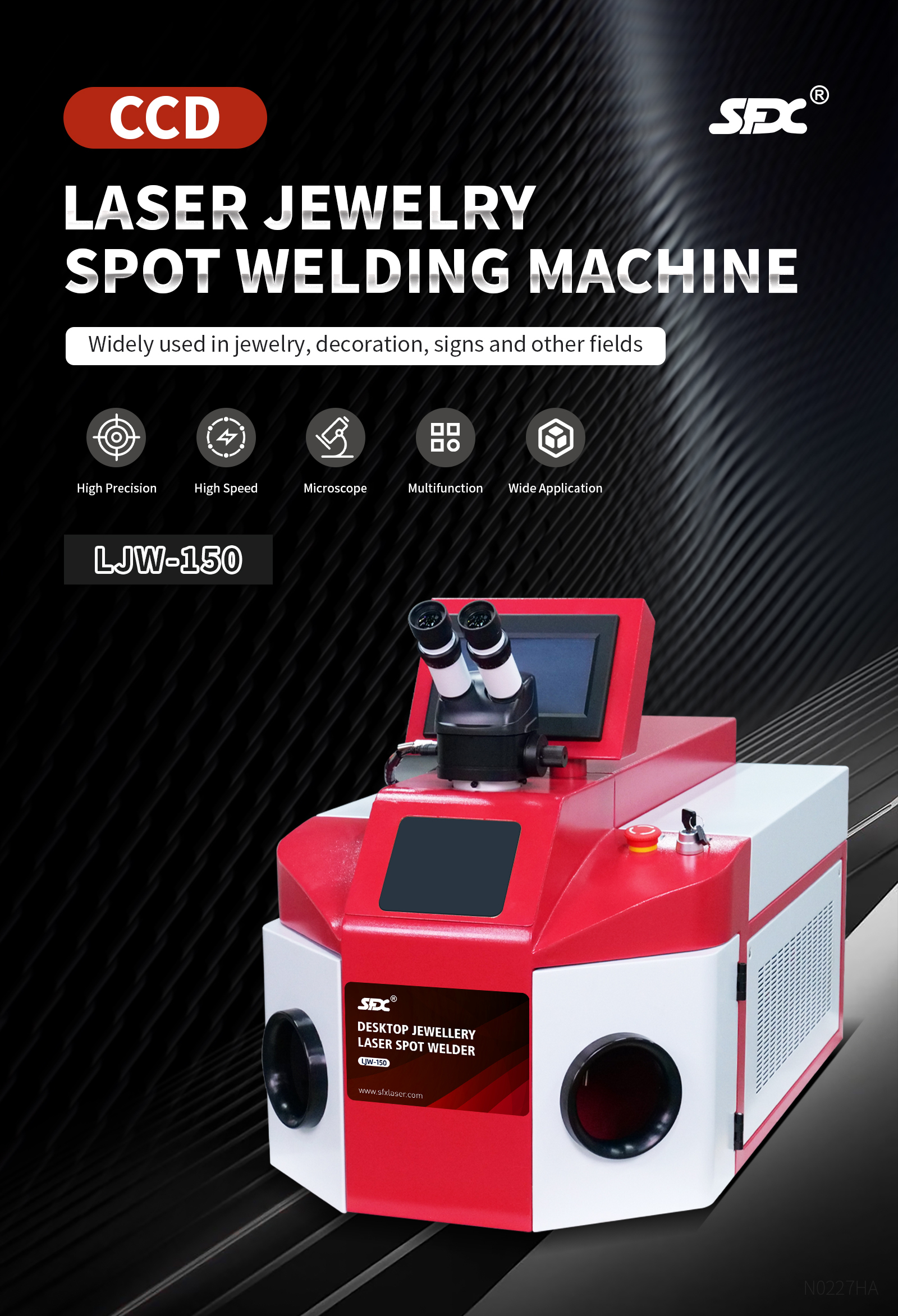

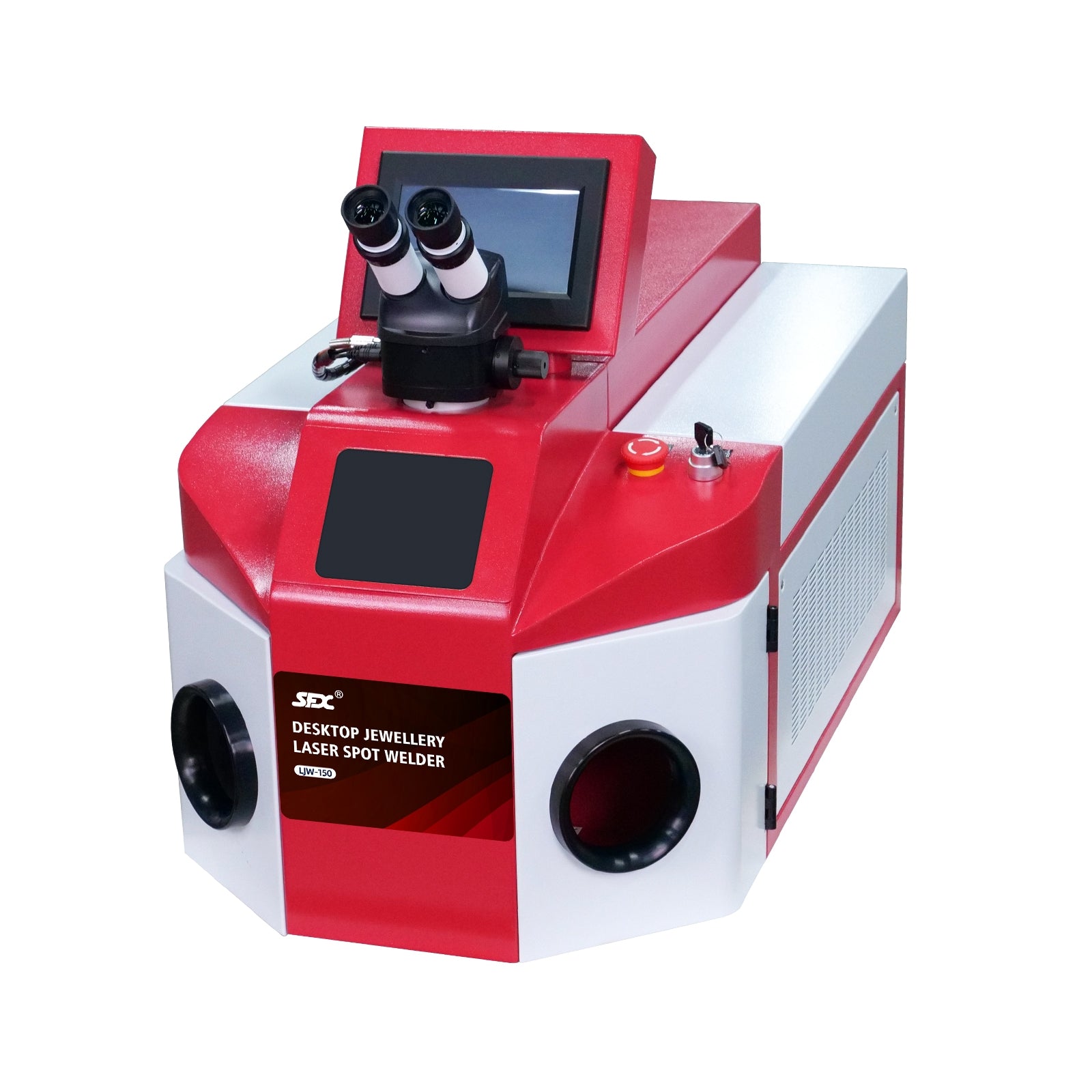

SFX LJW-150 Laser Welder Jewelry Spot Welding Machine with CCD Function

Feature:

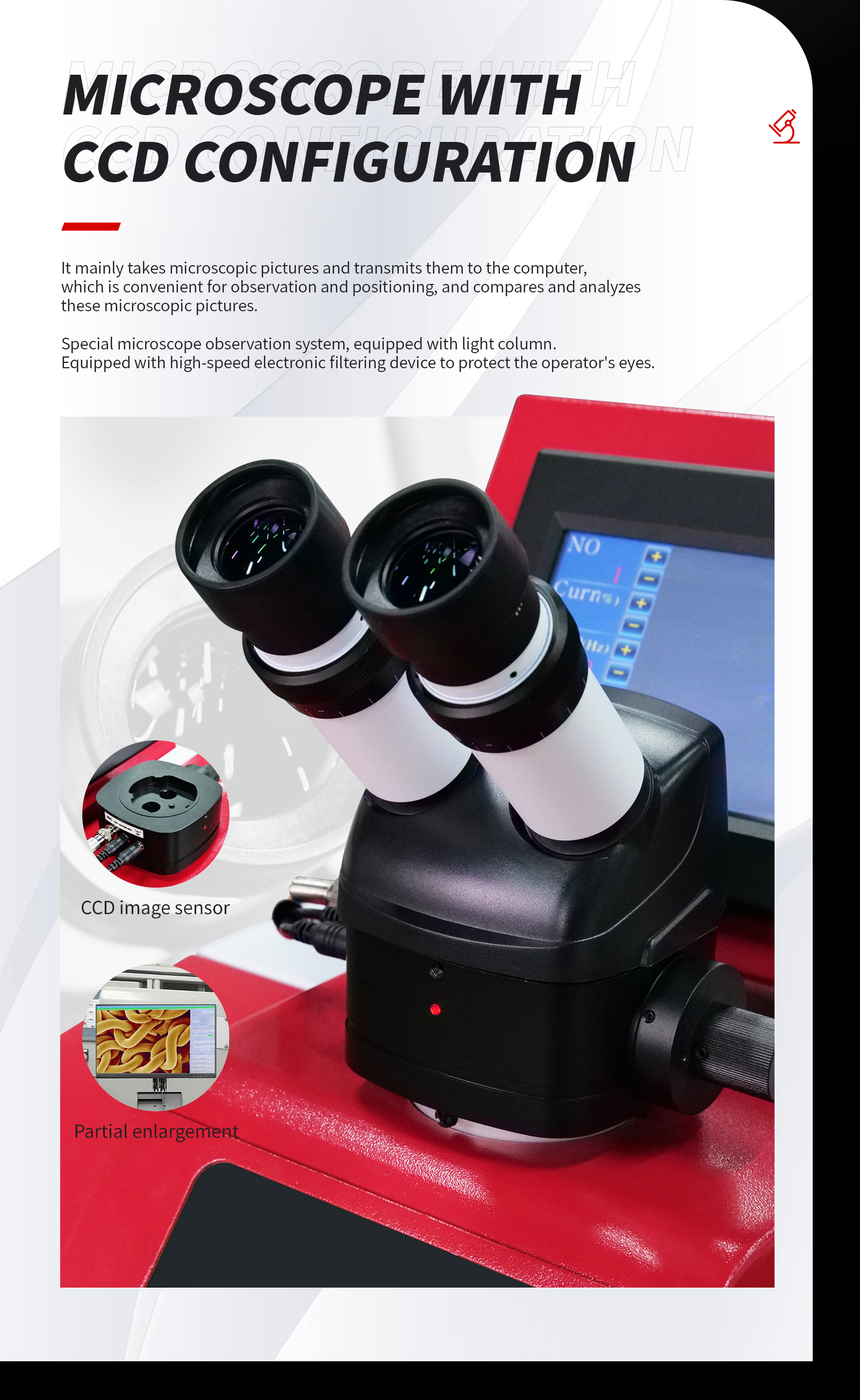

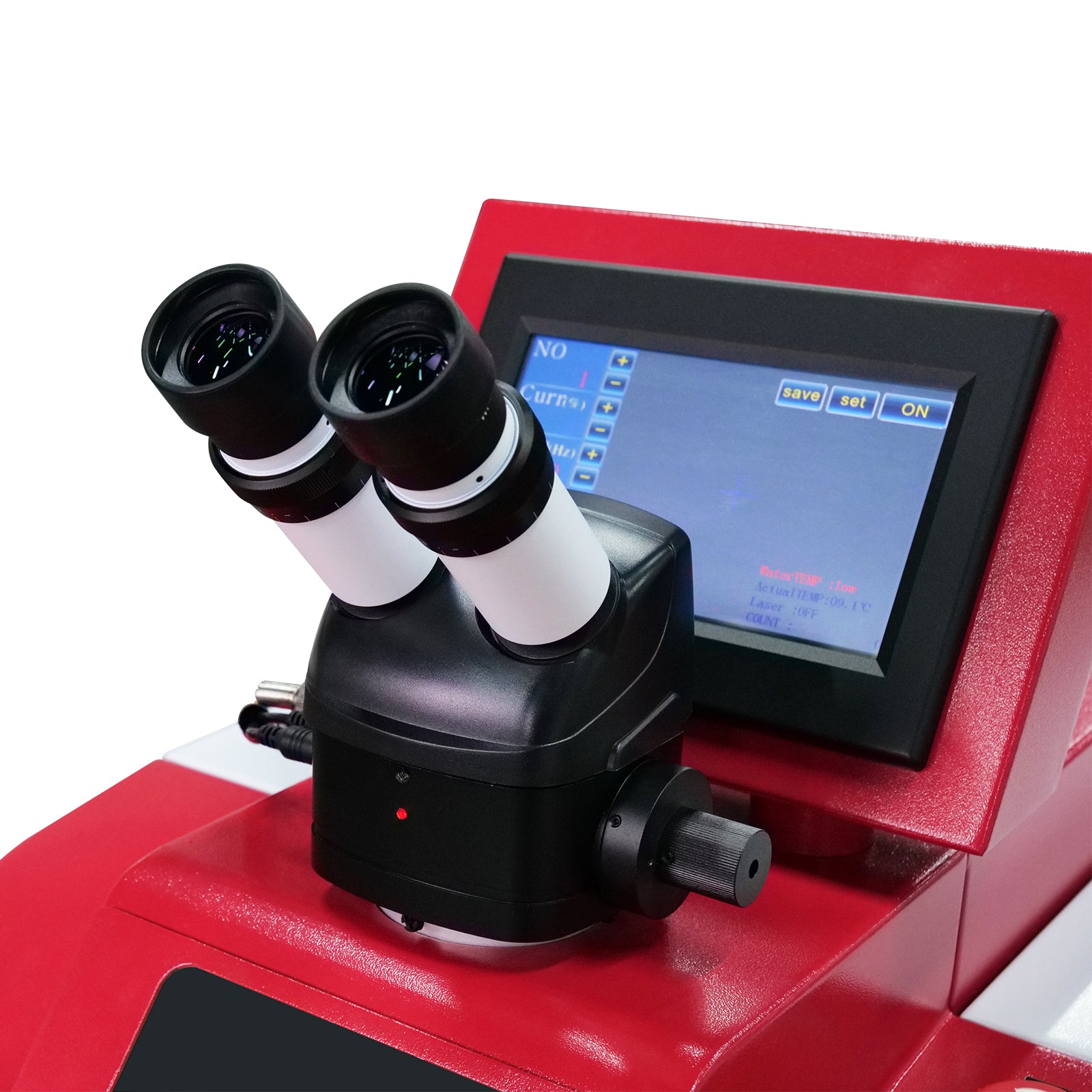

• Microscope with CCD configuration: It mainly takes microscopic pictures and transmits them to the computer, which is convenient for observation and positioning, and compares and analyzes these microscopic pictures.
• CCD can help to view the actual welding scene on the screen, which can save your eyes to stare via the lens barrel always and can free your body, you can adjust your sitting gesture, do not need always be fixed by holding hand on the welding and stare the lens simultaneously.
• Special microscope observation system, equipped with light column. Equipped with high-speed electronic filtering device to protect the operator’s eyes.

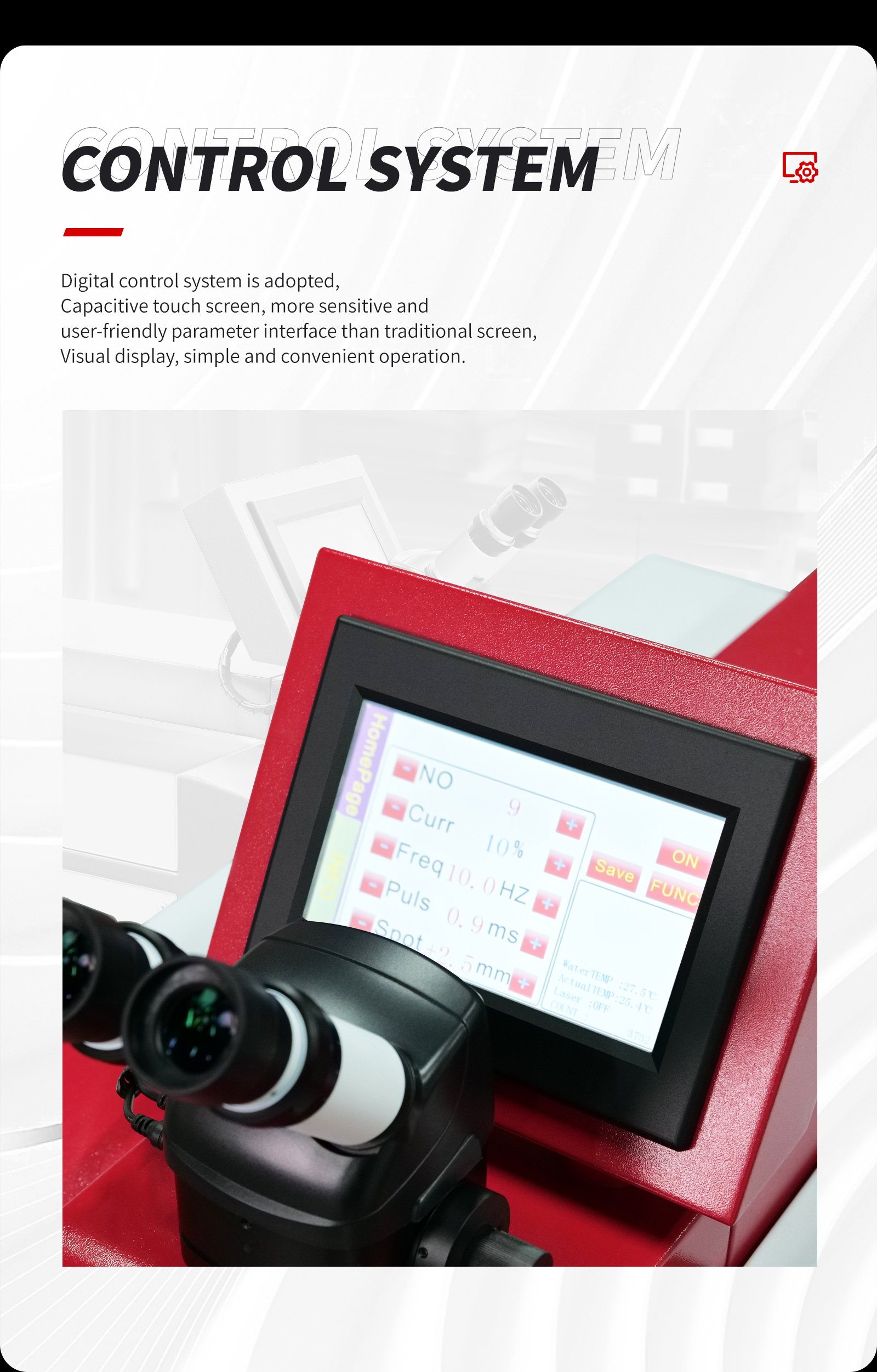

• Control System: Digital control system is adopted, capacity touch screen, more sensitive and user-friendly parameter interface than traditional screen, visual display, simple and convenient operation.

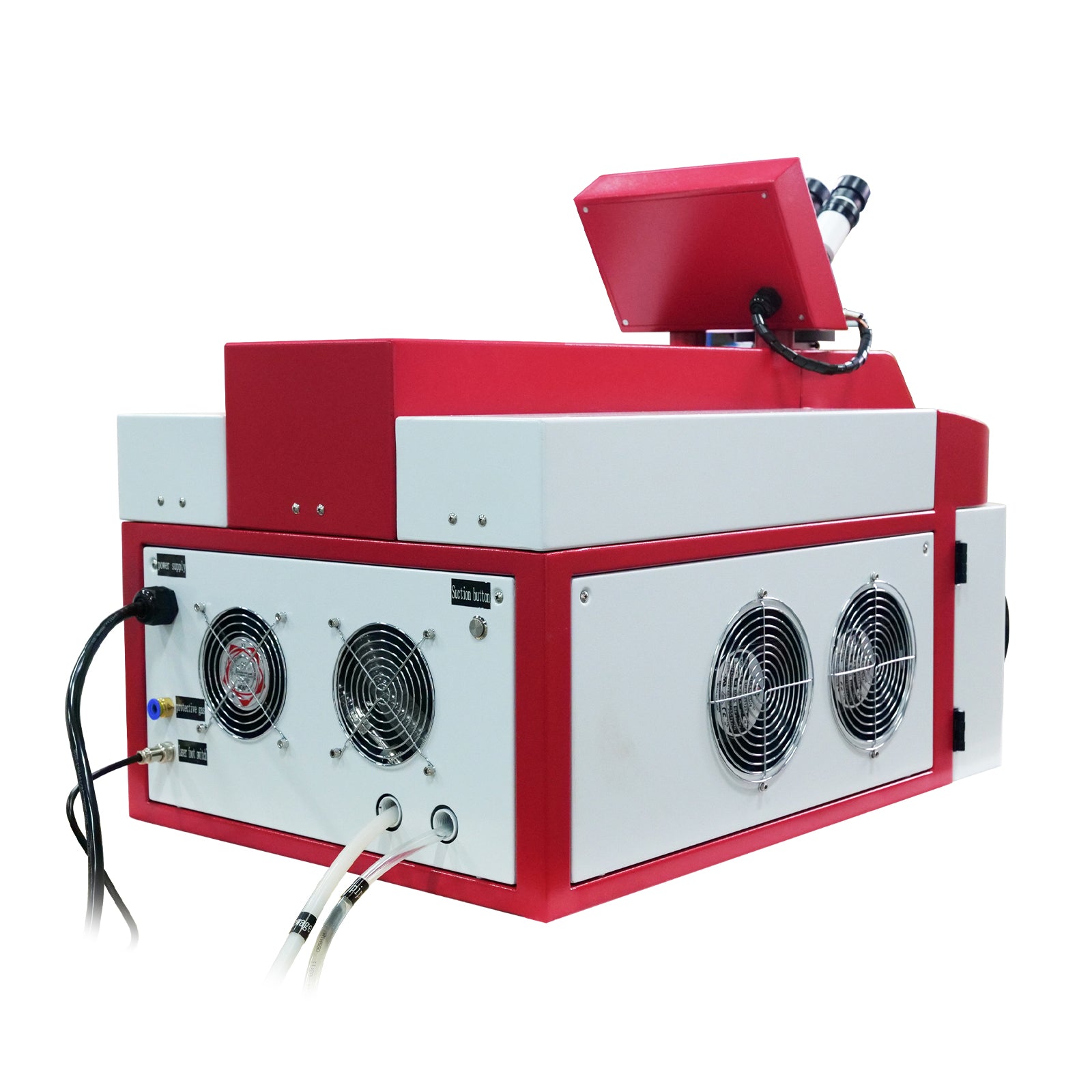

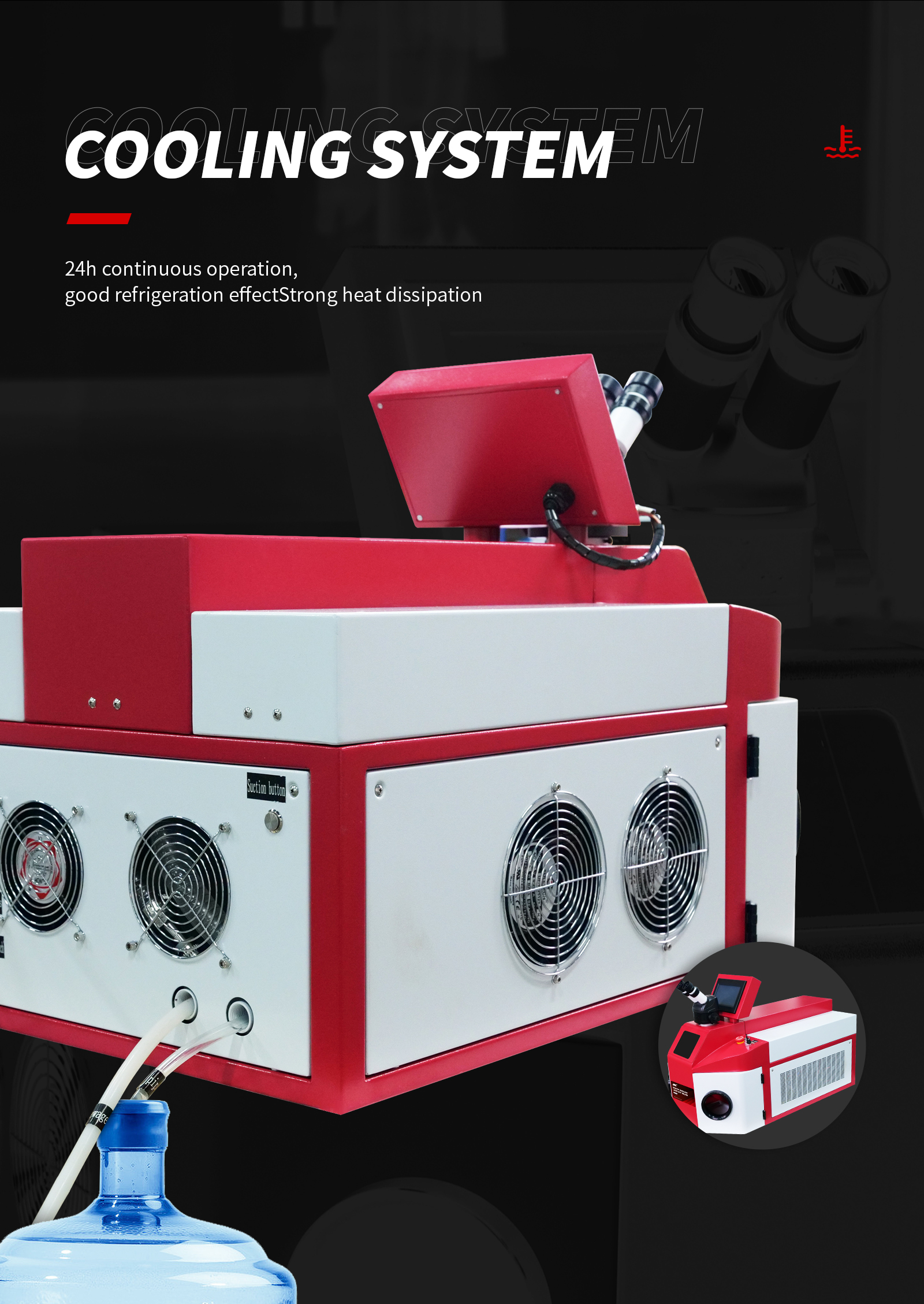

• Cooling System: 24h continuous operation, good refrigeration effect, strong heat dissipation.

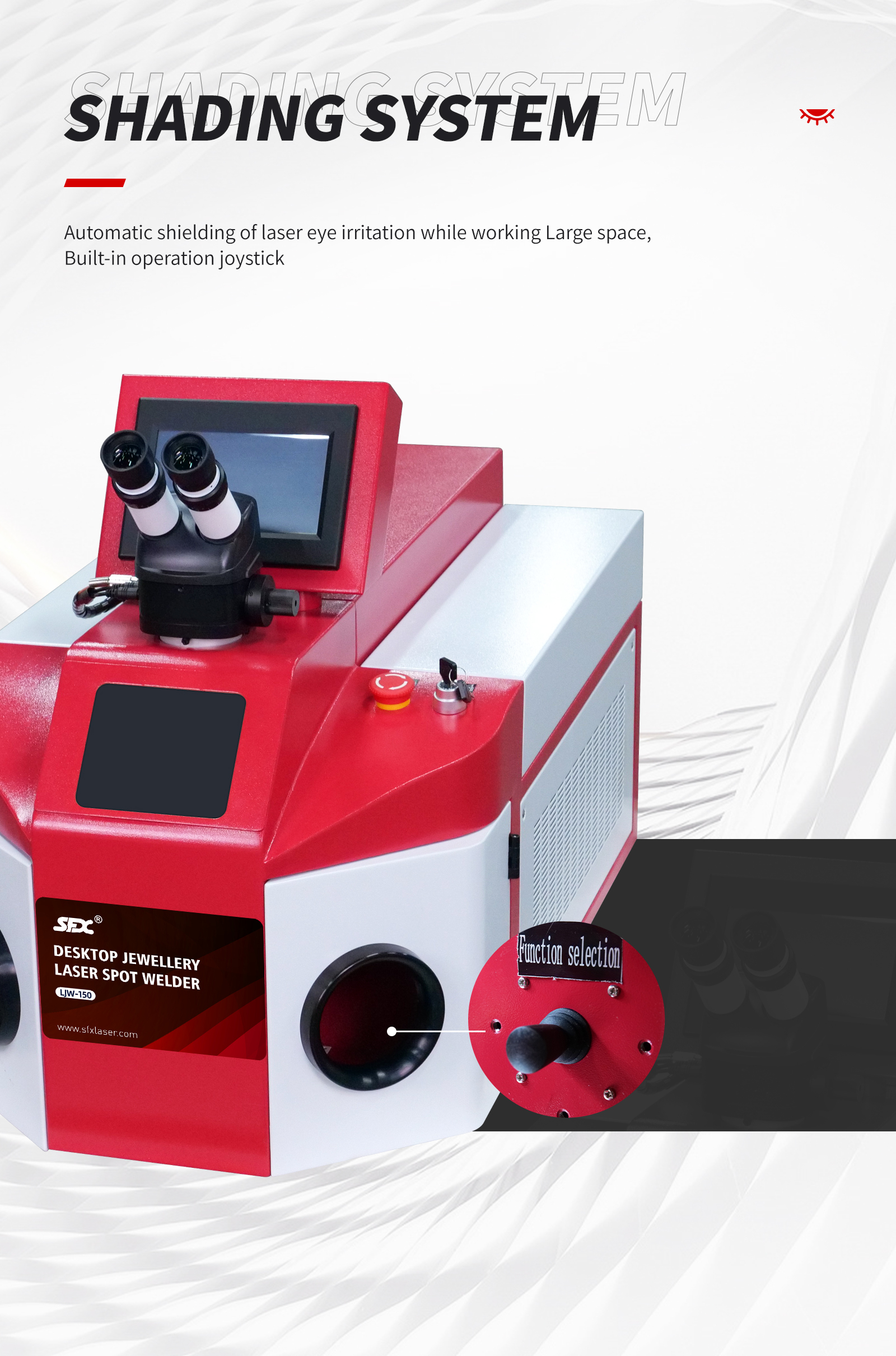

• Shading System: Automatic shielding of laser eye irritation while working large space, built-in operation joysticks.

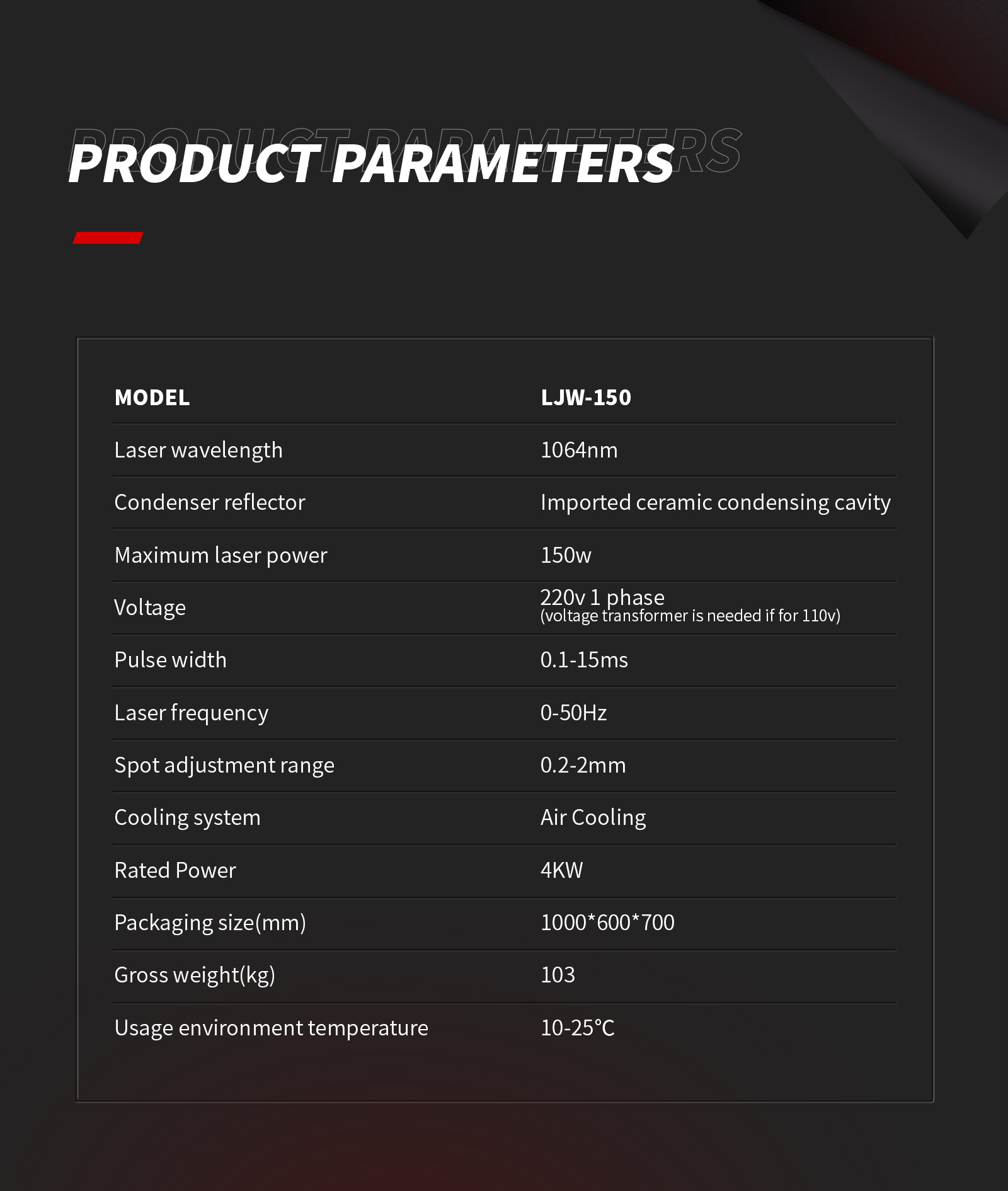

Technical Parameter:

• Model: LJW-150
• Laser Wavelength: 1064nm
• Condenser reflector: Imported ceramic condensing cavity
• Max. Laser Power: 150W
• Voltage: 220V Single Phase
• Pulse Width: 0.1-15ms
• Energy: 40J
• Laser Frequency: 0-50HZ
• Spot Adjustment Range: 0.2-2mm
• Cooling System: Air Cooling
• Rated Power: 4KW
• Packaging Size:1000*600*700mm
• Gross Weight: 103kg
• Usage Environment Temperature: 10-25℃
