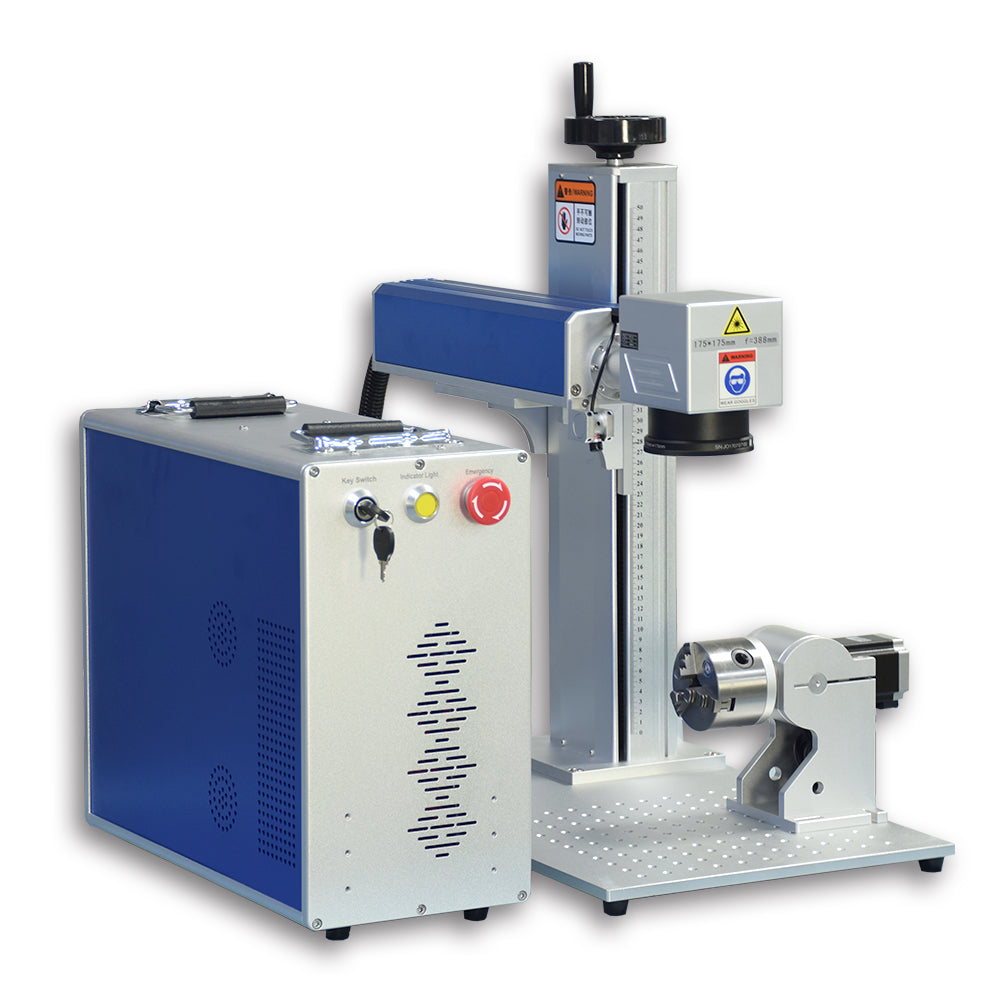

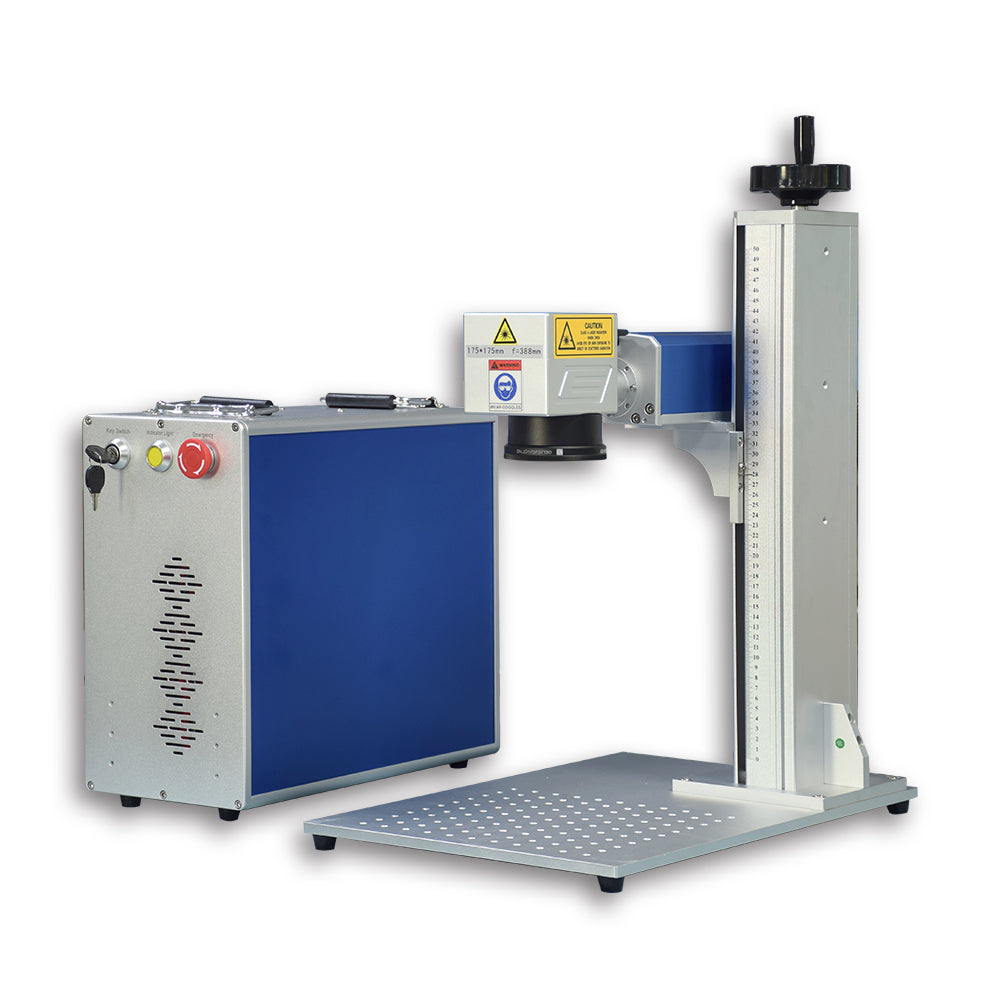

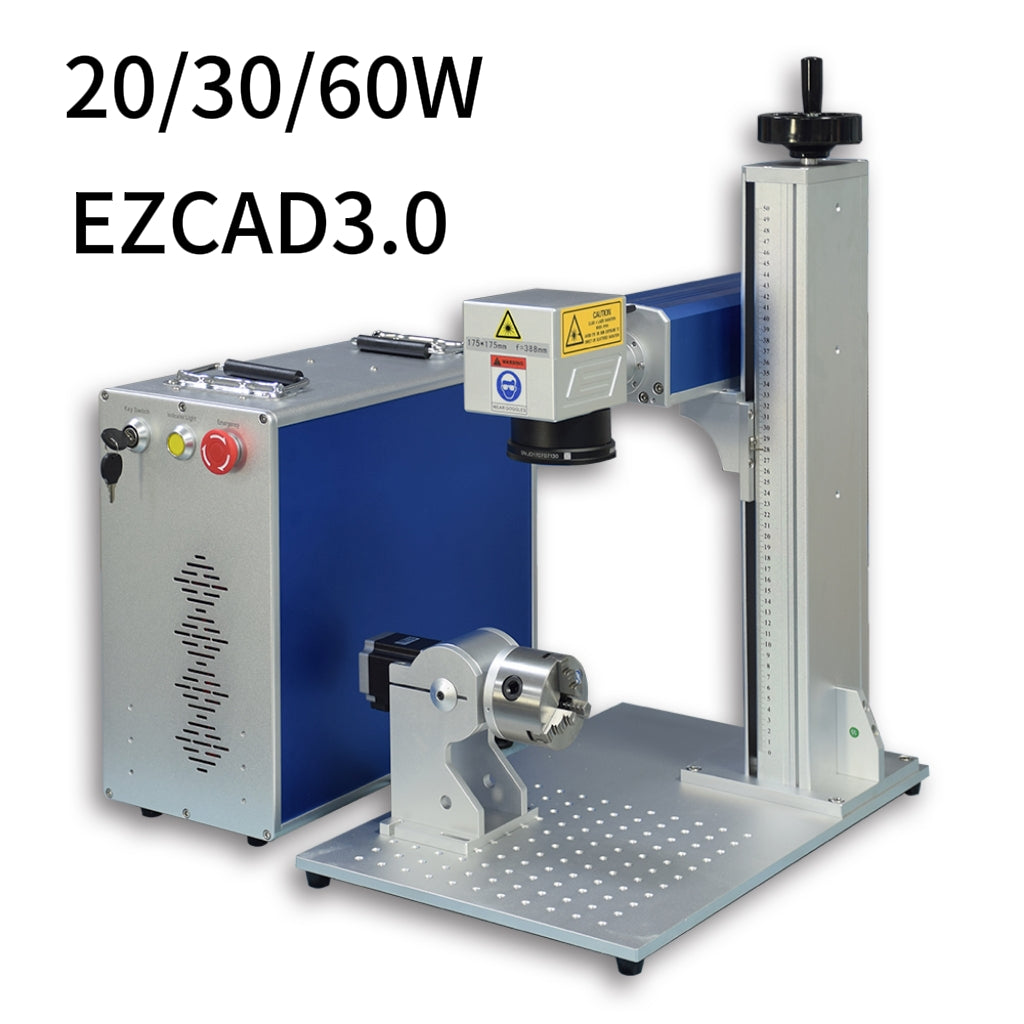

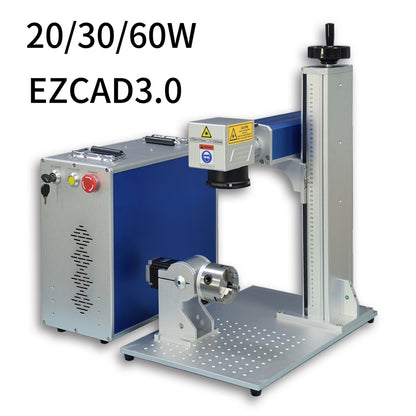

SFX Laser JPT MOPA M7 C 20W/30W/60W Fiber Laser Marking EZCAD3.0 Metal Laser Engraving Machine

JPT MOPA C Series Laser Marking Machine Features:

Advanced Laser Source Options,The laser marking machine is available with a range of power options, including 20W, 30W, 60W, powered by the JPT MOPA M7 (C Version), offering adjustable pulse widths ranging from 2-350ns (20W/30W) to 2-500ns (60W/80W/100W), ensuring versatile marking for different materials.

High-Speed Marking and Precision,Achieving maximum marking speeds of up to 7m/s (275.6in/s) with a re-position precision of 0.002mm, this laser marking machine delivers fast, accurate, and consistent results. It supports an output power adjustment range from 10% to 100%, giving you full control over the marking depth and engraving quality.

Exceptional Energy Efficiency,The machine boasts a high-rate of electrical-optical conversion (70%), minimizing power consumption (500W/800W/1000W depending on model) while ensuring long-lasting performance. Its laser source offers a lifespan of 20,000-30,000 hours with no maintenance, significantly reducing operational costs.

Multi-Format and Software Compatibility,Compatible with various file formats such as PLT, DXF, BMP, and directly supporting SHX and TTF fonts, the laser marking machine integrates seamlessly with popular design software like CorelDraw, AutoCAD, and Photoshop. The system is compatible with EZCAD3.0, and supports Lightburn for easy control and automation (TCP/IP, IO, RS232).

Versatile Applications and Support, Ideal for marking materials such as aluminum, stainless steel, brass, and copper, as well as non-metallic surfaces like nylon and ABS, this laser marking machine is perfect for metal surface processing, anodized aluminum black marking, and plastic engraving. Additionally, it offers excellent performance for electronics, semiconductor applications, and color marking on stainless steel.

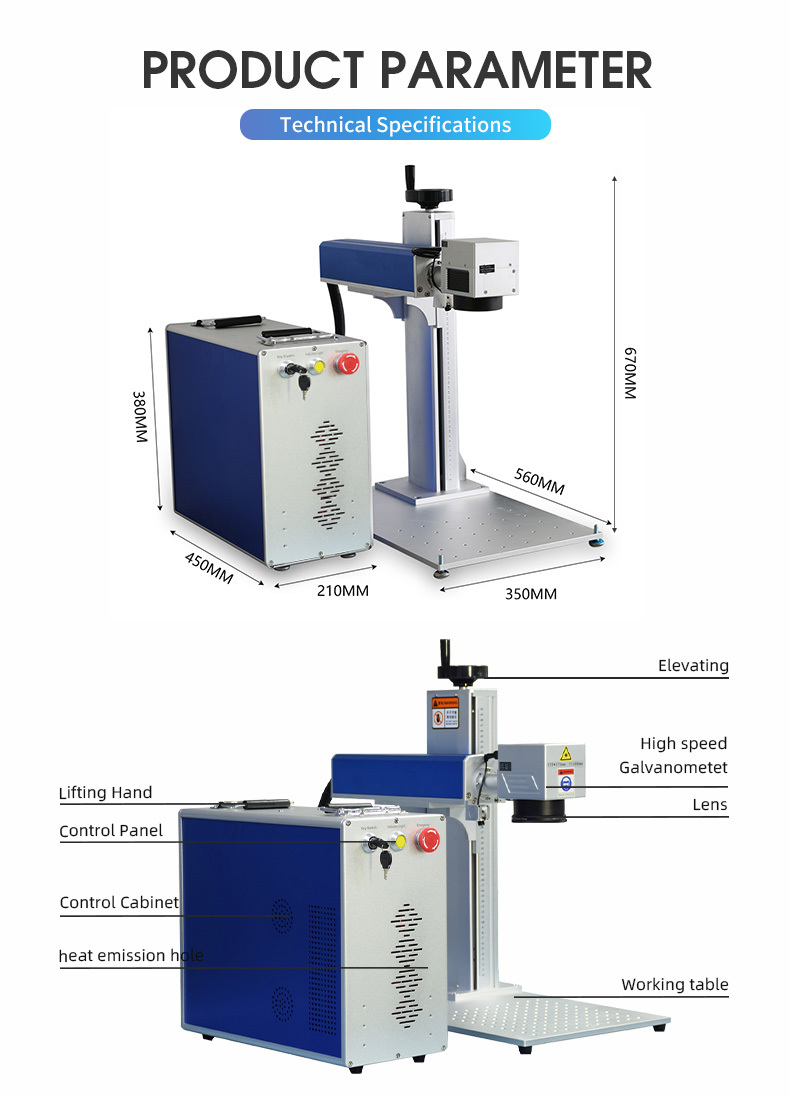

Technical Specifications and Performance:

• Marking Area: 110x110mm (4.3x4.3in), 150x150mm (5.9x5.9in), 175x175mm (6.9x6.9in)
• Maximum Material Thickness: 300mm(11.8in)-110*110mm/ 250mm(9.8in)-150*150mm/ 206mm(8.1in)-175-175mm
• Laser Source: JPT MOPA M7 C
• Repetition Rate: 1-4000kHz(20W/30W/60W)
• Pulse Duration: 2-350ns(20W/30W), 2-500ns(60W)
• Output Power Adjustment Range: 10%-100%
• Marking Speed: ≤7m/s(275.6in/s)
• Engraving Depth: ≤0.2mm(0.008in)-20W, ≤0.4mm(0.016in)-30W, ≤1mm(0.024in)-60W

• Minimum Line Width(Depends on the material): 0.01mm(0.0004in)
• Minimum Character(Depends on the material): 0.2mm(0.0008in)
• Electrical Requirements: 110V-240/50Hz-60Hz(According to local electricity supply).

• Power Consumption: 500W(20W), 800W(30W), 1000W(60W)
• Marking interface: USB connection. Compatible with Windous XP/Vista/7/8/10.

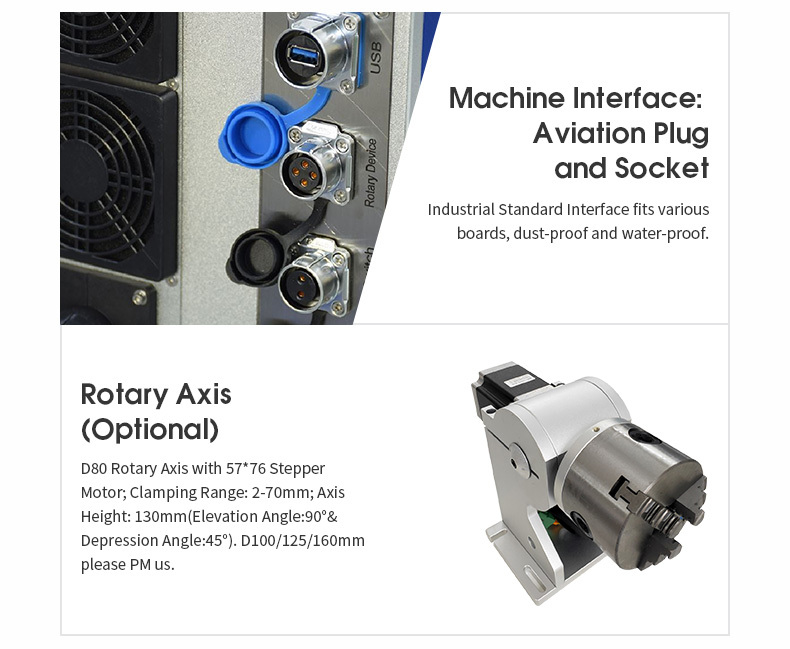

• Communication Mode For Automation: TCP/IP,IO,RS232.
• Marking Content: barcodes, serial numbers, text, vector, and logos.
• Red Dot Pointer: Since the laser beam is incisible, the Red Dot Pointer allows you to have a visual reference for locating where the laser will fire.

Contact us or fill out the form to learn more！

Enhanced Usability and Support:

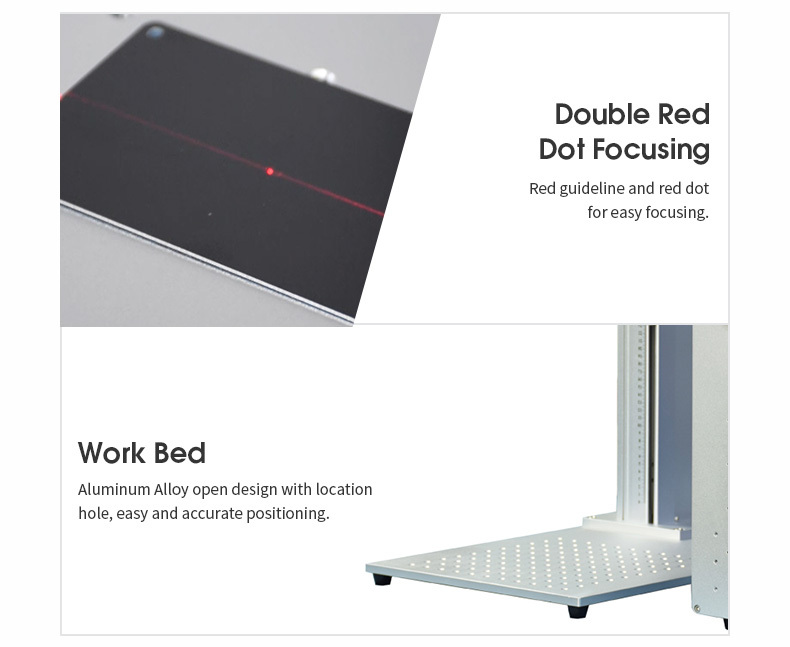

Double Red Dot Focusing: Equipped with both a red guideline and red dot pointer for effortless focusing, the laser beam positioning is highly accurate, even though it’s invisible.

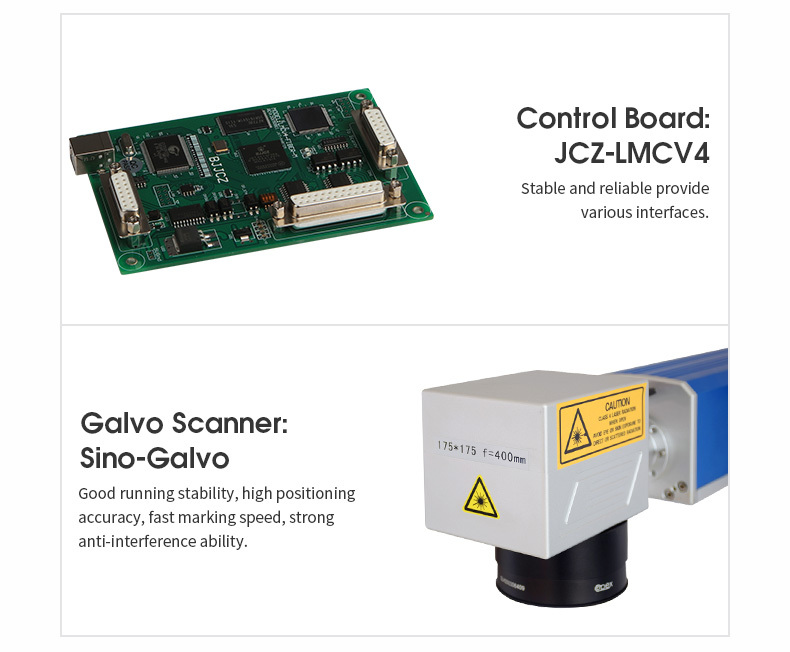

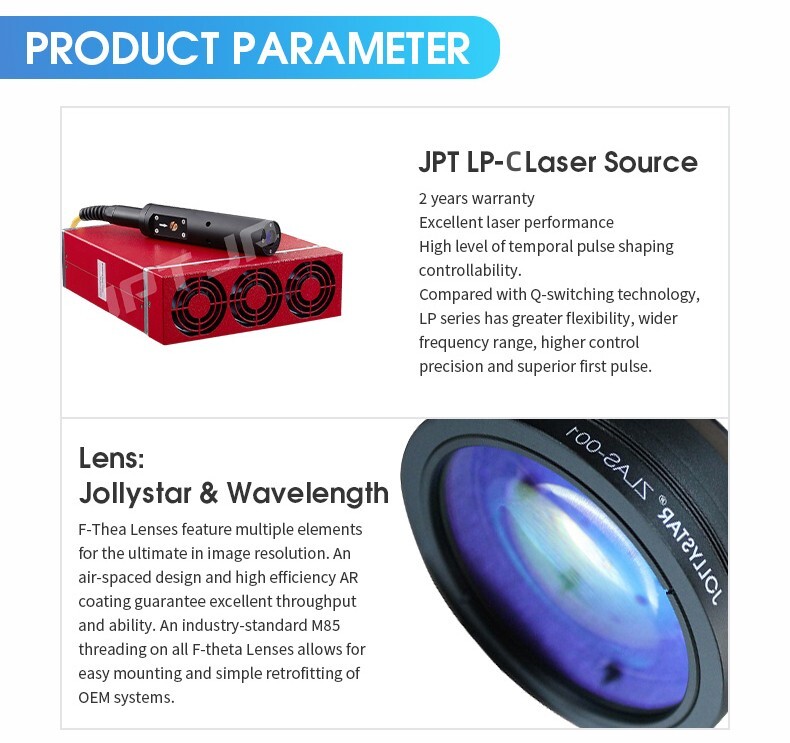

High-Quality Components: The machine features premium components such as the JPT MOPA M7 C laser source, JCZ-LMCV4 control board, and Sino-Galvo scanner for reliable and consistent performance.

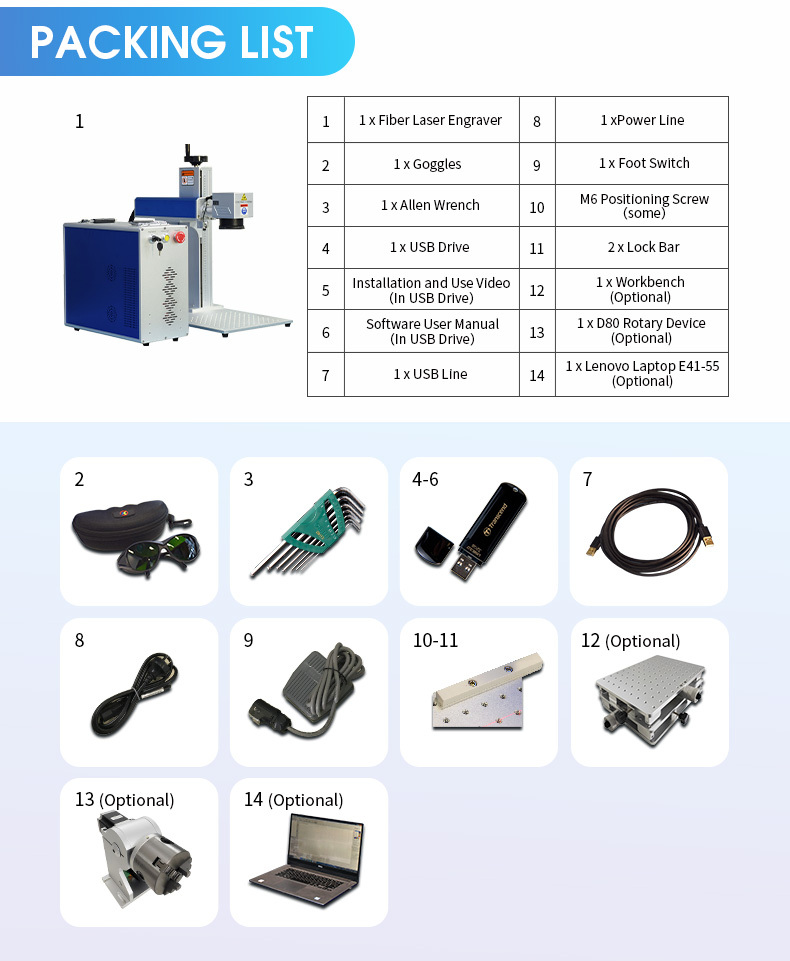

Comprehensive Support: Comes with an English user manual, VCD training video, and lifetime online technical support. The machine is ISO, CE, and FDA certified, with a 2-year warranty and after-sales support in New York, USA.Fast Shipping and Warranty

US Stock and Free Shipping: No import duties and free shipping via DHL/UPS within 5-7 days directly to your door.

2-Year Warranty: Includes remote assistance for any operational issues and a dedicated support center in the US for all your after-sales needs.
