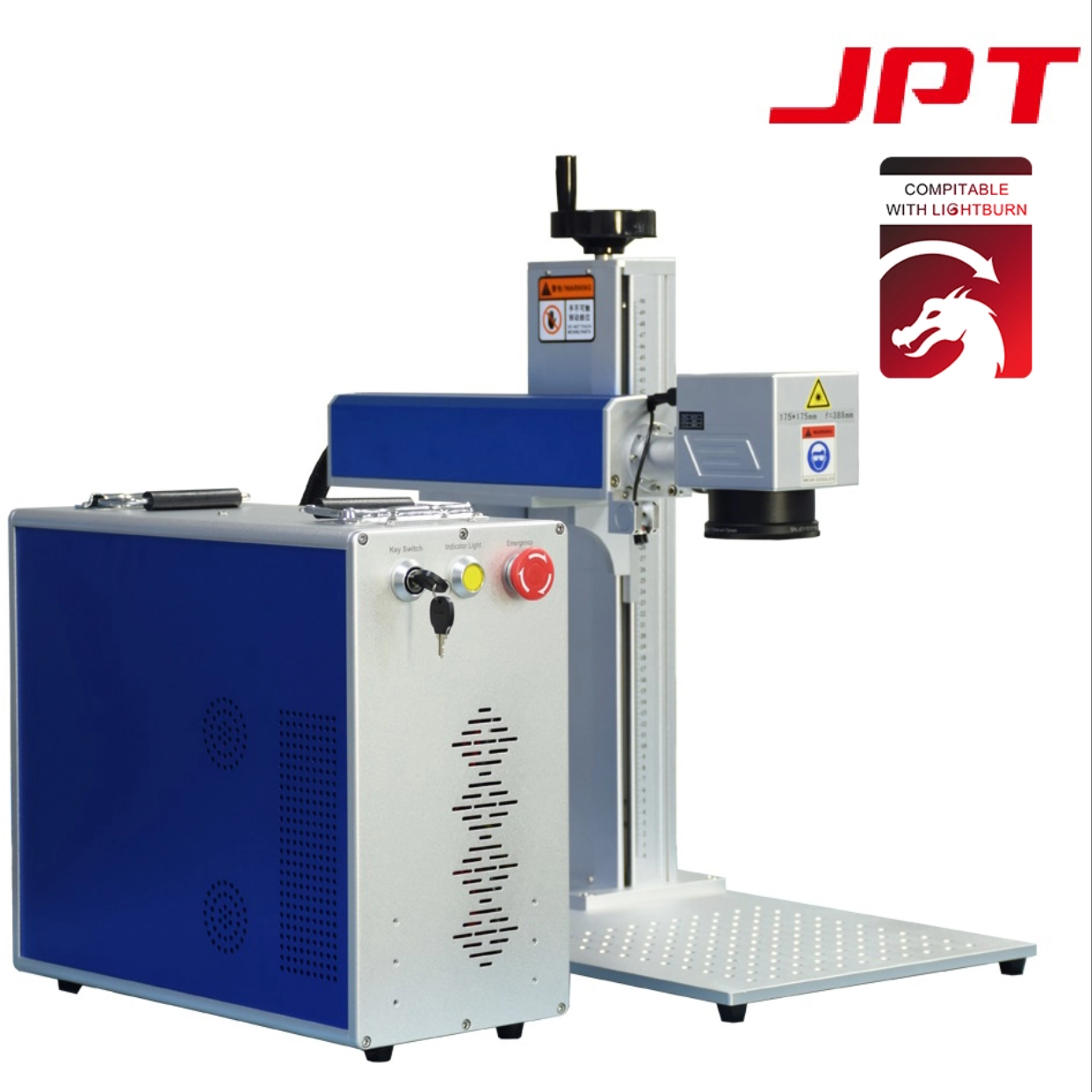

SFX Laser JPT 50W Fiber Laser Marking Mahcine Laser Engraver for Metal

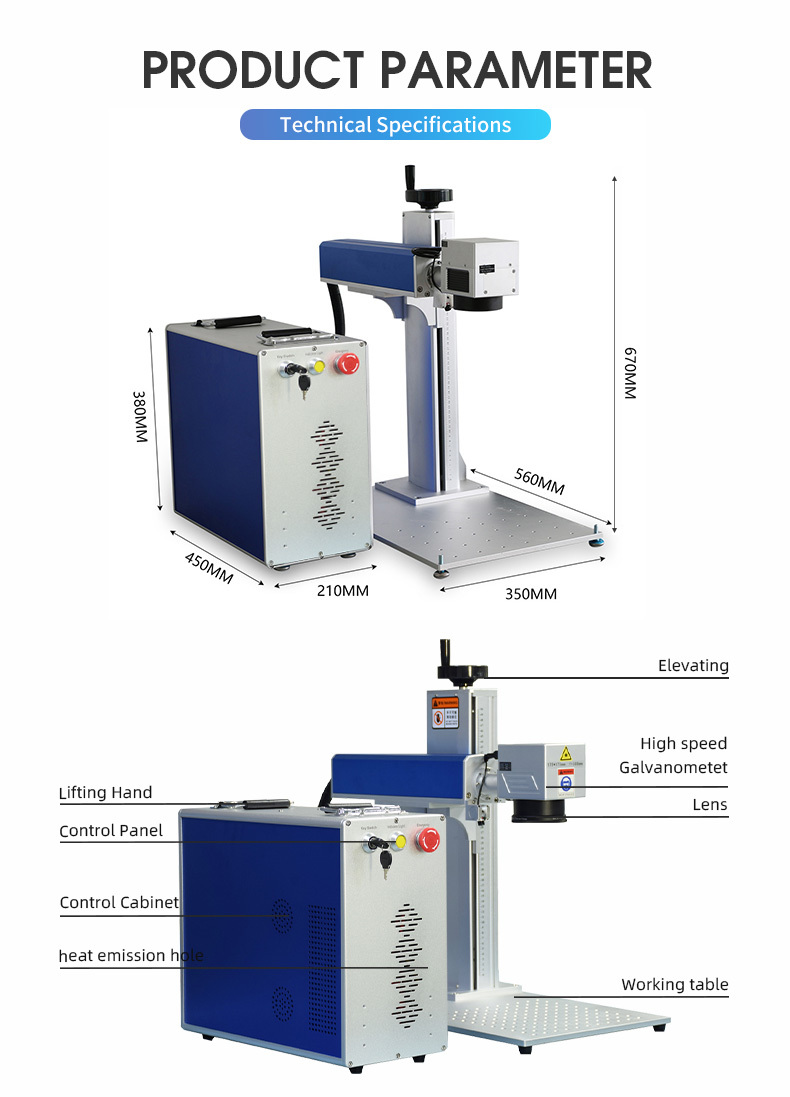

Parameter:

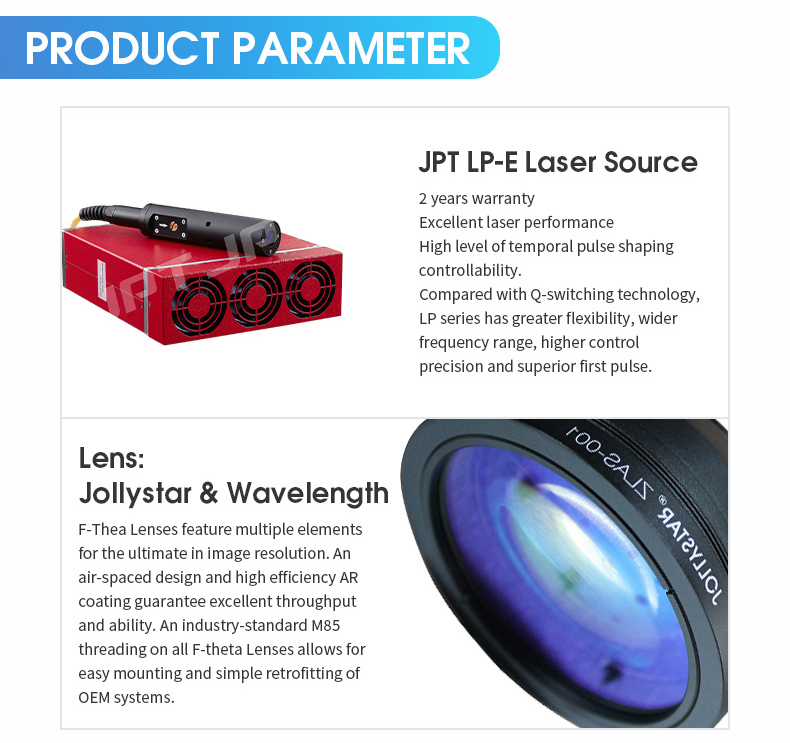

• Laser Type: JPT LP+
• Laser Power: 50W
• Software & Additional Function: EZCAD2.0
• Lens:70*70mm/110*110mm/150*150mm/175*175mm/220*220mm/300*300mm
• Repetition Rate Frequency: 1-600 KHZ
• Pulse Duration: 200 ns

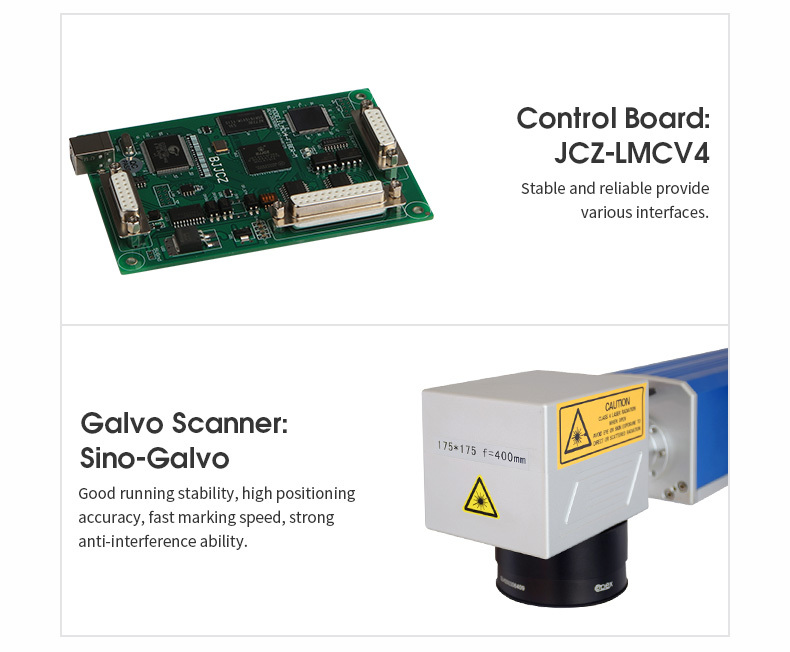

• Control board: BJ JCZ board(Original)
• Soft Program: EZCAD3 (Compatible with Windows XP/Vista/7/8/10)
• Output power adjustment range: 10%-100%
• Laser Wavelength: 1064 nm
• Marking Speed: ≤7000 mm/s(275.6 in/s)
• Engraving Depth: ≤1 mm (0.039 in)
• Min. Line Width: 0.01 mm (0.0004 in) Depends on the material
• Min.Character: 0.2 mm(0.008 in) Depends on the material
• Electrical Requirements: 110V-240V/50Hz-60Hz

Applicable material:

Aluminum, Stainless Steel, Brass, Copper etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES etc.

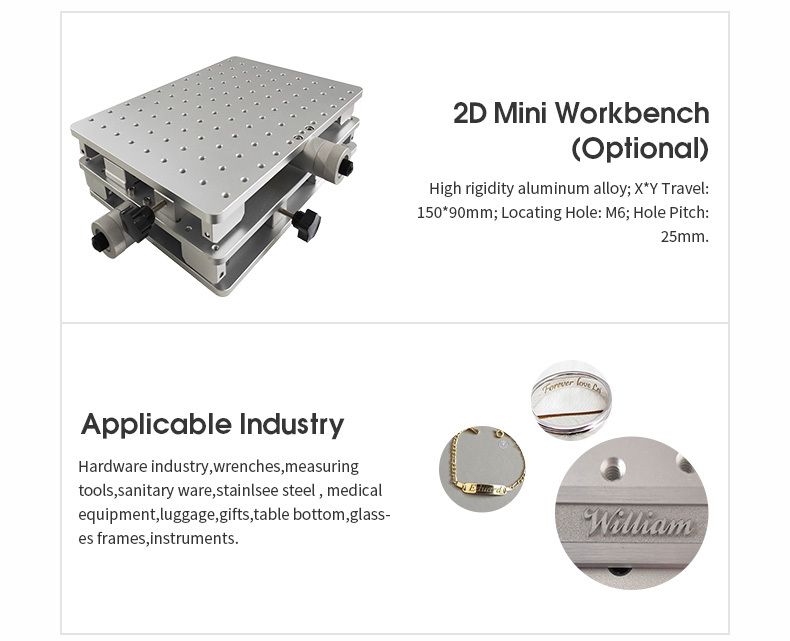

Applicable Industry:

Hardware industry, wrenches, measuring tools, jewelry, sanitary ware, stainless steel, luggage gifts, table bottom, glasses frames.

Warranty:

2 years for laser source. If there is any technical problems for laser, we would replace the accessories you need for free.

After-sales Service:

We can support remote technical assistance and our after-sales center is located in NY, USA.

Delivery:

The machine will be delivered by UPS/DHL, and it takes about 5-10 days to your door.
