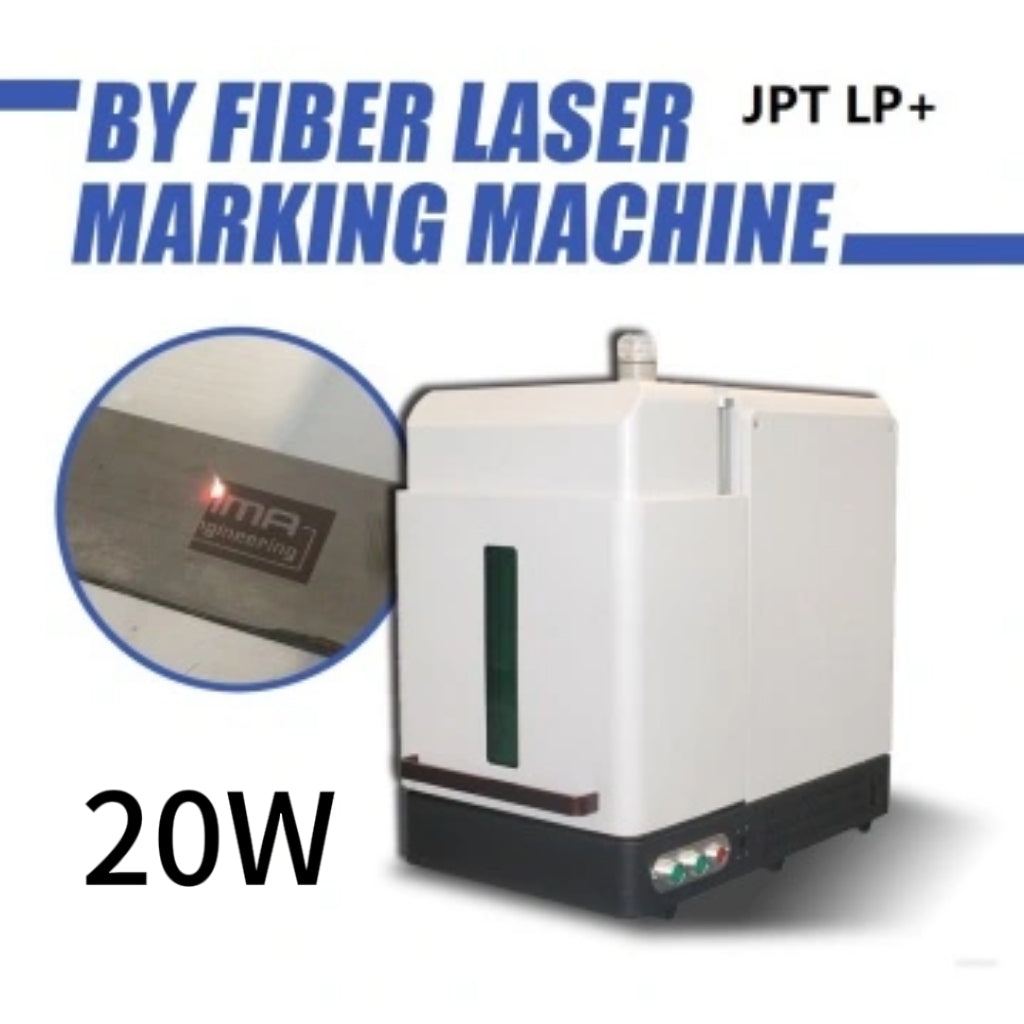

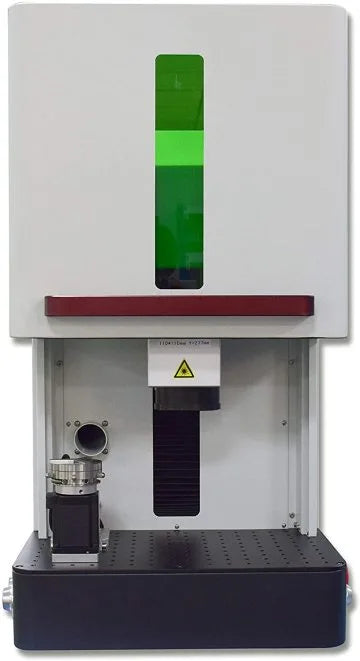

SFX Laser Enclosed 20W JPT Fiber Laser Marking Machine Fiber Laser Engraver Laser Marker

SFX Laser Enclosed 30W JPT Fiber Laser Marking Machine Fiber Laser Engraver  Laser Marker 110*110mm with D69 Rotary Axis

Product Specification :

• JPT Fiber Laser Marking Machine Fiber Laser Engraver  Laser Marker

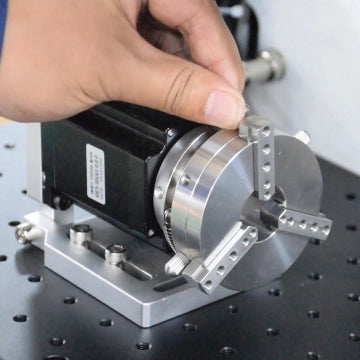

• Configuration : 20W JPT  Fiber Laser Marking Machine + D69mm Rotary Axis
• Marking Area: 70*70mm/110*110 mm/ 150*150mm
• Laser Type : JPT LP+
• Repetition Rate Frequency: 1-600 KHZ
• Pulse Duration: 200 ns

• Control board: BJ JCZ board(Original)
• Soft Program: EZCAD2 (Compatible with Windows XP/Vista/7/8/10)

• Laser Wavelength:1064 nm
• Marking Speed:≤7000 mm/s (275.6 in/s)

• Engraving Depth: ≤ 0.4 mm（0.0157in）
• Electrical Requirements :110V-240V/50Hz-60Hz

Applicable Material :

Aluminum, Stainless Steel, Brass, Copper etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PEC etc

Applicable Industry :

Hardware industry, wrenches, measuring tools, jewelry, sanitary ware, stainless steel, luggage gifts, table bottom, glasses frames.

Laser Engraver Advantages:

  ①F-theta Scan Lens.Typically distortion less than 1%, Air-spaced design and high efficiency AR coatings excellent throughput and durability.

  ② EZCAD 2.14.7 Stable performance and high reliability,ensuring higher stability and shield-utilizing part of complex functions. Compatible with Windows XP/Vista/7/8/10.

  ③ Quickly find the focal length without using a ruler, just to see if the red dots and red lines overlap on the surface of the product which you want to mark.

  ④ Customer and Technical Support. Easy Operation, English User Manual and demo video offered by USB flash disk along with the machine.
