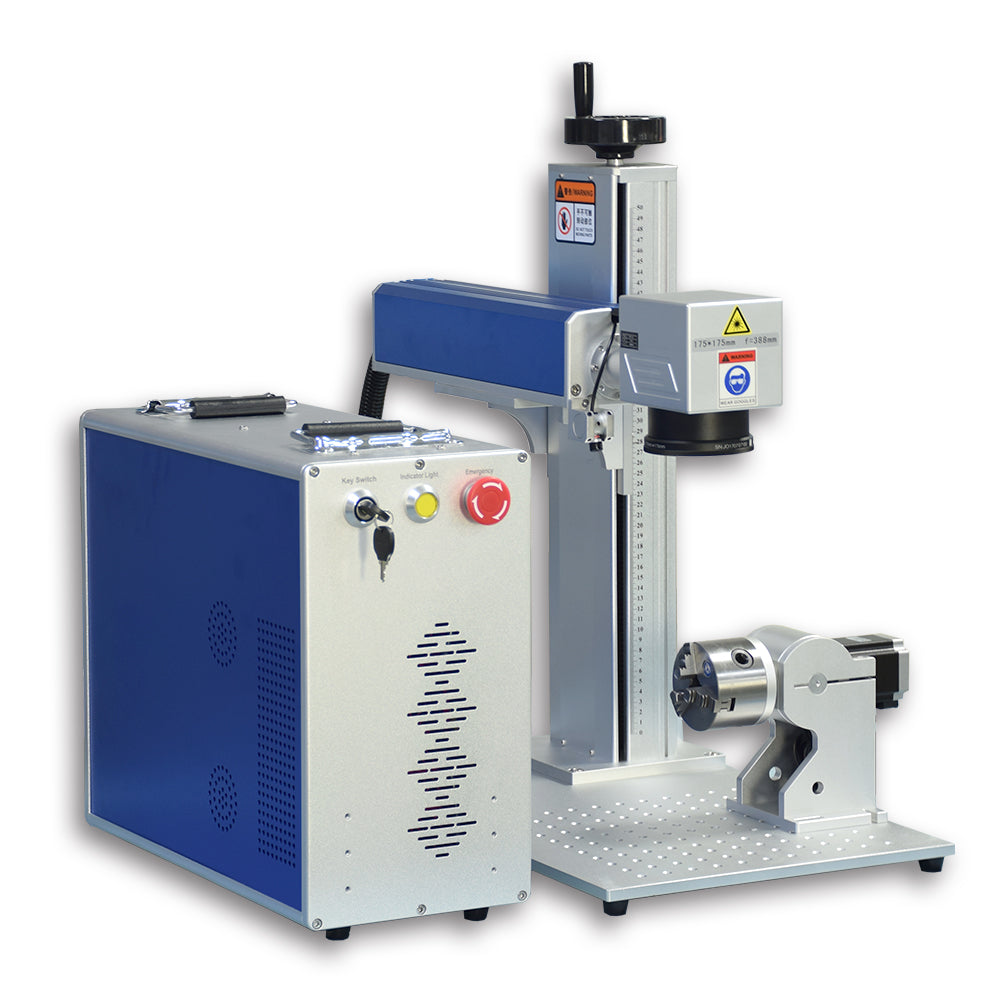

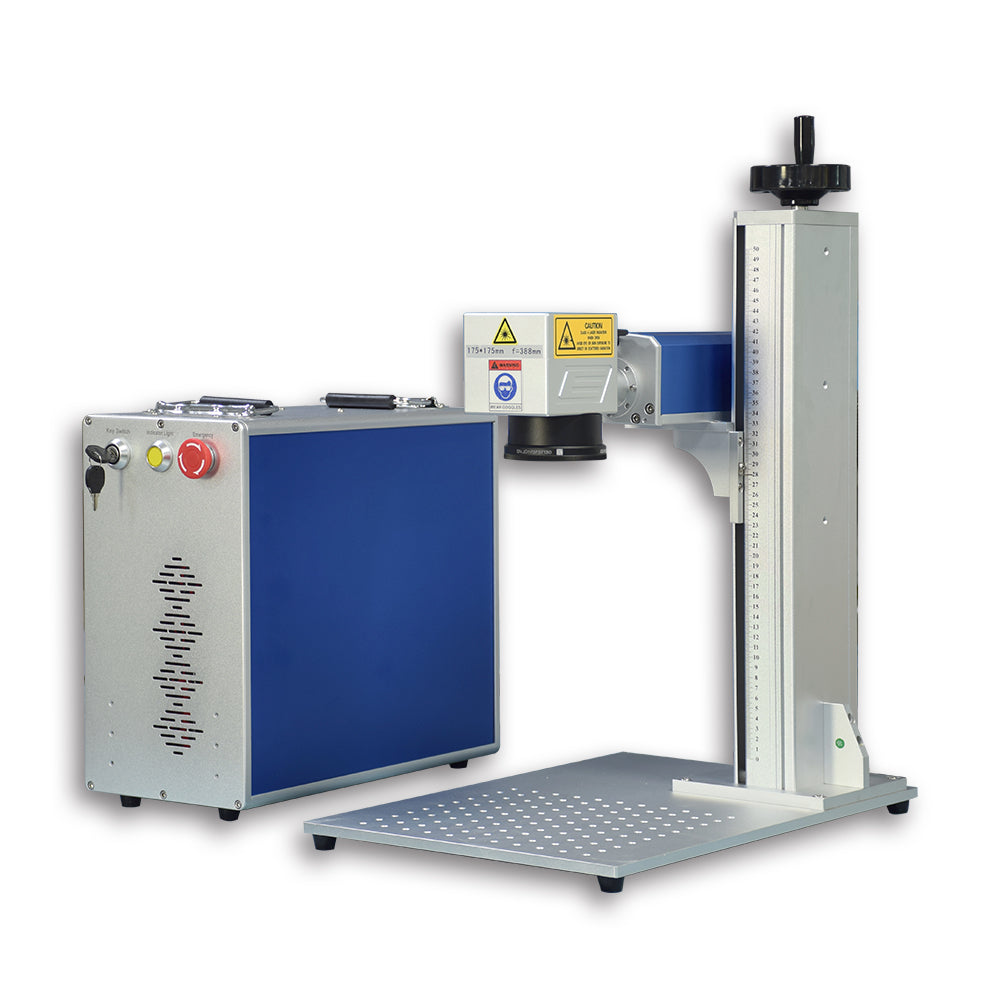

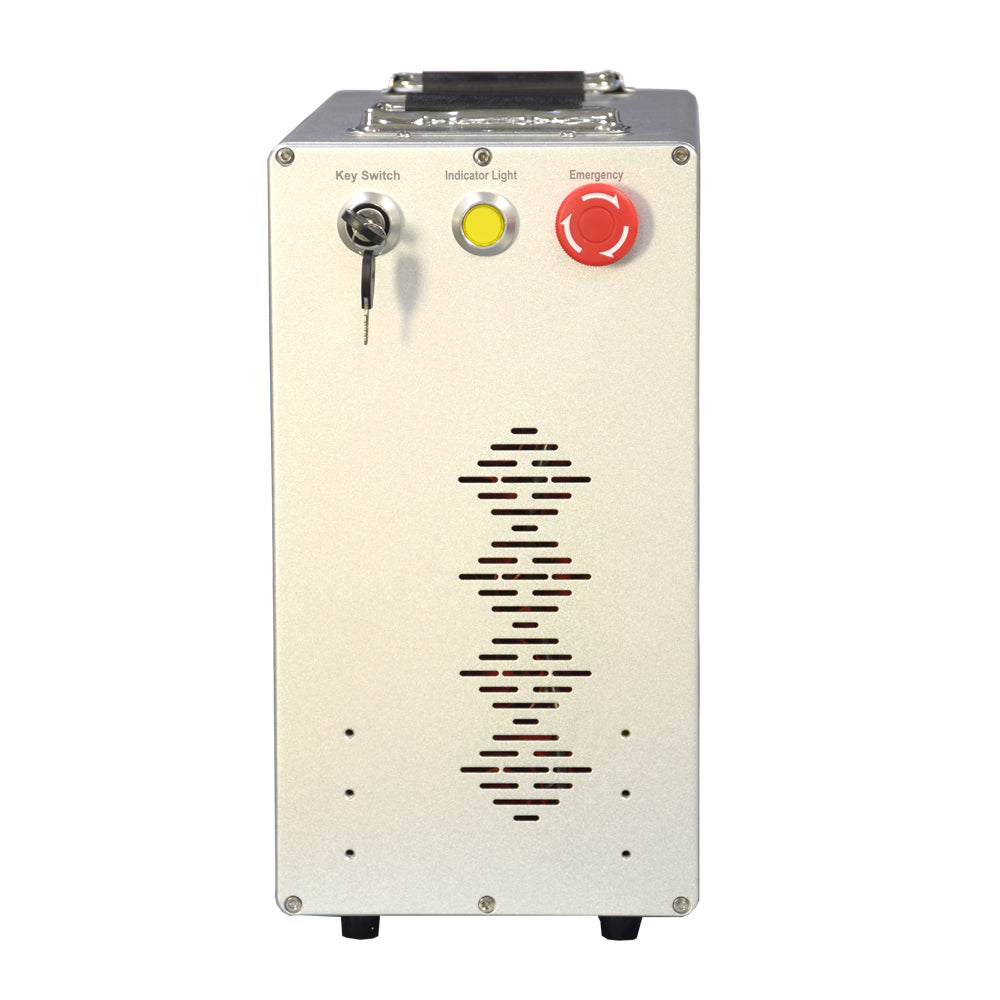

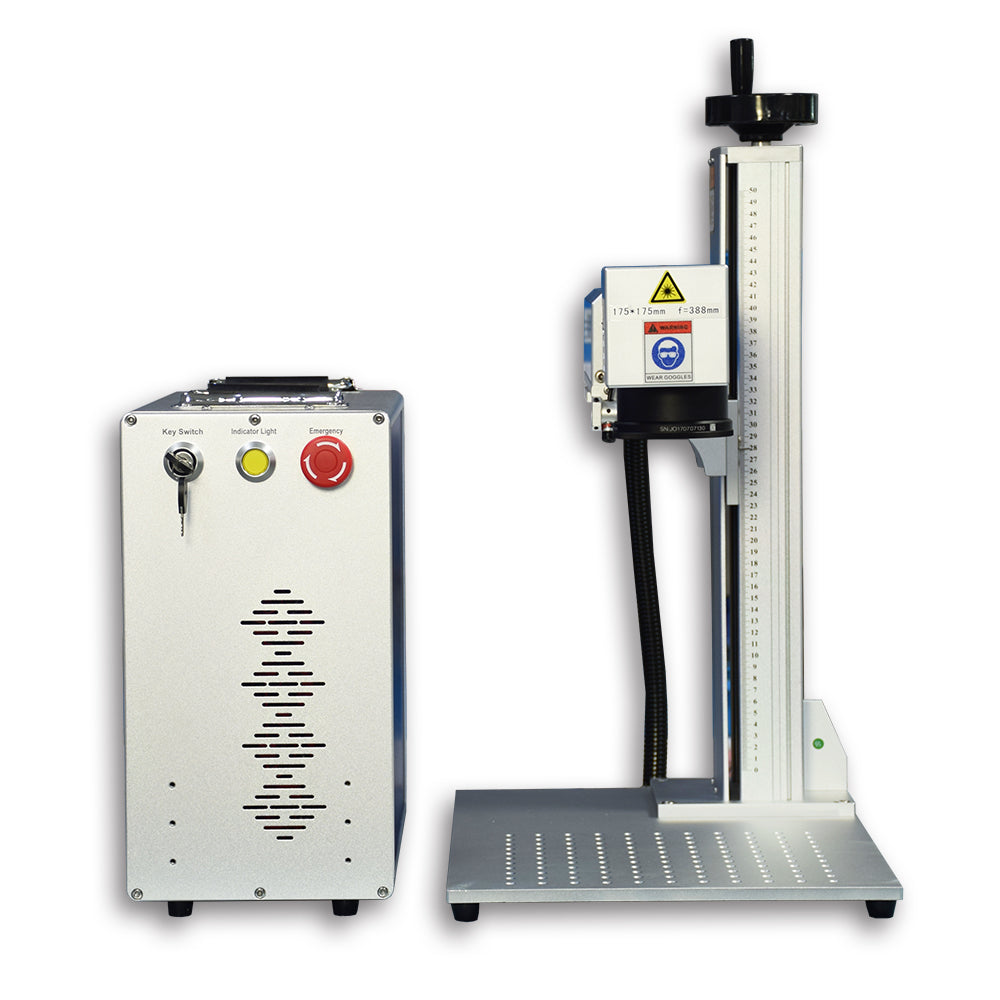

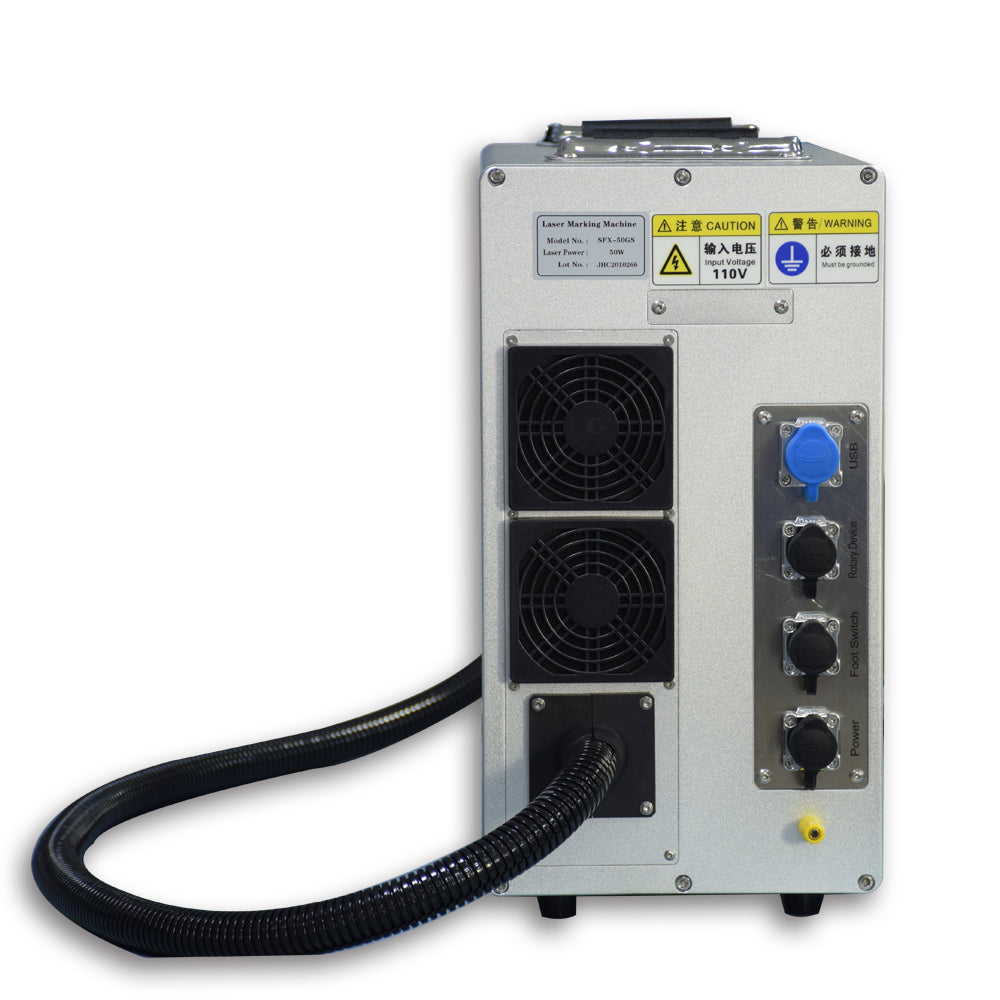

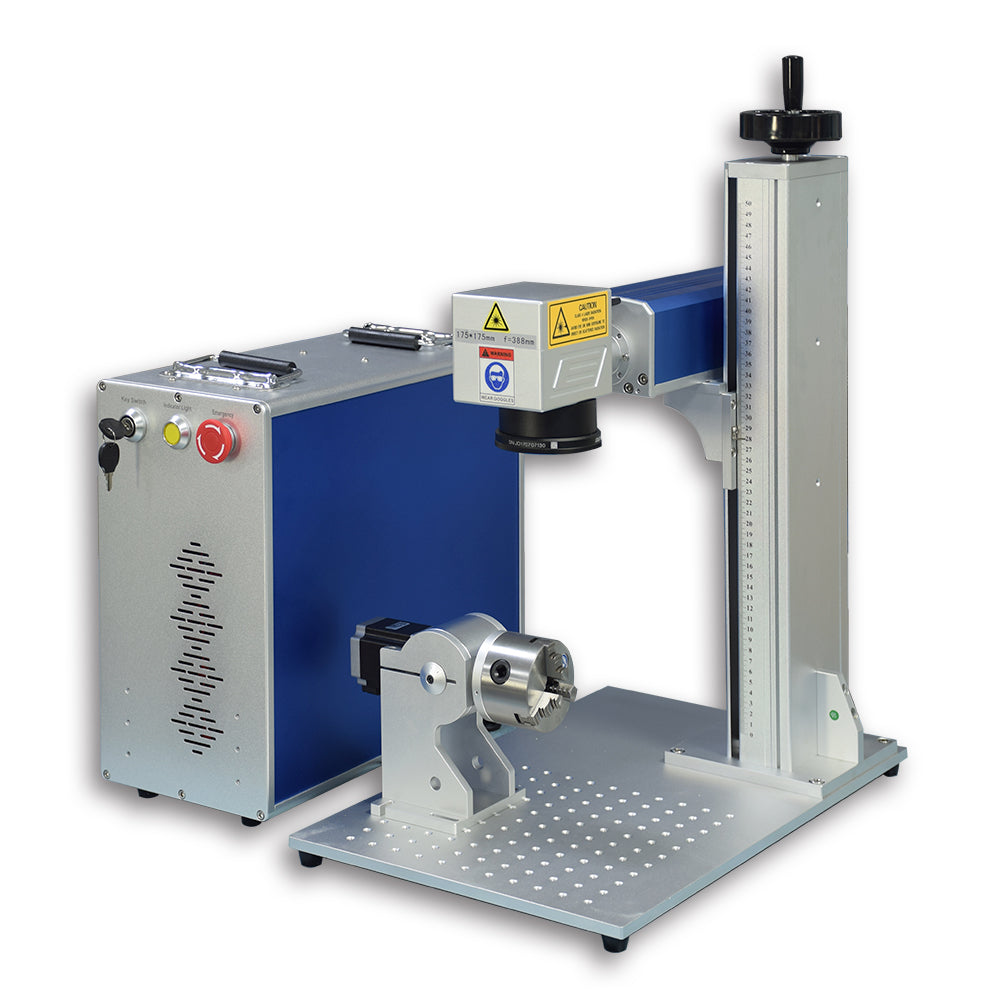

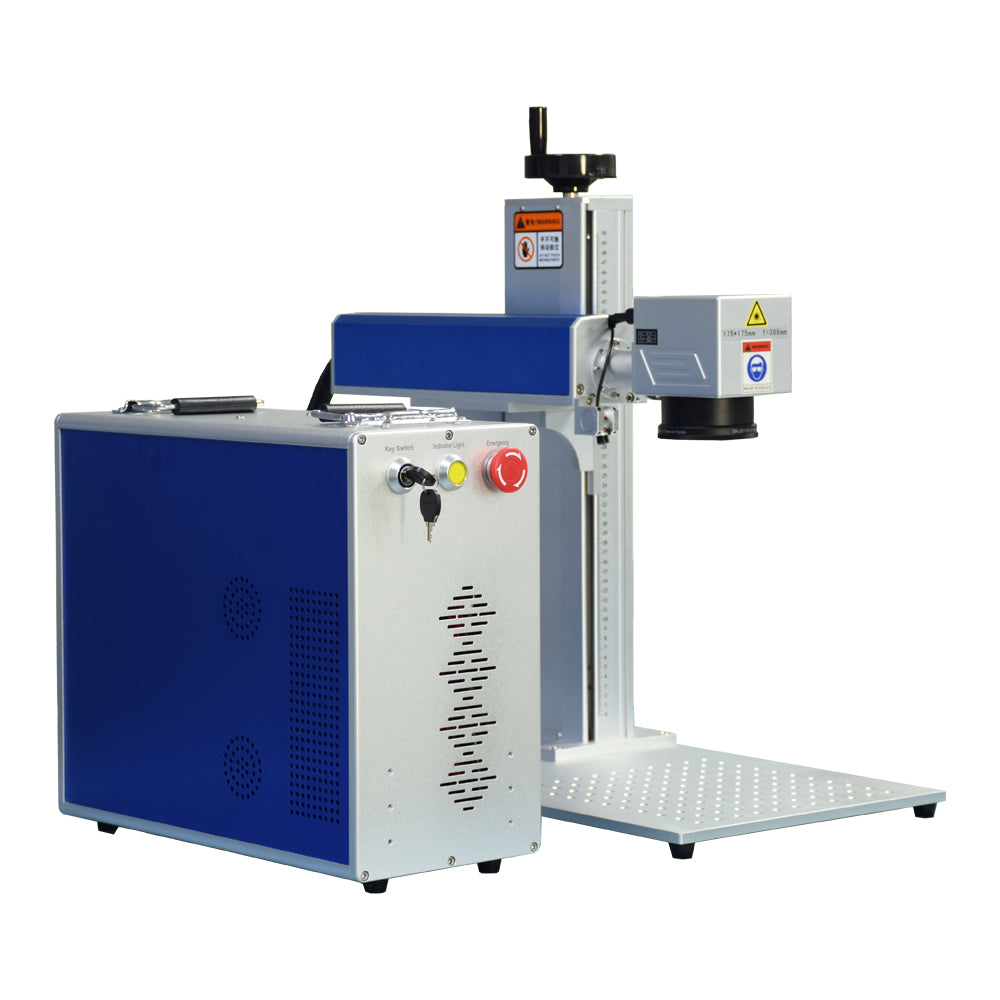

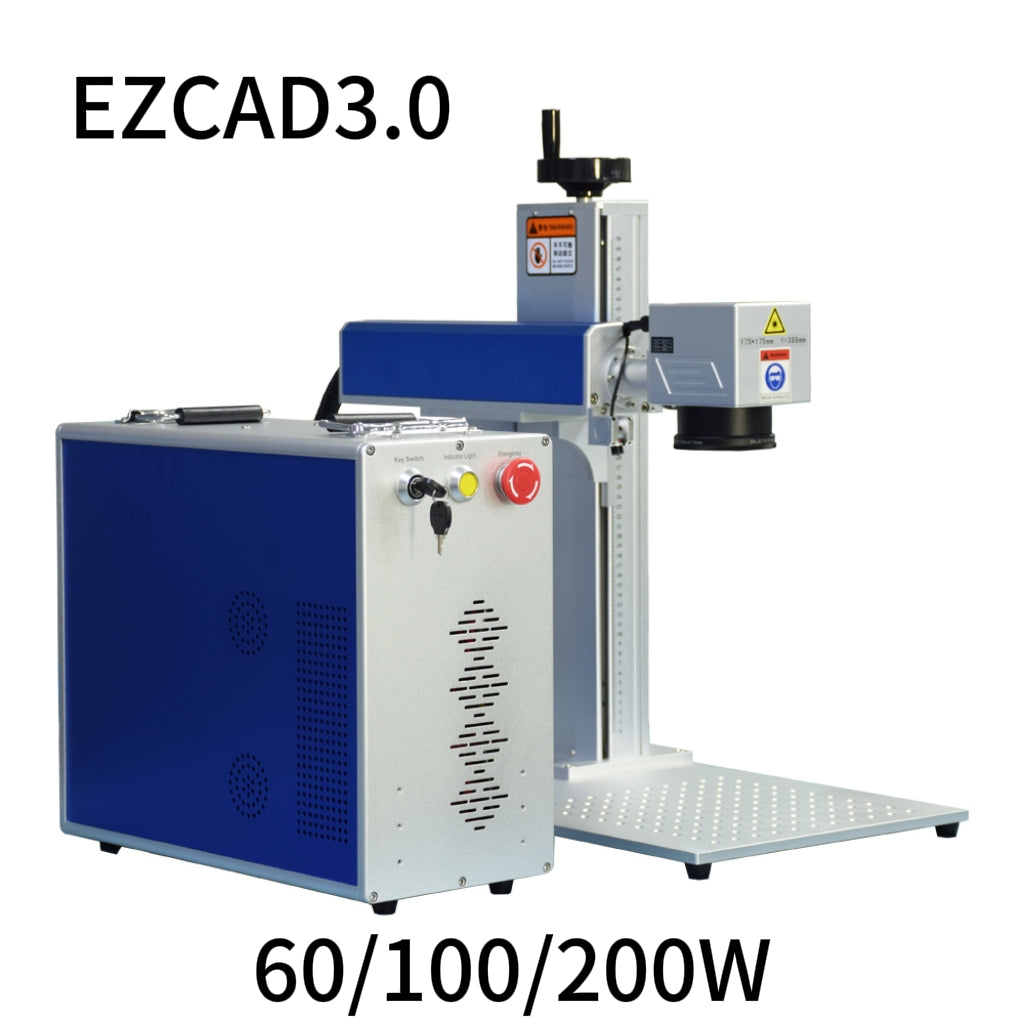

SFX JPT MOPA Fiber Laser Engraver 60W 100W 200W Laser Marking Machine EZCAD3.0 with Rotary for Metal Marking

Advantages:

1. Color marking on stainless steel.

2. Anodized alumina blackened.

3. Strip the anode from the surface of the thin aluminium oxide plate.

4. Metal deep engraving, metal surface processing and high frequency line processing

5. Electronic, semiconductor, ITO precision processing applications.

6.  MOPA Fiber Laser is more suitable for precision marking.

Parameter:

Laser Type: MOPA JPT M7(E2)

Marking Area: Max. 110*110mm(4.3*4.3in)/ 150*150mm(5.9*5.9in)/175*175mm(6.9*6.9in)/300*300mm(11.8*11.8'')

Repetition Rate Frequency: 1-4000 KHZ

Pulse Duration: 2-500ns

Control board: BJ JCZ board(Original)

Soft Program: EZCAD3.0

Output power adjustment range:10%-100%

Laser Wavelength:1064 nm

Marking Speed: 7000 mm/s(275.6 in/s)

Engraving Depth: ≤ 1mm

Min. Line Width: 0.01 mm(0.0004 in) Depends on the material

Min.Character: 0.2 mm(0.008 in) Depends on the material

Electrical Requirements: 110V-240V/50Hz-60Hz

Applicable Material : Aluminum, Stainless Steel, Brass, Copper etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PEC etc

Applicable Industry : Hardware industry, wrenches, measuring tools, jewelry, sanitary ware, stainless steel, luggage gifts, table bottom, glasses frames .

Warranty:

Two-Year Warranty. Offer customer and remote technical service support. After-sales center is in US. Easy Operation, English User Manual, VCD training video, software sending together with the machine
