SFX 60W Portable Handheld Laser Marking Machine Metal Laser Engraver with 55*55/100*100/150*150mm Lens

SFX 60W Portable Handheld Laser Marking Machine Metal Laser Engraver with 55*55/100*100/150*150mm Lens

8% Off

$4,699.00 USD
$4,699.00 USD
Sale Sold out

Free Shipping!

Marking Area
Power Supply

SFX 60W Portable Handheld Laser Marking Machine Metal Laser Engraver with 55*55/100*100/150*150mm Lens

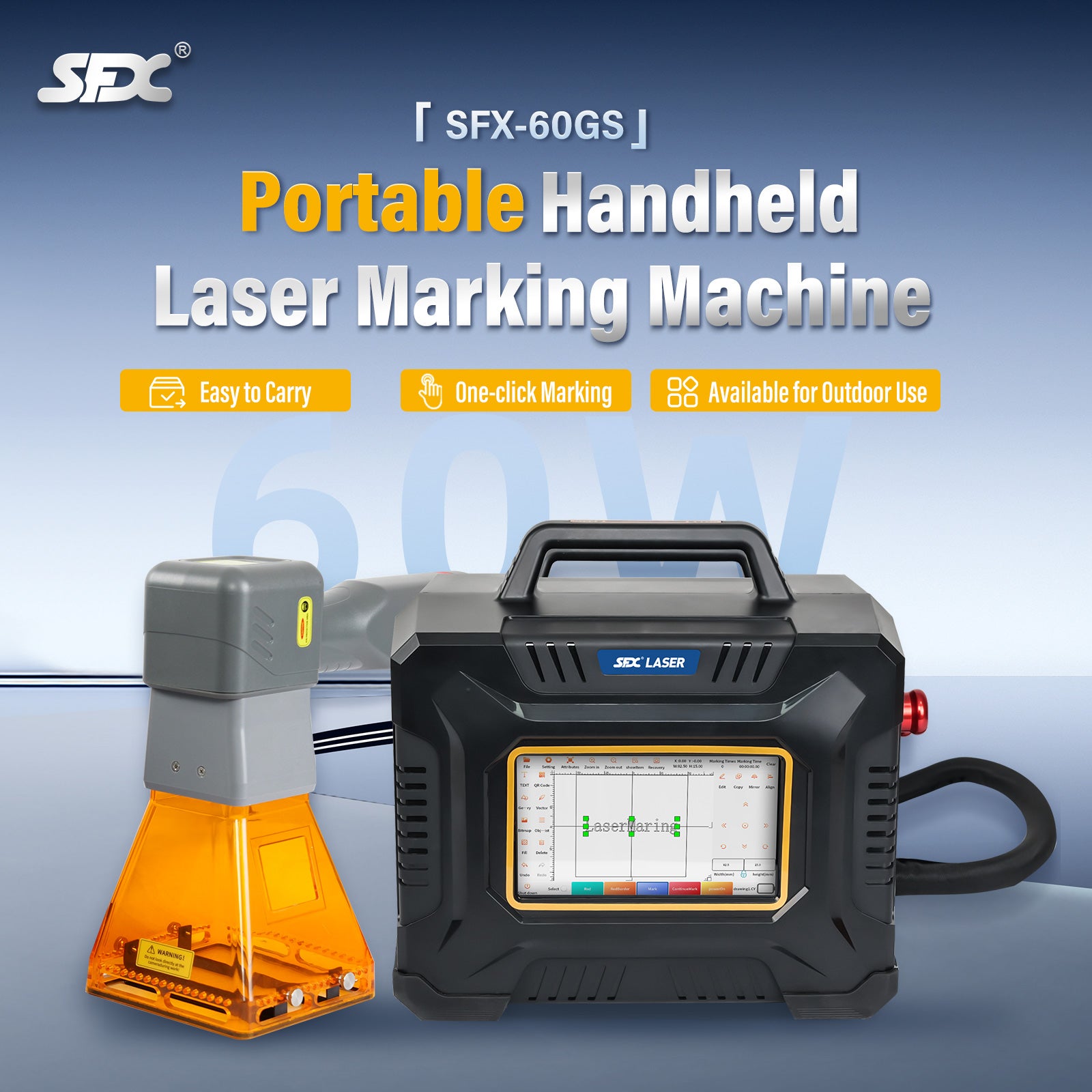

Take your marking to the next level with the SFX-60GS, a powerful 60W handheld laser marking machine designed for both metal and non-metal materials. With a compact design, it's perfect for on-site operations, customized engraving, and high-precision work.

Shipping:

The machine will be shipped by UPS/DHL/FedEx, 7-10 days to your door.
No import duty if you are from US.

Warranty:

One year for the whole machine, 6 months for the battery.

Application:

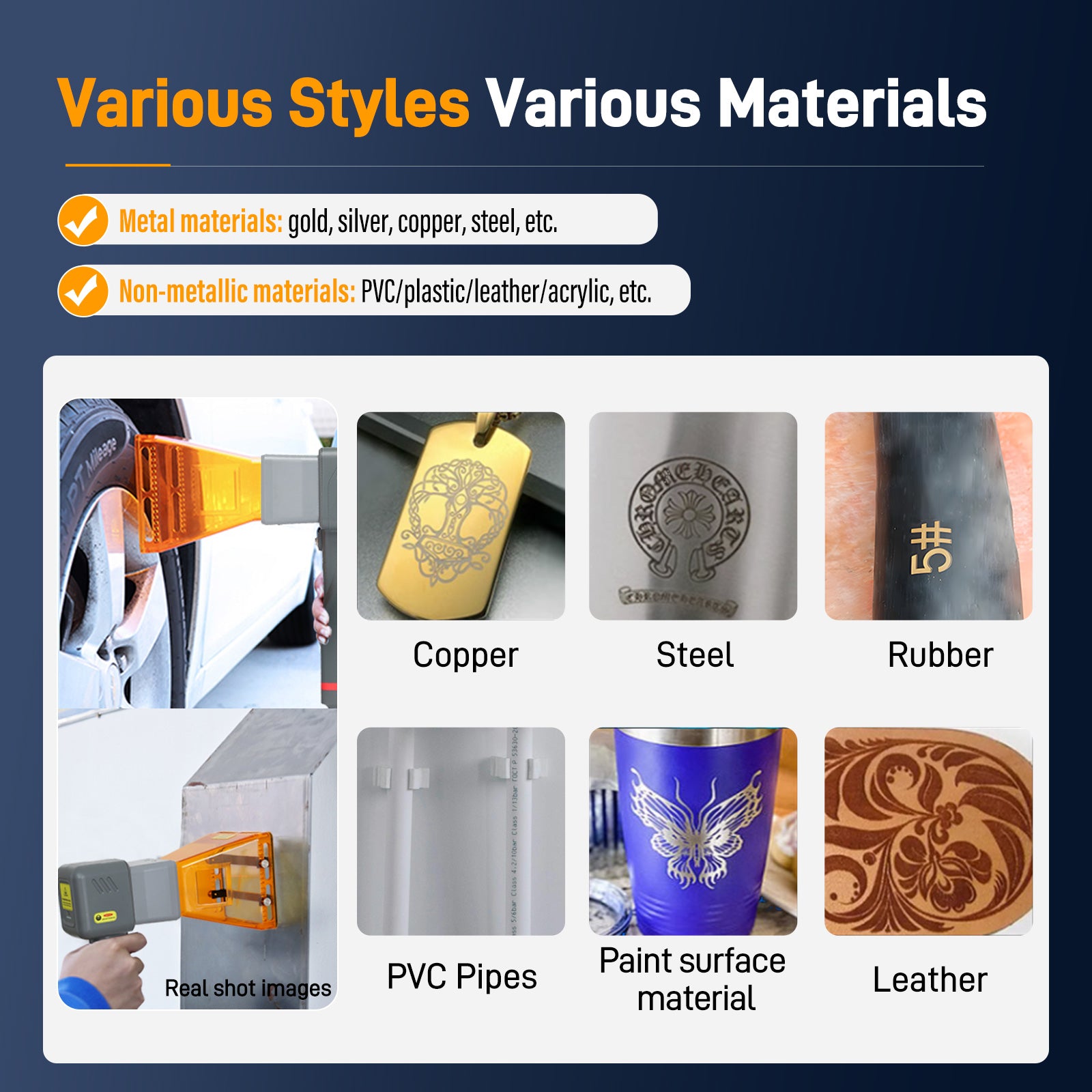

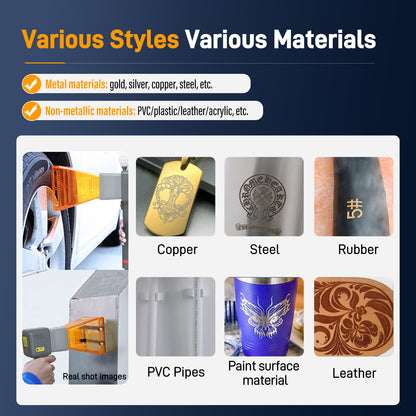

All the metal and most of non-metal, such as Stainless steel, carbon steel, anodized aluminum, aluminum alloy, aluminum, copper, iron, gold, silver, hard alloy, painted metal, other metals, acrylic, PVC, leather, plastic, painted wood boards, etc. Ideal for personalized marking, including trademarks, barcodes, QR codes, text, nameplates, dates, and patterns.

Feature:

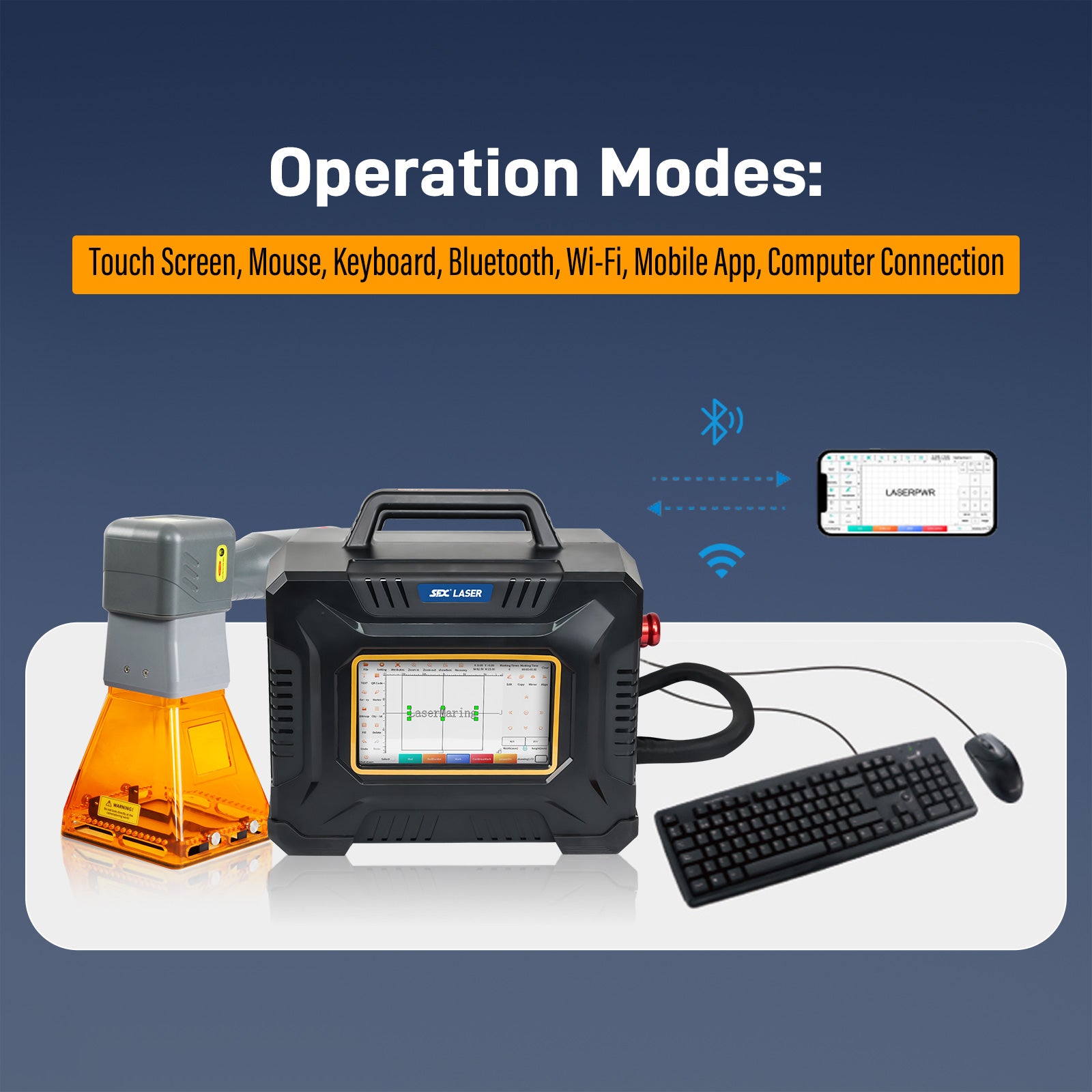

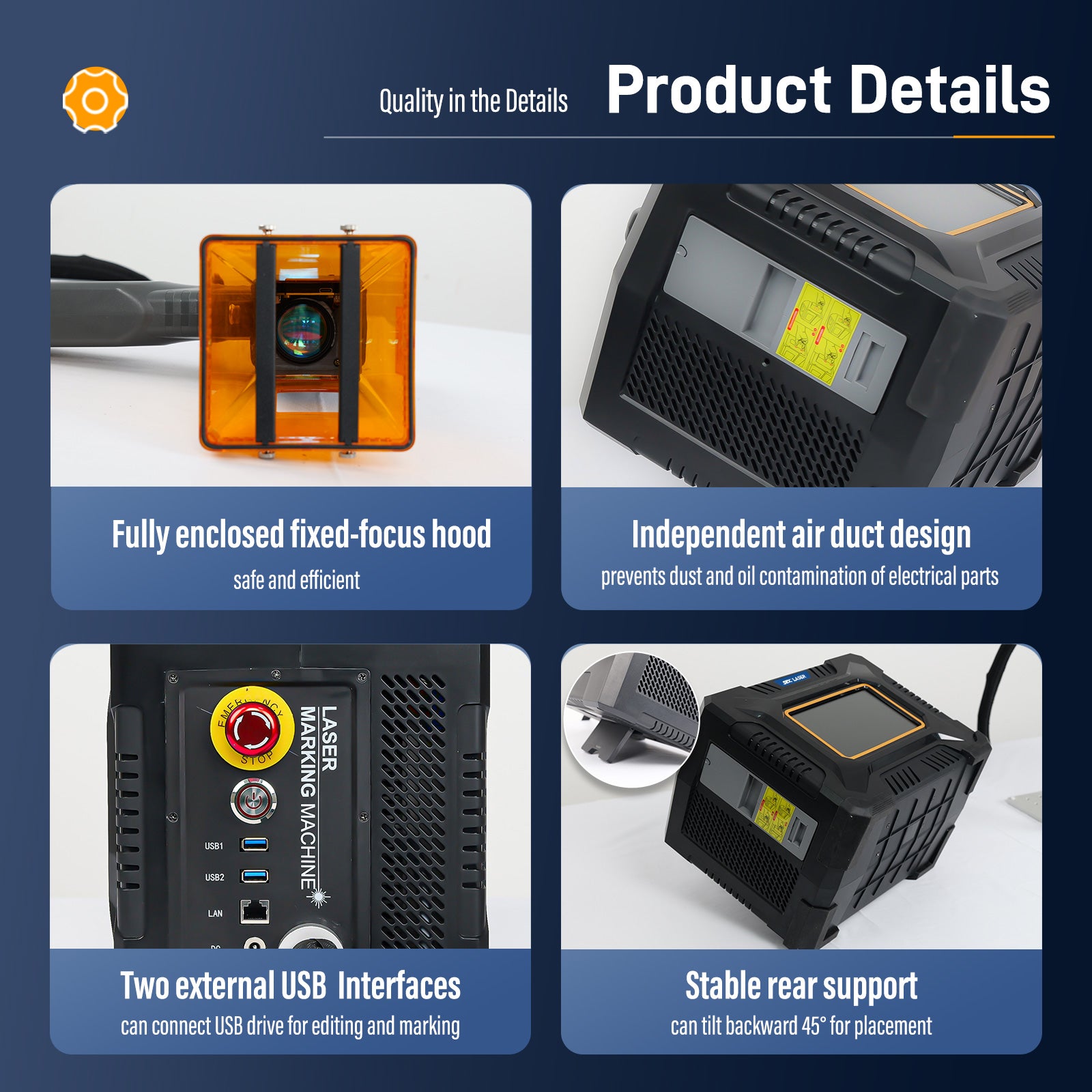

  • Interface Configuration: Dual USB interfaces and Single Ethernet port, Power interface, Built-in Bluetooth and Wi-Fi
  • External Connections: Supports external keyboard, mouse, barcode scanner, monitor, etc.
  • Supported Marking Types: Text, QR codes, vector graphics, numeric dates, bitmap images, geometric shapes, etc. Supports combined editing, freehand drawing, spiral lines, and Lissajous curves.
  • Supported File Formats: JPG, PNG, BMP, SVG, PLT, DXF, Excel, TXT, barcode/QR code, etc.
  • System Languages: English, Japanese, Russian, Italian, Spanish, Portuguese, Korean, French, Arabic, German, Polish, Czech, Thai, Traditional Chinese, Simplified Chinese, etc.
  • Barcode / QR Code Types: CODE25, CODE39, CODE49, CODE93, CODE128, EAN13, EAN128, PDF417, CODABAR, UPC-A, UPC-E, Data Matrix, QR Code, etc. Supports adjustable barcode size and quality level. Supports dot mode, circular mode, and rectangular mode

Technical Parameter:

  • Model: SFX-60GS
  • Machine Material: Environmentally friendly engineering plastics
  • Laser Output Power: 60W
  • Laser Wavelength: 1064 nm
  • Maximum Pulse Energy: ≥1.4 mJ
  • Marking Method: High-precision dual-axis scanning
  • Cooling System: Air-cooled
  • Operating System: Linux

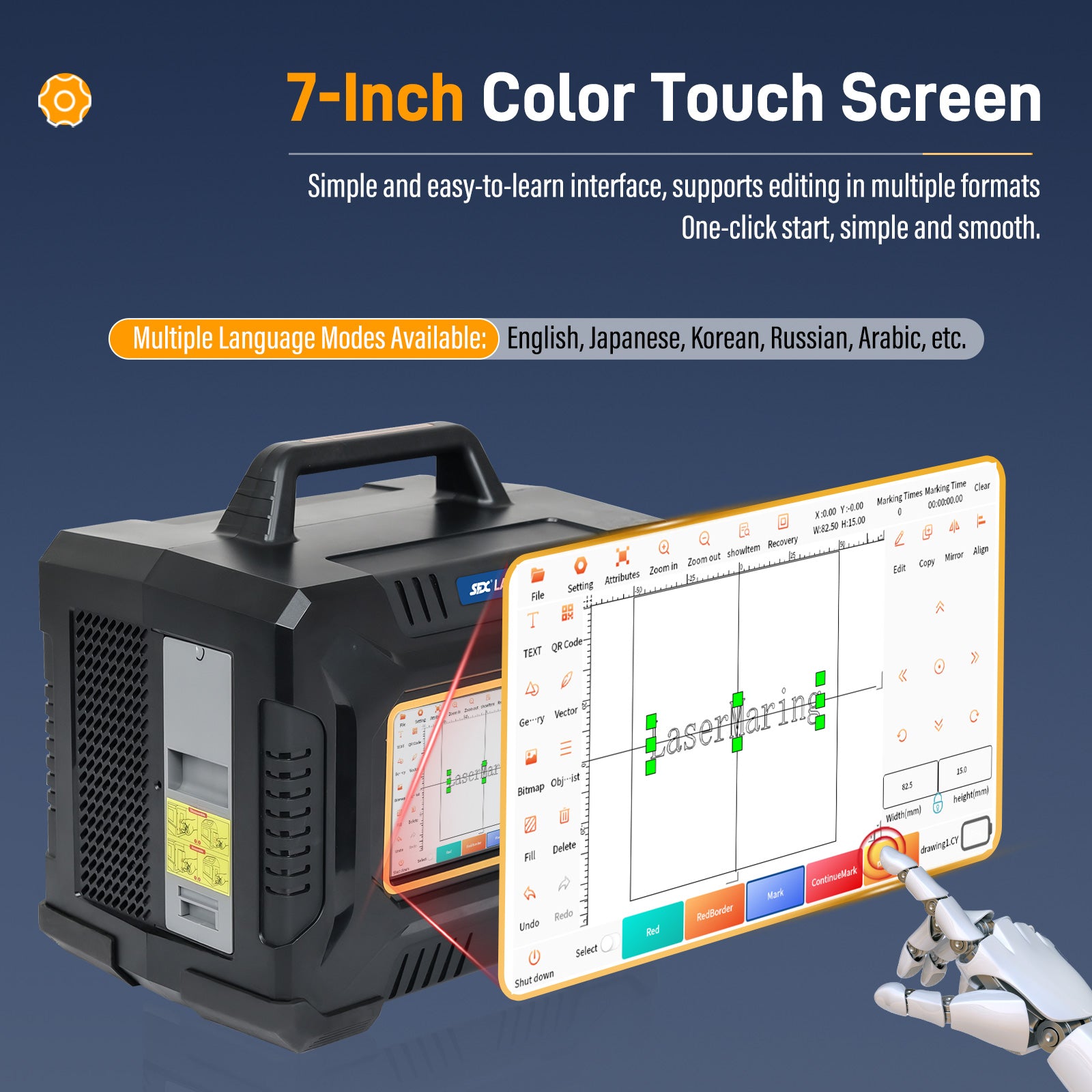

  • Operating Interface: Embedded intelligent laser scanning system with a built-in 7-inch capacitive touchscreen
  • Mobile App: Supported
  • Special Functions
  • Reserved interface for secondary development
  • Software can be integrated with ERP and MES systems
  • Lifting Platform for Marking Machine: Optional
  • Signal Interfaces: Built-in Bluetooth and Wi-Fi
  • Frequency Adjustment Range: 45–170 kHz (adjustable)
  • Marking and Engraving Types: Dot matrix and vector (supports both)

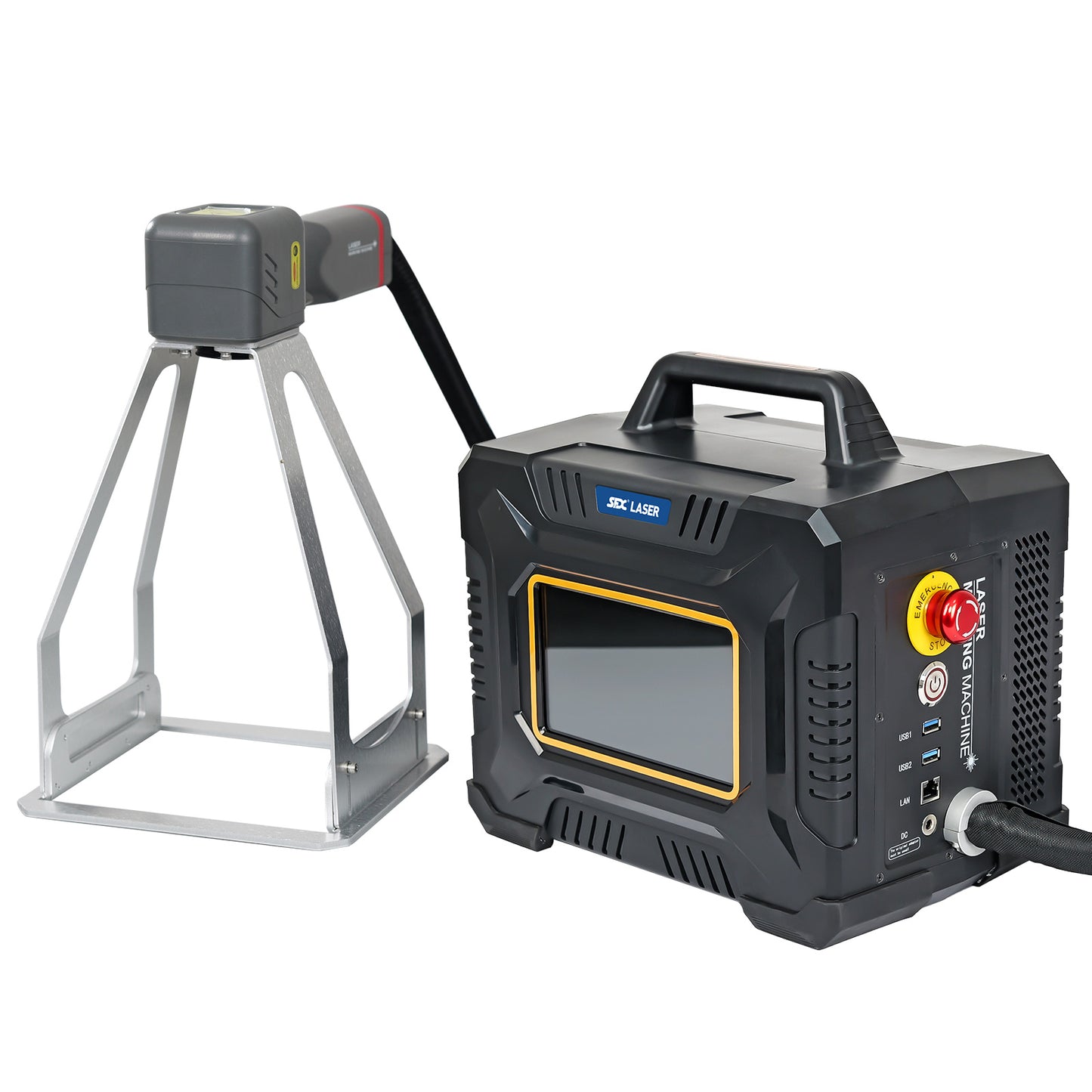

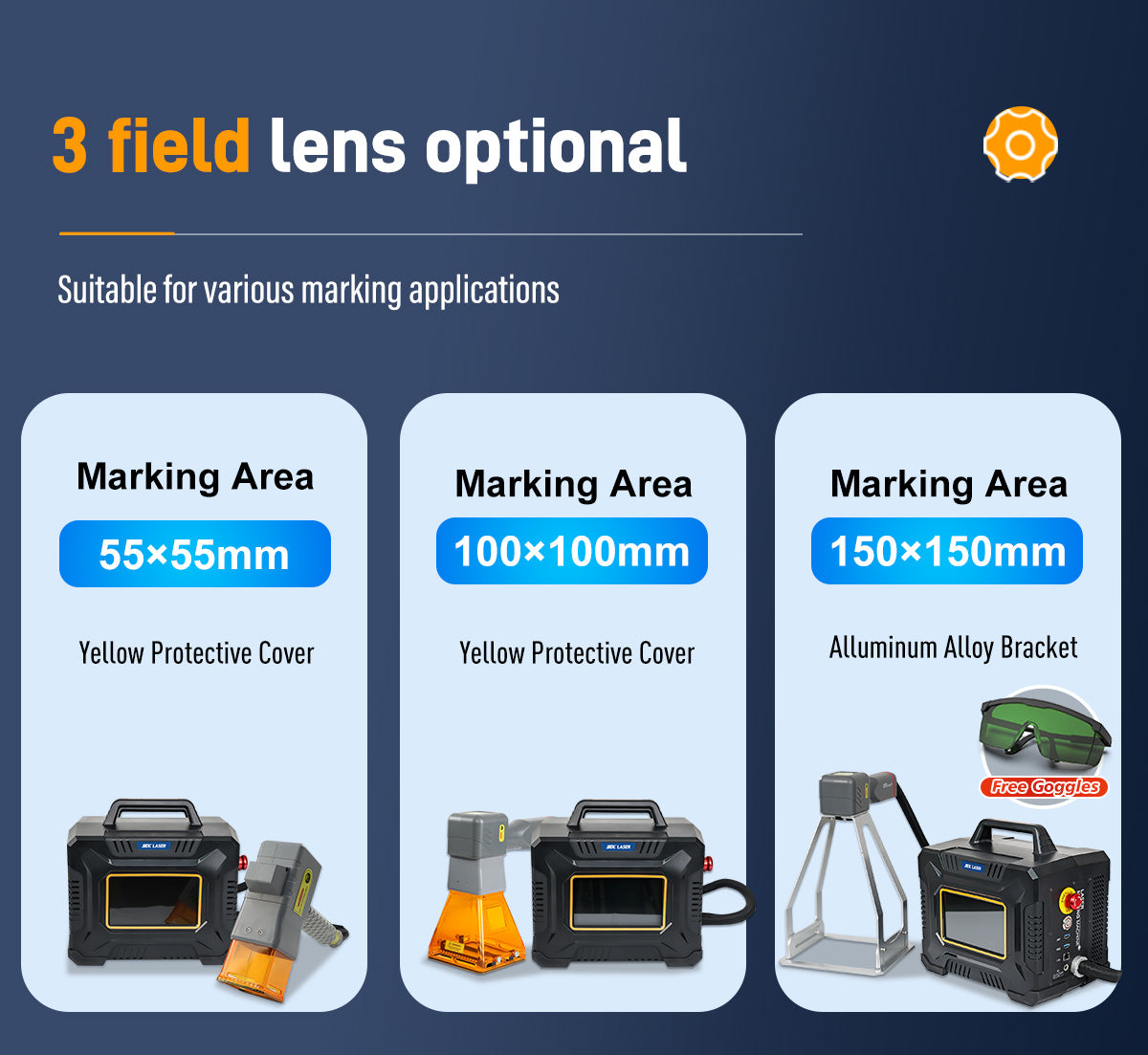

  • Marking Area: 55*55mm, 100*100mm, 150*150mm(Alluminum Alloy Bracket, Free safety goggles)

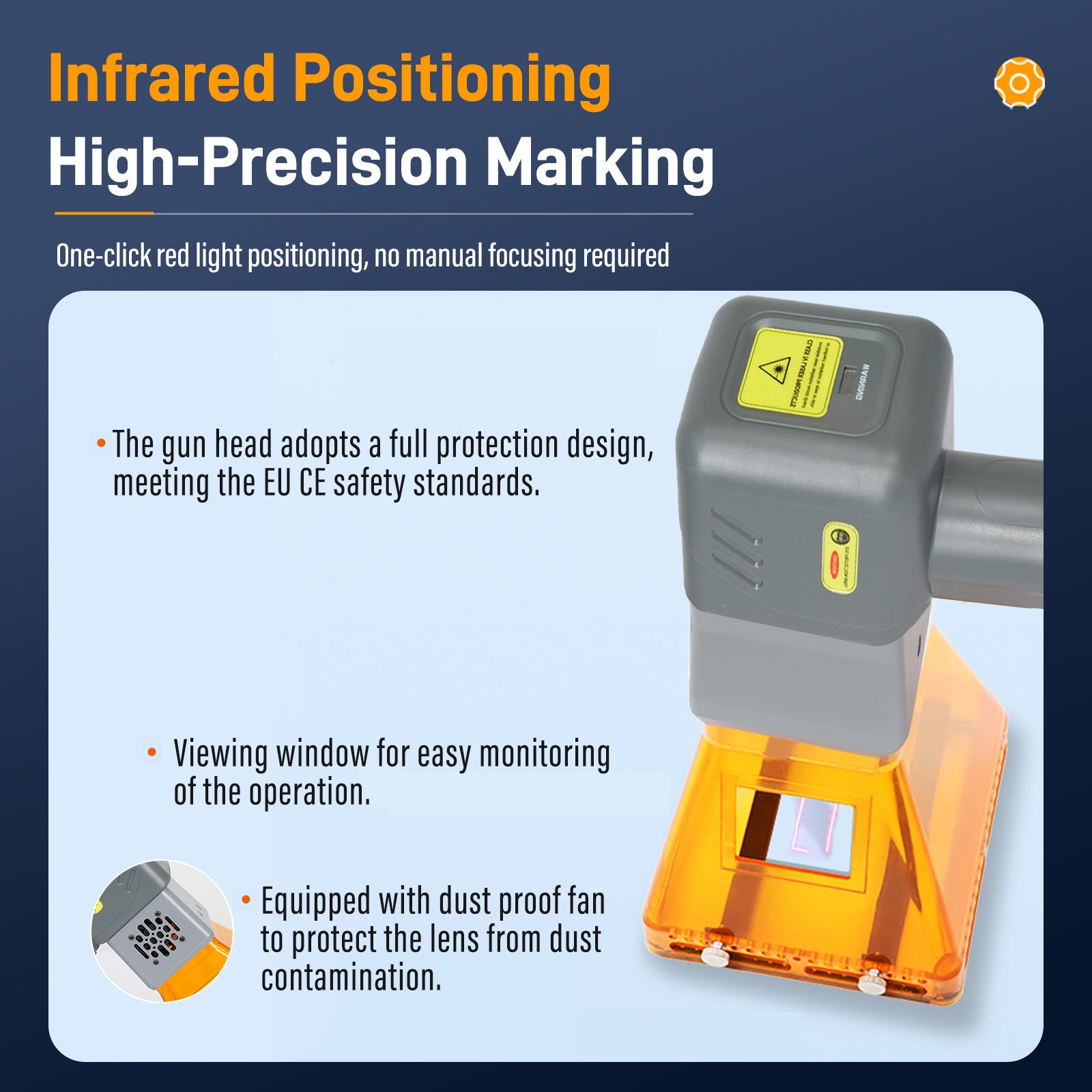

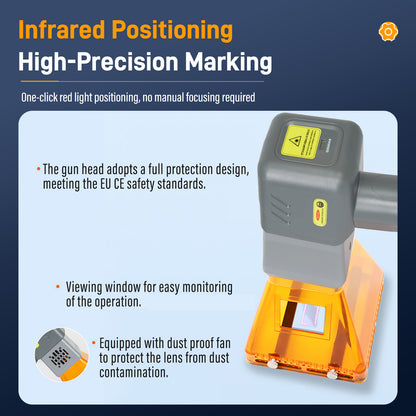

  • Positioning Method: Red light positioning
  • Minimum Line Width: 0.02 mm
  • Repeat Positioning Accuracy: 0.003 mm
  • Voltage: 90V–240V, 50/60Hz

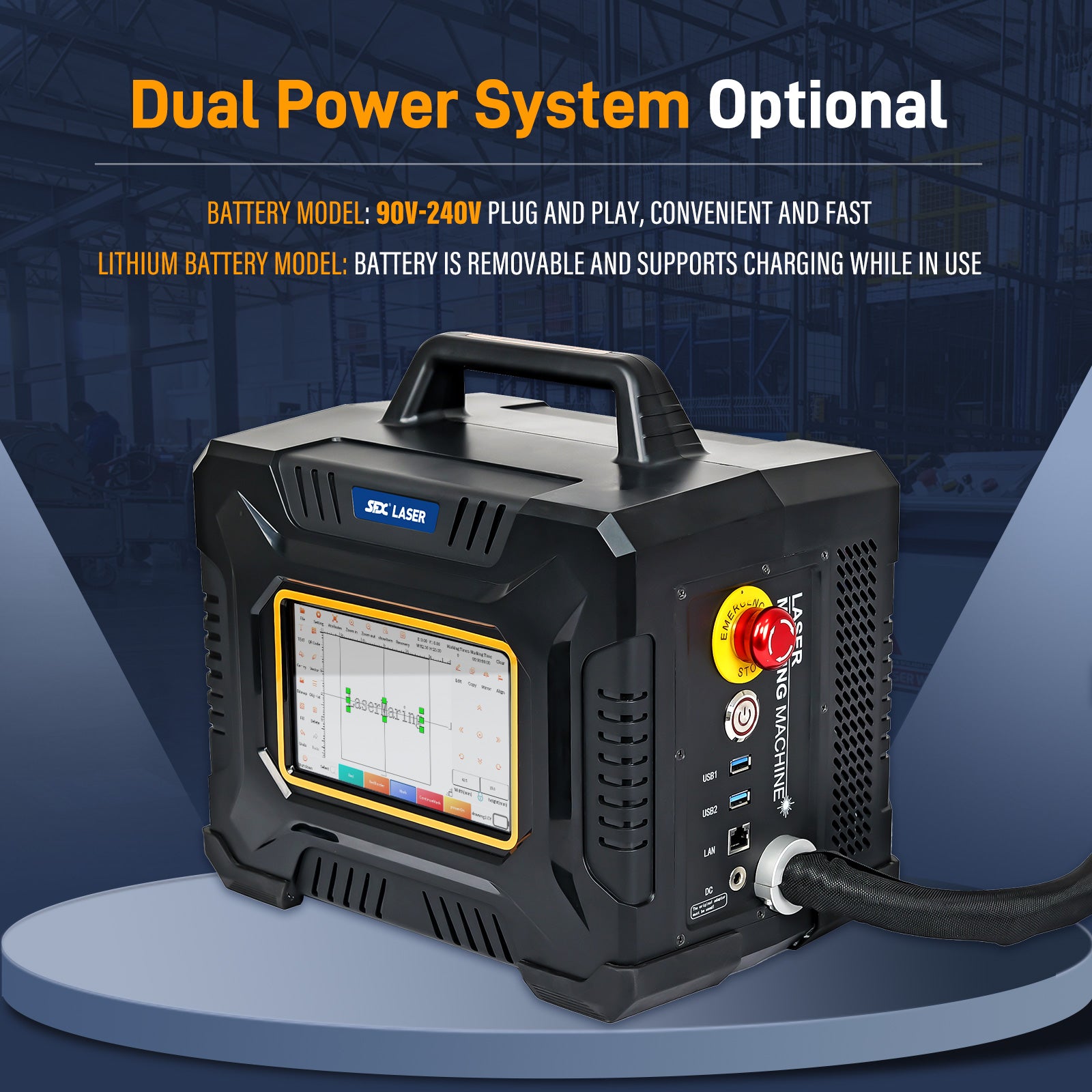

  • Power Supply Mode: Plug-in / Battery (supports charging during use)
  • Battery Capacity: ≥14,500 mAh
  • Maximum Power Consumption: 200W
  • Battery Life (full charge, full power): 4 hours
  • Charging Time: ≤ 2 h
  • Ambient Temperature Range: 0–40℃
  • Relative Humidity: 30–85% RH (non-condensing)

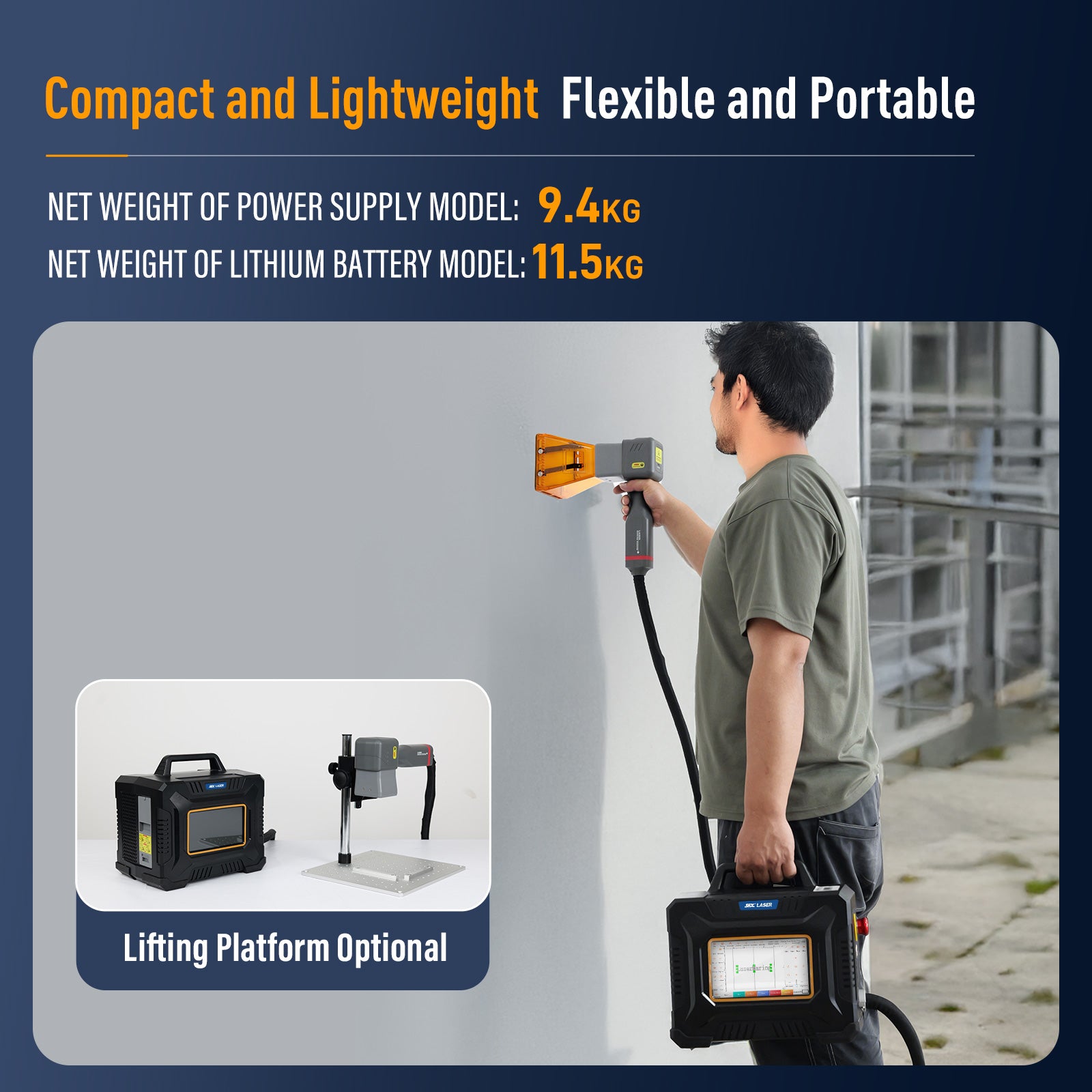

Net Weight:

Battery version: 11.5 kg
Plug-in version: 9.4 kg
Lifting platform (optional): 3.2 kg

Dimensions:

Main Unit: 314 × 213 × 290 mm
Handheld Gun Head: 145 × 290 × 250 mm
Package Dimensions: 450 × 450 × 450 mm

Package Weight:

Battery version: 14.5 kg
Plug-in version: 12 kg
Lifting platform (optional): 4 kg
