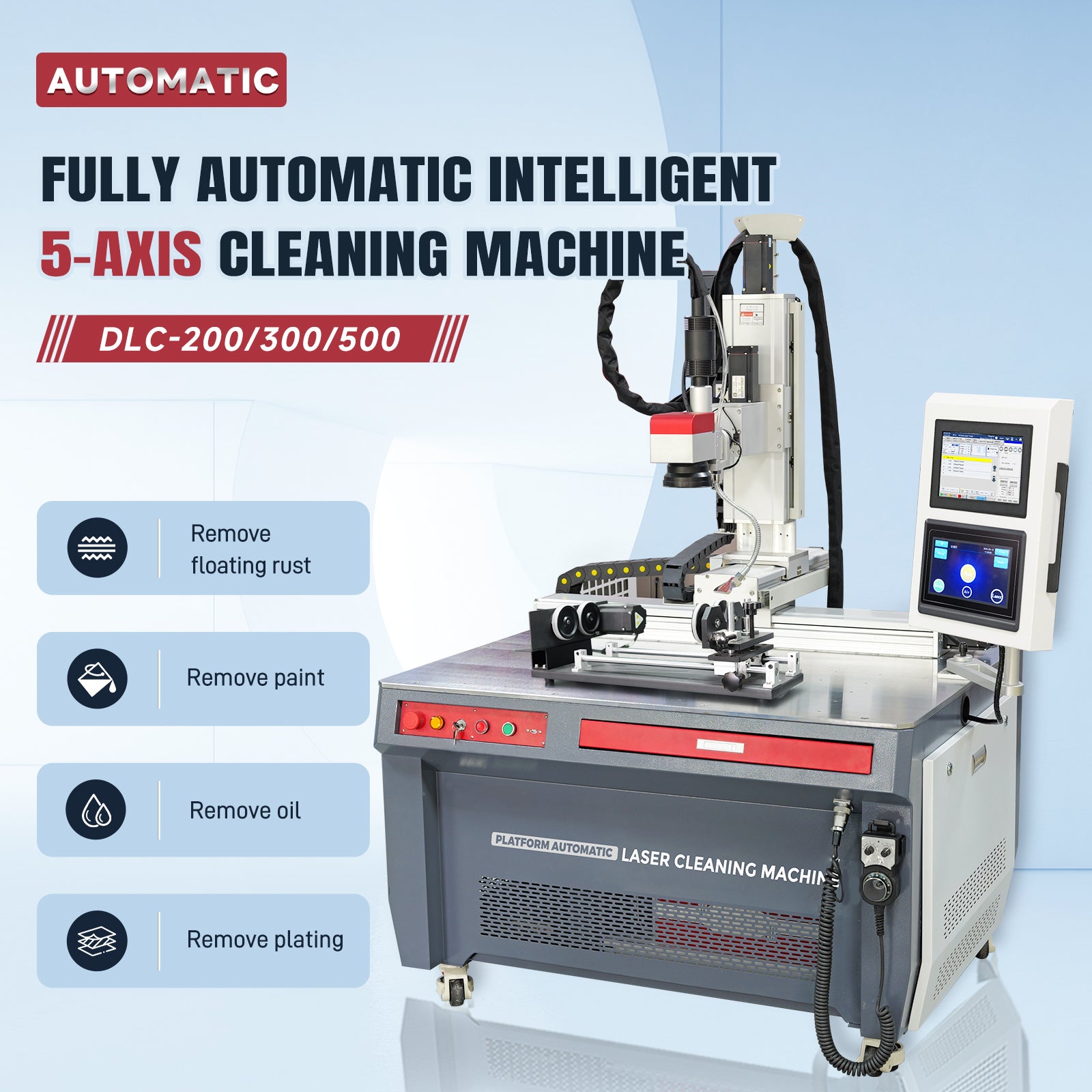

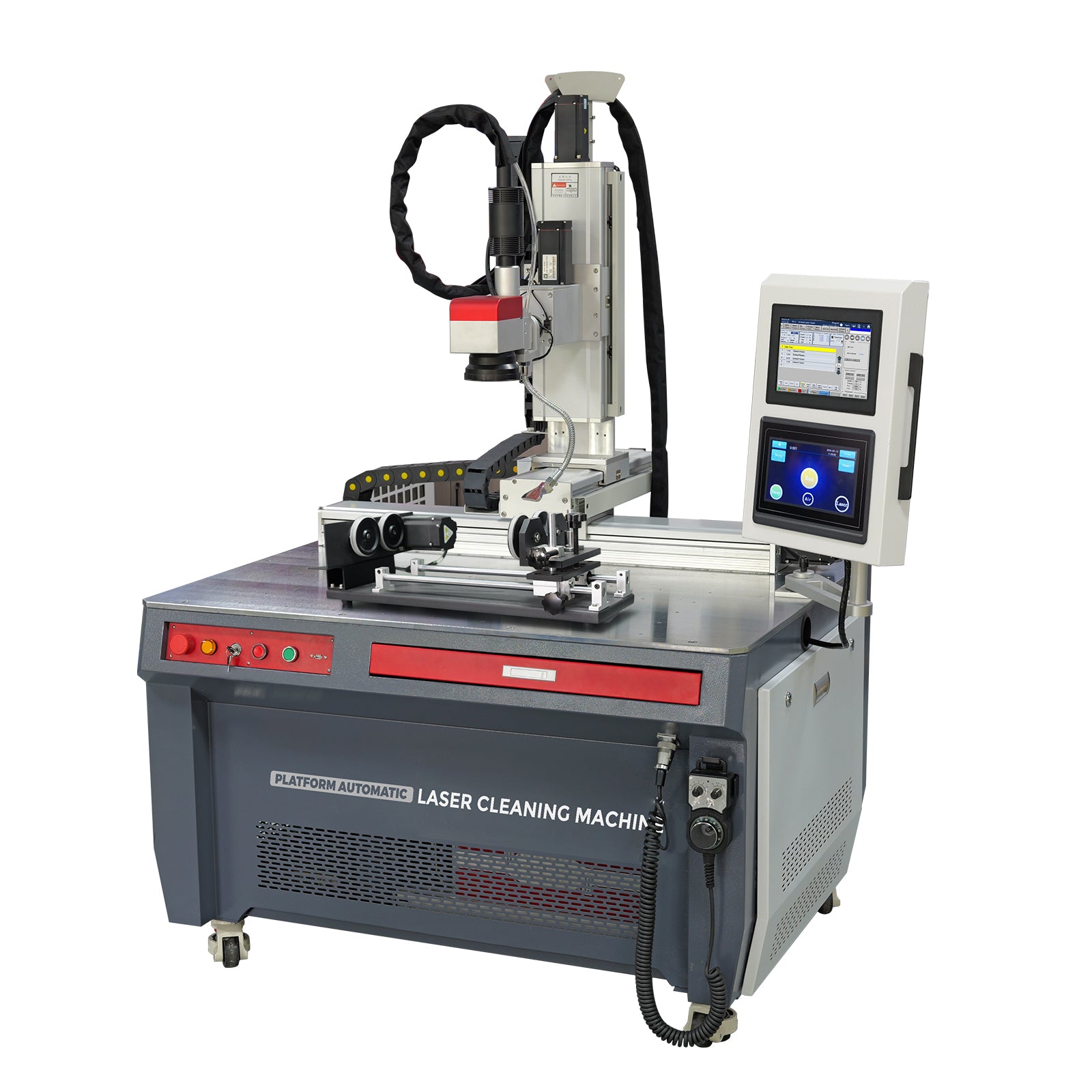

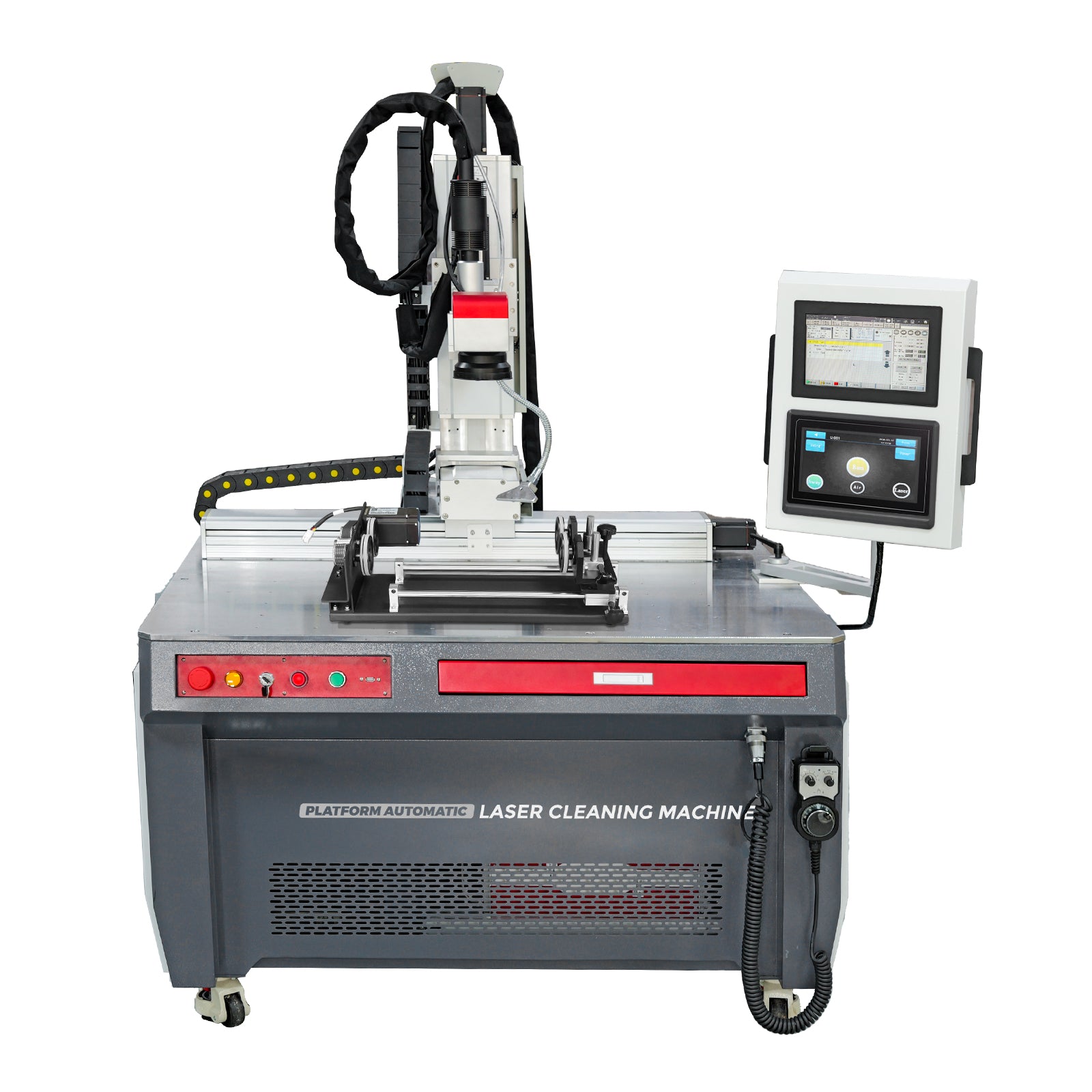

SFX 300W/500W Automatic Laser Cleaning Machine 3/5 Axis for Rust Paint Oil Zinc Plating Removal

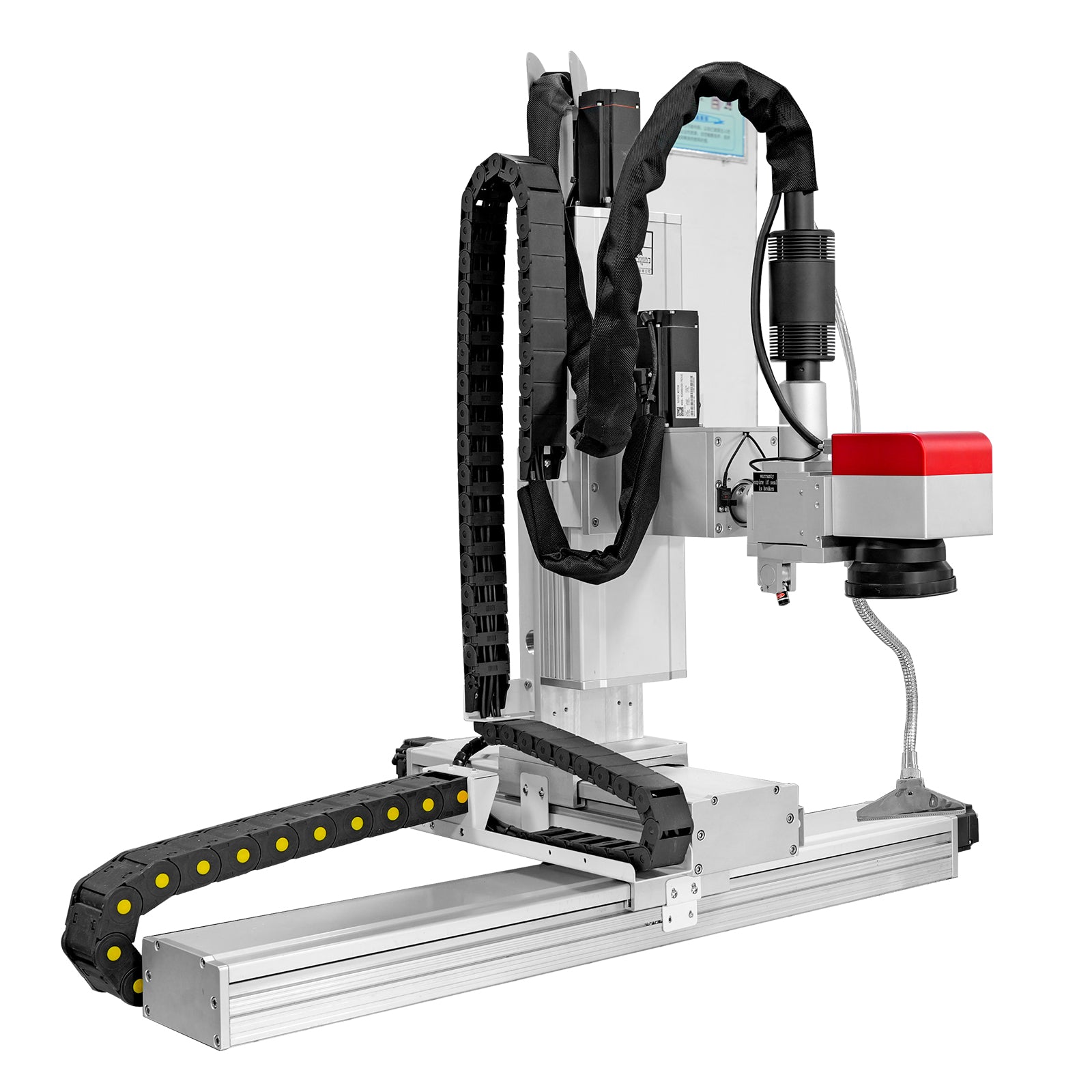

SFX 300W/500W platform laser automatic cleaning machine is designed for efficient, precise, and safe removal of adhesives, coatings, rust, and other contaminants from various surfaces. The system supports three-axis linkage as standard and can be customized to five-axis for complex cleaning tasks, including three-dimensional curved surfaces.

Key Features & Advantages:

Non-Contact Cleaning: No physical abrasion, preserving the substrate surface.

High Efficiency: Digital matching of laser frequency, galvanometer, and axial speed ensures fast, blind-spot-free cleaning.

Consistent Energy: Automatic focus control delivers uniform cleaning, high gloss, and stable operation.

Intelligent Control: Teaching programming allows easy batch operations. Eight graphic patterns available for complex cleaning conditions.

Safety & Reliability:

Instantaneous fuse on output side guarantees equipment safety.

Modular machine design ensures stable performance and easy maintenance.

Durability Tested: Heavy dirt, vibration, high temperature, anti-reflection, anti-interference, dustproof, high-humidity, and fatigue tests guarantee quality assurance.

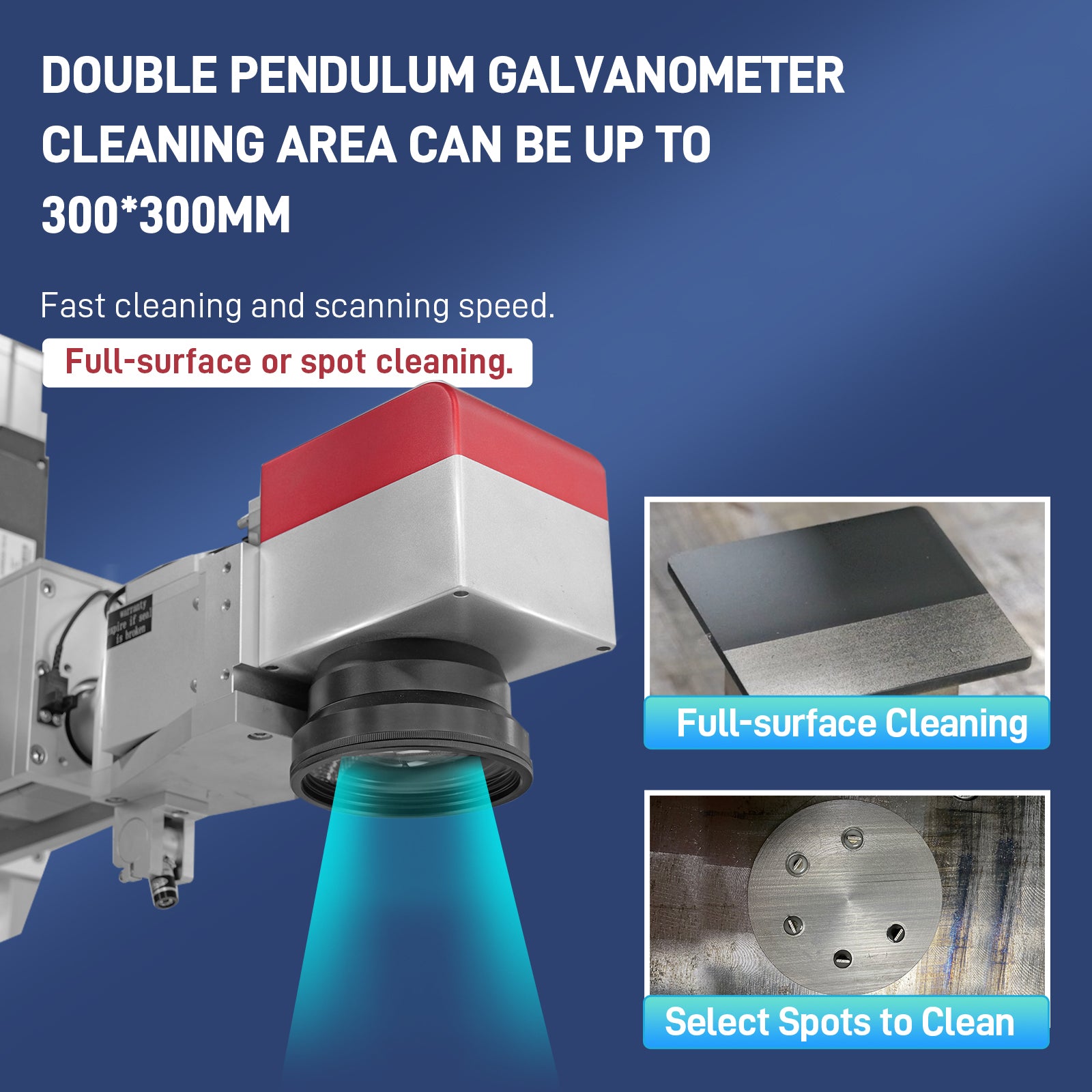

High-Speed Galvanometer System: Scanning area up to 300*300mm for fast, uniform cleaning.

Rich I/O Interfaces: Supports MODBUS protocol, easy to integrate with other devices.

Robust Build: Integrated thickened sheet metal construction provides all-round protection and efficient heat dissipation.

Applications:

Surface cleaning of precision castings, molds, automotive parts, electronics, and other industrial components.

Ideal for batch operations and complex 3D surfaces.

Suitable for industries requiring high gloss, uniform energy cleaning without chemicals or consumables.

Customization: Power, working area, scanning area, and axis configuration can be tailored according to customer requirements.

Parameters:

Axis: 3 Axis or 5 Axis

Laser Power: 300/500W

Laser Wavelength: 1064±10nm

Pulse Width: 10-500ns

Modulation Frequency: 1-1000KHZ

Cleaning Area: 10-250mm/Standard with 330mm lens (optional size 10-175mm/254mm lens,size 10-300mm/420mm lens)

Table size: 1200*1000mm

XYZ stroke: 800*300*300mm

Input voltage: AC220V±10%

Input power: 3.5Kw for DLC-300, 5Kw for DLC-500

Cooling method: Air-cooled/Water-cooled for DLC-300, Water-cooled for DLC500

Water tank capacity:16L(need to add water 14-15L)

Machine size: 1200*1000*1700mm

Packing size: 1800*1400*1900mm

Net weight: 460kg

Warranty & After-Sales Service:

Comprehensive Warranty: One-year warranty for the entire SFX Laser Cleaning Machine and two years for the laser source. During the warranty period, if any spare part needs repair, we will cover return shipping costs and repair it for free, including any necessary replacement parts.

Professional Technical Support: Each machine comes with an English user manual and an operation video. Customers can start using the machine immediately upon connecting the power.

Remote Assistance: We offer remote technical support via video call for immediate troubleshooting. A dedicated WhatsApp/WeChat group can be set up for real-time after-sales support.

Lifetime Service: Lifelong after-sales service and technical guidance are provided to ensure optimal machine performance.

Local Support: US after-sales service center available for faster response.

Delivery:

Custom machines typically take 15–25 days to produce, with an additional 25–35 days for door-to-door shipping via sea and truck.
