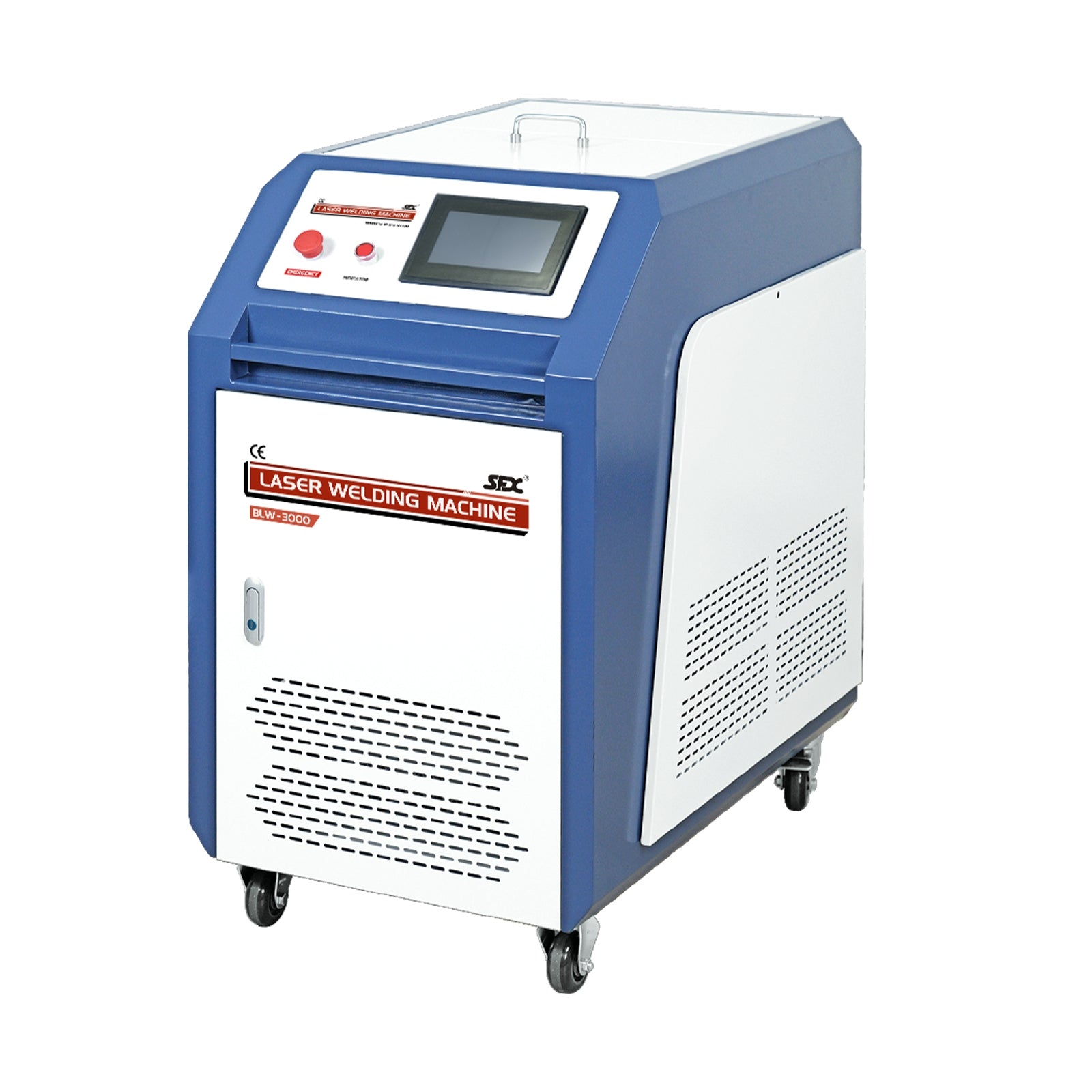

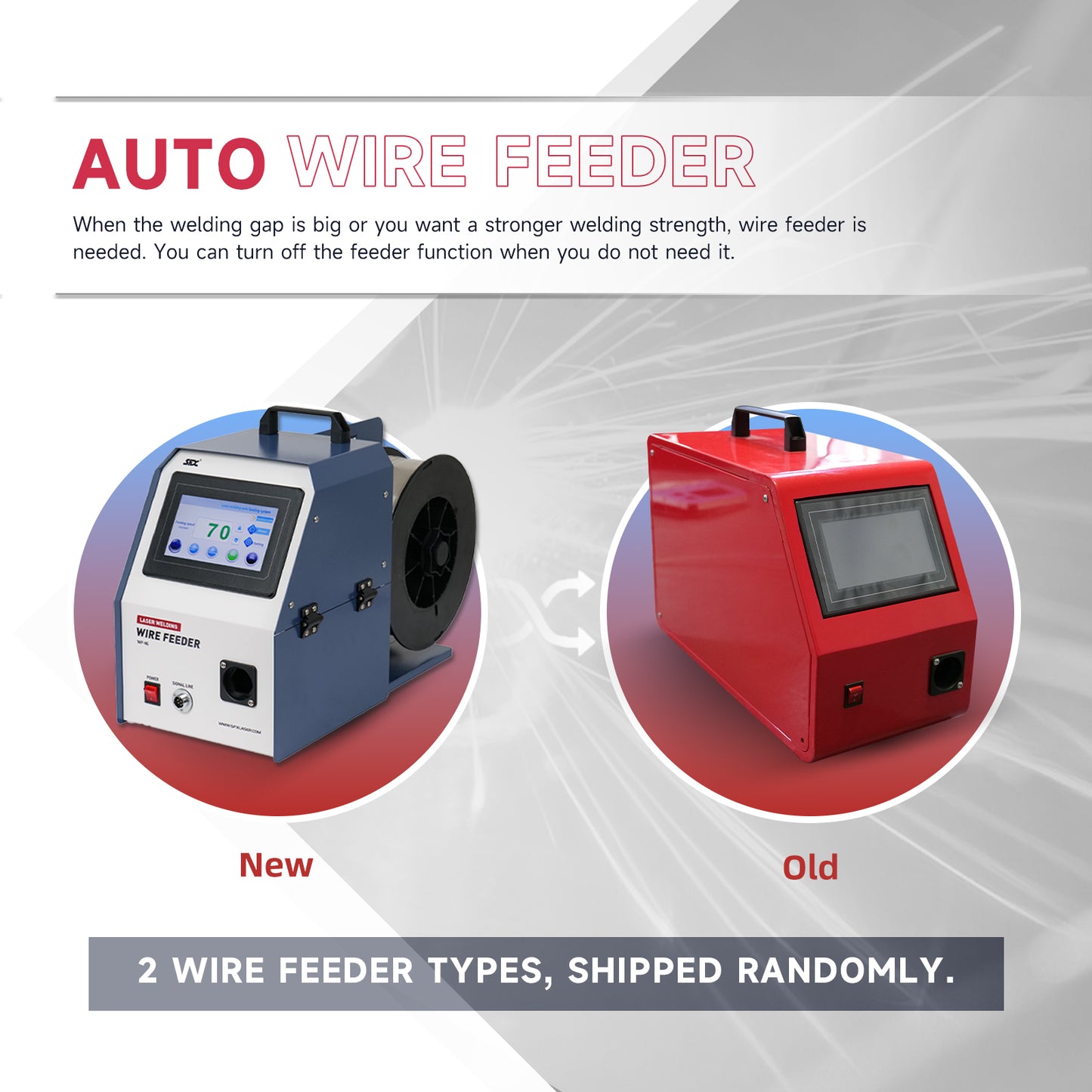

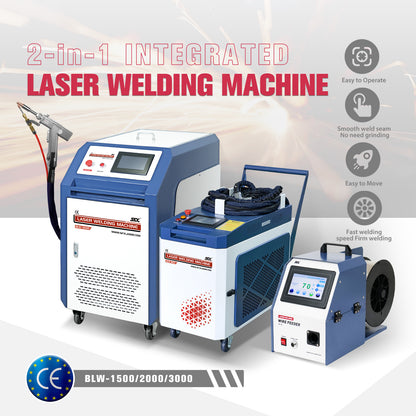

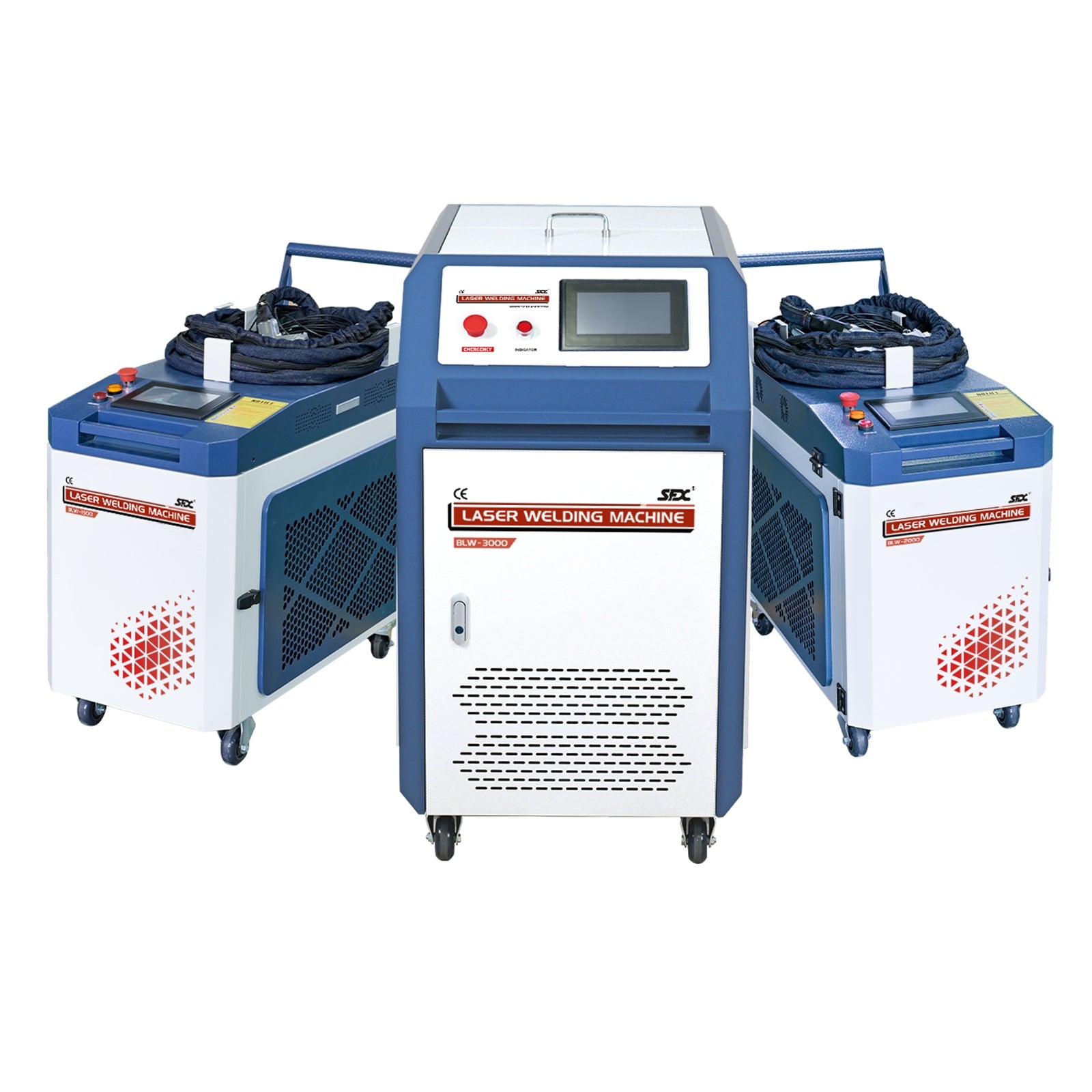

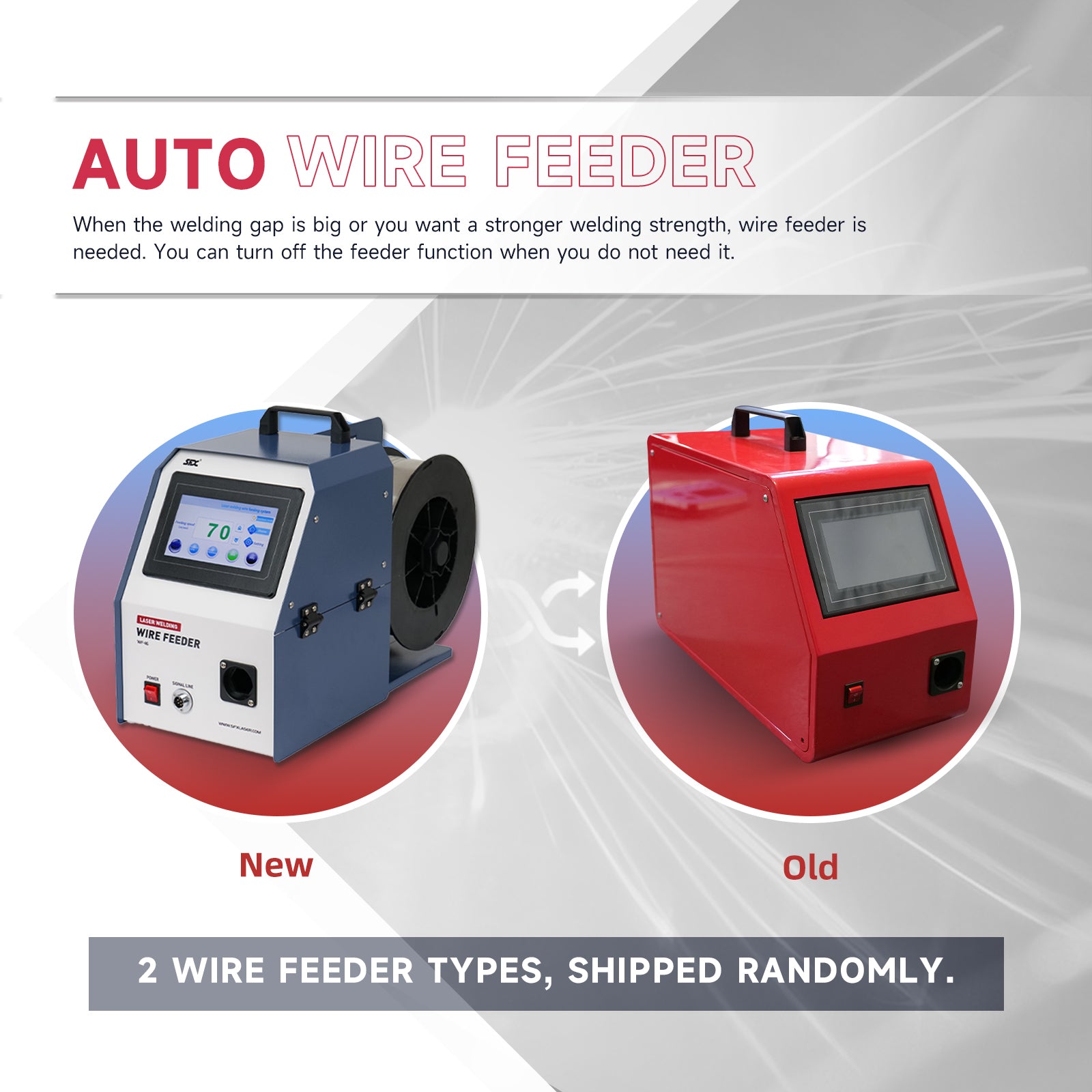

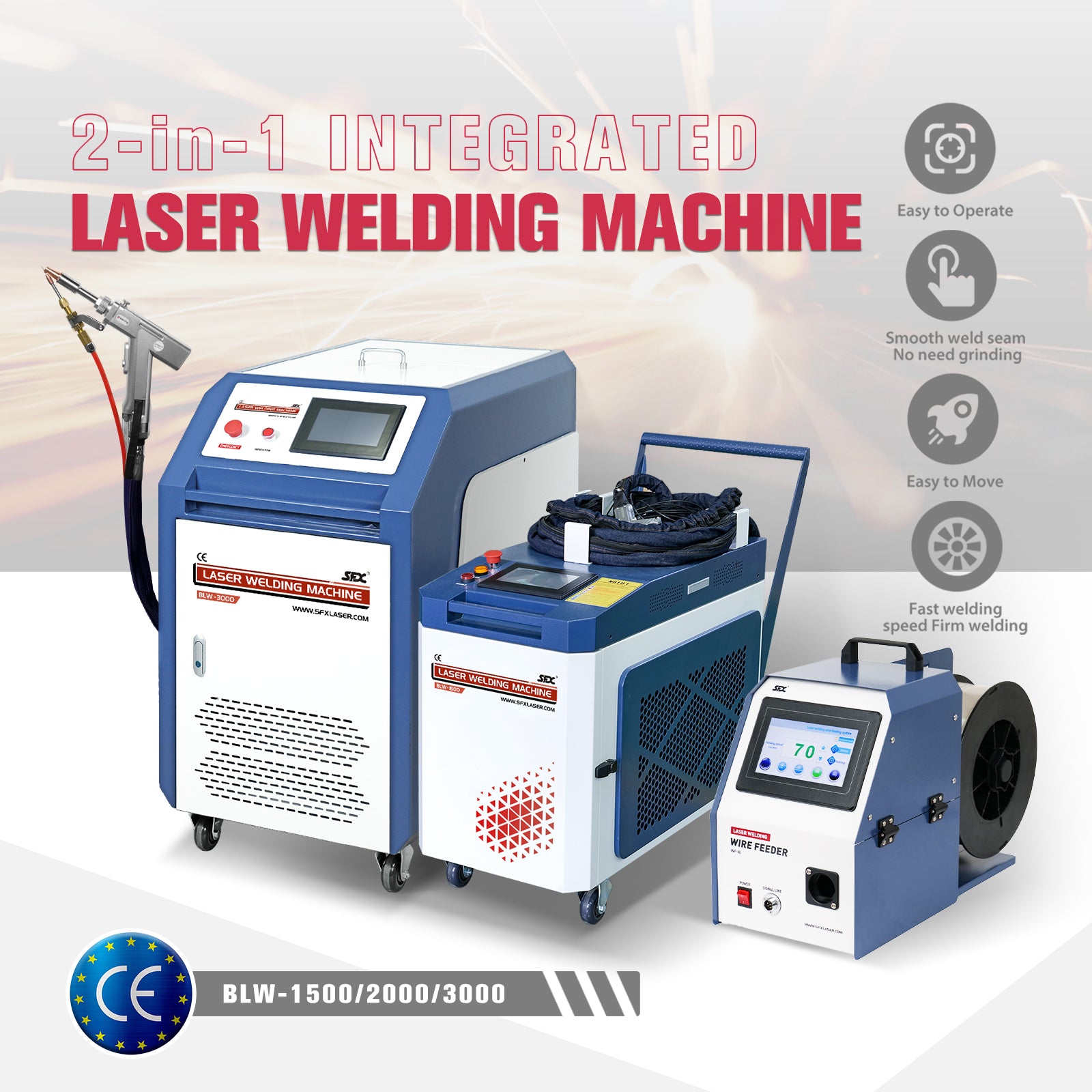

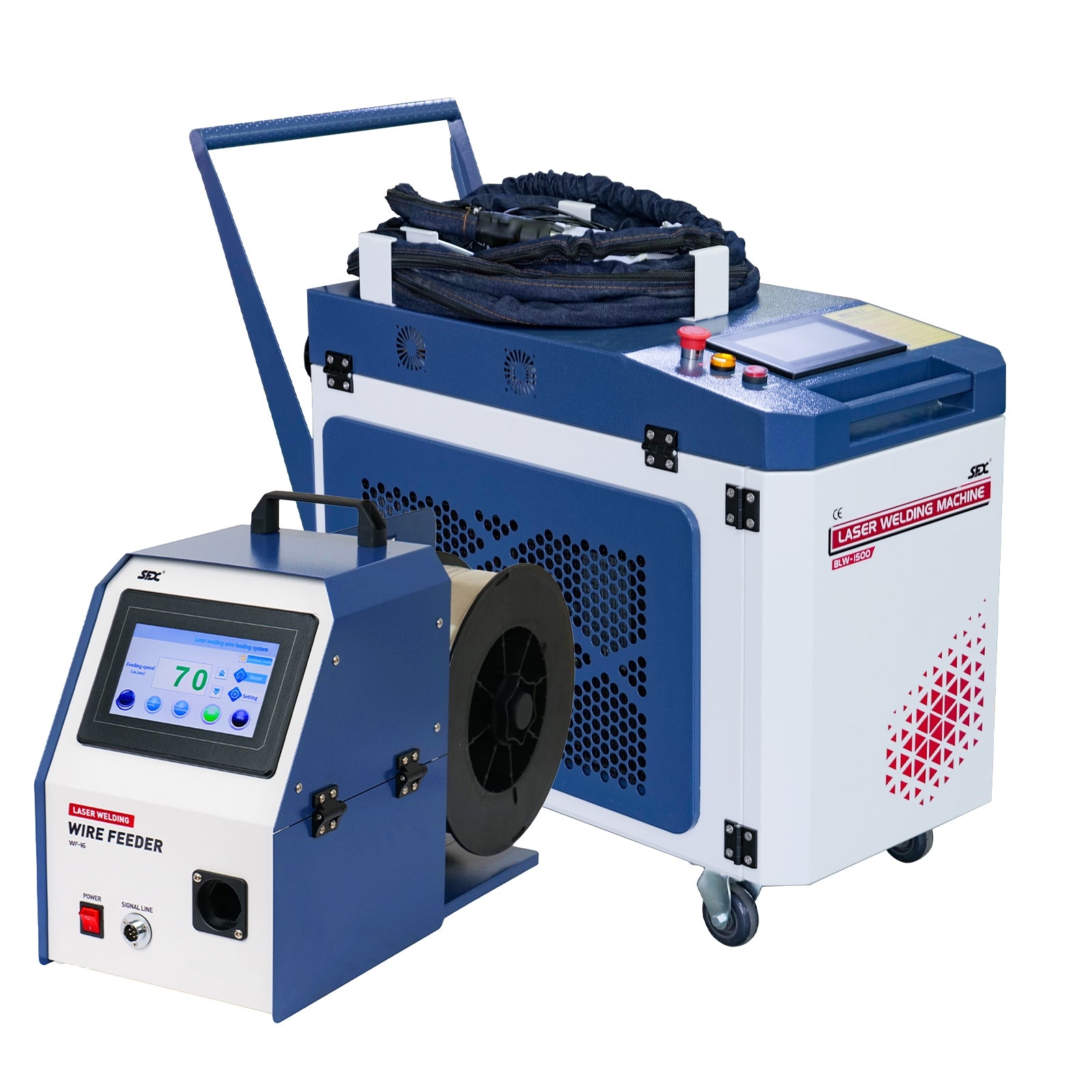

SFX 2-in-1 Integrated Laser Welding Machine BLW-1500W/2000W/3000W Handheld Fiber Laser Welder with Auto Wire Feeder
SFX 2-in-1 Integrated Laser Welding Machine BLW-1500W/2000W/3000W Handheld Fiber Laser Welder with Auto Wire Feeder
8% Off, Continental United States only
Free Shipping!
Couldn't load pickup availability
Feature:
High Welding efficiency: Welding speed is 3-8 times of Agron Arc welding.

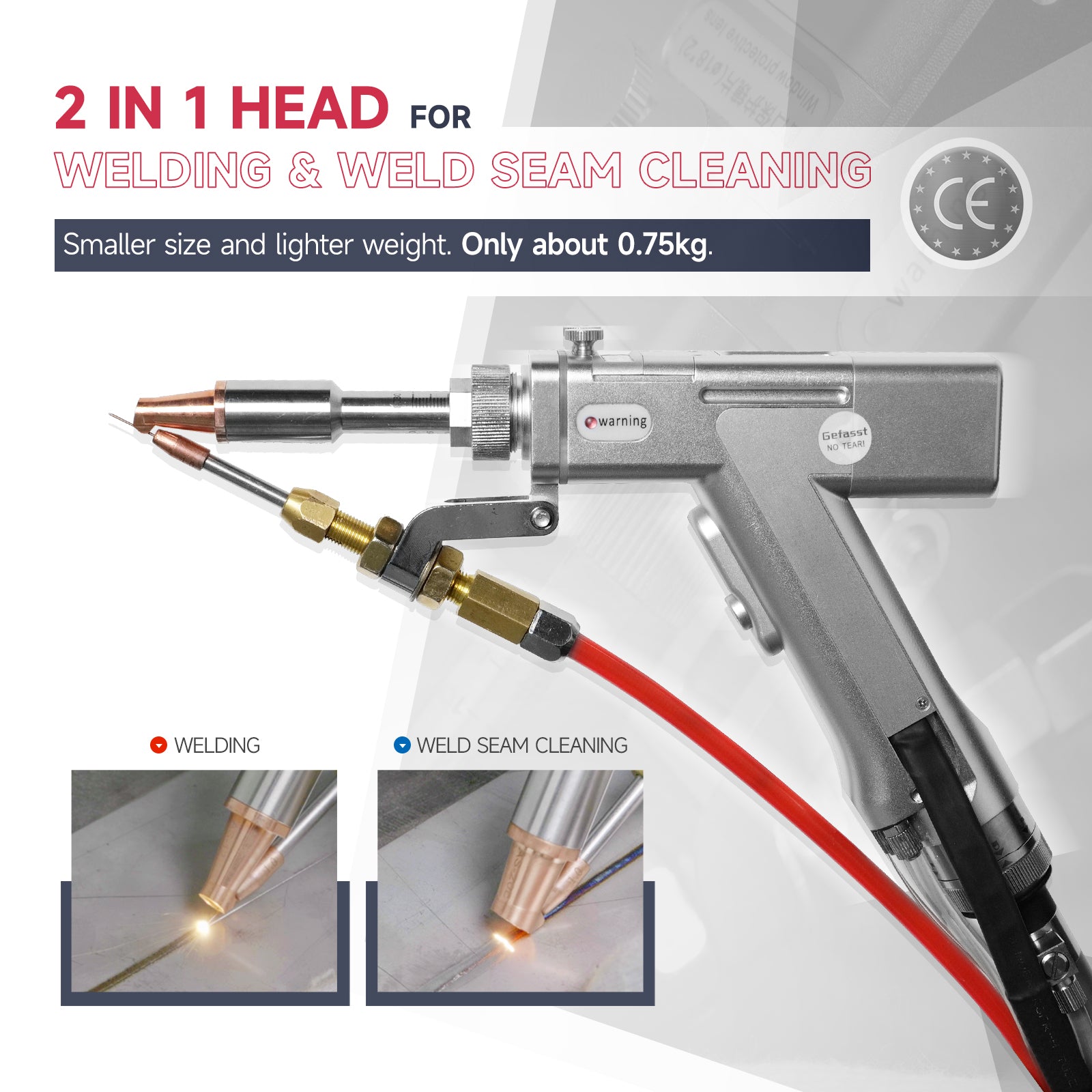

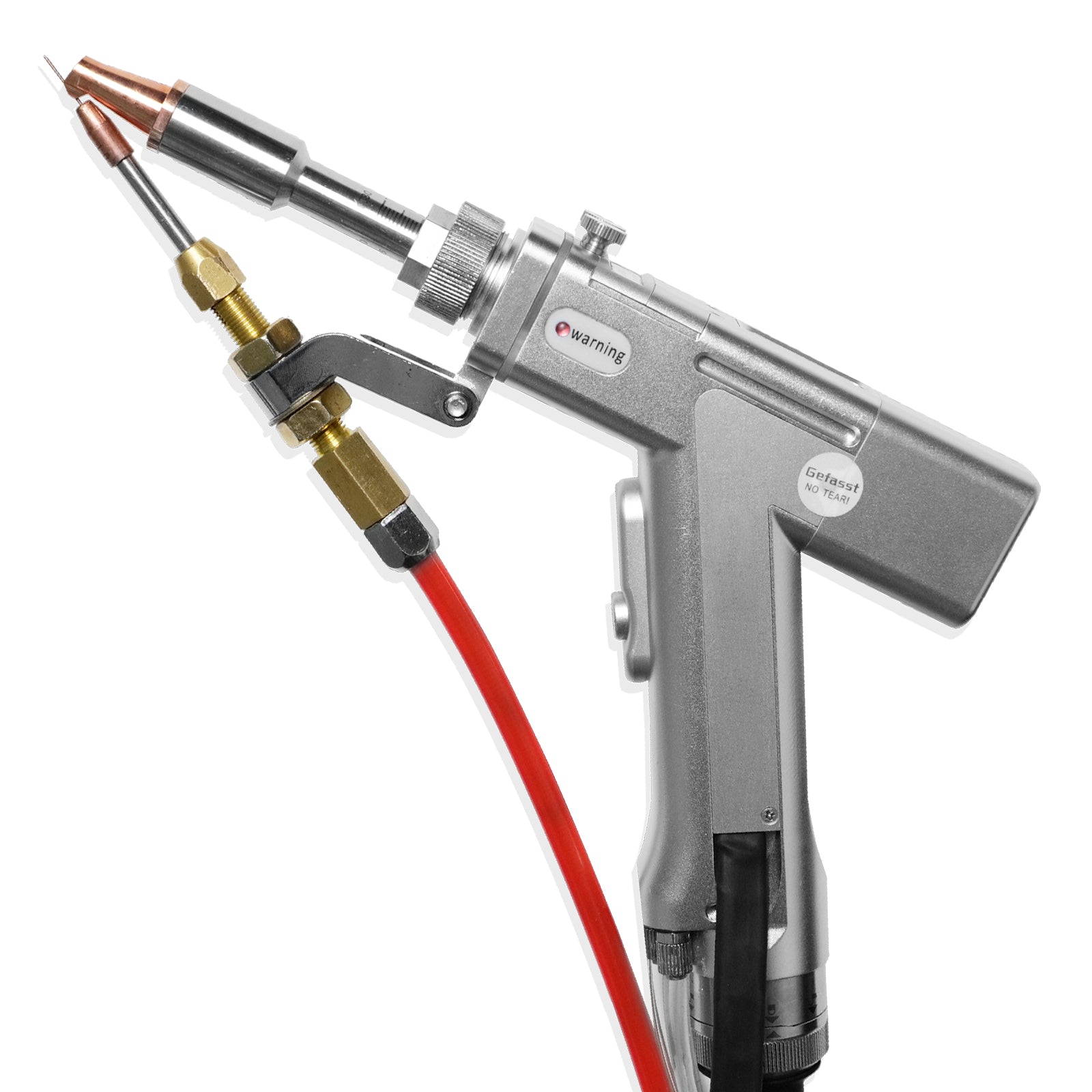

Handheld welding gun: The hand-held welding head is light and flexible, which can realize welding of any part of the workpiece. You can not easy to fatigue after a long working time.
Industrial grade design: Tailor-made for special purpose, thickened sheet metal structure, firm and anti-deformation, efficient heat dissipation, cost reduction by mass production.
Integrated Design: The volume is only 0.23m³ to 0.28m³, easy to put in a car.
Self-adaptive speed fan: Direct cooling and heat dissipation, high efficiency and energy saving.

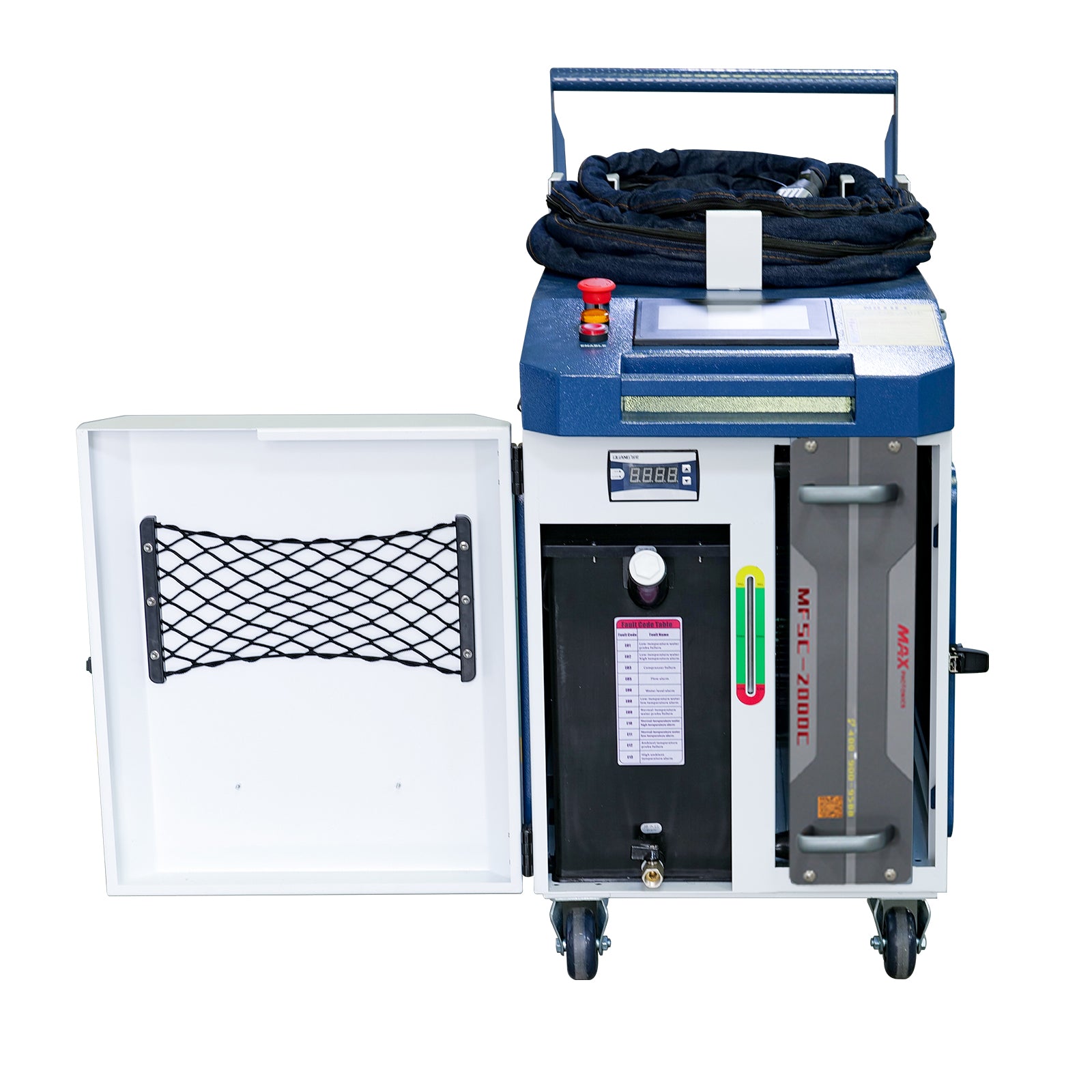

MAX Laser source, Smart control pannel, Neat Wiring.
It's convenient to prep-clean, weld and then clean the weld.
Delivery:
Warranty:

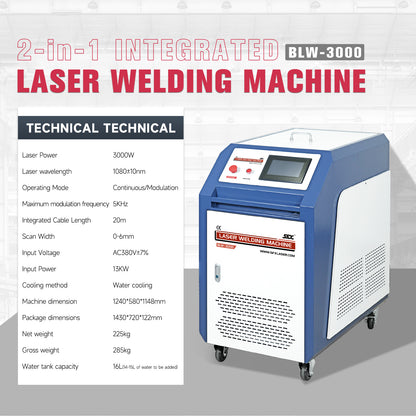

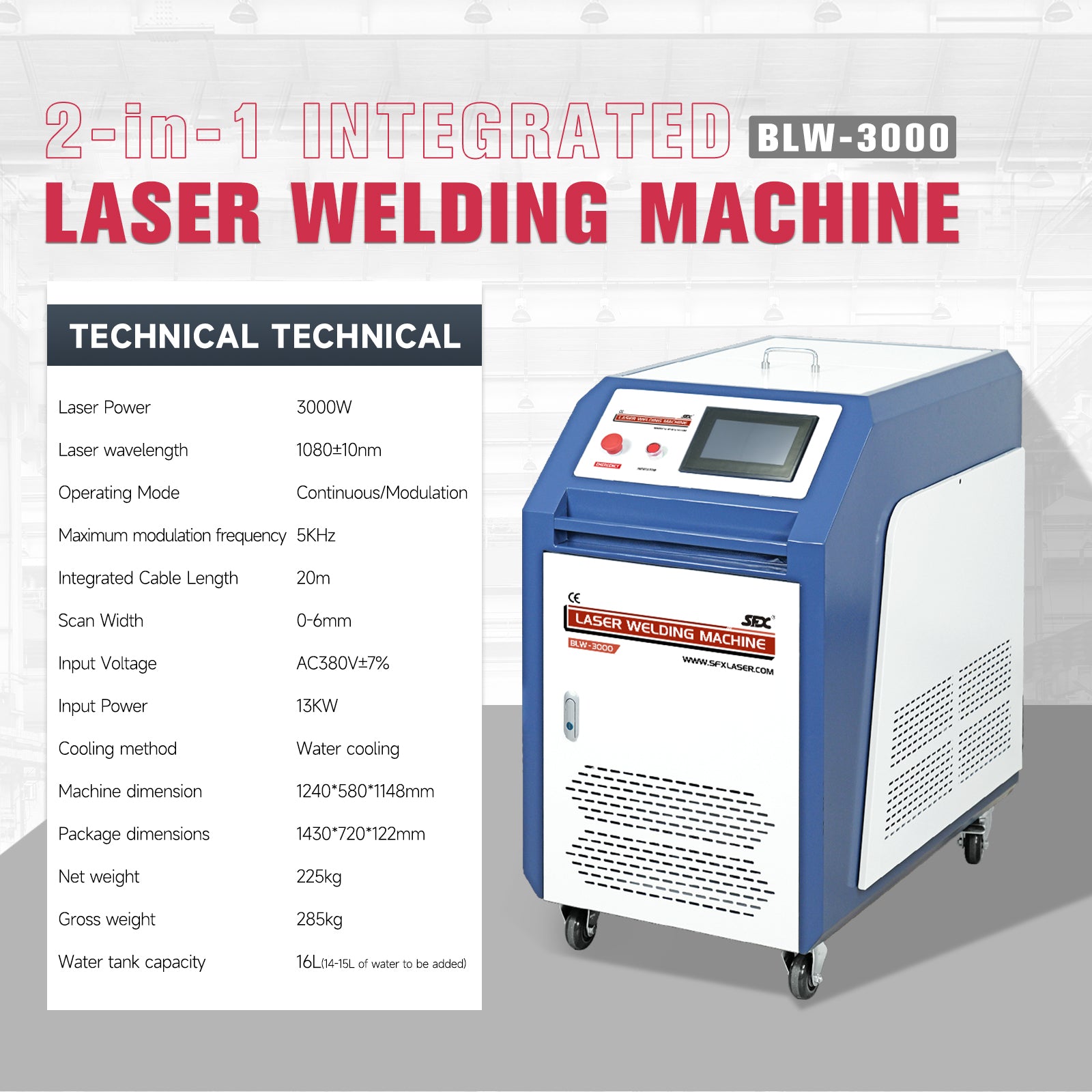

Parameter:
Model: BLW-1500/2000/3000
Laser Type: Fiber Laser, 1080nm
Laser Power: 1500W/2000W/3000W MAX
Cable Length: 10m for 1500W/2000W, 20m for 3000W
Max. Modulation Frequency: 100KHz
Welding Speed: 0-120mm/sec

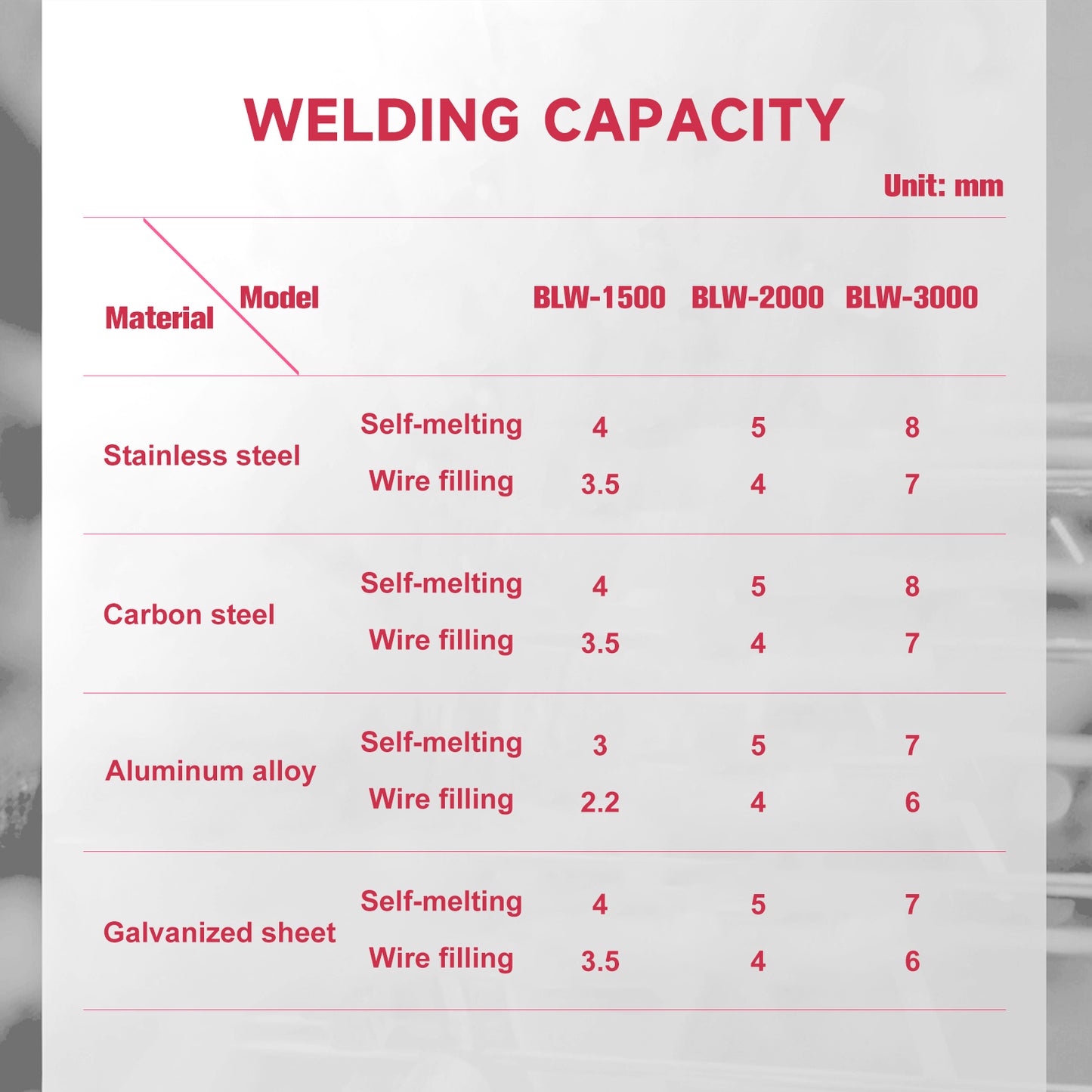

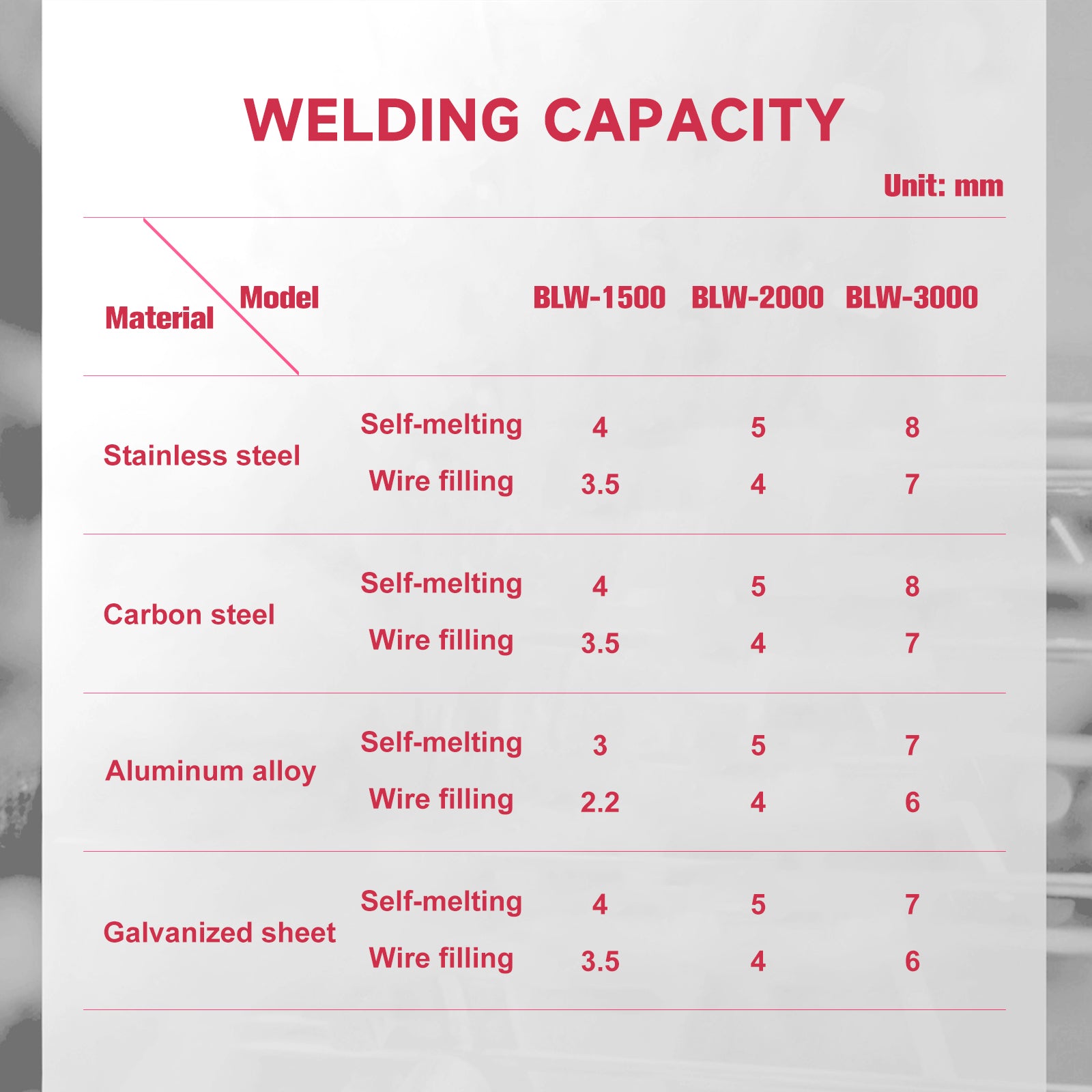

Welding Thickness: 0-6mm
Cooling Method: Water Cooling
Gas Assist: Nitrogen/Argon
Visual Positioning: Red Dot
Machine Dimension: 84.5*46*60.5cm for 1500W, 90.5*48*63cm for 2000W, 1260*590*1190 mm for 3000W
Working Voltage: 220V ±10% Single Phase 50Hz/60Hz for 1500W/2000W, 380V 3-Phase with 220V to 380V 3 Phase transformer for 3000W
Application:

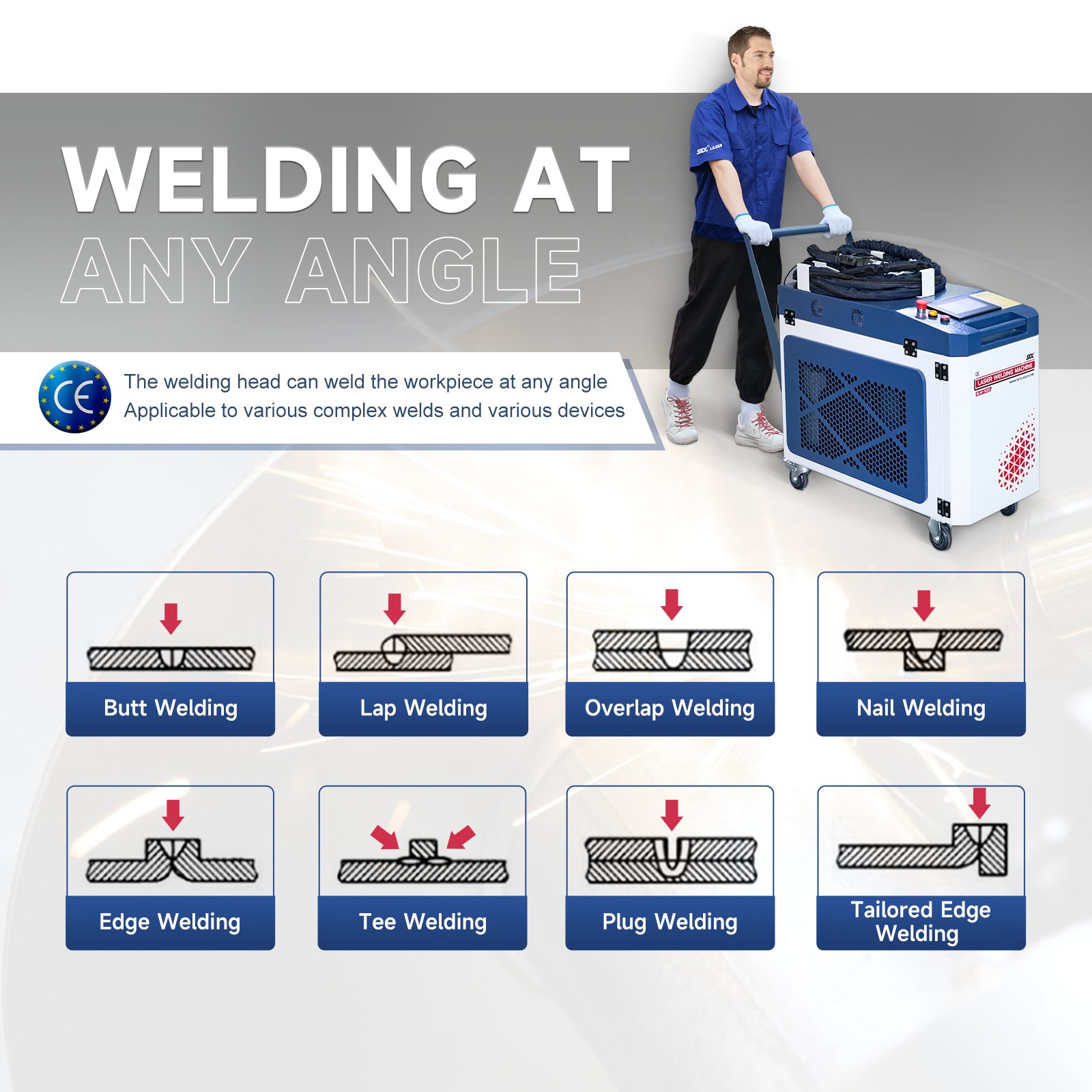

The welding head can weld the workpiece at any angle, and applicable to various complex welds and various devices, such as Butt Welding, Lap Welding, Overlap Welding, Nail Welding. Edge Welding, Tee Welding, Plug welding, Tailored Edge Welding
