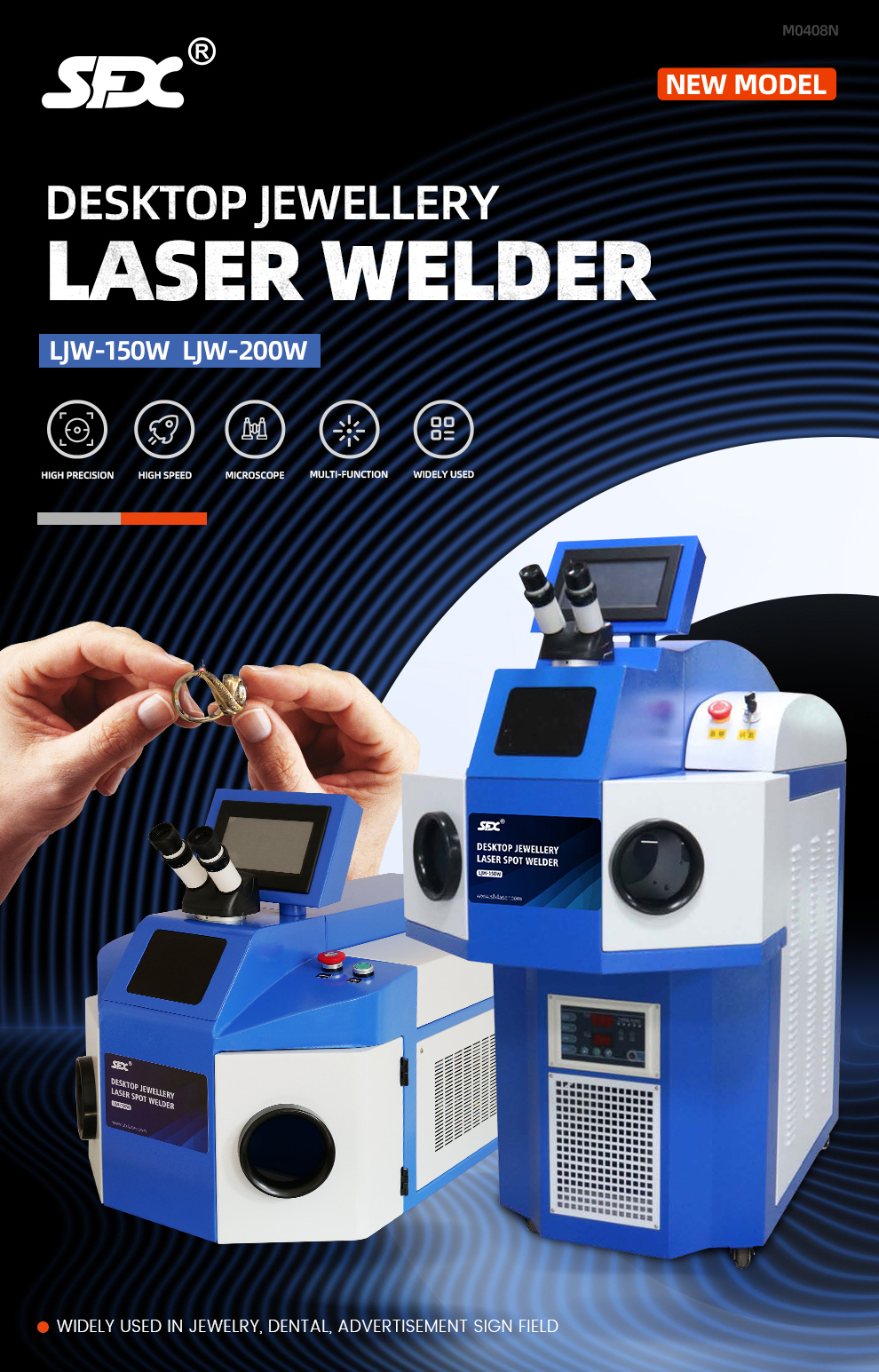

SFX 150W/200W Laser Spot Welding Machine Jewelry Laser Welder Spot Welders

SFX 150W/200W Laser Spot Welding Machine Jewelry Laser Welder Spot Welders

Jewelry laser welding machine is widely used in all kinds of metal, like gold, silver, bronze, aluminum steel and titanium.

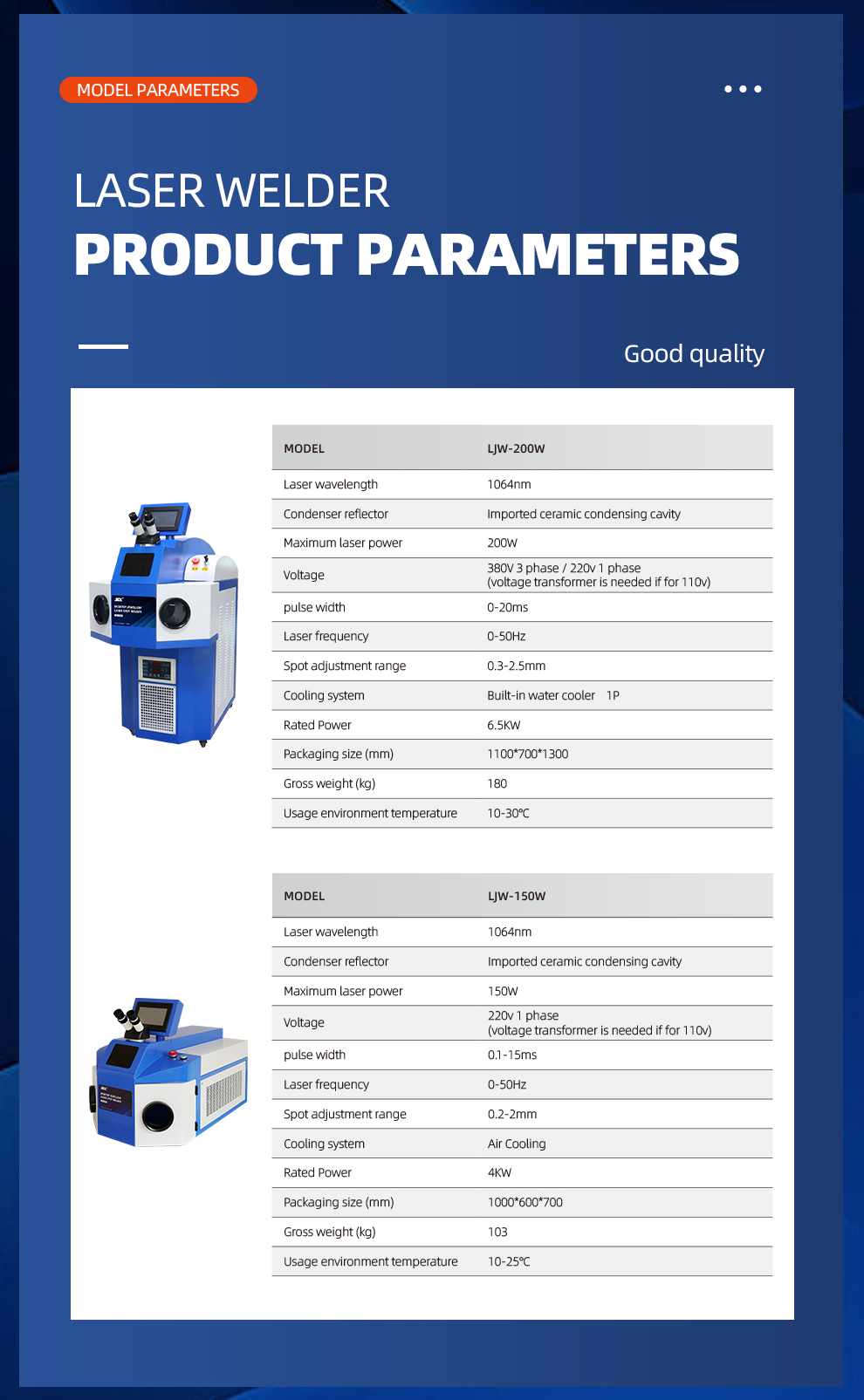

Technical Parameter:

Max. Laser Power: 150W/200W
Laser Wavelength: 1064nm
Condenser reflector: Imported ceramic condensing cavity
Voltage: 220V Single Phase
Pulse width: 0.1-15ms for 150W, 0-20ms for 200W
Laser Frequency: 0-50Hz
Spot Adjustment Range: 0.2-2mm for 150W, 0.3-2.5mm for 200W
Cooling system: Air Cooling for 150W, Built-in water cooler for 200W
Rated Power: 4KW/6.5KW
Usage environment temperature: 10-25℃ for 150W, 10-30℃ for 200W

Feature:

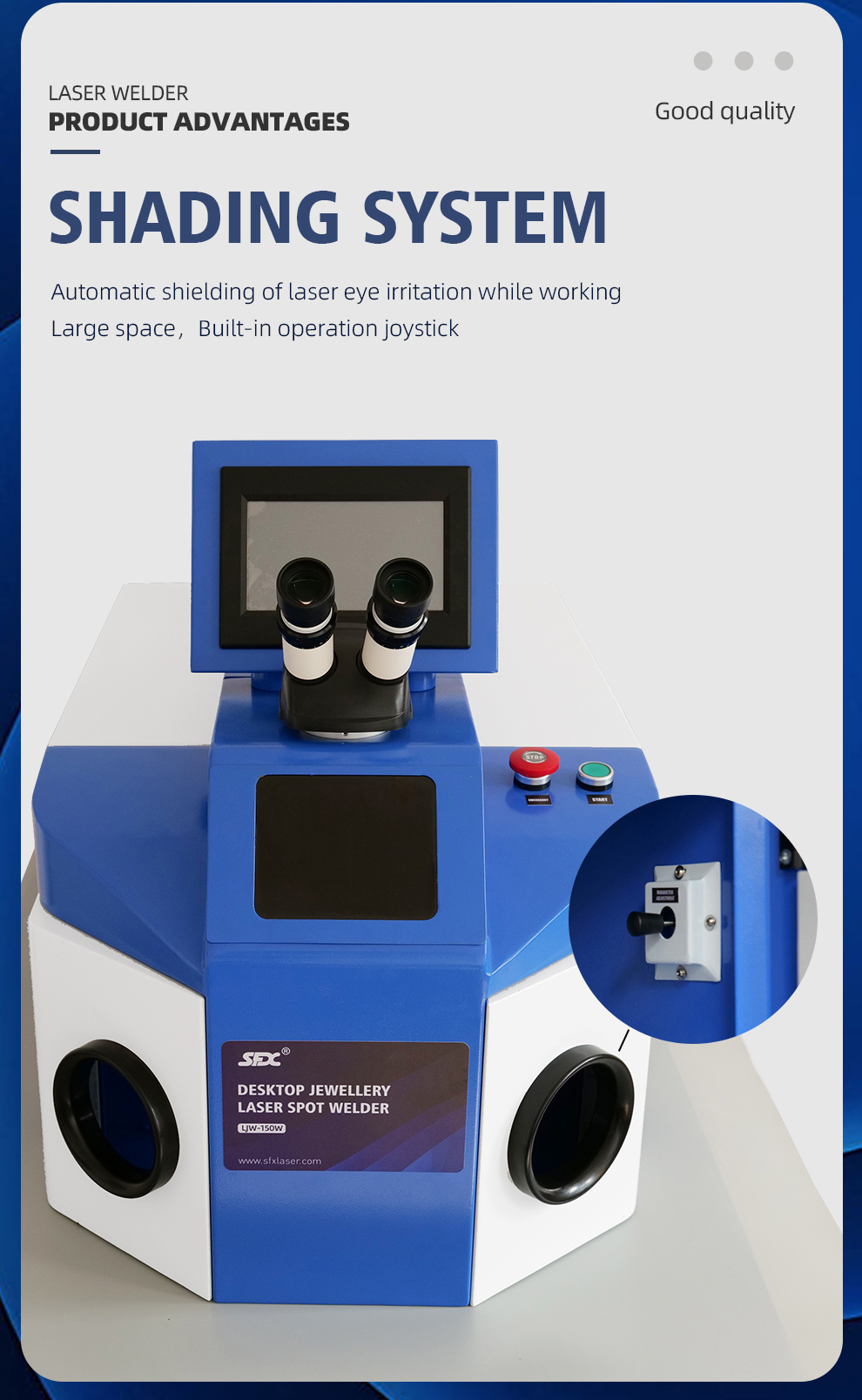

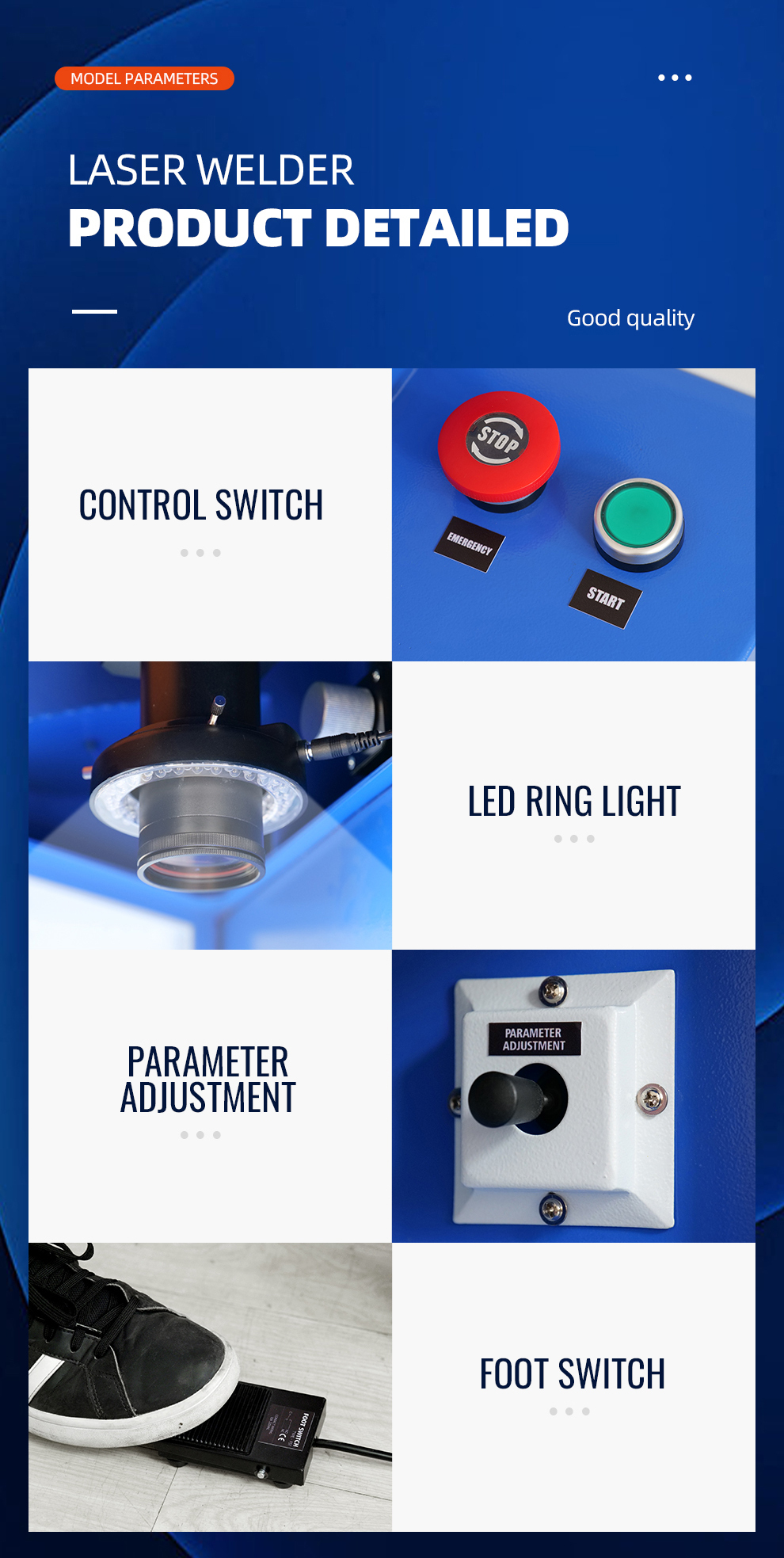

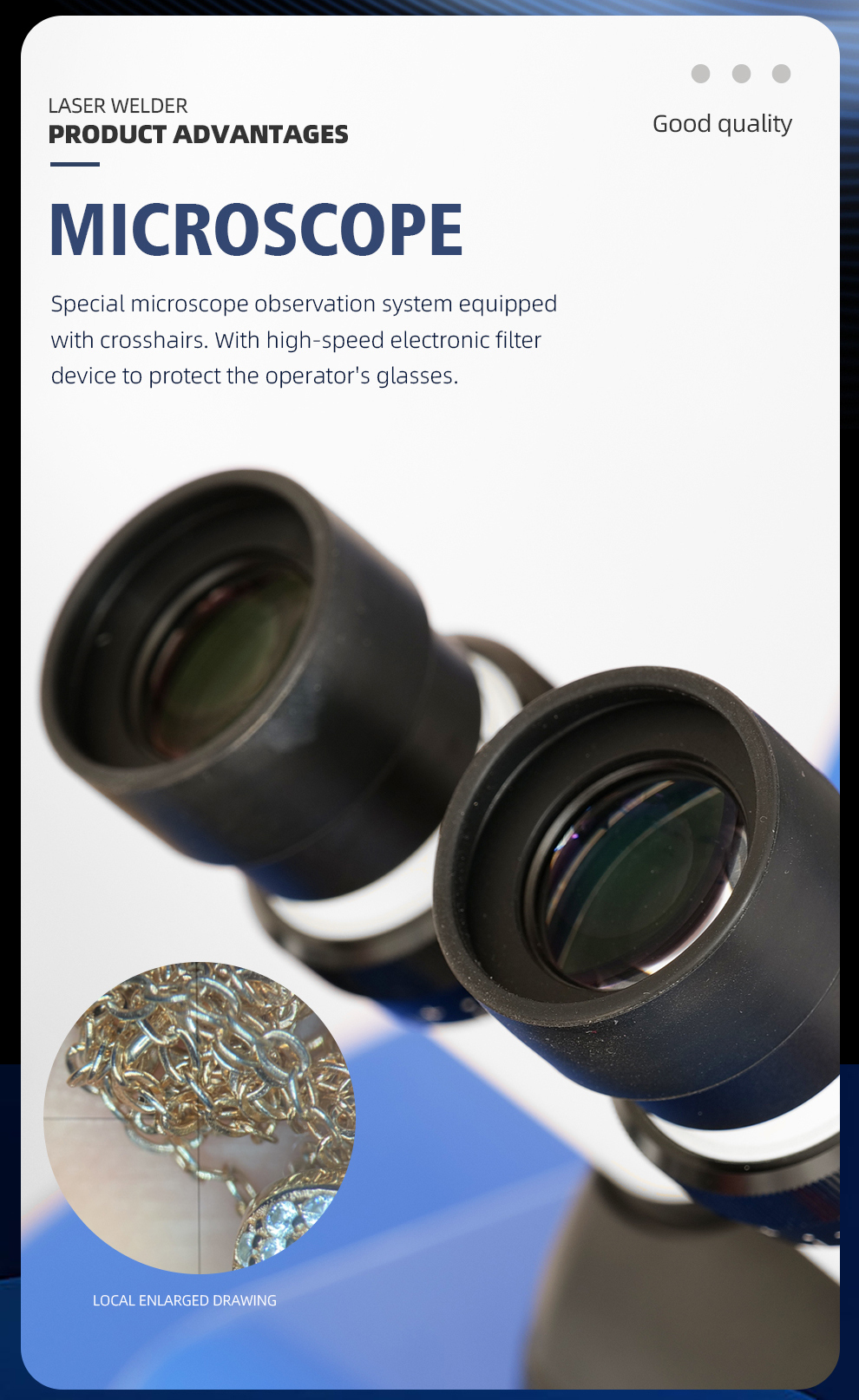

1.Microscope: Special microscope system equipped with crosshairs. With high-speed electronic filter device to protect the operator’s eyes.

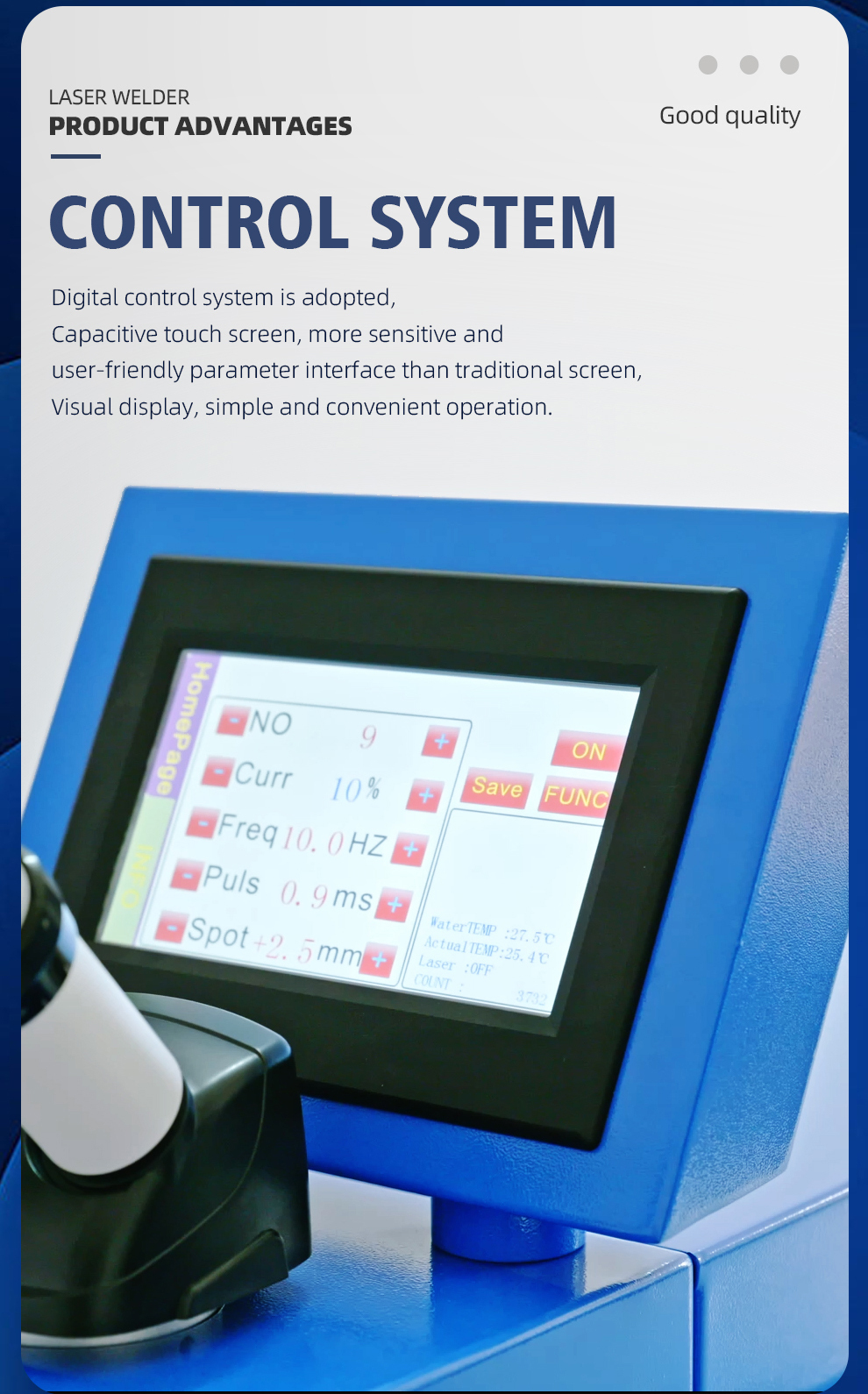

2.Control System: Digital control system is adopted, Capacitive touch screen, more sensitive and user-friendly parameter interface than traditional screen, visual display, simple and convenient operation.

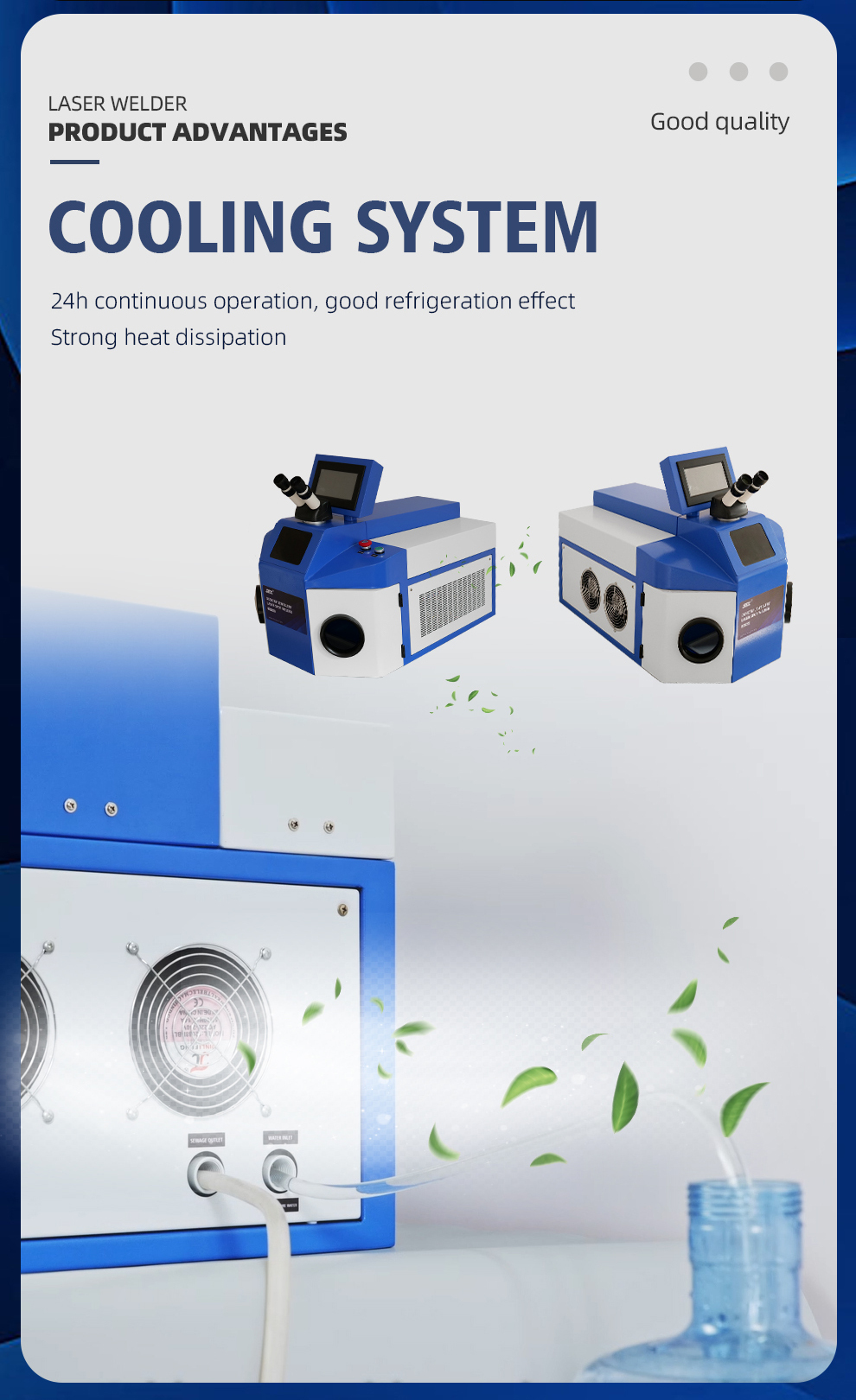

3.Cooling port: Effectively prevent the machine from overheating due to long service time.
4.High speed, high efficiency, large depth, small deformation, small heat affected area, high welding quality, no pollution of solder joints, high efficiency and environmental protection.

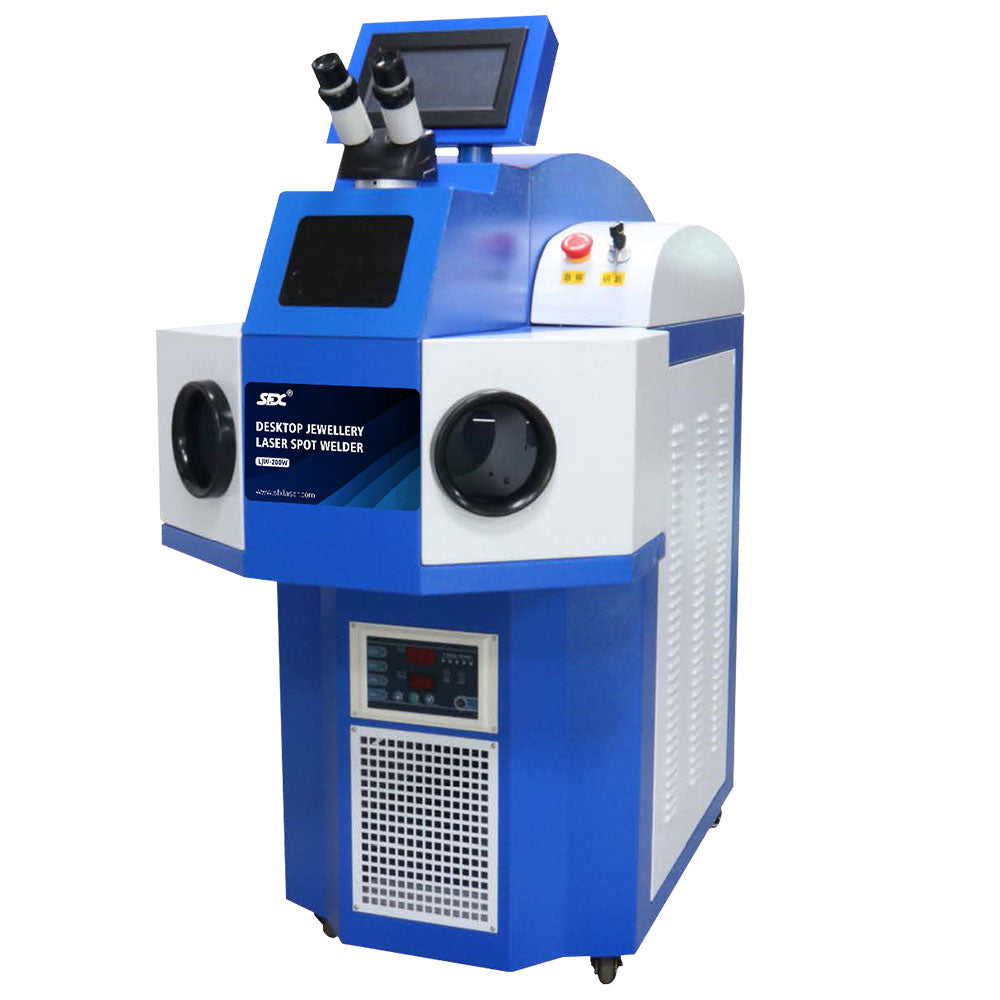

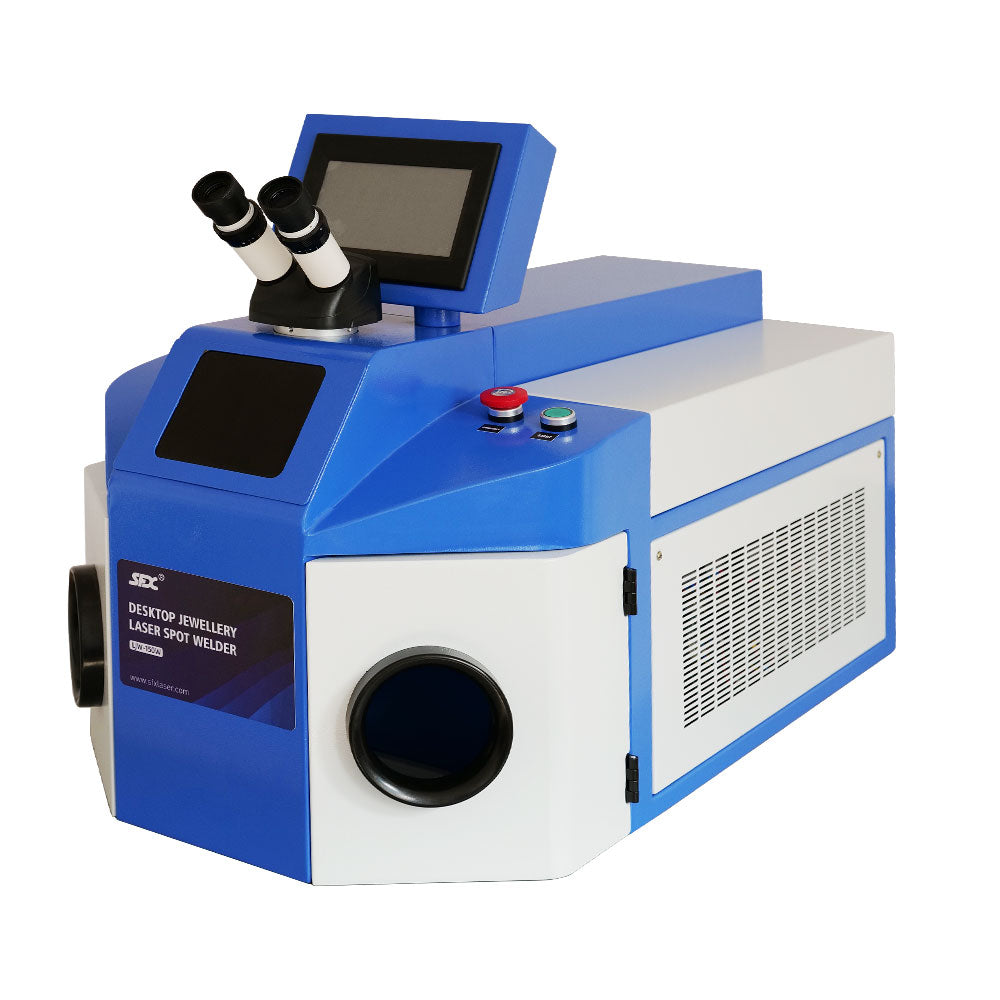

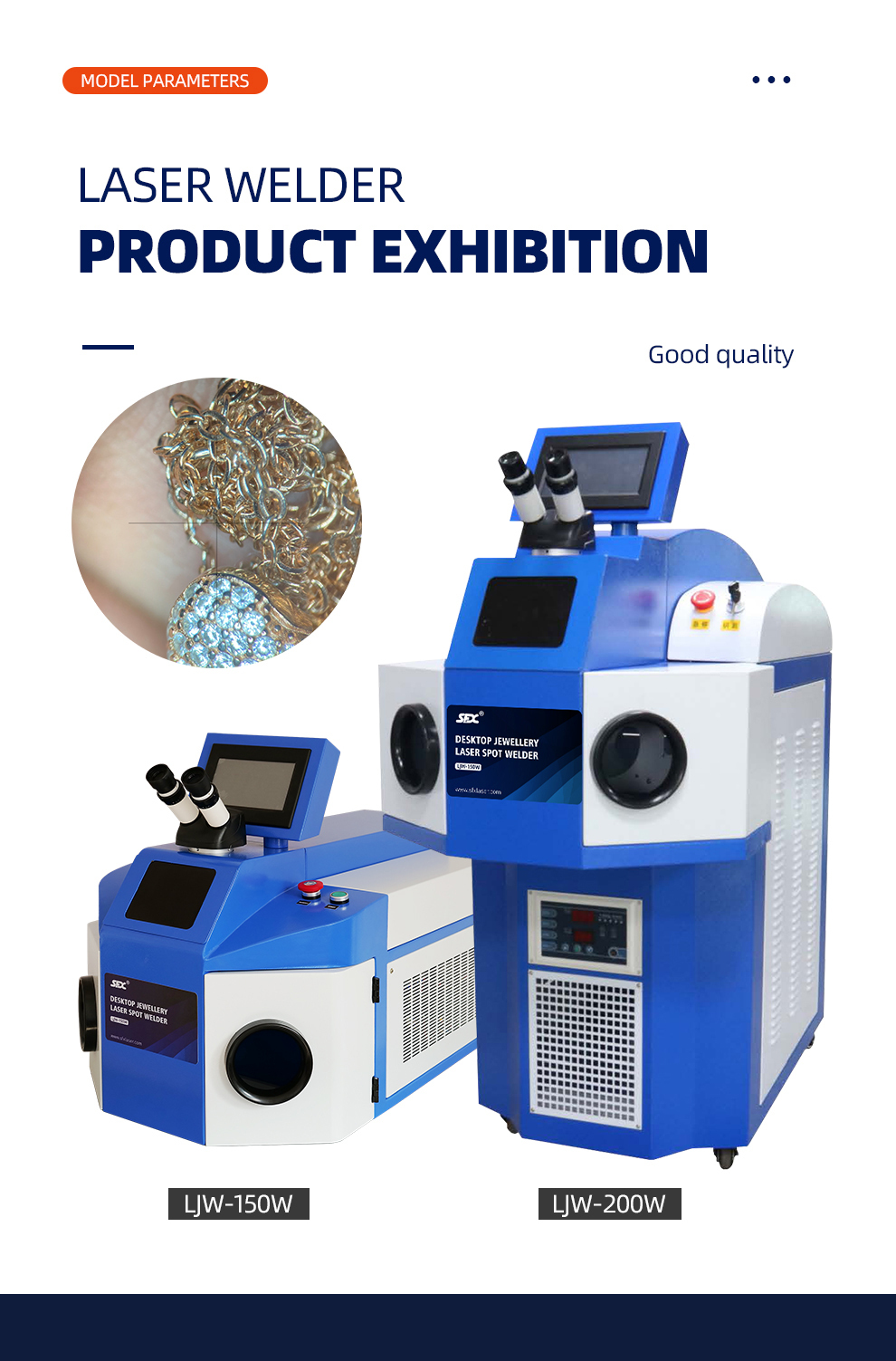

The Difference Between the 150W Jewelry Spot Welder and 200W Jewelry Welding Machine

The difference between 150W and 200W machine is that 200W machine is integrated type, the built-in water tank is equipped with a compressor, the working temperature is 0-35℃. 150W are not equipped with a compressor, and purely cooled via air, the working ambient temperature is 0-25℃.

Delivery:

Free shipping to your door by UPS/DHL. It takes about 5-10 days to your door.
