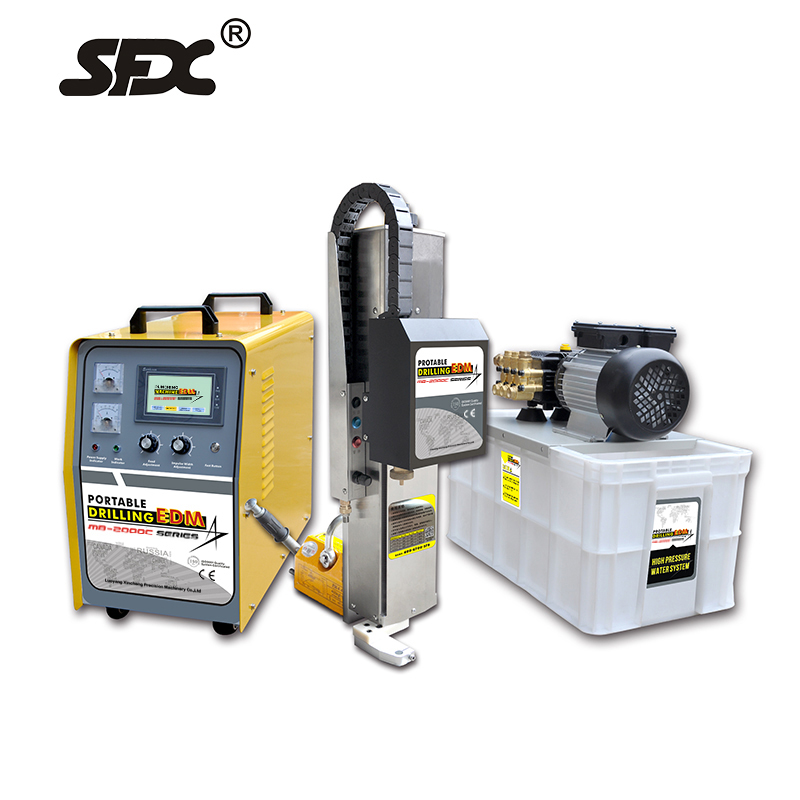

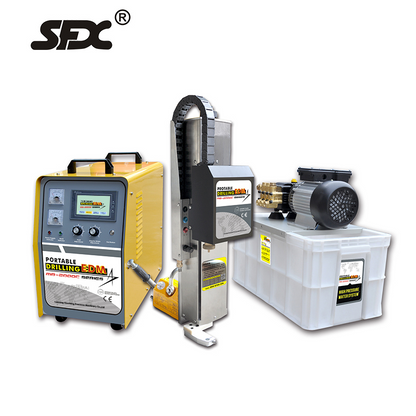

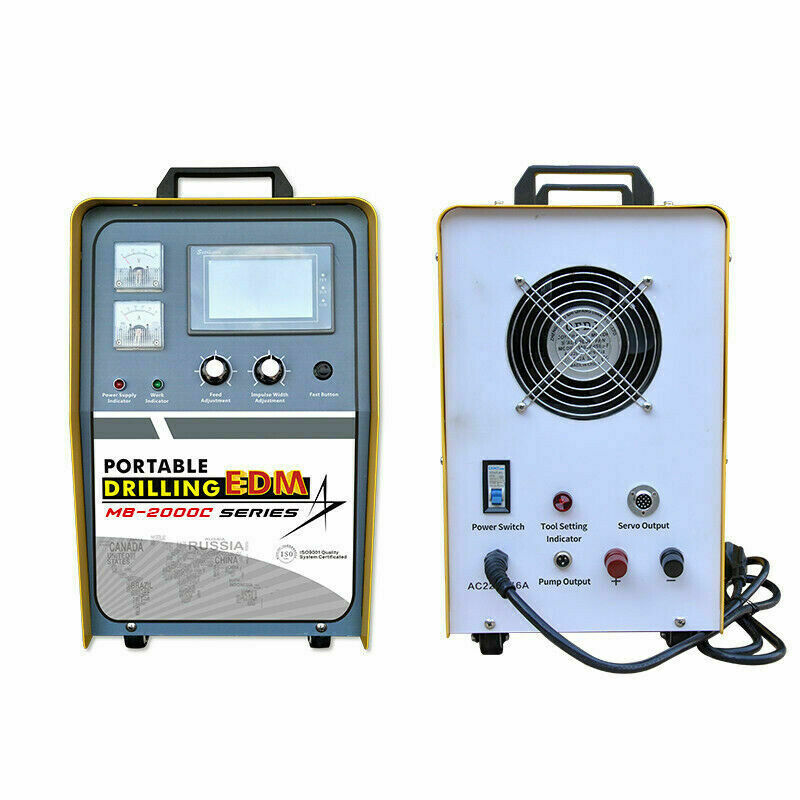

MB-2000C Portable 0.5-3mm High Speed Small Hole Drilling Machine Precision Small Hole Puncher

MB-2000C Portable 0.5-3mm High Speed Small Hole Drilling Machine Precision Small Hole Puncher

My Store

Regular price $3,579.00 USD
Regular price $3,579.00 USD Sale price $3,579.00 USD
Sale Sold out

Free Shipping!

Quantity

Application:

1. The machine is mainly used to process deep holes on work piece of various conductive materials, stainless steel, hardened steel, hard alloy, copper and aluminum. Such as wire-cutting holes for wire-cutting work pieces; group holes on chemical fiber spinning holes, filter plates and sieve plates.

2. The machine can also be used to remove broken drills, bits, taps, reamer, etc. and without damaging the original hole or thread of the work piece.

With the help of the feeding system of the equipment, it can locate the position for accuracy requirement

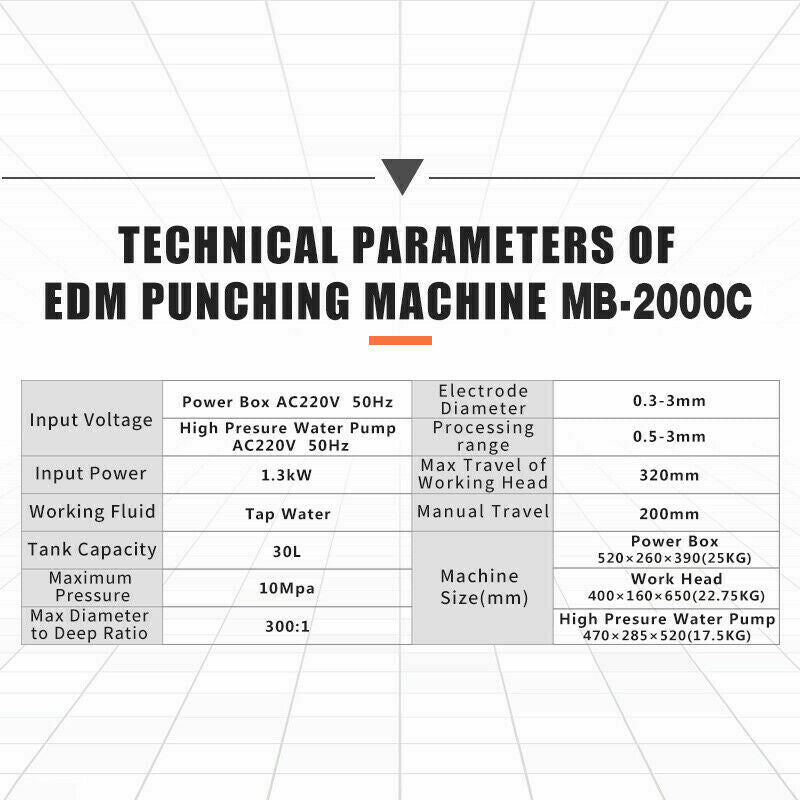

Specification:

Input Voltage: AC110V/220V,50/60HZ

Input Power: 1.3KW

Working Fluid: Tap Water

Tank Capacity: 30L

Max. Pressure: 10Mpa

Max Diameter to Deep Ratio: 300:1

Electrode Diameter: 0.3-3mm

Processing Range: 0.5-3mm

Max. Travel of Working Head: 320mm

Manual Travel: 200mm

Warranty:

1 year for the whole machine.

Delivery:

Free shipping, no import duty if you are from US.

0.5-3mm Precision Small Holes Drilling Tool EDM Machine Portable Spark Erosion Small Hole Puncher   0.5-3mm Precision Small Holes Drilling Tool EDM Machine Portable Spark Erosion Small Hole Puncher
