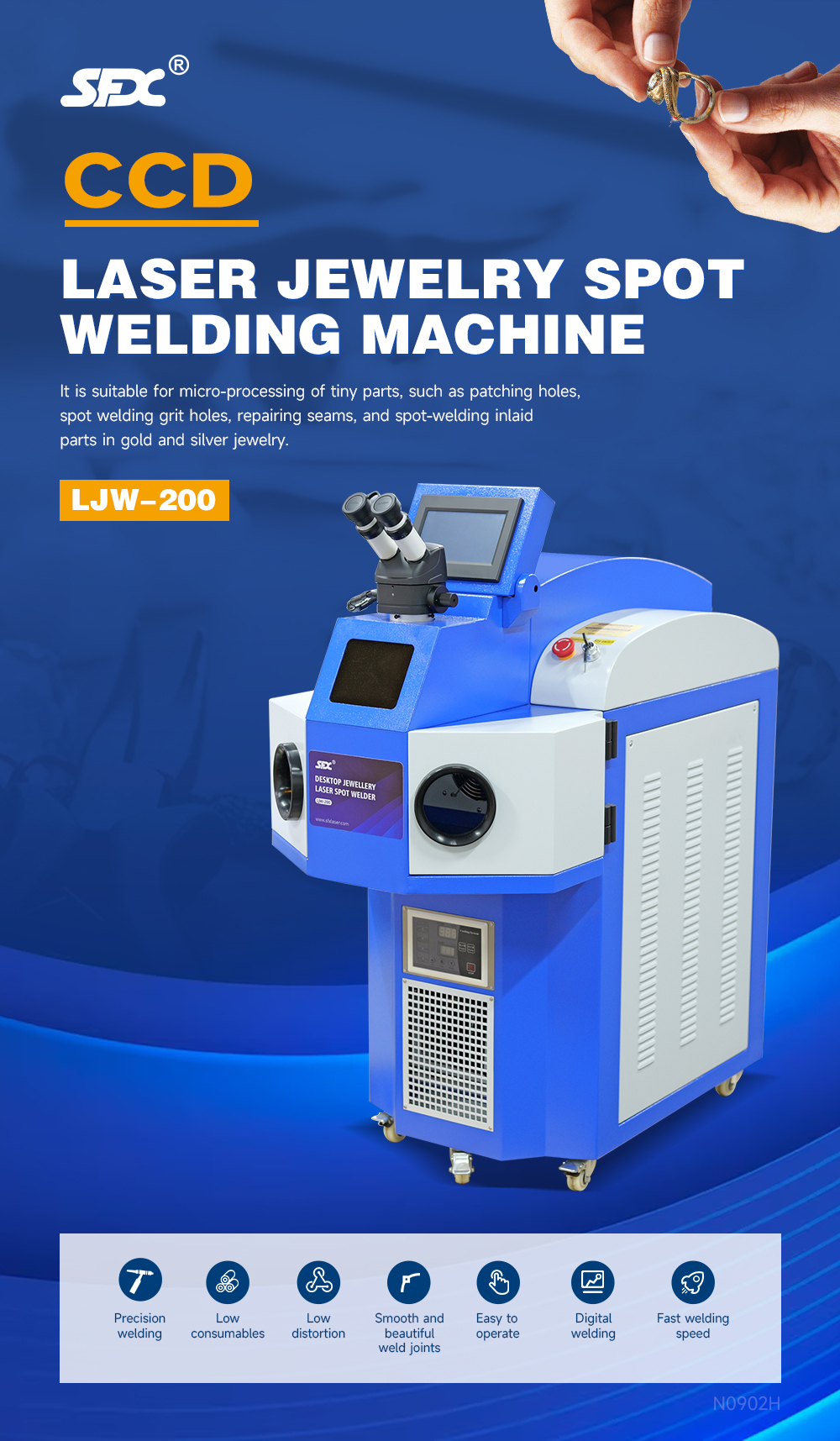

Jewelry Spot Welder 200W with CCD Function Jewelry Welding Machine for gold and sliver

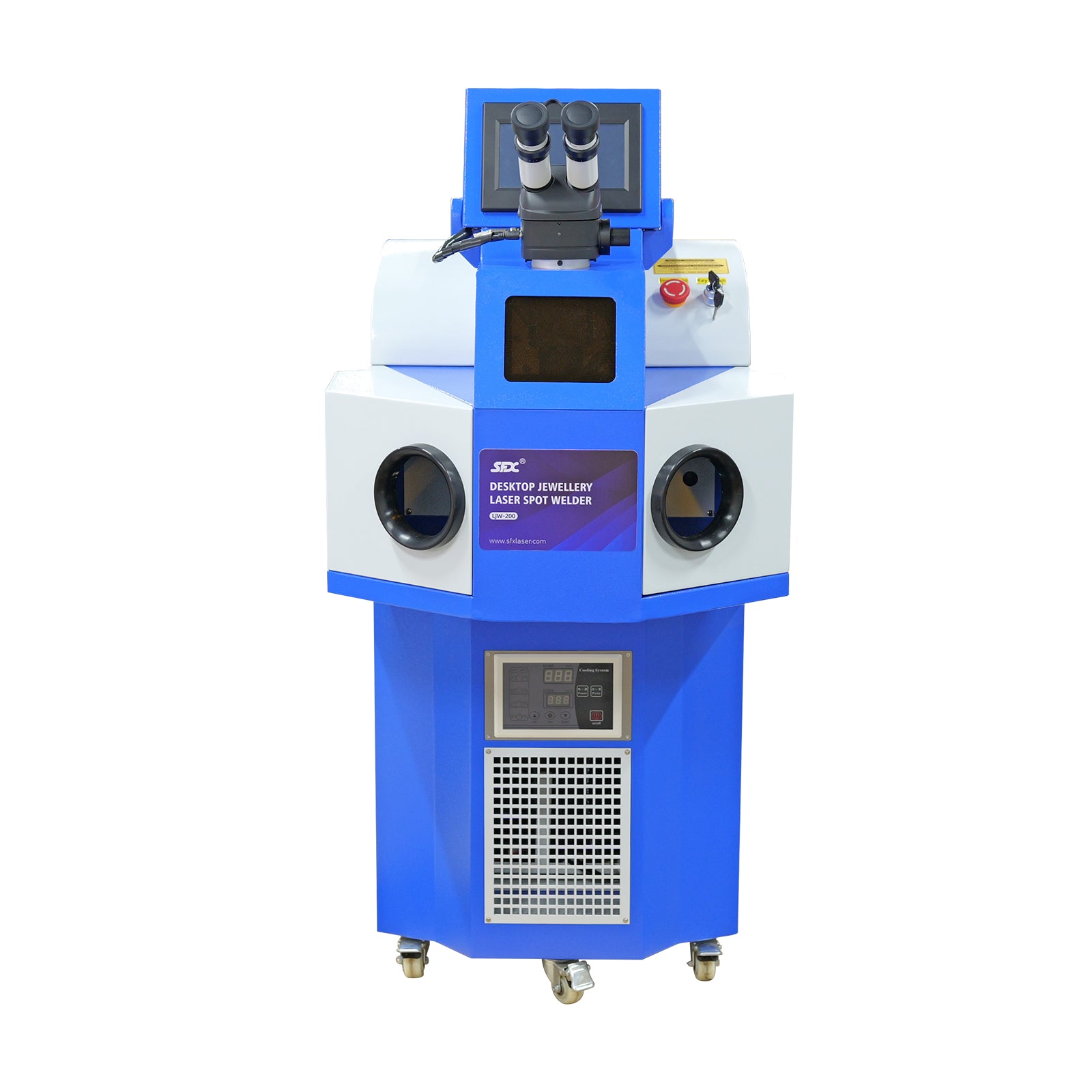

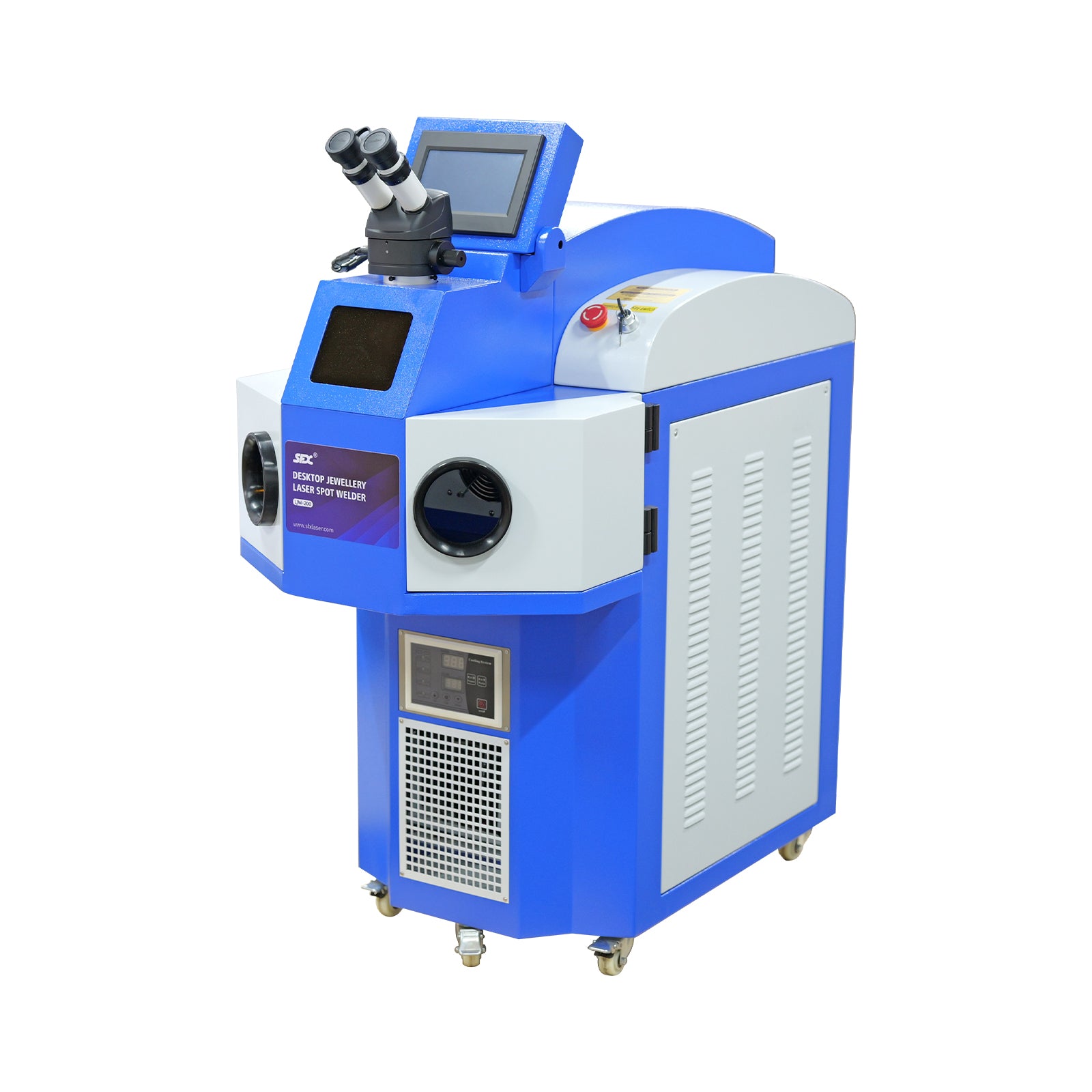

SFX LJW-200 Laser Welder Jewelry Spot Welding Machine with CCD Function

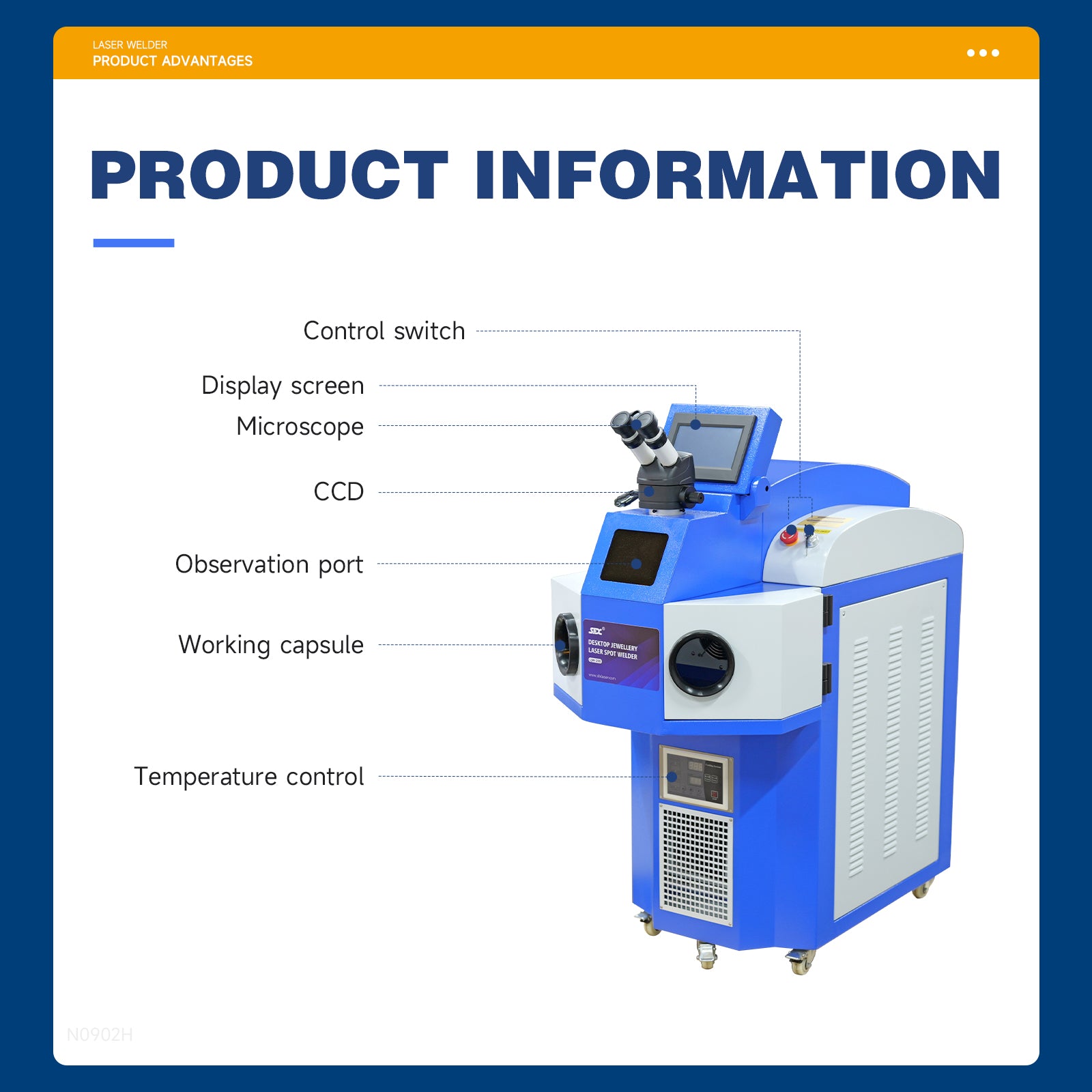

Feature:

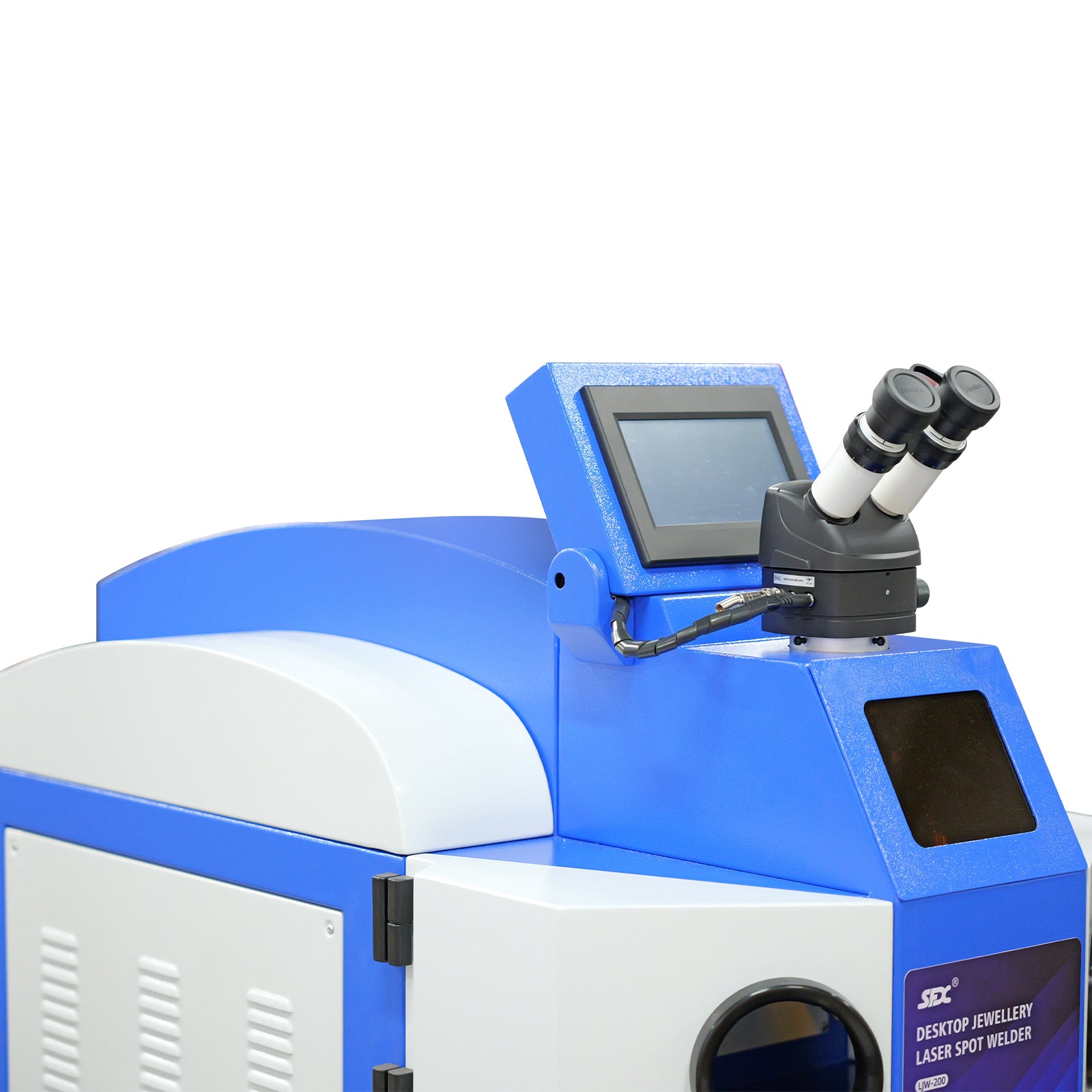

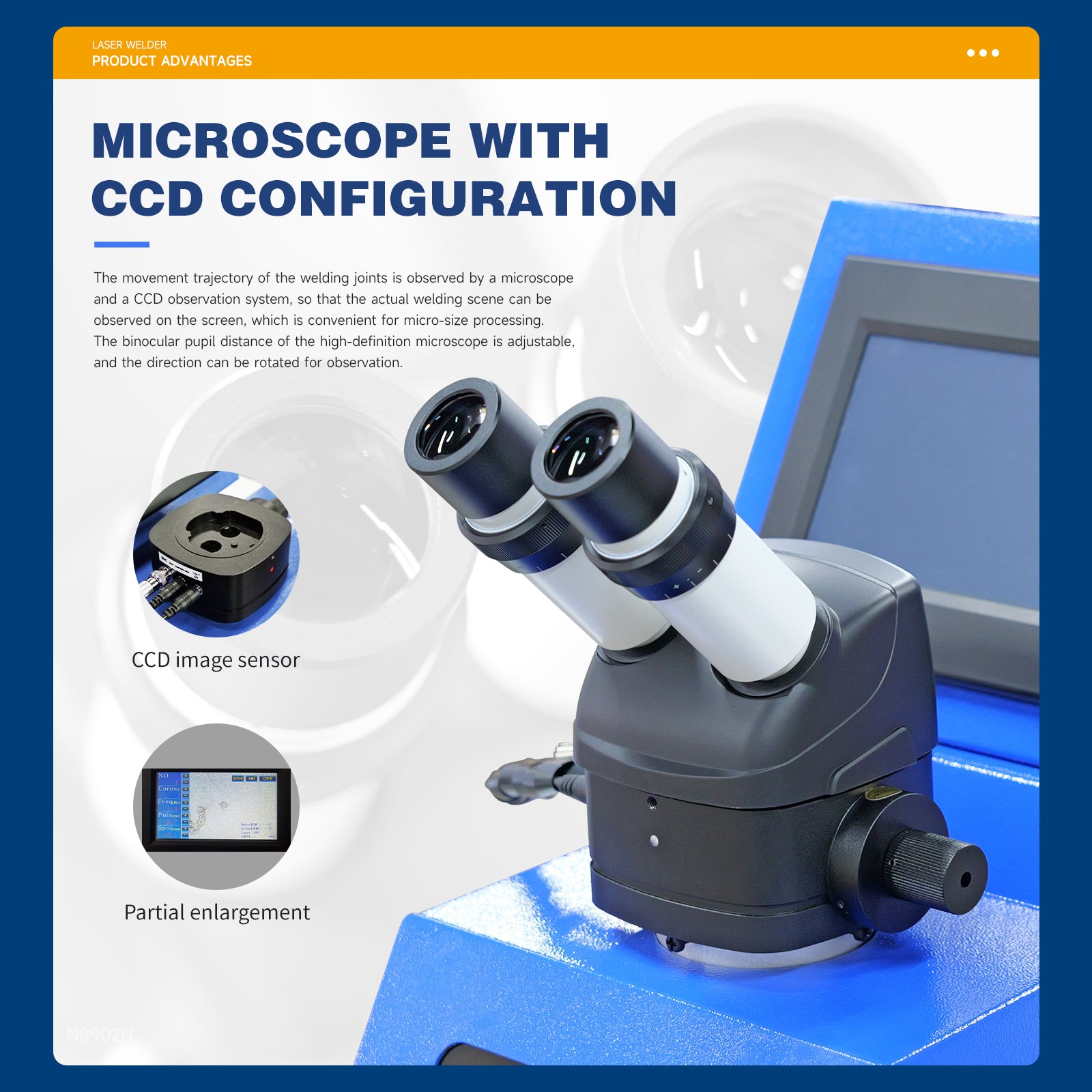

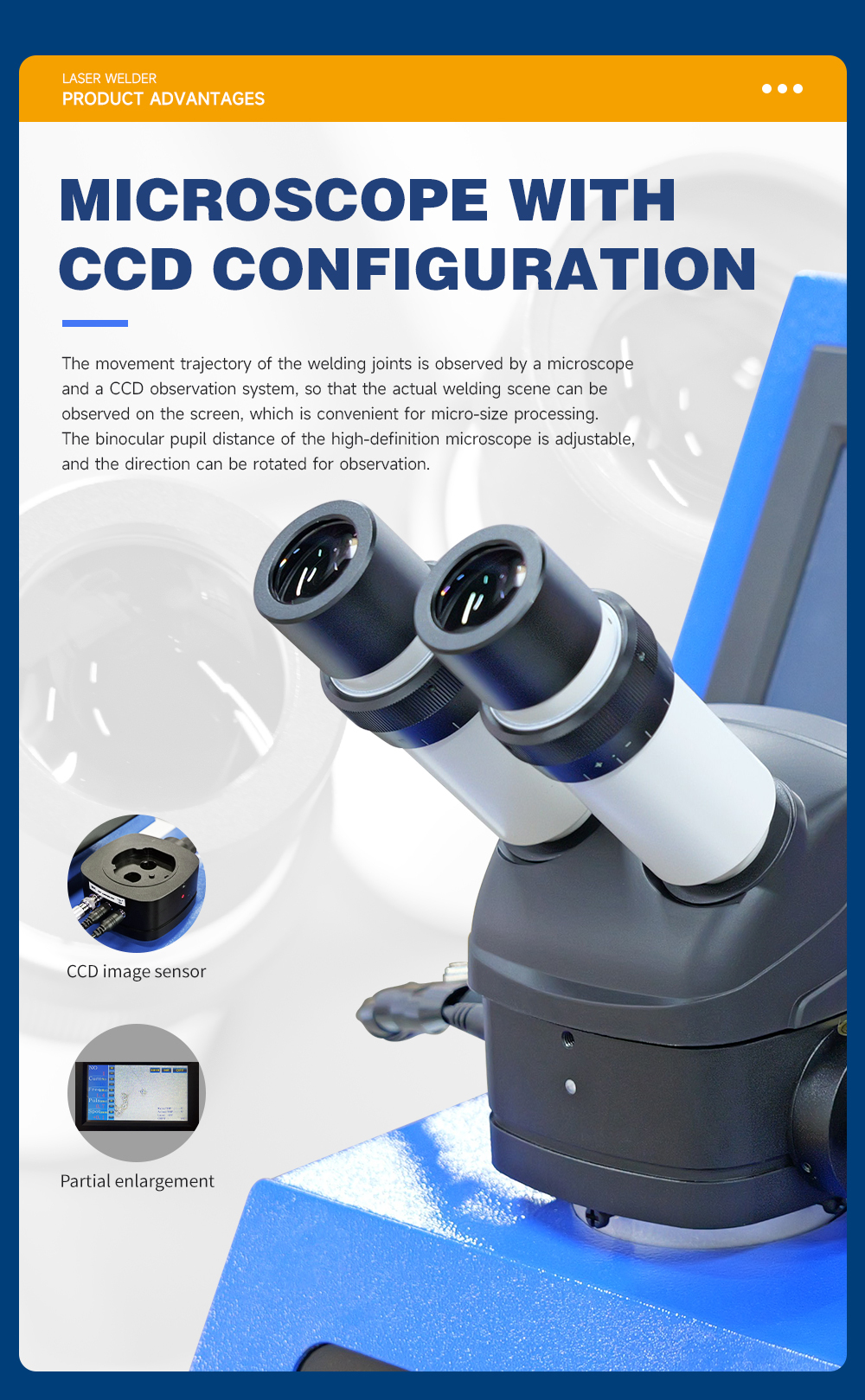

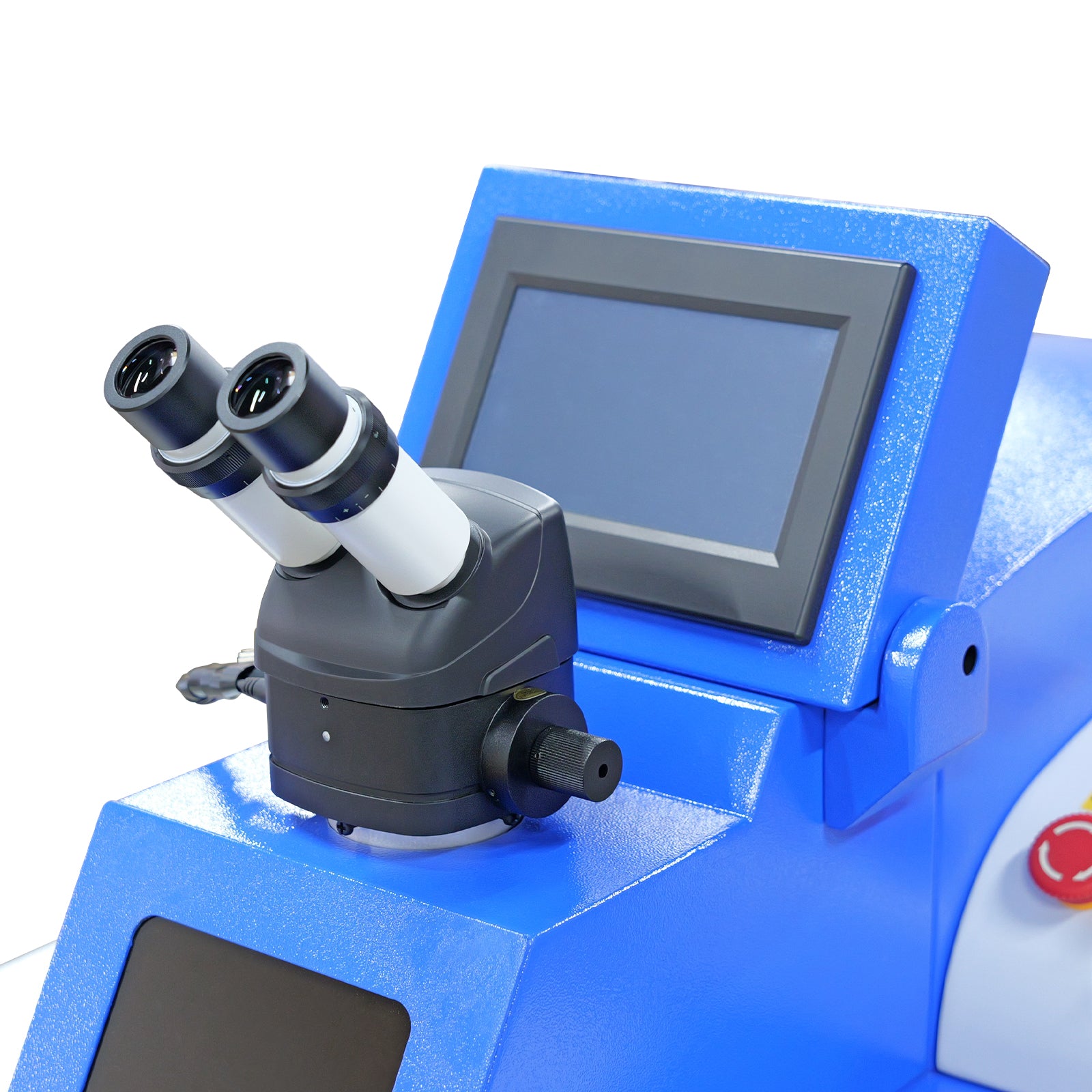

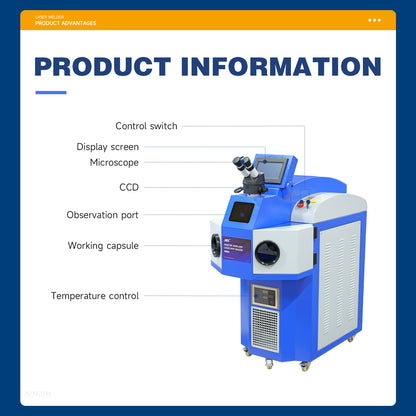

Microscope with CCD configuration: It mainly takes microscopic pictures and transmits them to the computer, which is convenient for observation and positioning, and compares and analyzes these microscopic pictures.

CCD can help to view the actual welding scene on the screen, which can save your eyes to stare via the lens barrel always and can free your body, you can adjust your sitting gesture, do not need always be fixed by holding hand on the welding and stare the lens simultaneously.

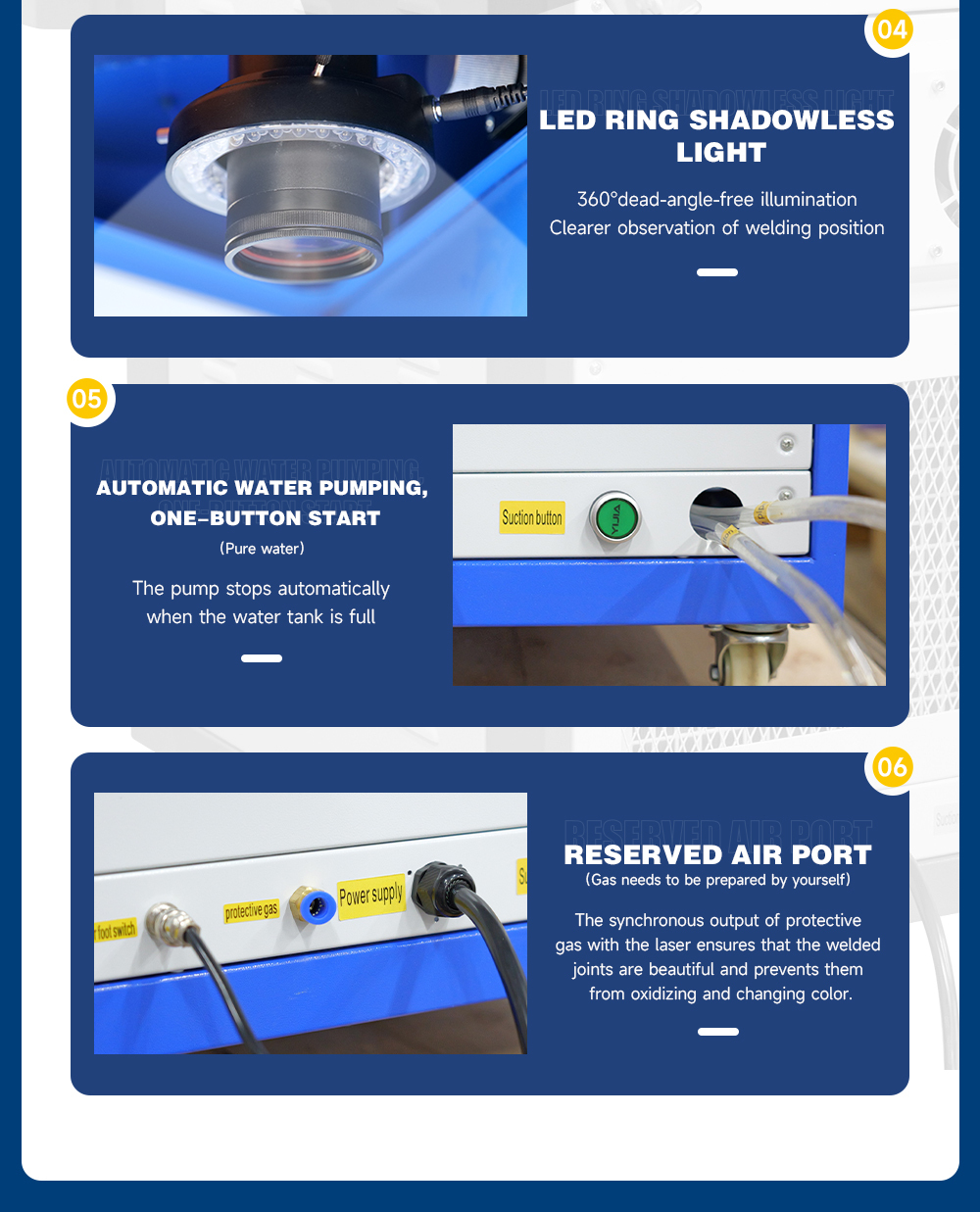

Special microscope observation system, equipped with light column. Equipped with high-speed electronic filtering device to protect the operator’s eyes.

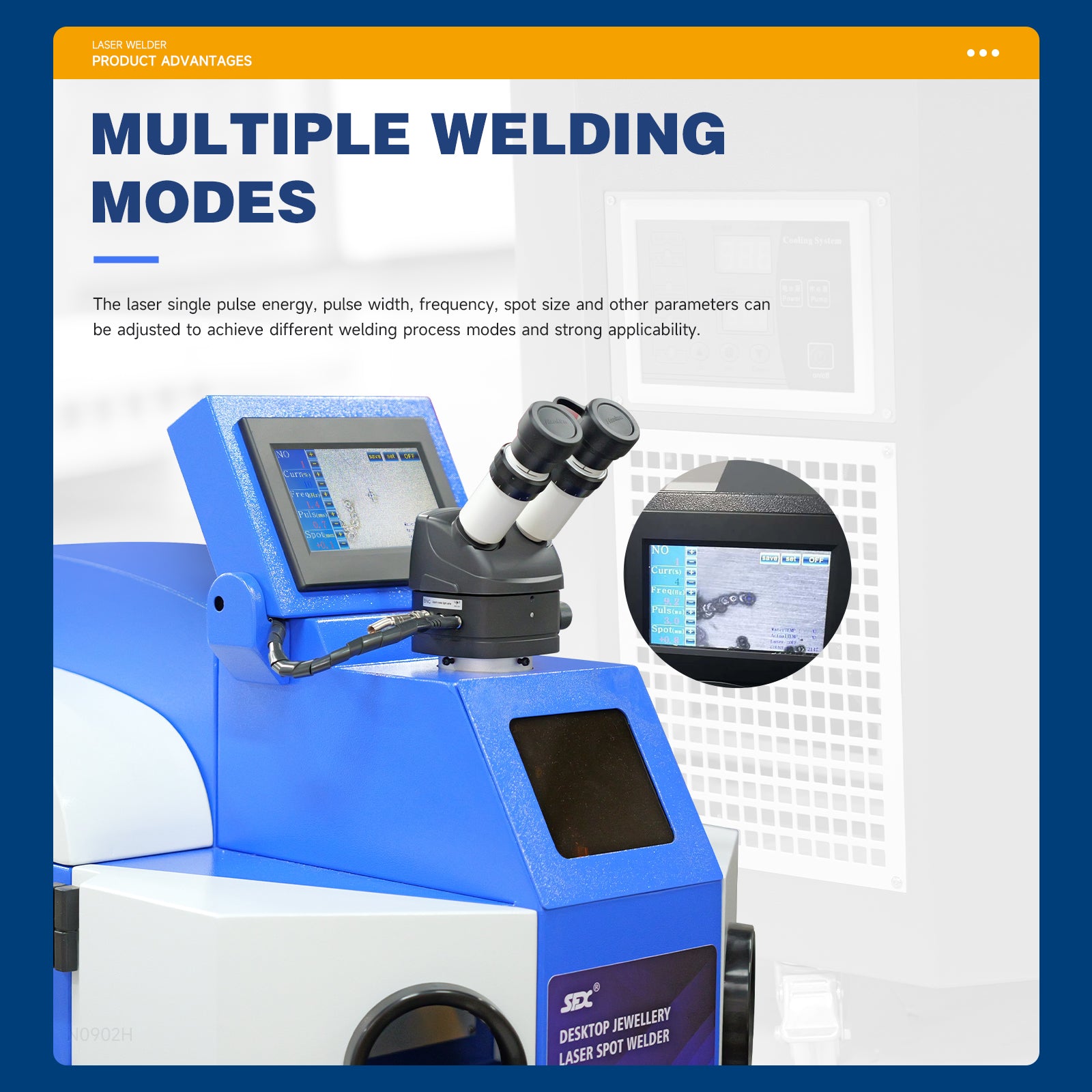

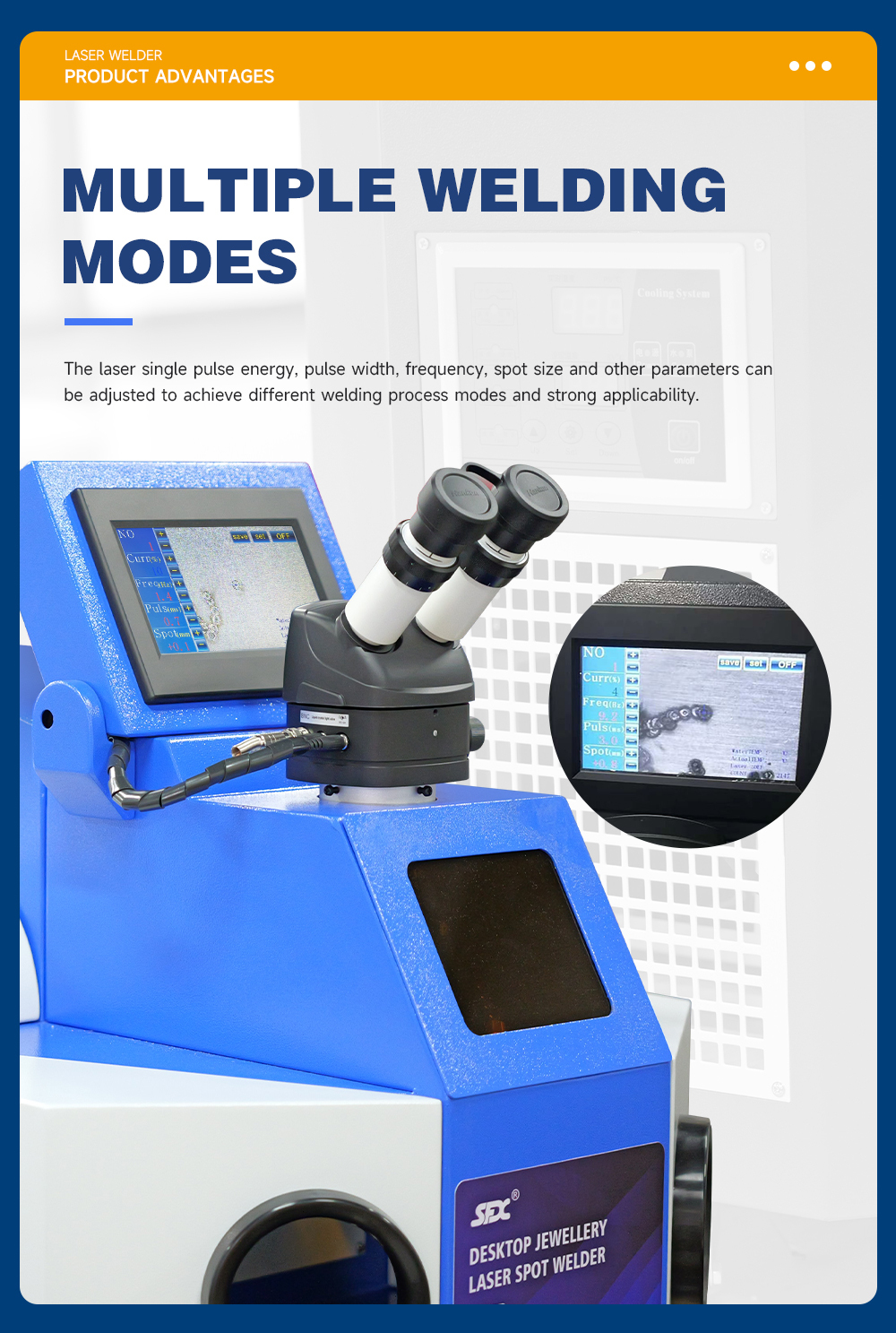

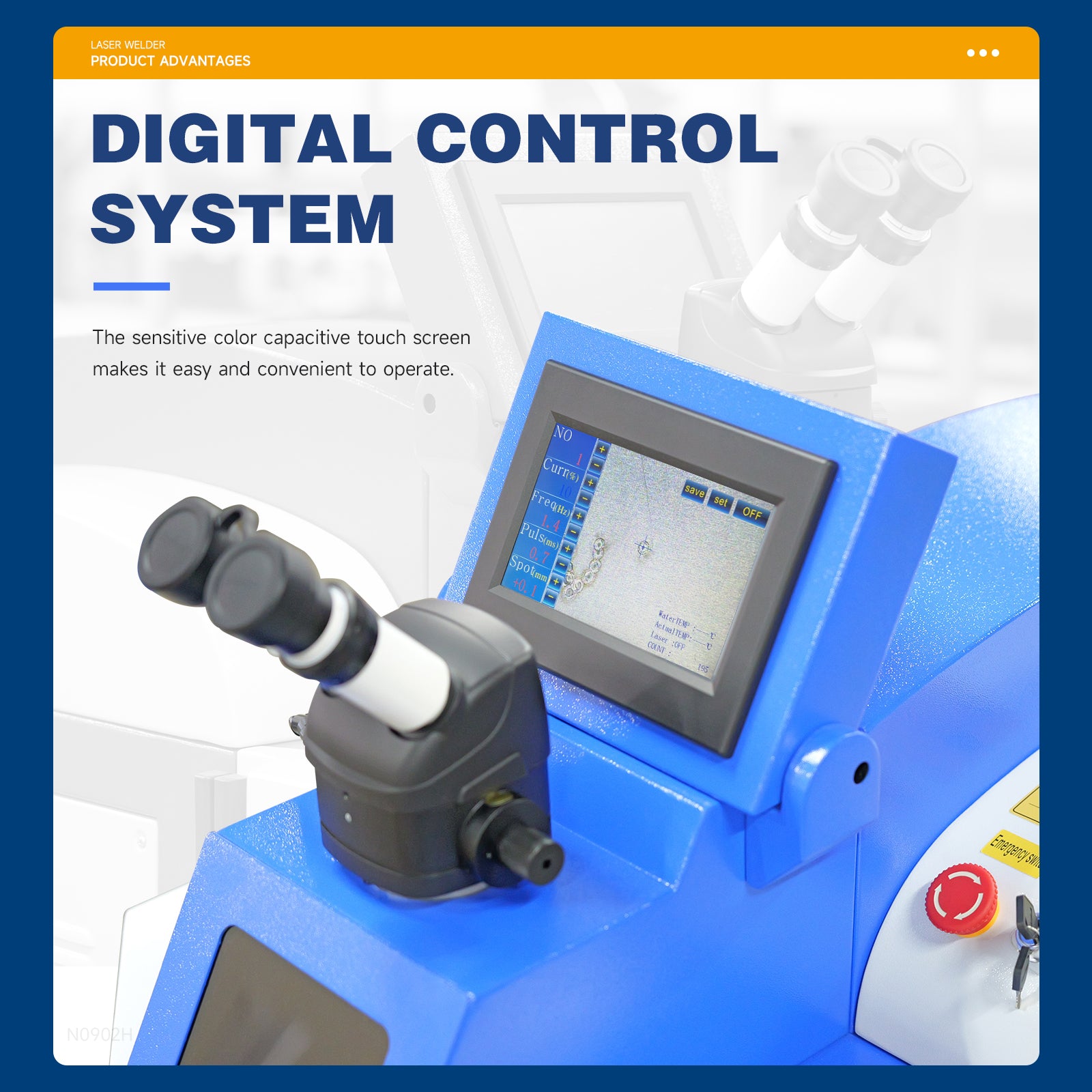

Control System: Digital control system is adopted, capacity touch screen, more sensitive and user-friendly parameter interface than traditional screen, visual display, simple and convenient operation.

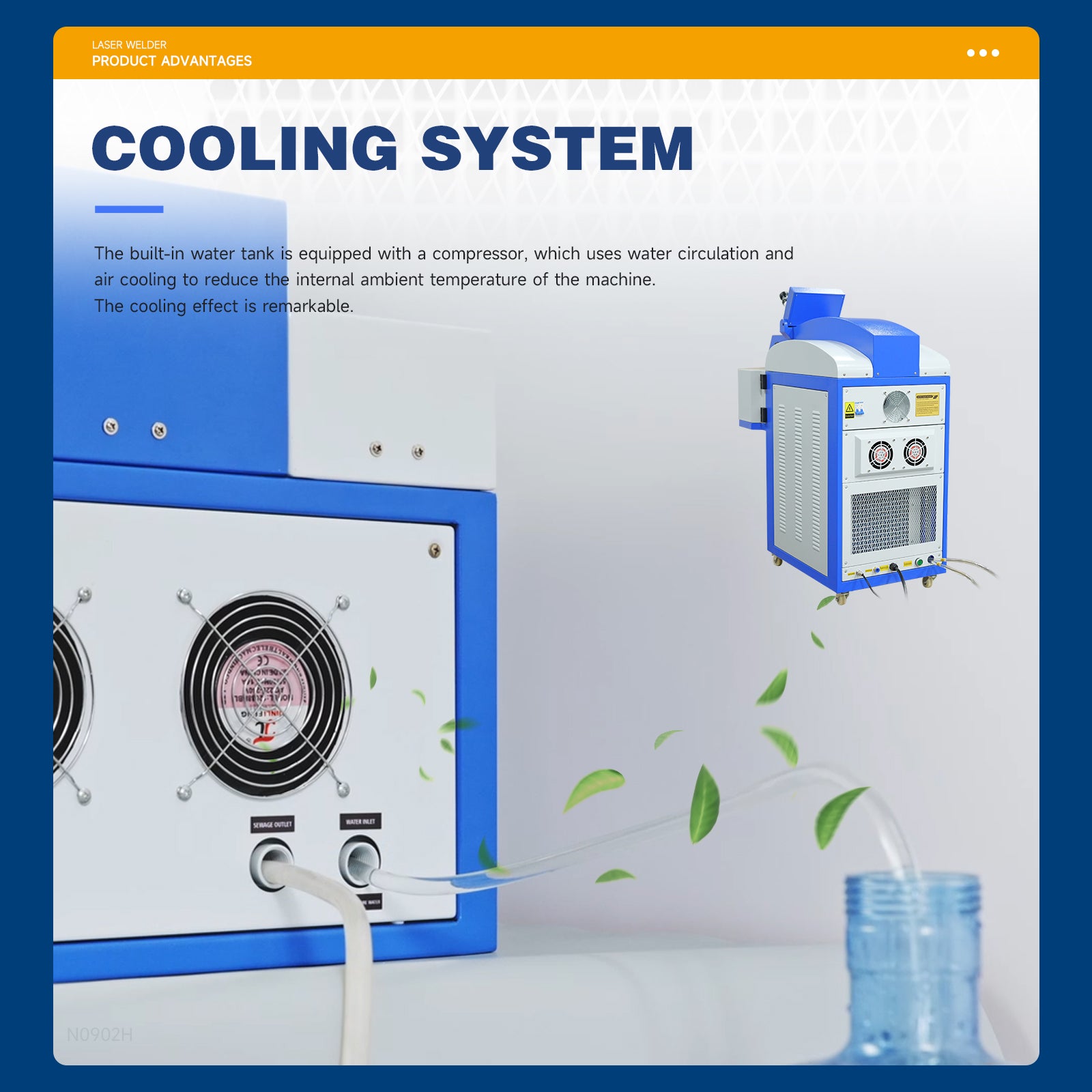

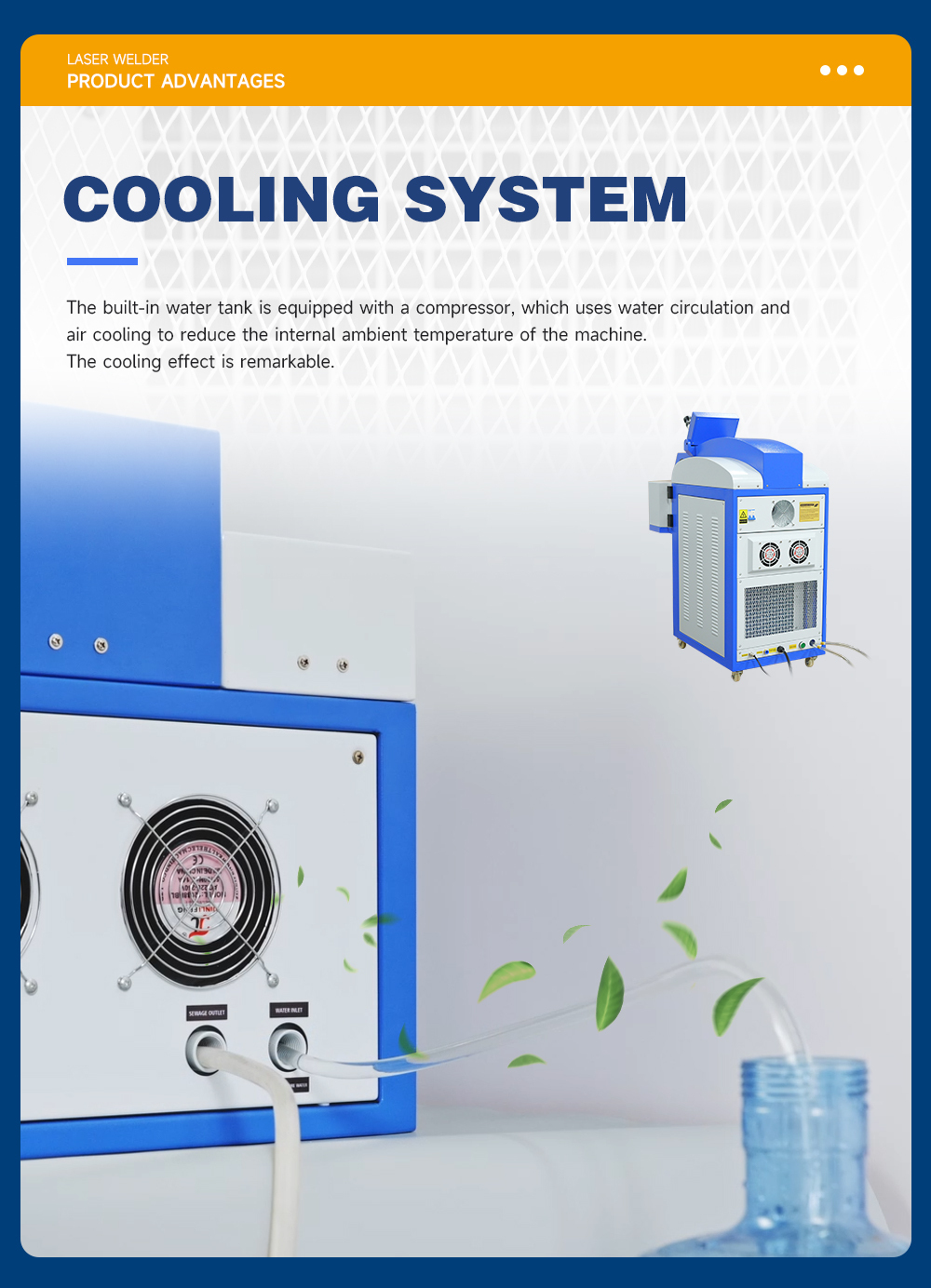

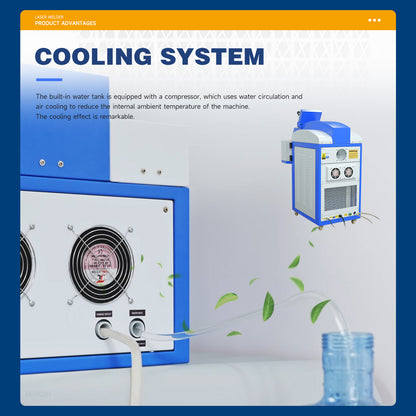

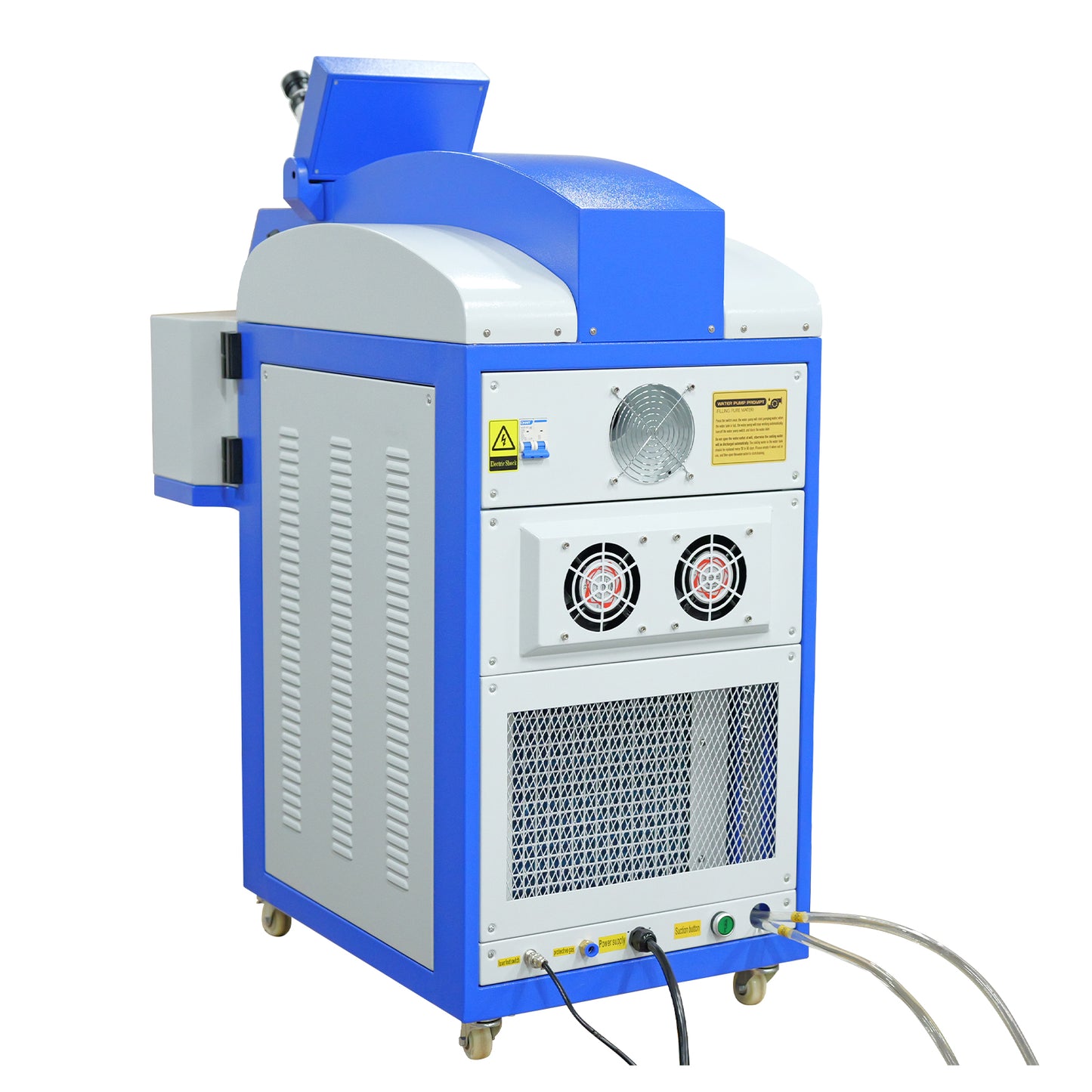

Cooling System: 24h continuous operation, good refrigeration effect, strong heat dissipation.

Shading System: Automatic shielding of laser eye irritation while working large space, built-in operation joysticks.

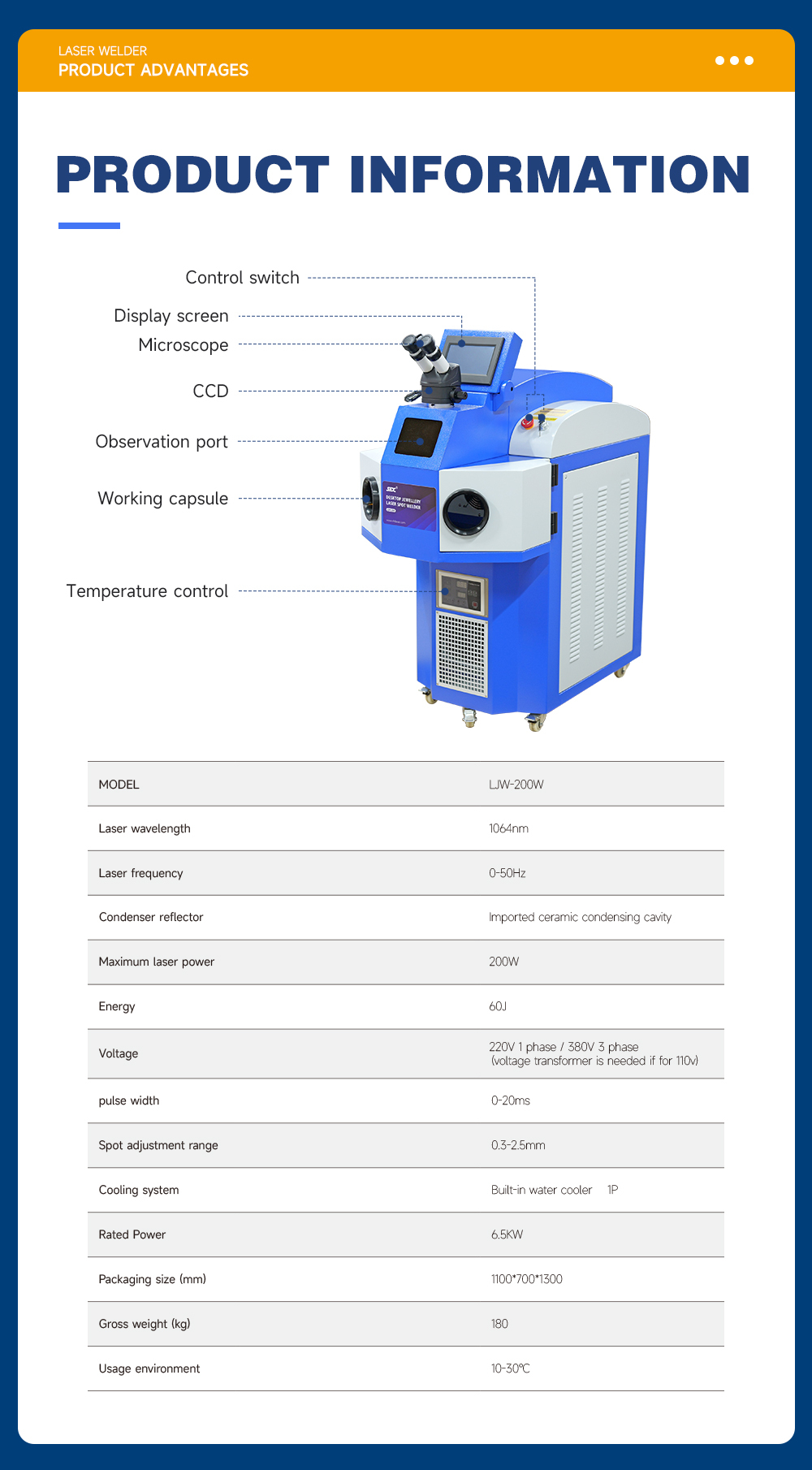

Technical Parameter:

Model: LJW-200

Laser Wavelength: 1064nm

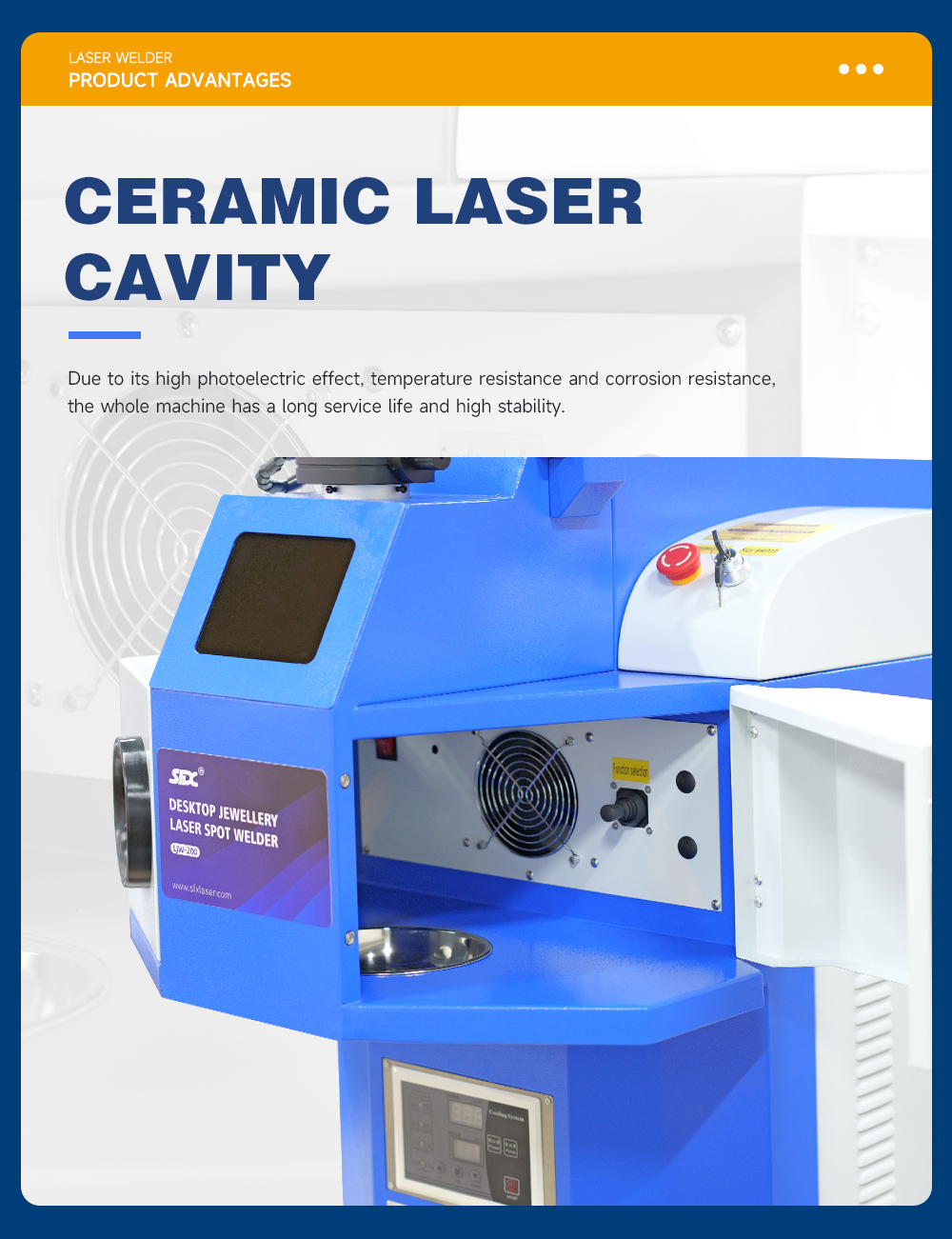

Condenser reflector: Imported ceramic condensing cavity

Max. Laser Power: 200W

Voltage: 220V Single Phase/380V 3 Phase

Pulse Width: 0-20ms

Energy: 60J

Laser Frequency: 0-50HZ

Spot Adjustment Range: 0.3-2.5mm

Cooling System: Air Cooling

Rated Power: 6.5KW

Packaging Size:1100*700*1300mm

Gross Weight: 180kg

Usage Environment Temperature: 10-30℃
