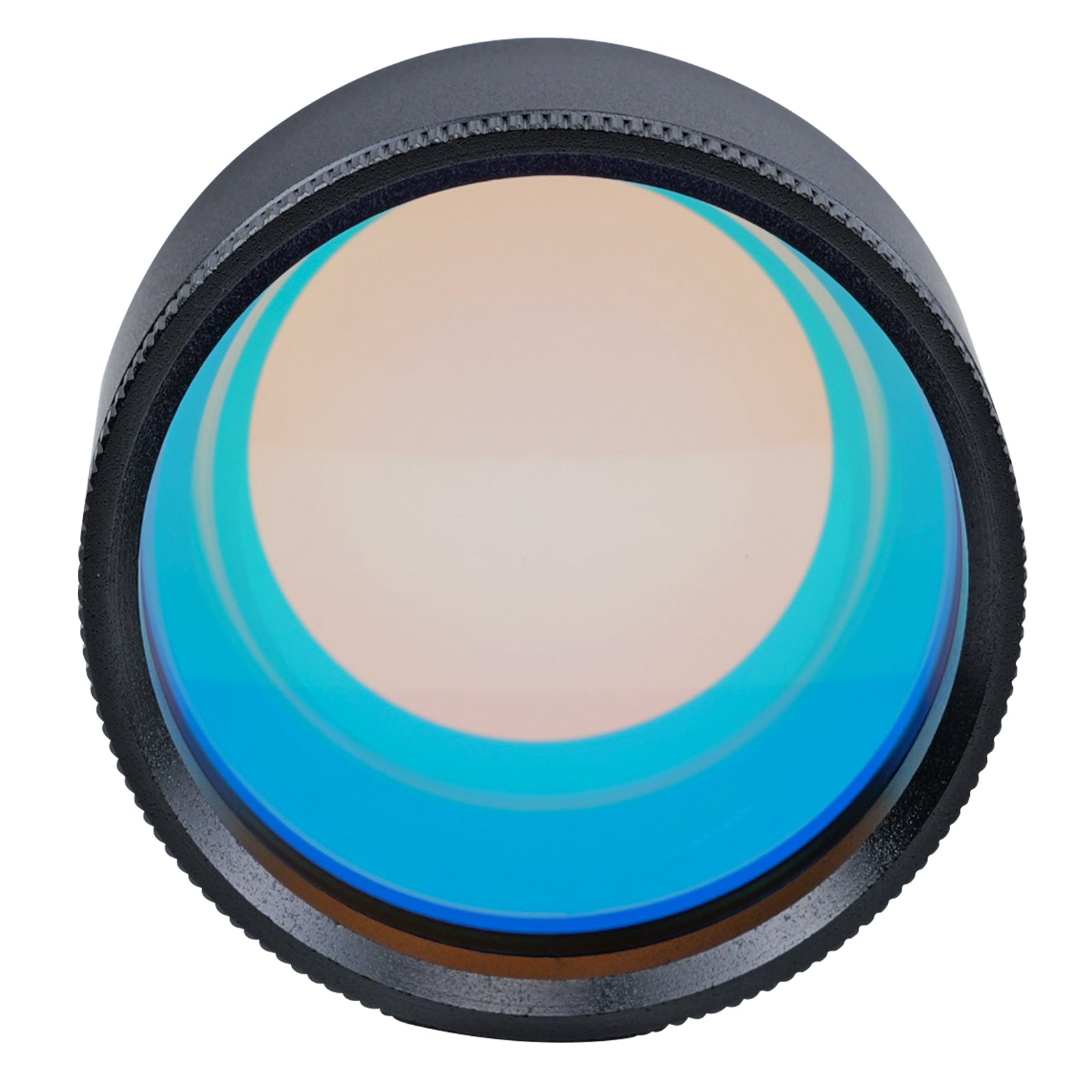

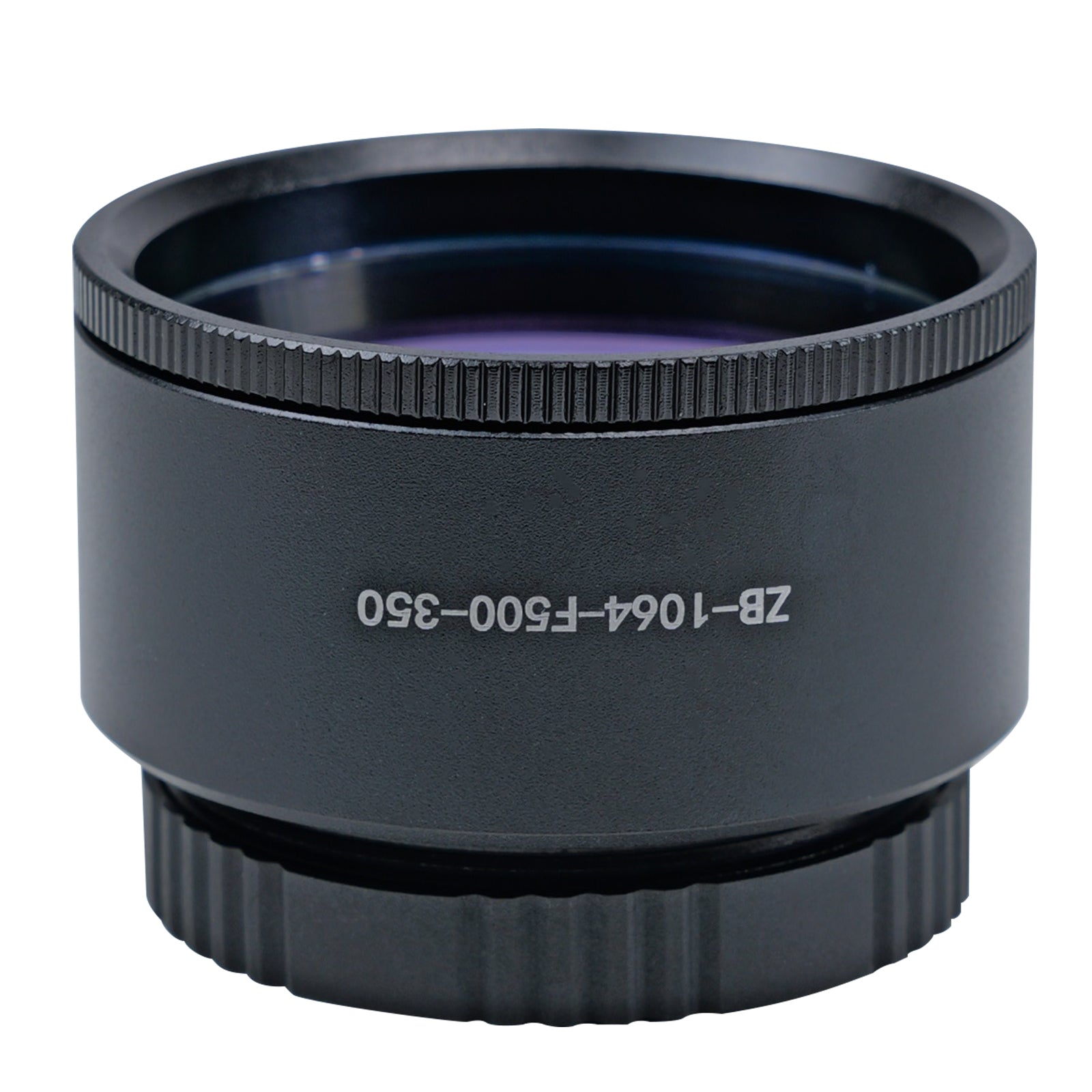

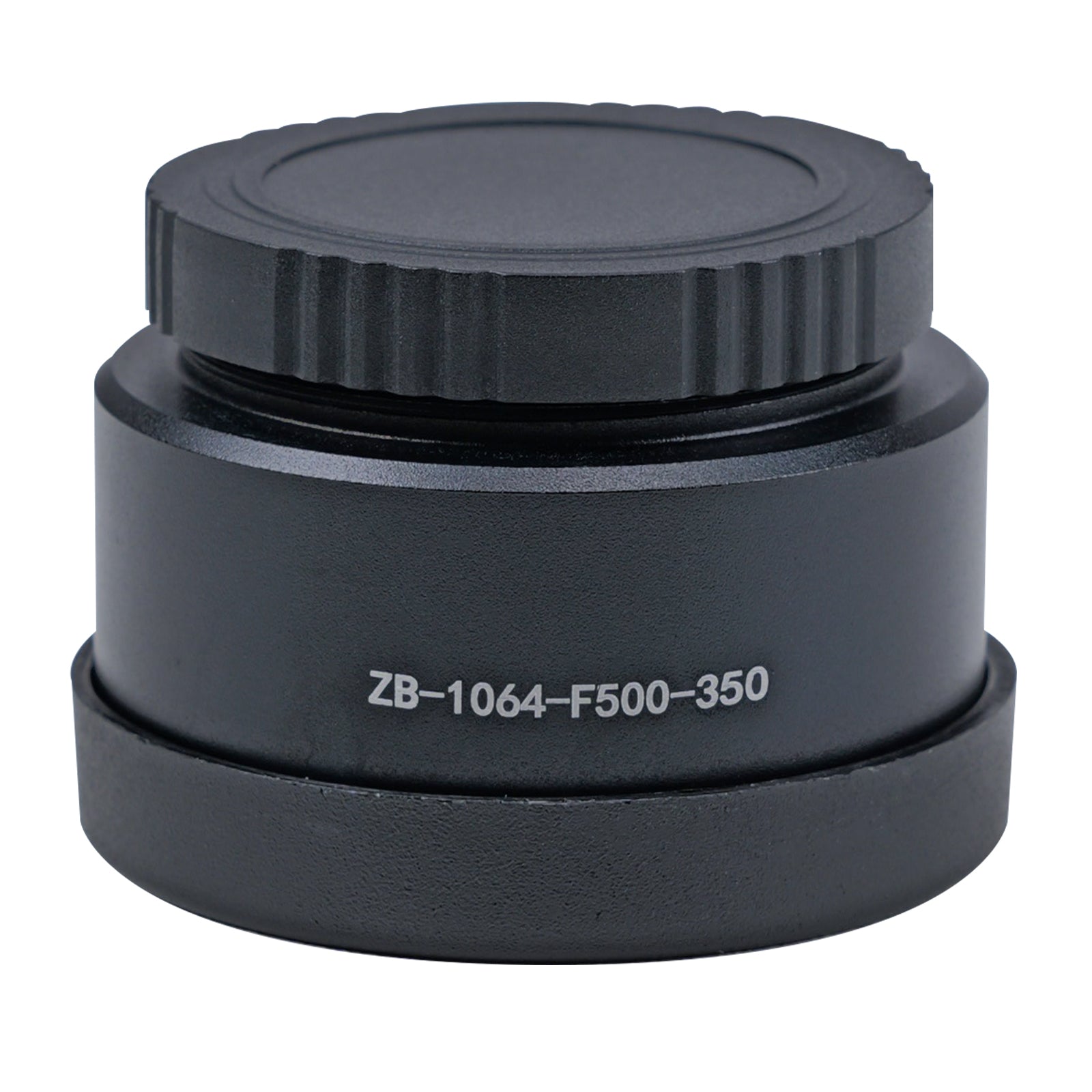

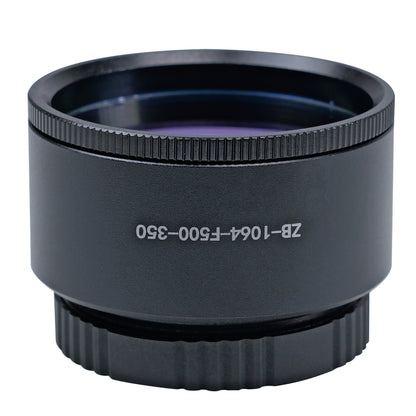

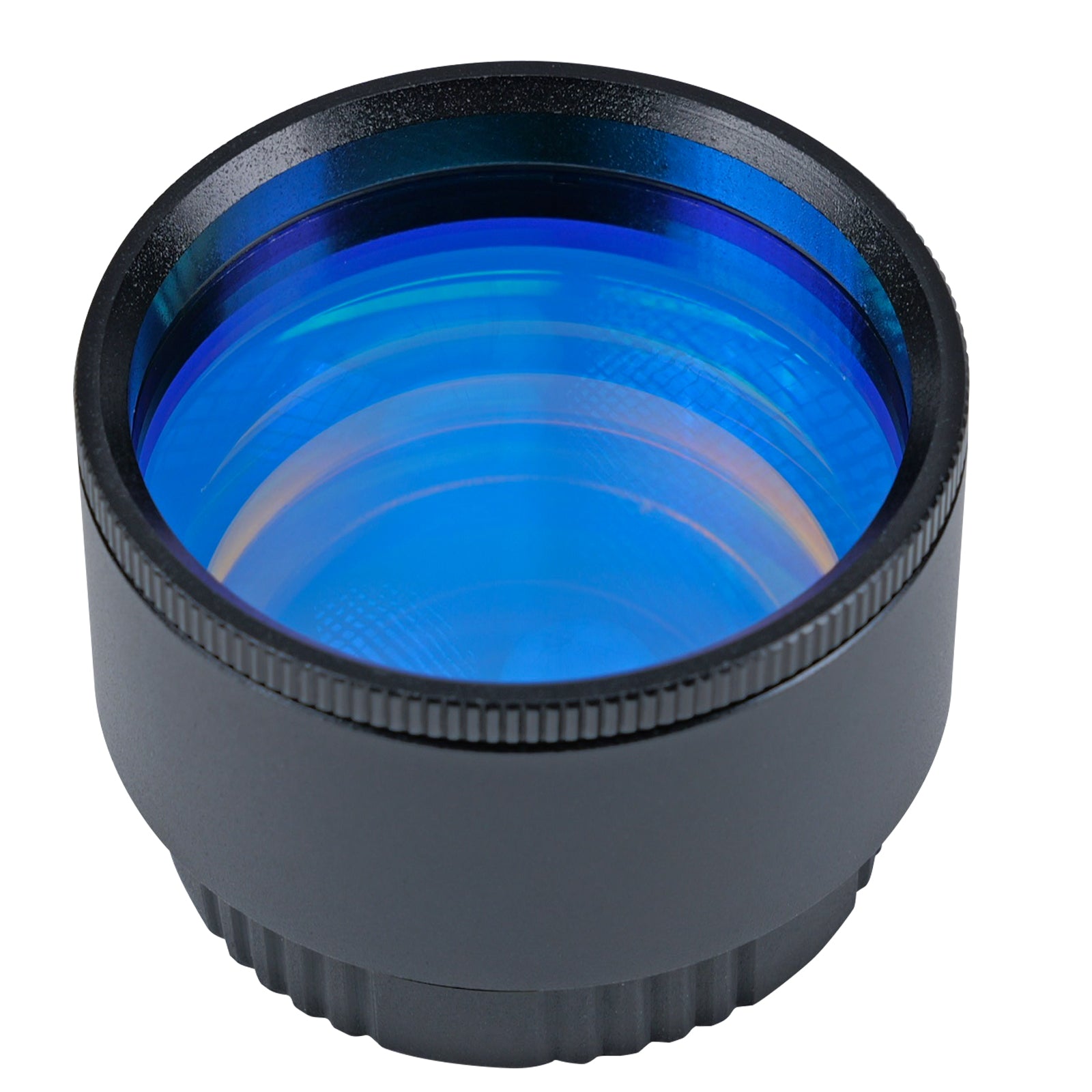

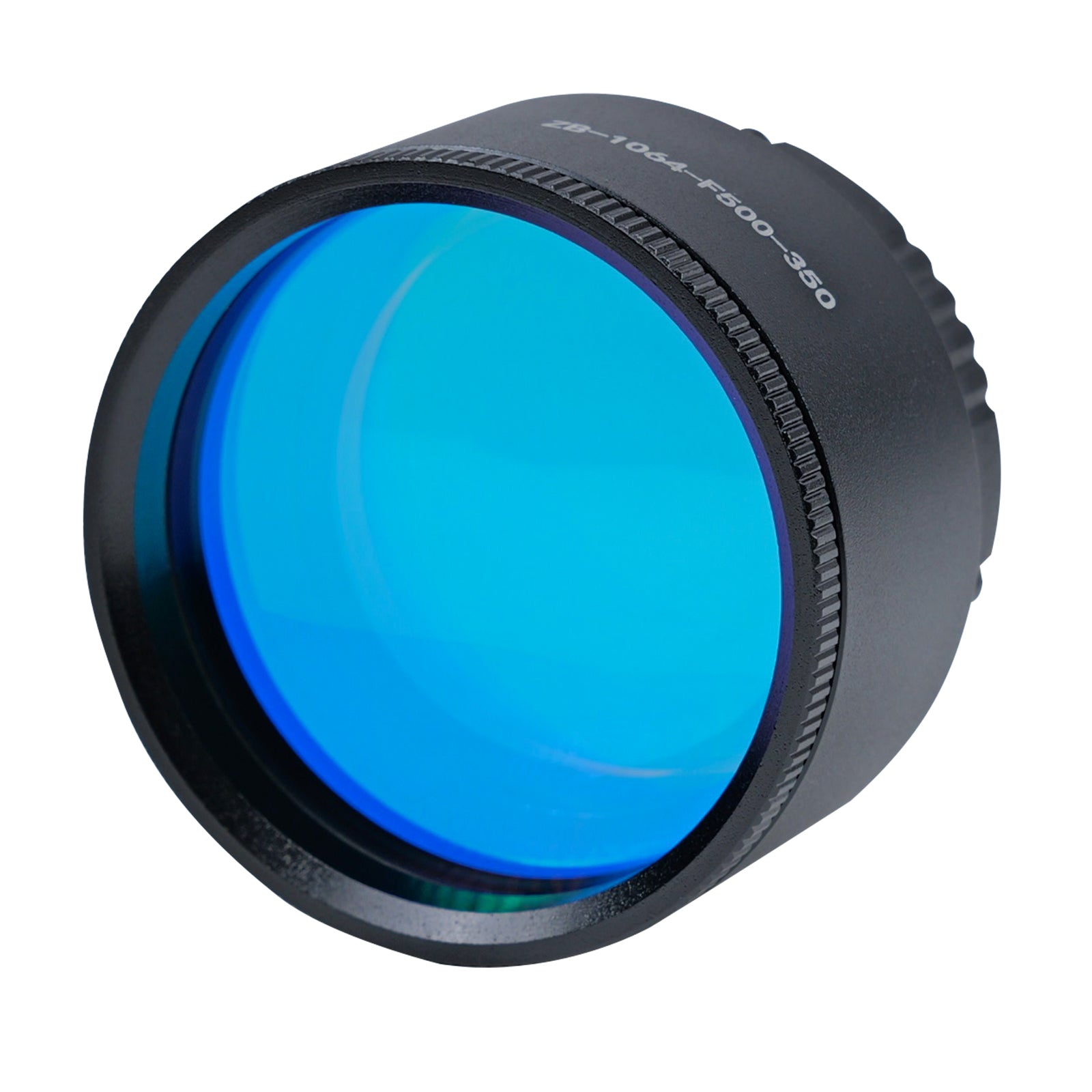

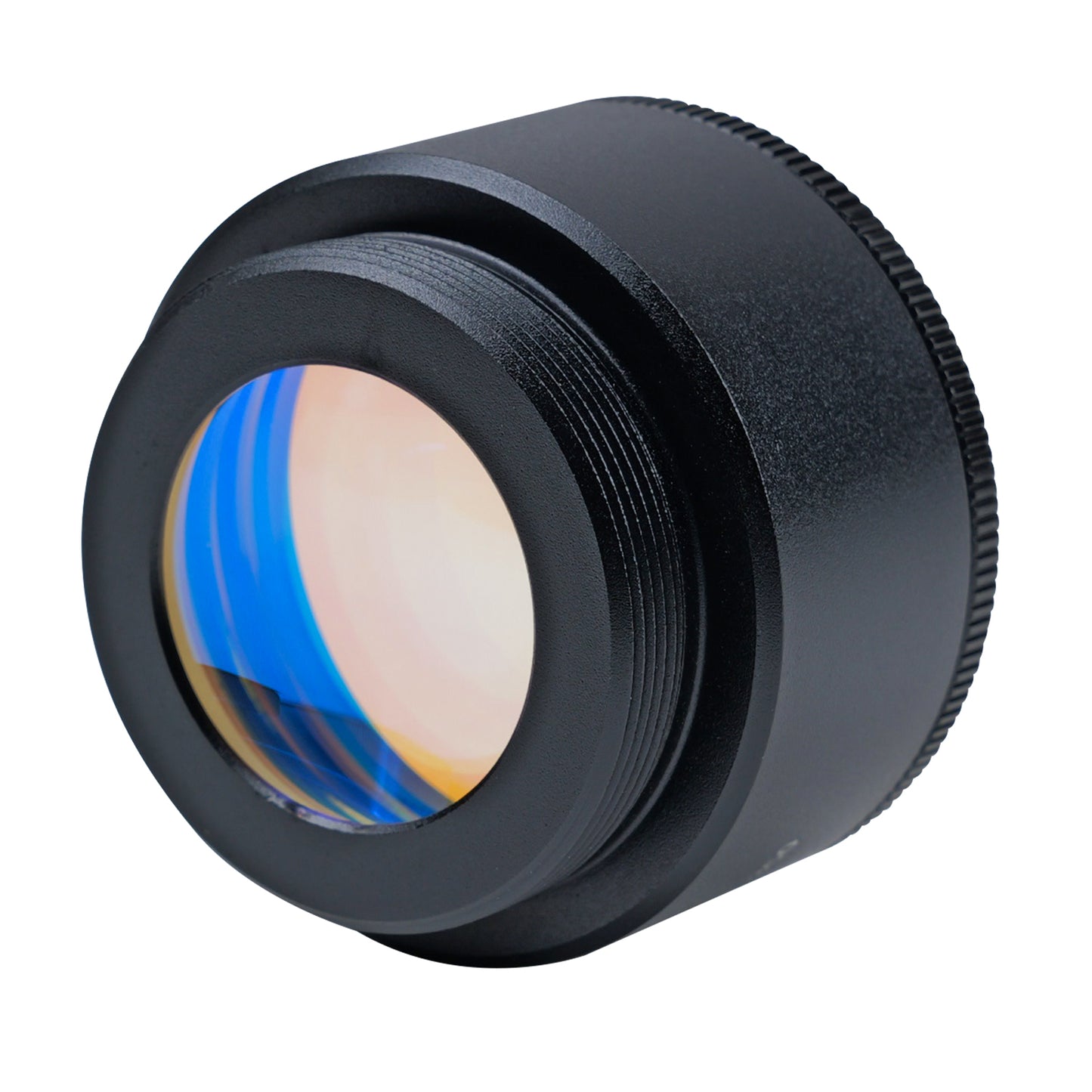

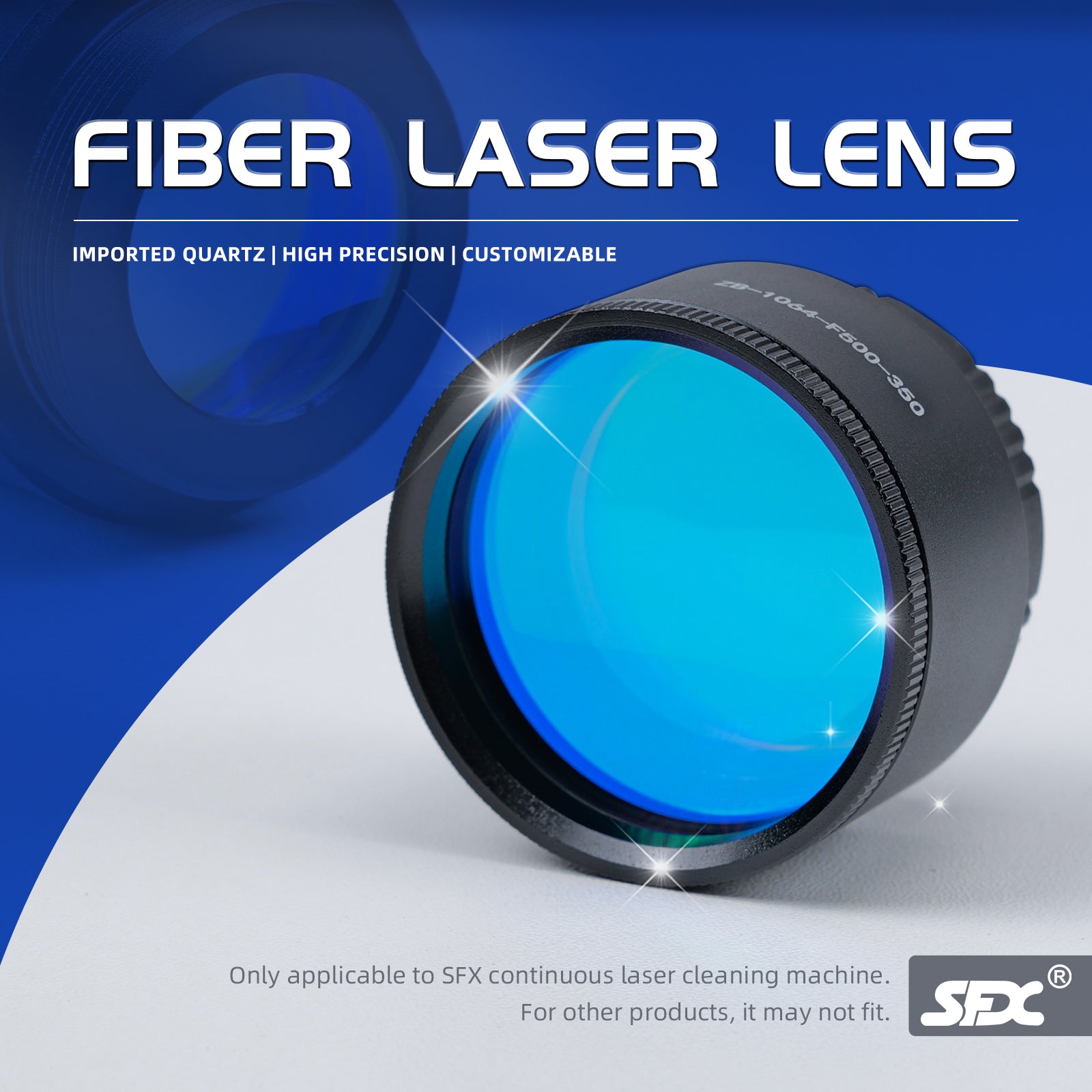

Fiber Laser Lens for SFX BLC/LC 1000W/1500W/2000W/3000W Laser Rust Removal Laser Cleaning Machine

Packing List:

1Pc Fiber Laser Lens

Application:

SFX BLC-1000, BLC-1500, BLC-2000, BLC-3000, LC-1000, LC-1500, LC-2000, and LC-3000 Laser Cleaning Machine

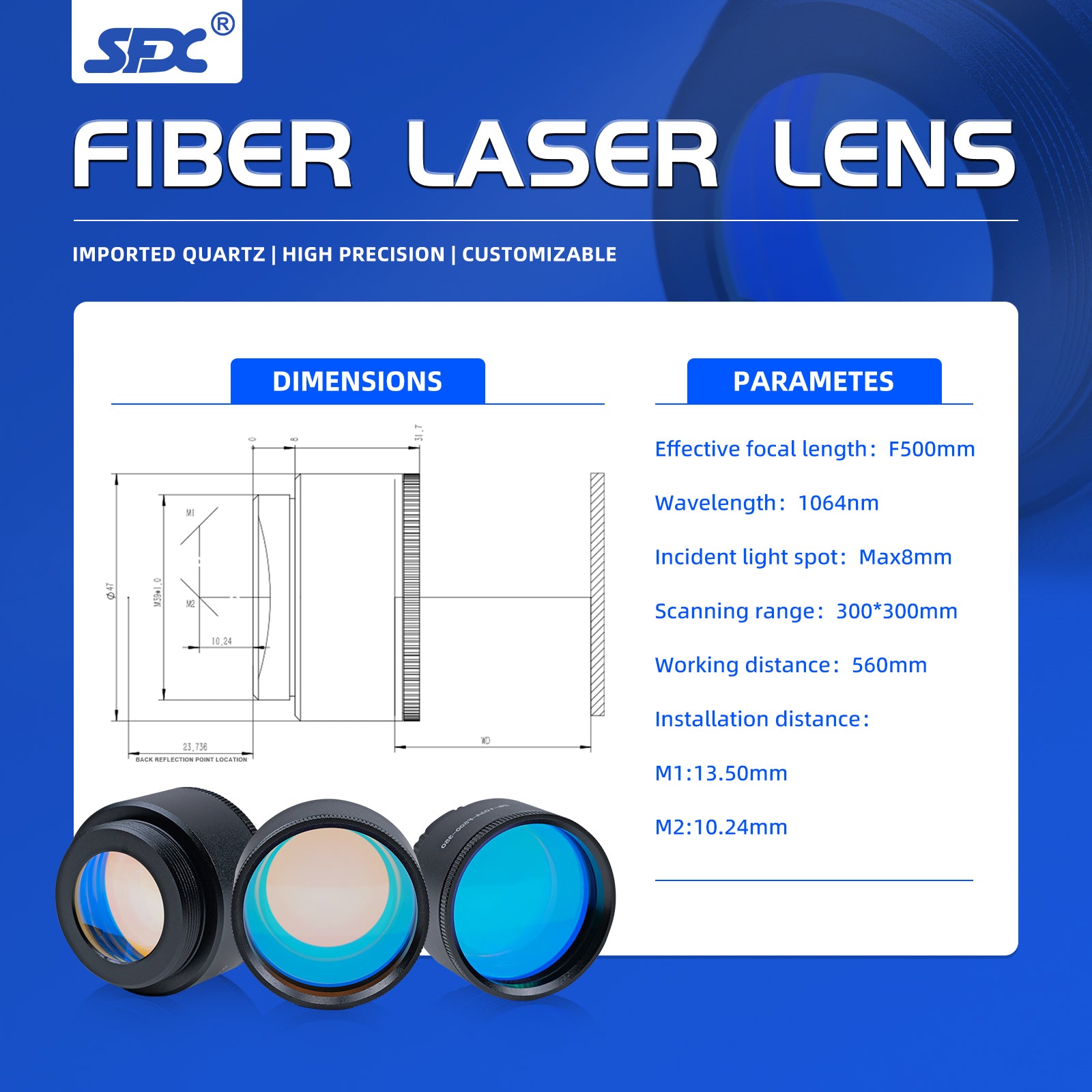

Technical Parameter:

Effective focal length: F500mm

Wavelength: 1064nm

Incident light spot: Max 8mm

Scanning range: 300*300mm

Working distance: 560mm

Installation distance: M1: 13.50mm M2: 10.24mm

When change the fiber laser lens, the precautions are as follows:

1. Please do it in a clean and dust-free environment.

2. Do not touch the surface of the lens.

3. When installing, make sure that the lens and cleaning head are free from dust and dirt.

4. Confirm that all parts and screws are installed and fastened in place.
