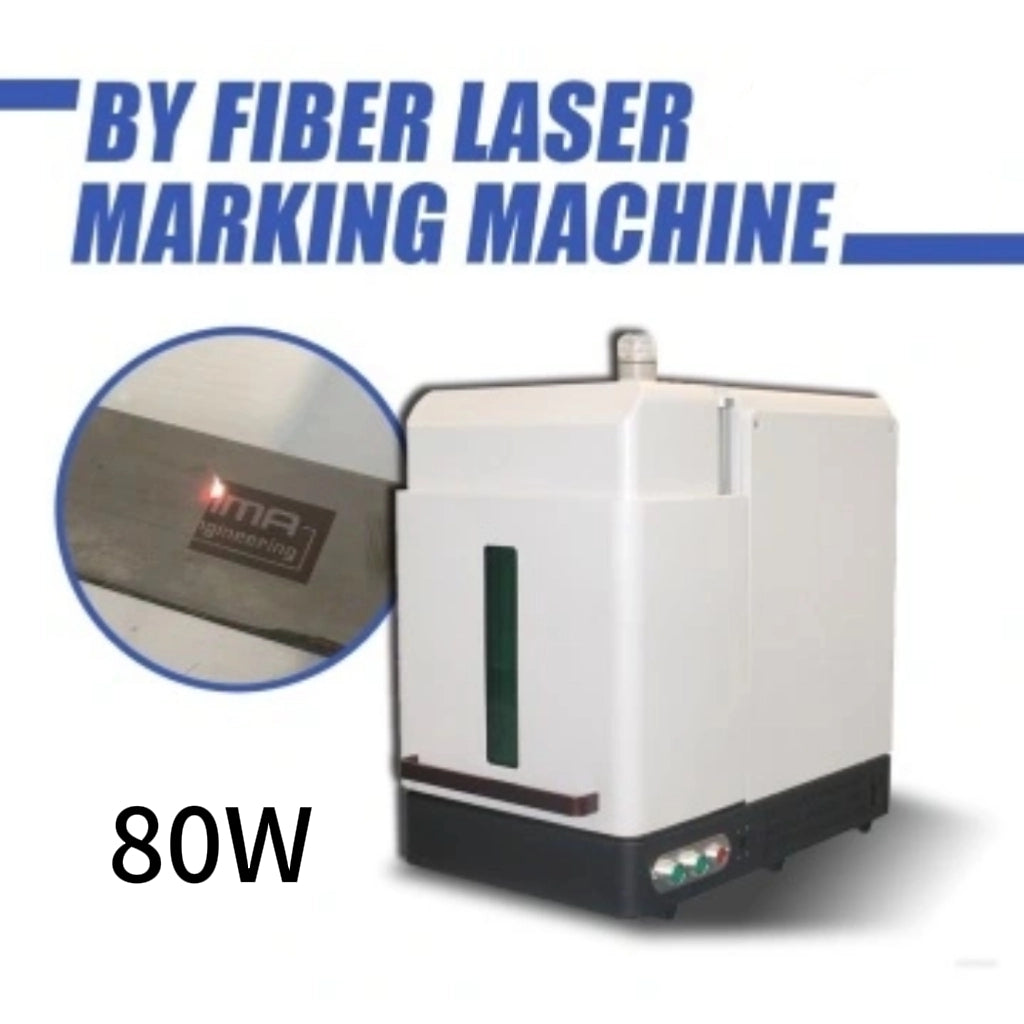

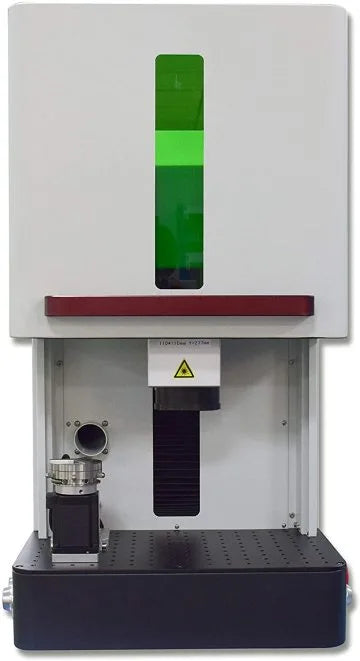

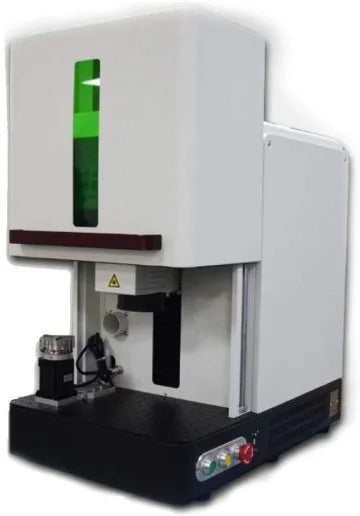

Enclosed 80W JPT Mopa M7 Color SFX Fiber Laser Engraver Fiber Laser Engraving Laser Marker Machine With Rotary
Enclosed 80W JPT Mopa M7 Color SFX Fiber Laser Engraver Fiber Laser Engraving Laser Marker Machine With Rotary
SFX Laser
Free Shipping!
Couldn't load pickup availability
Enclosed 80W JPT Mopa M7 Color SFX Fiber Laser Engraver Fiber Laser Engraving Laser Marker Machine With Rotary
Product Specification:

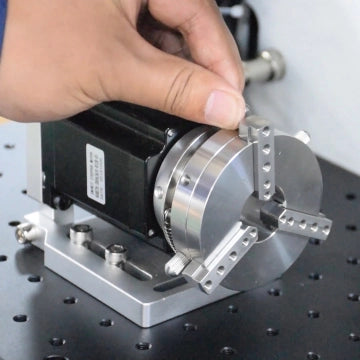

Configuration : 80W MOPA Fiber Laser Marking Machine + D69mm Rotary Axis
Marking Area:70*70mm/110*110 mm/150*150mm
Laser Type : MOPA JPT M7+
Max Material Thickness: 250 mm(9.84 in)
Repetition Rate Frequency : 1-4000 KHZ
Pulse Duration: 2-500 ns
Control board: BJ JCZ board(Original)
Soft Program: EZCAD2 (Compatible with Windows XP/Vista/7/8/10)
Output power adjustment range:10%-100%
Laser Wavelength:1064 nm
Marking Speed:≤7000 mm/s (275.6 in/s)
Engraving Depth: ≤ 1mm(0.039in)
Min. Line Width:0.01 mm(0.0004 in) Depends on the material
Min.Character:0.2 mm(0.008 in) Depends on the material
Electrical Requirements: 110V-240V/50Hz-60Hz
Applicable Material :
Aluminum , Stainless Steel , Brass , Copper etc .Also some of nonmetal such as nylon , light button , ABS, PVC , PEC etc
Applicable Industry :
Hardware industry , wrenches ,measuring tools , jewelry , sanitary ware , stainless steel , luggage gifts , table bottom , glasses frames .
Laser Engraver Advantages:
1. Totally-Closed Type with Observation Window; Easy and Safe Operation
2. Color marking on stainless steel
3. Anodized alumina blackened.
4. Strip the anode from the surface of the thin aluminium oxide plate.
5. Electronic, semiconductor, ITO precision processing applications.
Compared with JPT fiber laser, MOPA Fiber Lasers with Excellent laser performance and good pulse shaping control ability .
Warranty:
60W Mopa Fiber Laser Marker Fiber Laser Stainless Steel Color Engravin
2 years, Remote assistance, customer and technical support. English user manual and demo video offered by USB flash disk along with the machine. Returnable for non-human-induced malfunction machine.
