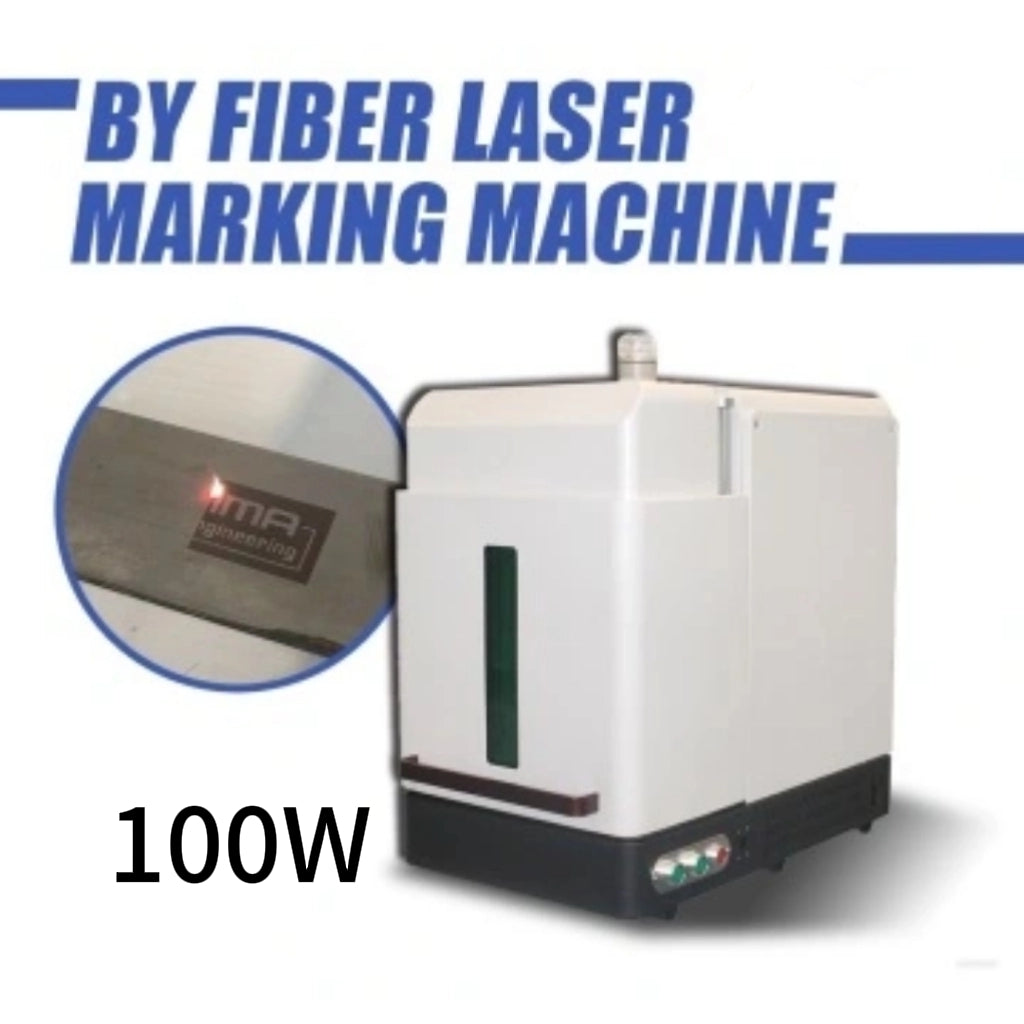

Enclosed 100W JPT Mopa M7 Color SFX Fiber Laser Engraver Fiber Laser Engraving Laser Marker Machine With Rotary

Enclosed 100W JPT Mopa M7 Color SFX Fiber Laser Engraver Fiber Laser Engraving Laser Marker Machine With Rotary

My Store

Regular price $10,399.00 USD
Regular price Sale price $10,399.00 USD
Sale Sold out

Free Shipping!

Model

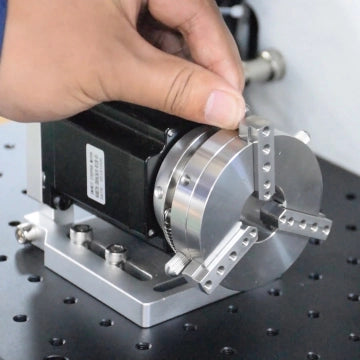

Rotary Axis
Quantity

Enclosed 100W JPT Mopa M7 Color SFX Fiber Laser Engraver Fiber Laser Engraving Laser Marker Machine With Rotary

Product Specification:

Fiber Laser Engraver Fiber Laser Marking Machine Laser Marker

Marking Area:70*70mm/110*110 mm/150*150mm

Laser Type : MOPA JPT M7+

Max Material Thickness: 300 mm(11.8 in)

Repetition Rate Frequency : 1-4000 KHZ

Pulse Duration: 2-500 ns

Control board: BJ JCZ board(Original)

Soft Program: EZCAD2 (Compatible with Windows XP/Vista/7/8/10

Output power adjustment range:10%-100%

Laser Wavelength:1064 nm

Marking Speed:≤7000 mm/s (275.6 in/s)

Engraving Depth: ≤ 1mm(0.039in)

Electrical Requirements :110V-240V/50Hz-60Hz


Applicable Material :

Aluminum , Stainless Steel , Brass , Copper etc .Also some of nonmetal such as nylon , light button , ABS, PVC , PEC etc


Applicable Industry :

Hardware industry , wrenches ,measuring tools , jewelry , sanitary ware , stainless steel , luggage gifts , table bottom , glasses frames .


Laser Engraver Advantages:

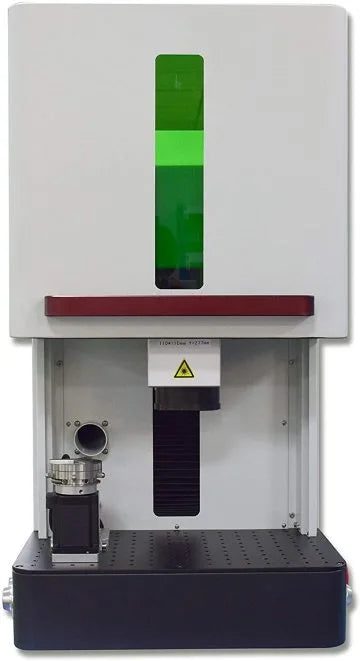

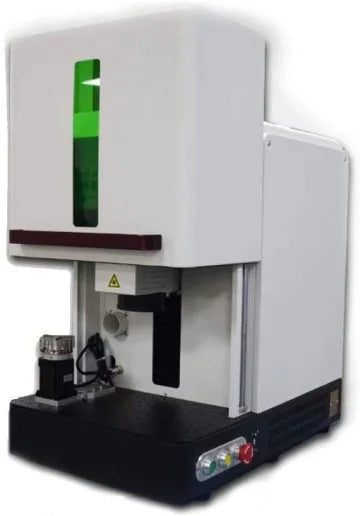

 ① Totally-Closed Type with Observation Window; Easy and Safe Operation
 ② Color marking on stainless steel
 ③ Anodized alumina blackened.
 ④ Strip the anode from the surface of the thin aluminium oxide plate.
 ⑤ Electronic, semiconductor, ITO precision processing applications.
Compared with JPT fiber laser, MOPA Fiber Lasers with Excellent laser performance and good pulse shaping control ability .


Warranty:

60W  Mopa Fiber Laser Marker Fiber Laser Stainless Steel Color Engravin
2 years, Remote assistance, customer and technical support. English user manual and demo video offered by USB flash disk along with the machine. Returnable for non-human-induced malfunction machine.
