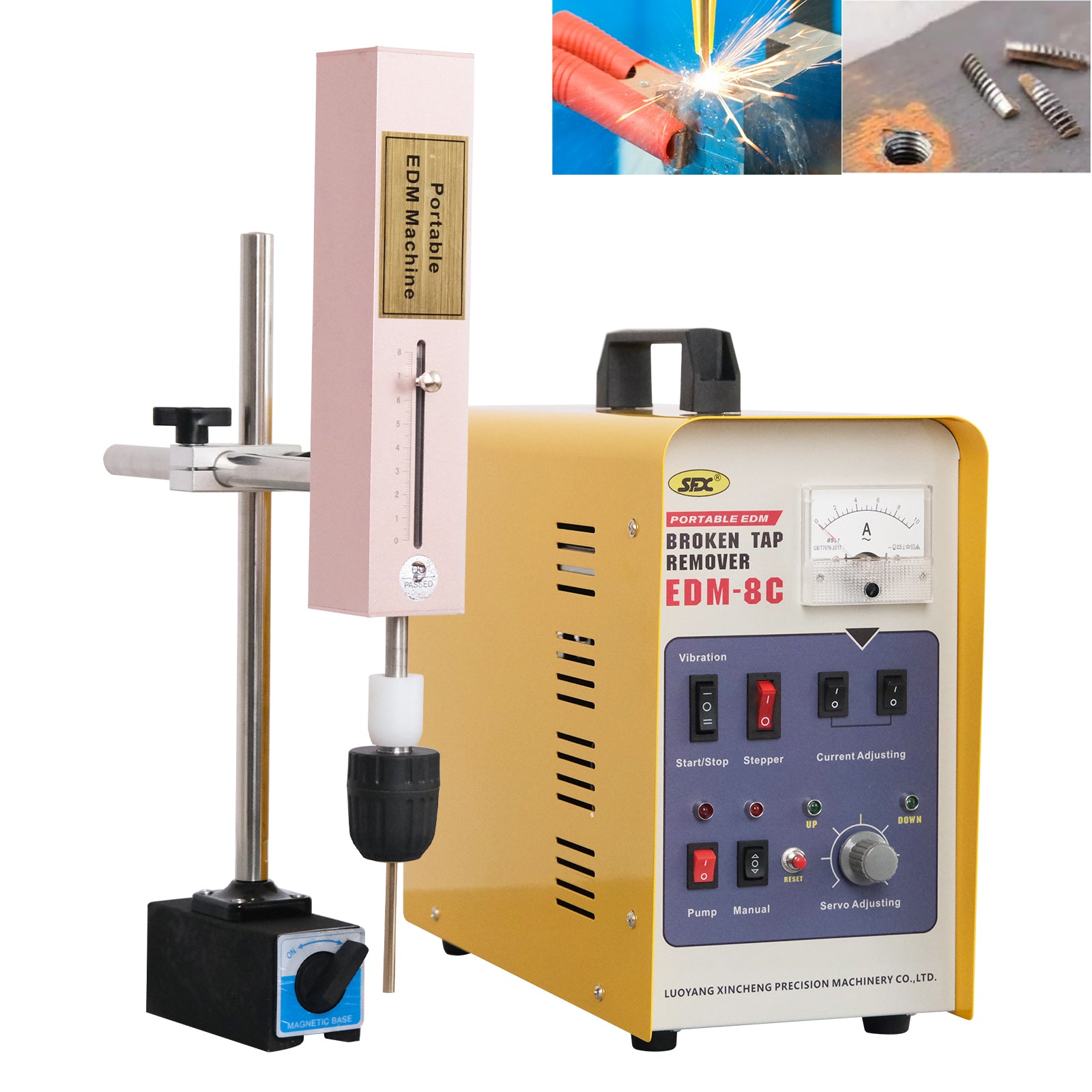

800W Depth Setting EDM Broken Tap Remover Portable Machine M2-M20 (5/64''-25/32'') Broken Tap Extractor

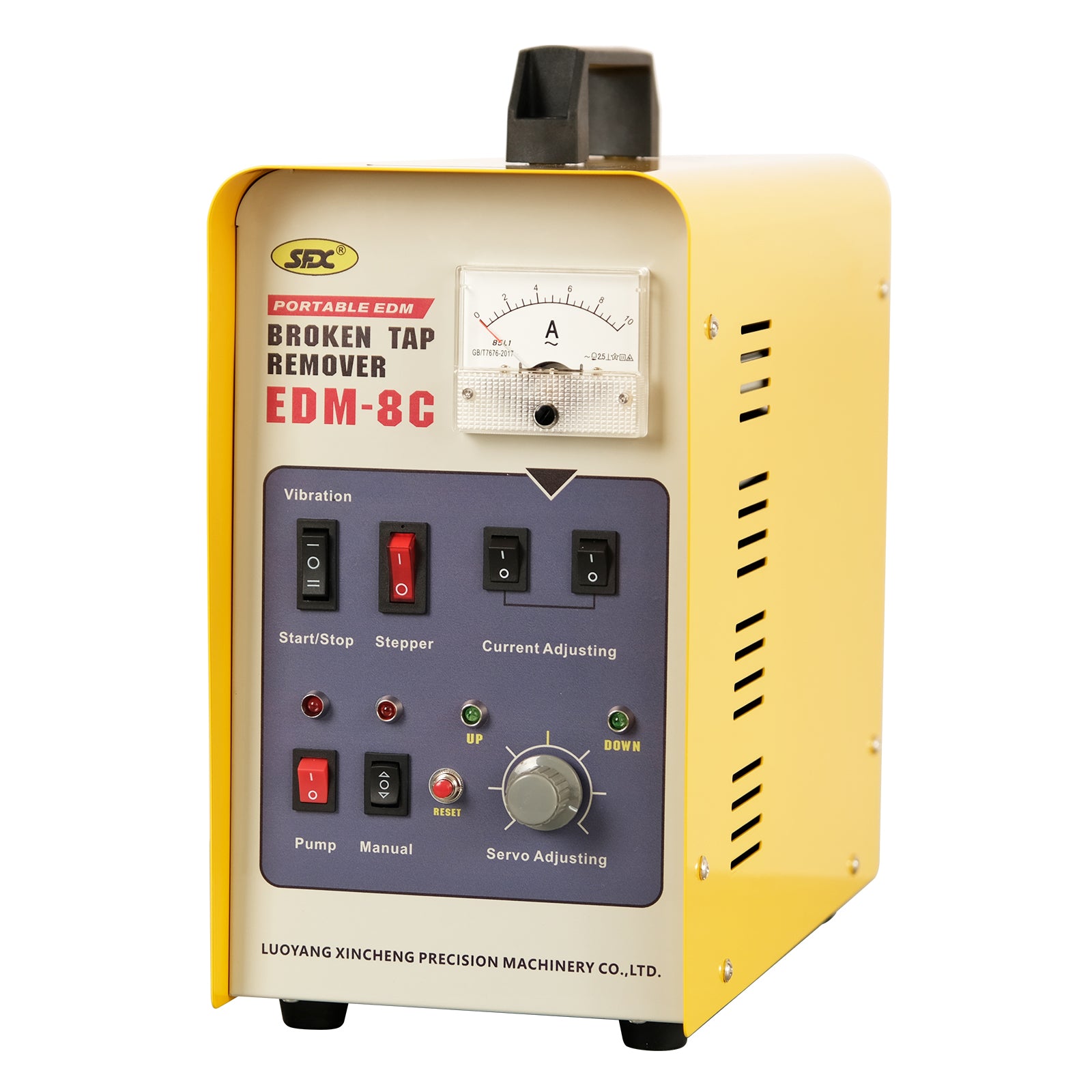

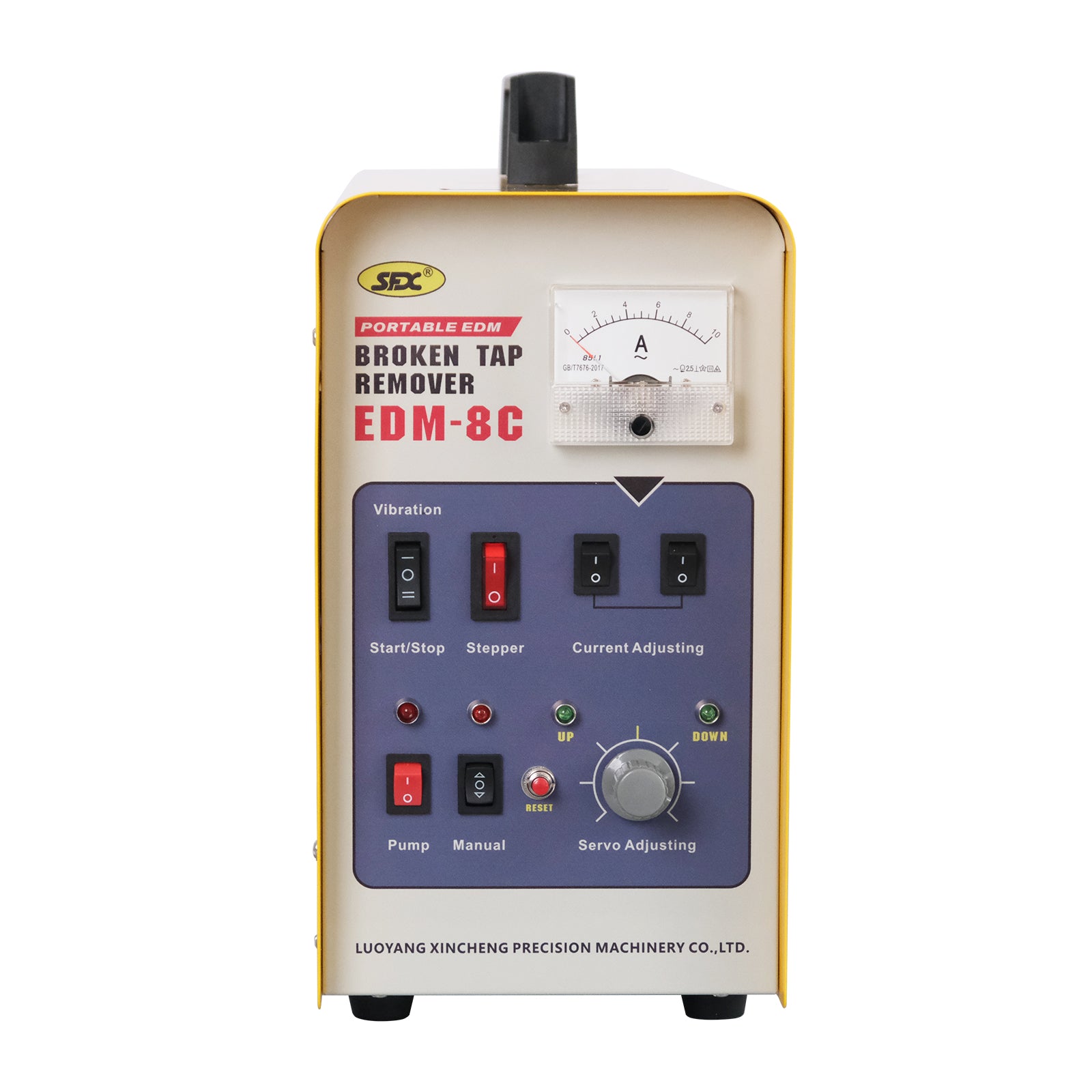

EDM-8C EDM Broken tap buster can fast remove M2-M20 broken taps, drill, drift, screw, plug gauge, etc., without any damage to the work piece.

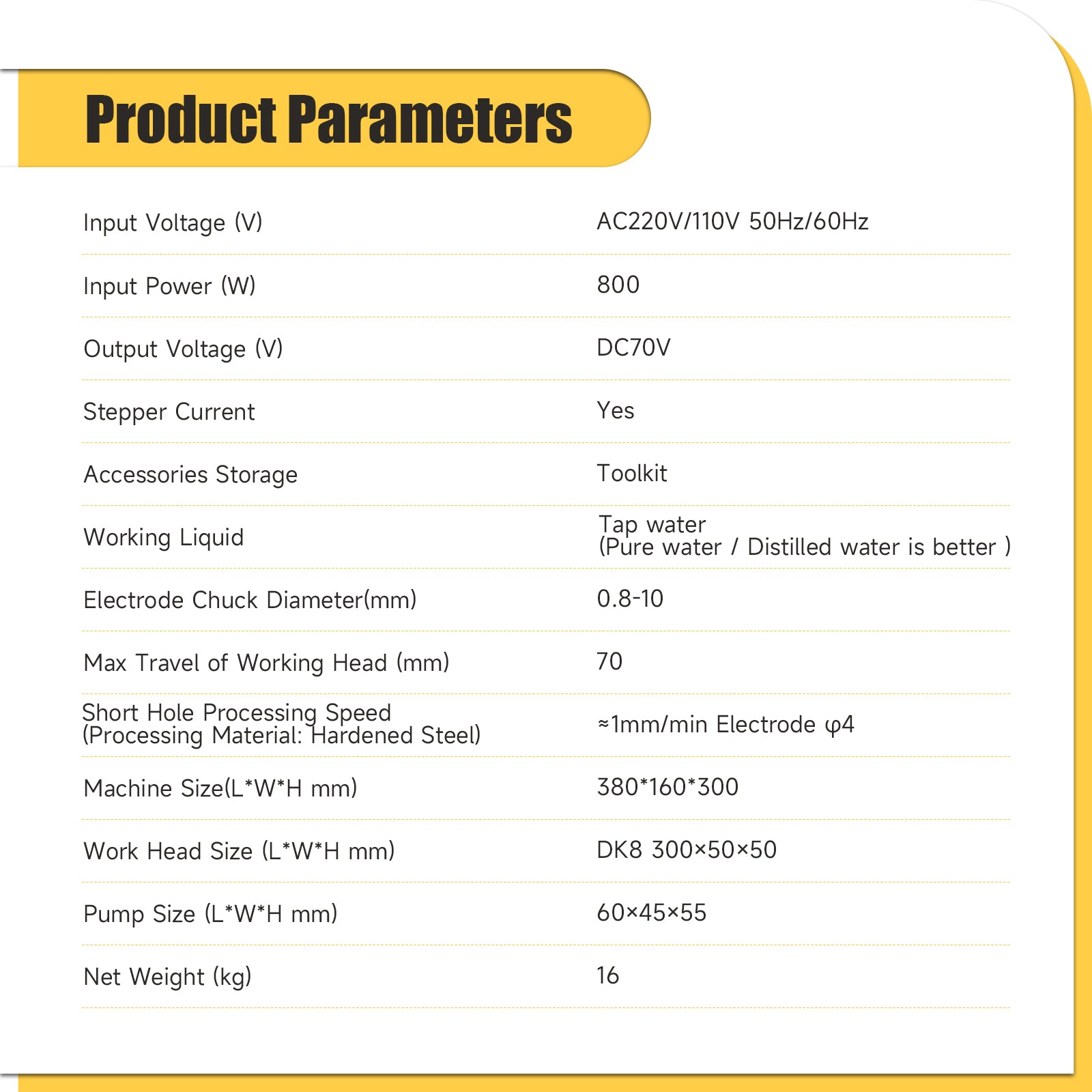

Specification:

Model: EDM-8C

Application: Remove M2-M20 (5/64''-25/32'') broken taps, drill, drift, screw, plug gauge

Voltage: 110V/220V 50Hz/60Hz with Plug to meet different voltage requirement

Depth Setting: YES

Input Power: 800W

Electrode Holder Diameter: 0.8-10mm

Working Liquid: Tap Water ( Pure Water /Distilled Water is better )

Max Process Depth of Spindle Servo: 70mm

Processing Speed: 1mm/min (Electrode φ4）

Working Head: DK8 315*50*50mm

N.W: 16 kg

G.W: 18 kg

Advantages:

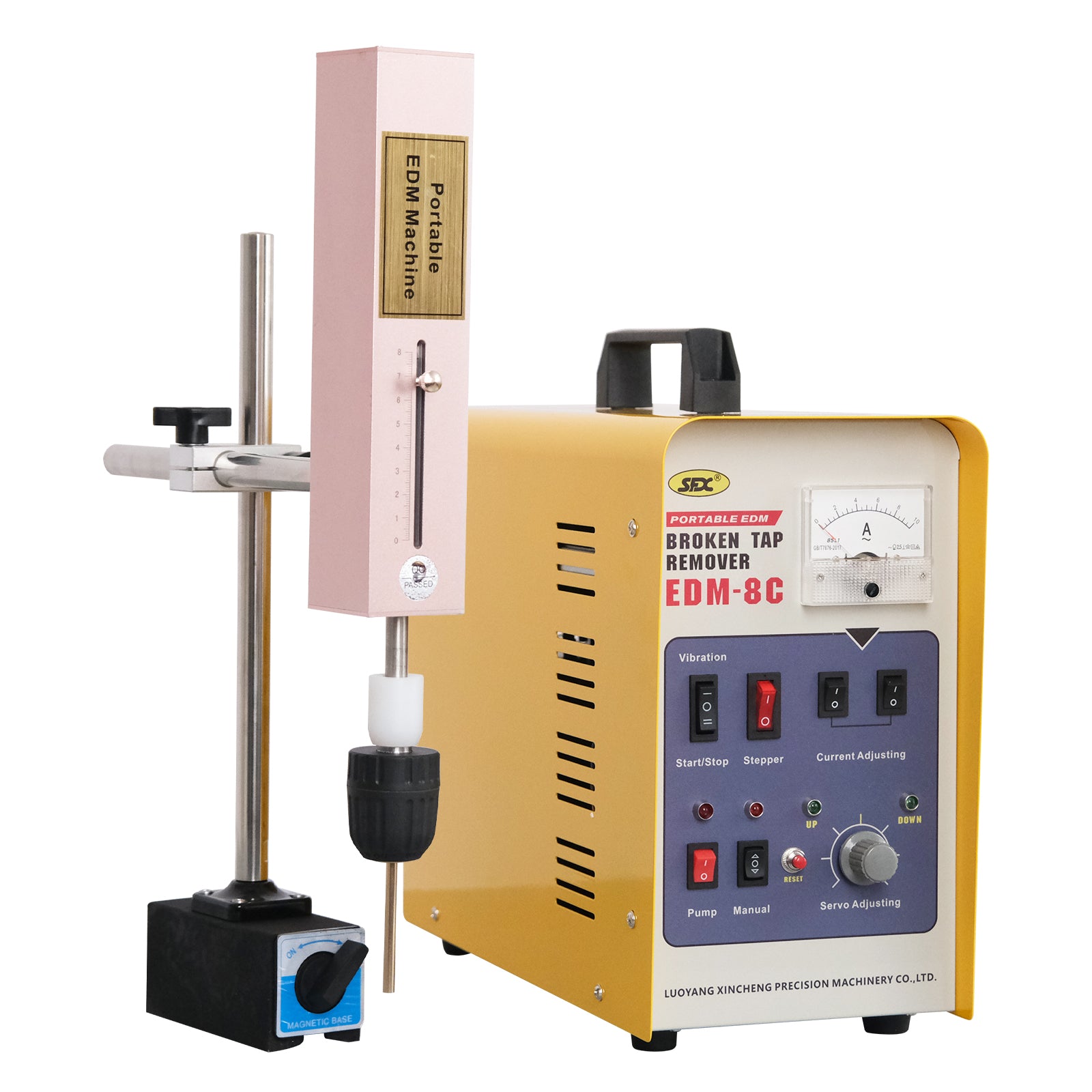

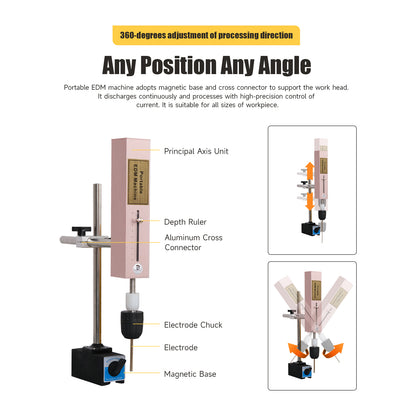

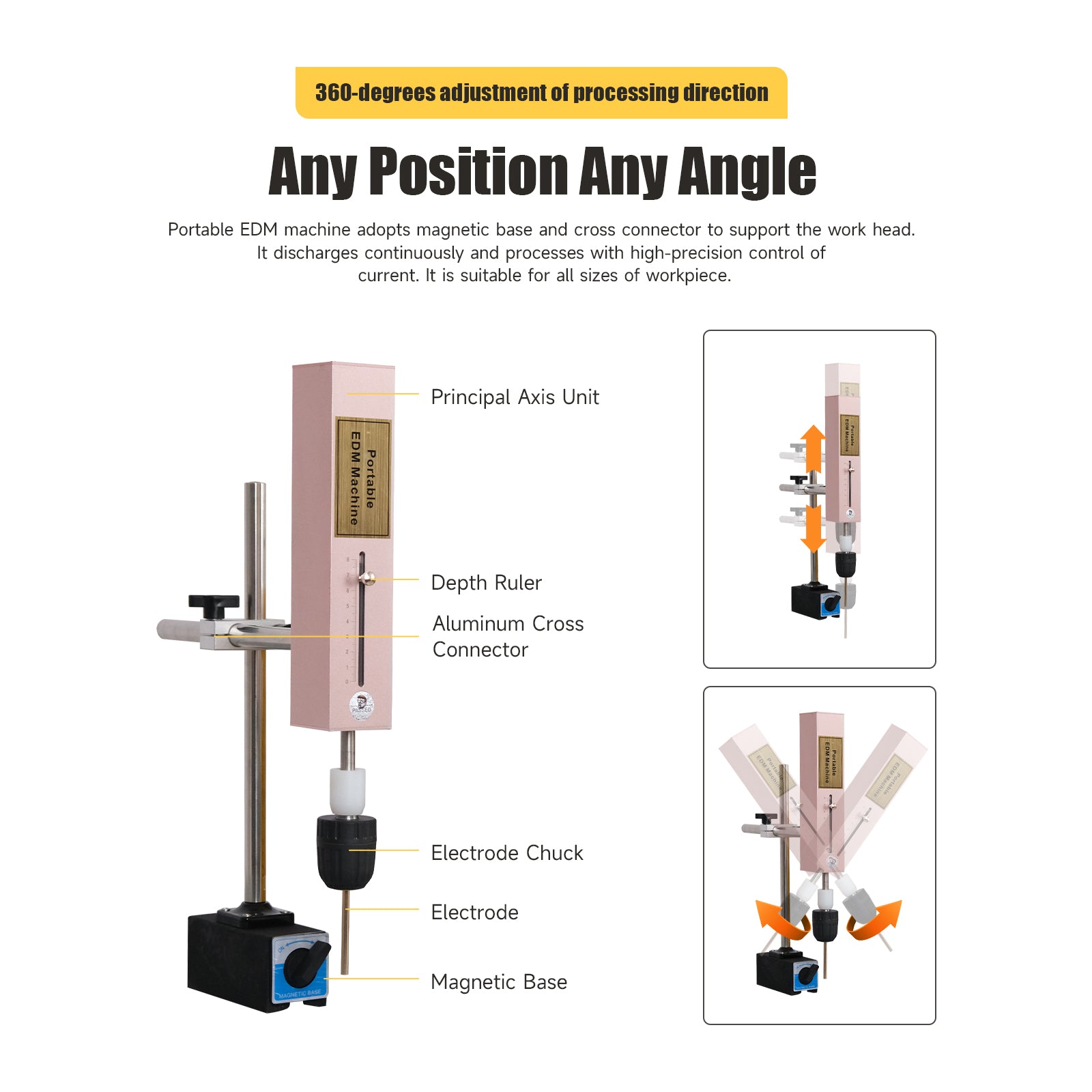

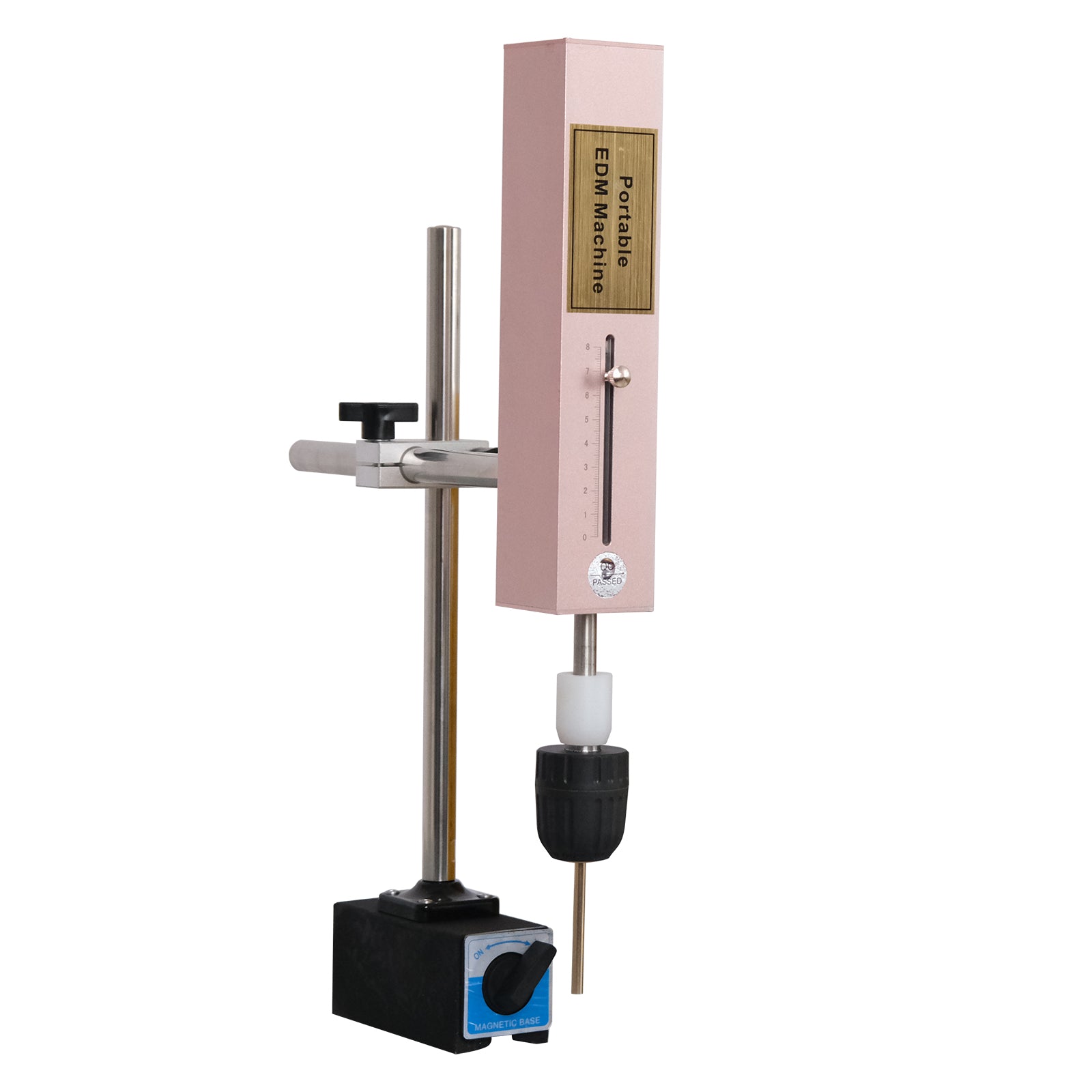

1. The EDM-8C EDM Portable Tap Remover machine can fast remove M2-M20 mm broken taps, drill, drift, etc., without damaging to the work piece. What applies a magnetic base and a cross stand to support the head, it can be placed at any position, adjust the processing direction comprehensively. It can be applied on any size of work-pieces, especially effective for large machine tools.

2. Integrated case for easy storage. The work head with vibration function.

3. More applications: non-precision holes and marking.

Shipping and Warranty:

The machine is in CA/NJ US Warehouse and in China, we will deliver the Tap Buster Machines within 2 days via International express after payment, and you will receive the machine about 5-10 days at your door.

1 year warranty and within this time, we would repair them for free including the new parts that needed for the repair.
