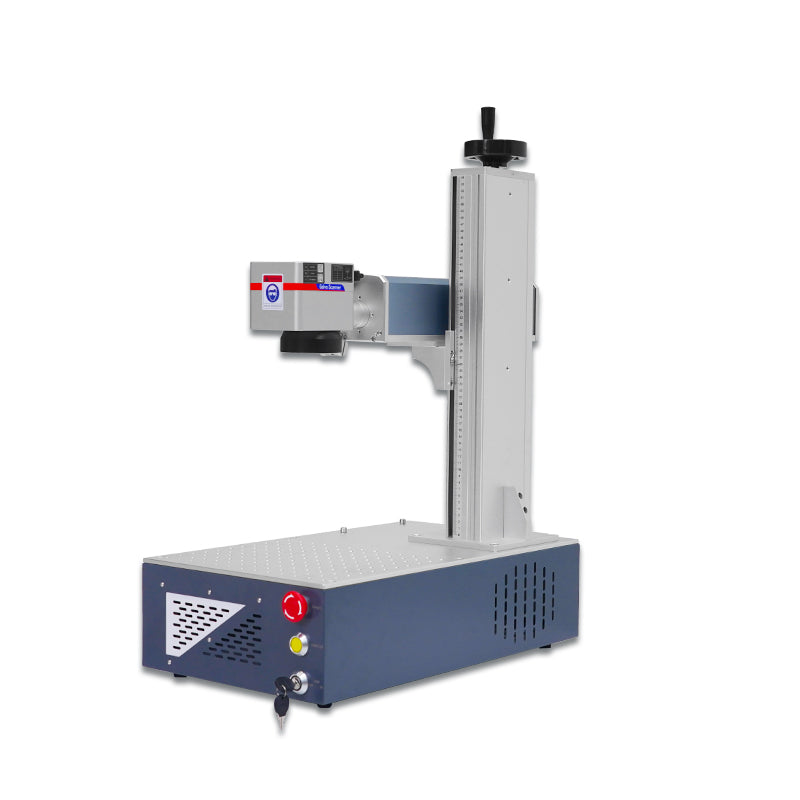

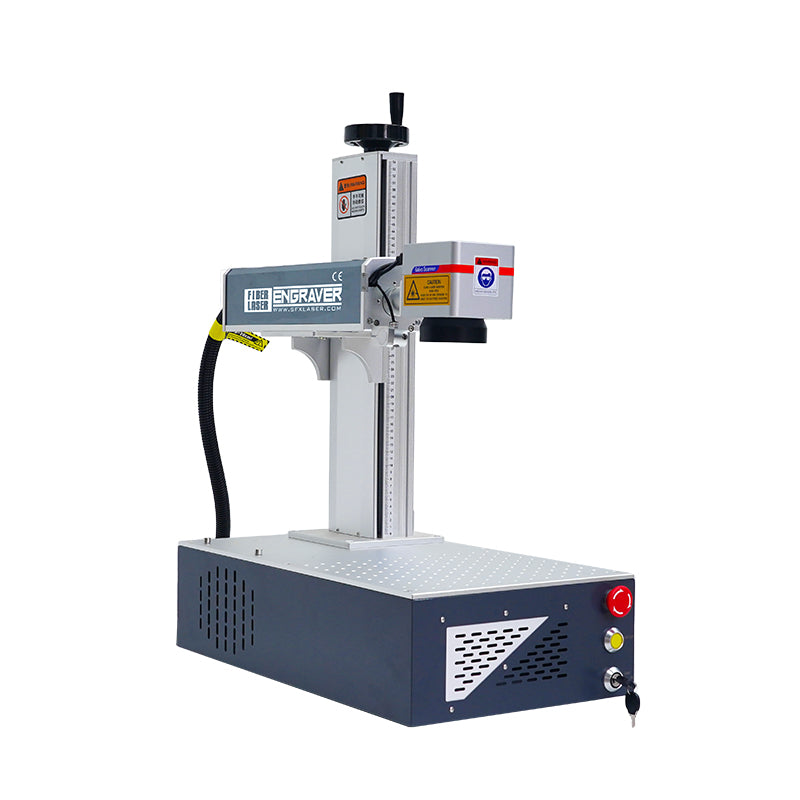

Desktop Fiber Laser Marking Machine Fiber Laser Engraver SFX20/30/50GS Handheld Laser Marking Machine JPT RED Dot Pointer

Desktop Fiber Laser Engraver Laser Engraving Machine for Laser Engraver for Metal/Dog tag/Nameplate

Advantages:

Long Lifespan, Free Maintenance and Low Cost.

High speed system, Fast Marking Speed 7000mm/s

High Repeat Precision 0.002mm.

High Rate of Electrical-Optional Conversion 70%

Compatible with Multiple File Formats:Coreldraw,Auto CAD,Photoshop;PLT,PCX,DXF,BMP,ect.

Directly Use SHX,TFF Fonts;Automatic Encoding,Printing Serial Number,Batch Number, Date, Barcode, QR Code, Automatic Jump Number, etc.

English User Manual and Training Video Sending Together with the Machine.

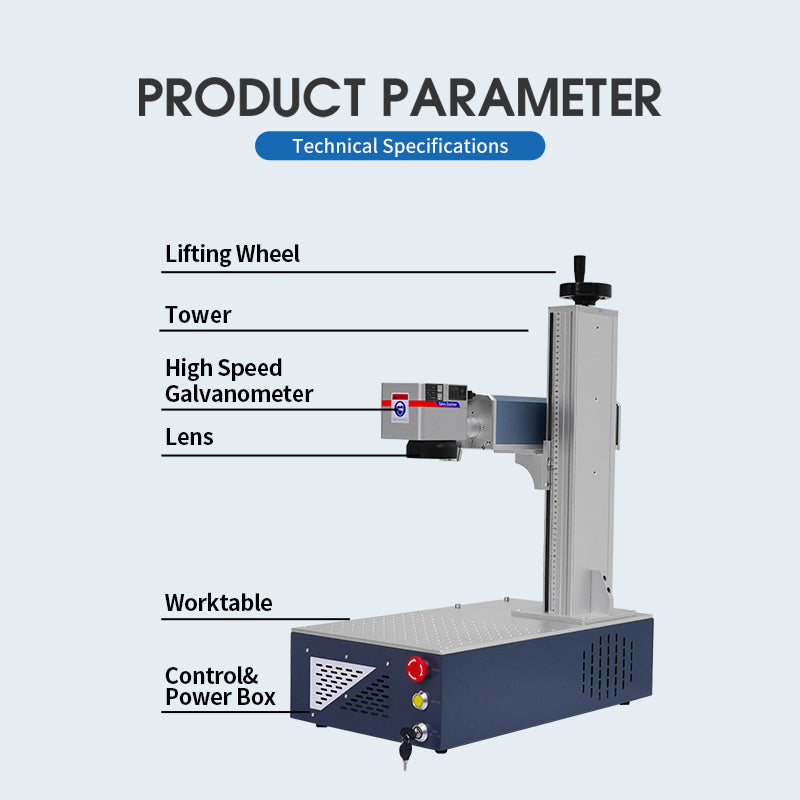

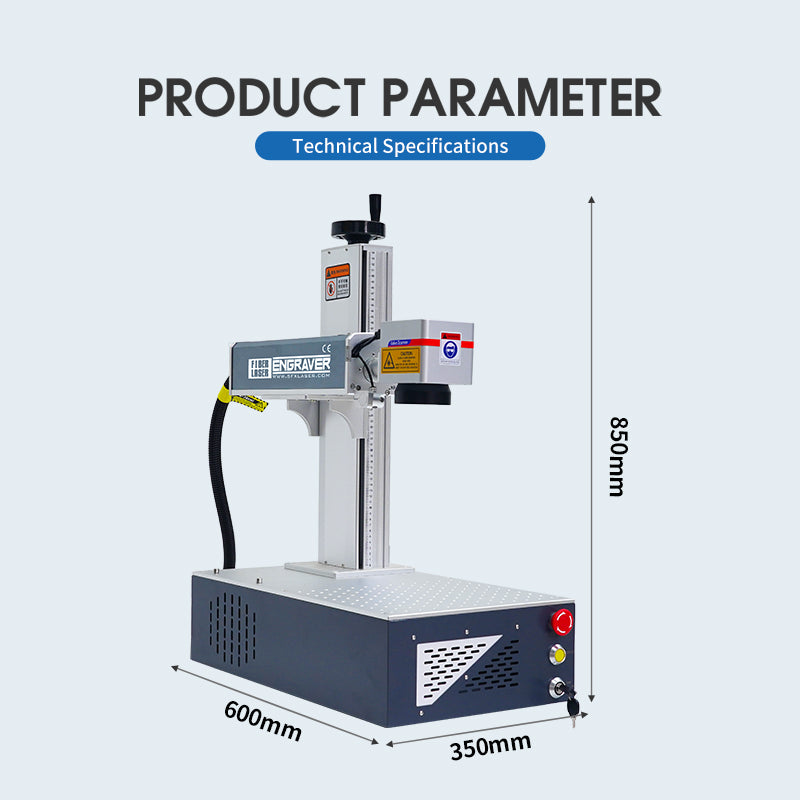

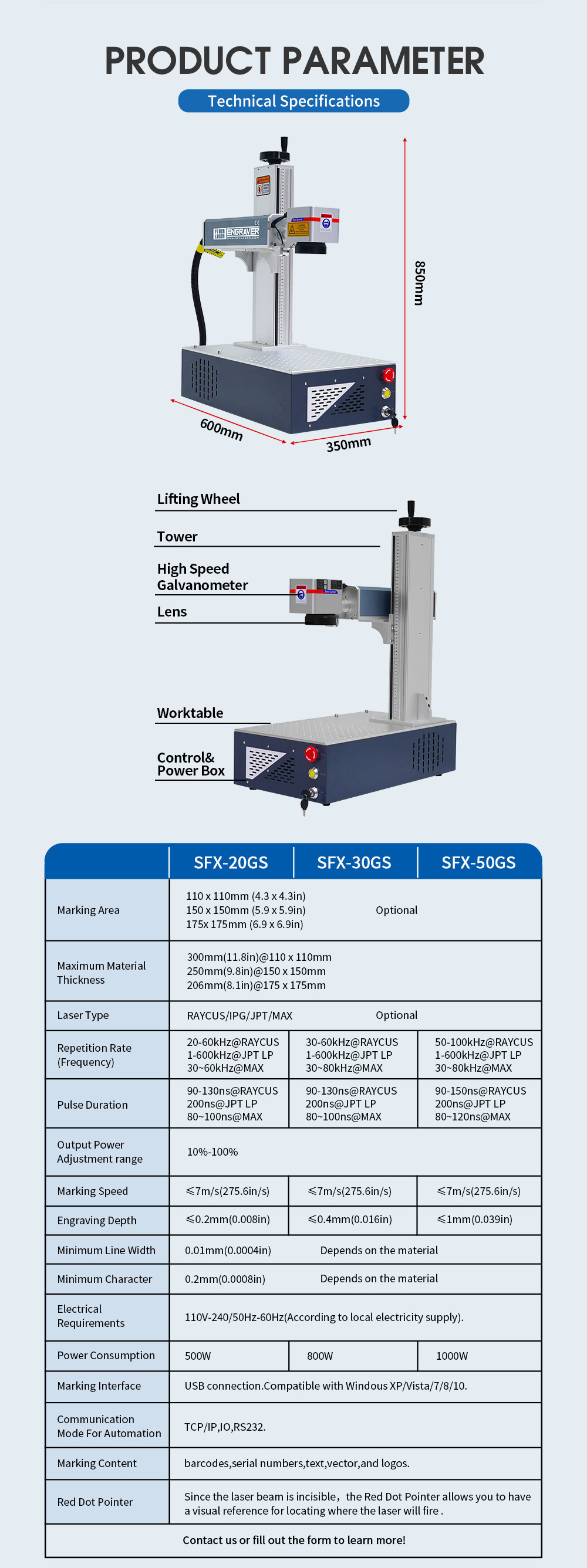

Parameter:

Marking Area

110x110mm(4.3x4.3in)/150x150mm(5.9x5.9in)/175x175mm(6.9x6.9in)

Maximum Material Thickness

300mm(11.8in)@110x110mm/250mm(9.8in)@150x150mm/206mm(8.1in)@175x175mm

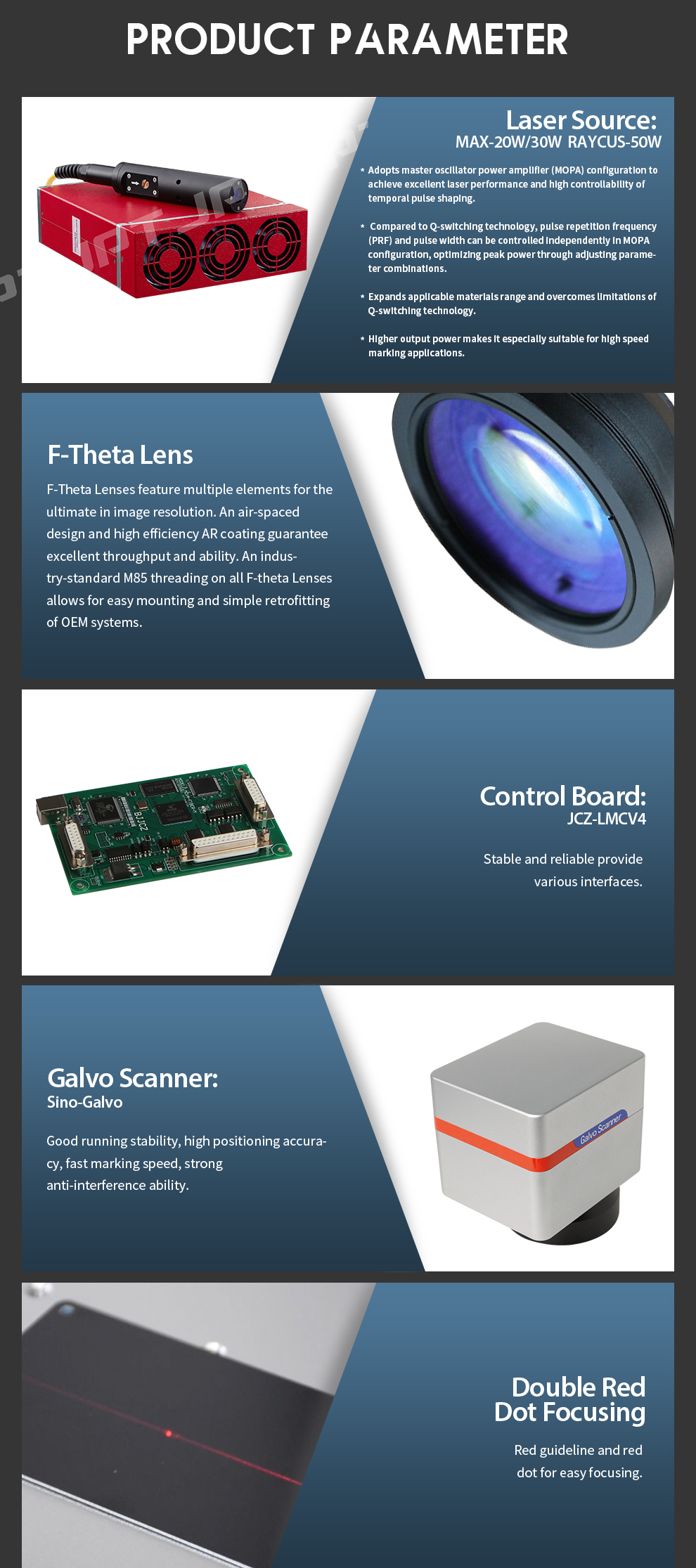

Laser Type:JPT

Repetition Rate(Frequency) 1-600khz

Pulse Duration 200ns

Output Power Adjustment Range 10%-100%

Marking Speed≤7m/s(275.6in/s)

Engraving Depth≤0.2mm(0.008in) 30W Engraving Depth≤0.4mm(0.016in)  50WEngraving Depth≤1mm(0.039in)

Minimum Line Width 0.01mm(0.004in),Minimum Character  0.2mm(0.008in)

Electrical Requirements 110V-240/50-60HZ

Power Consumption  30W Power Consumption 800W ,50W Power Consumption 1000W

Marking Interface:USB Connection.Compatible with Windows XP/Vista/7/8/10

Communication Mode for Automation TCP/IP/IO/RS232.

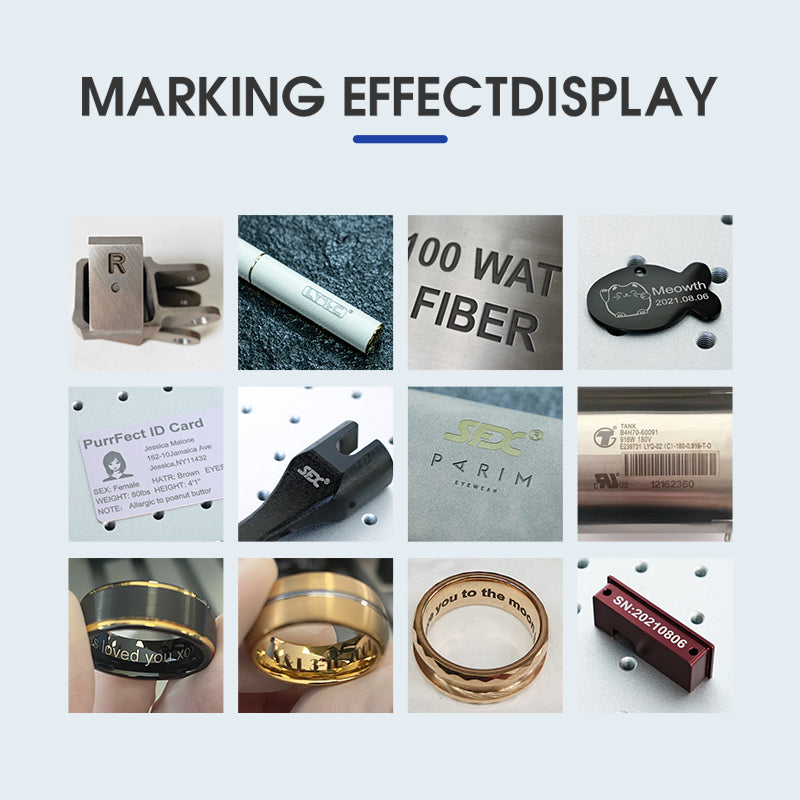

Marking Content:Barcodes, Serial Numbers,Text,Vector,and Logos.

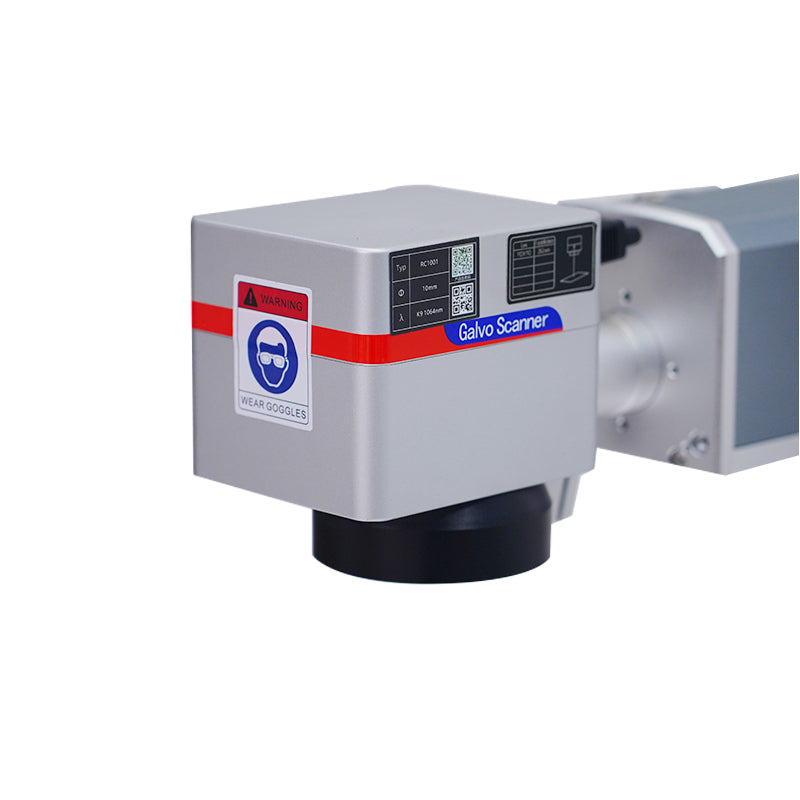

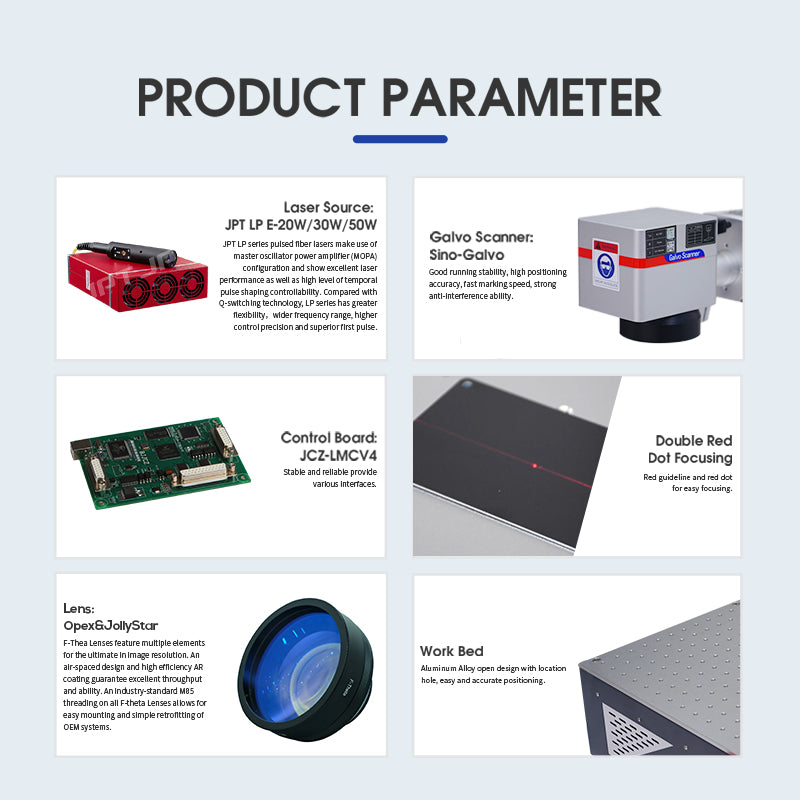

Parameter of ZBTK  Galvo Scanner:

Clear aperture:10mm

Scan Angle:±0.35Rad

Non-linearity＜0.8mrad

Repeatability＜2urad

Gain drift＜80ppm/k

zero drift＜30urad/k

8 hours temperature drift (30 minutes after warm-up)＜0.2mrad

Marking Speed＜2m/s

positioning speed＜10m/s

Lens reflection wavelength 1064nmnm

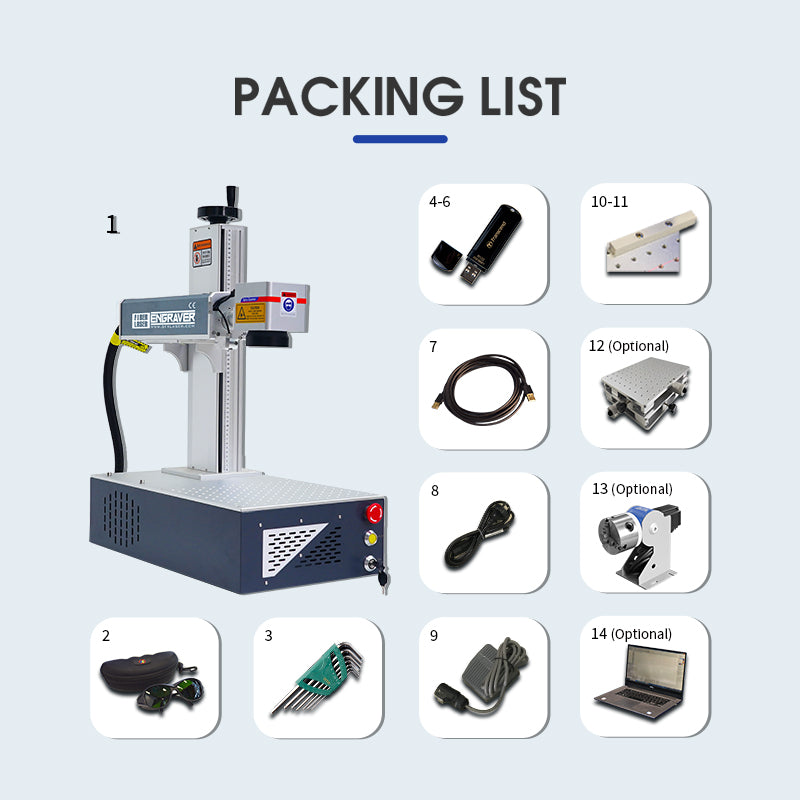

Packing List:

1. Fiber Laser Engraver 1Pc

2. Goggles 1Pc

3. Allen Wrench 1Pc

4. USB Drive 1Pc

5. Installation and Use Video(In USB Drive)

6. Software User Manual (In USB Drive)

7. USB Line 1Pc

8. Power Line 1Pc

9. Foot Switch 1Pc

10.  M6 Positioning Screw
