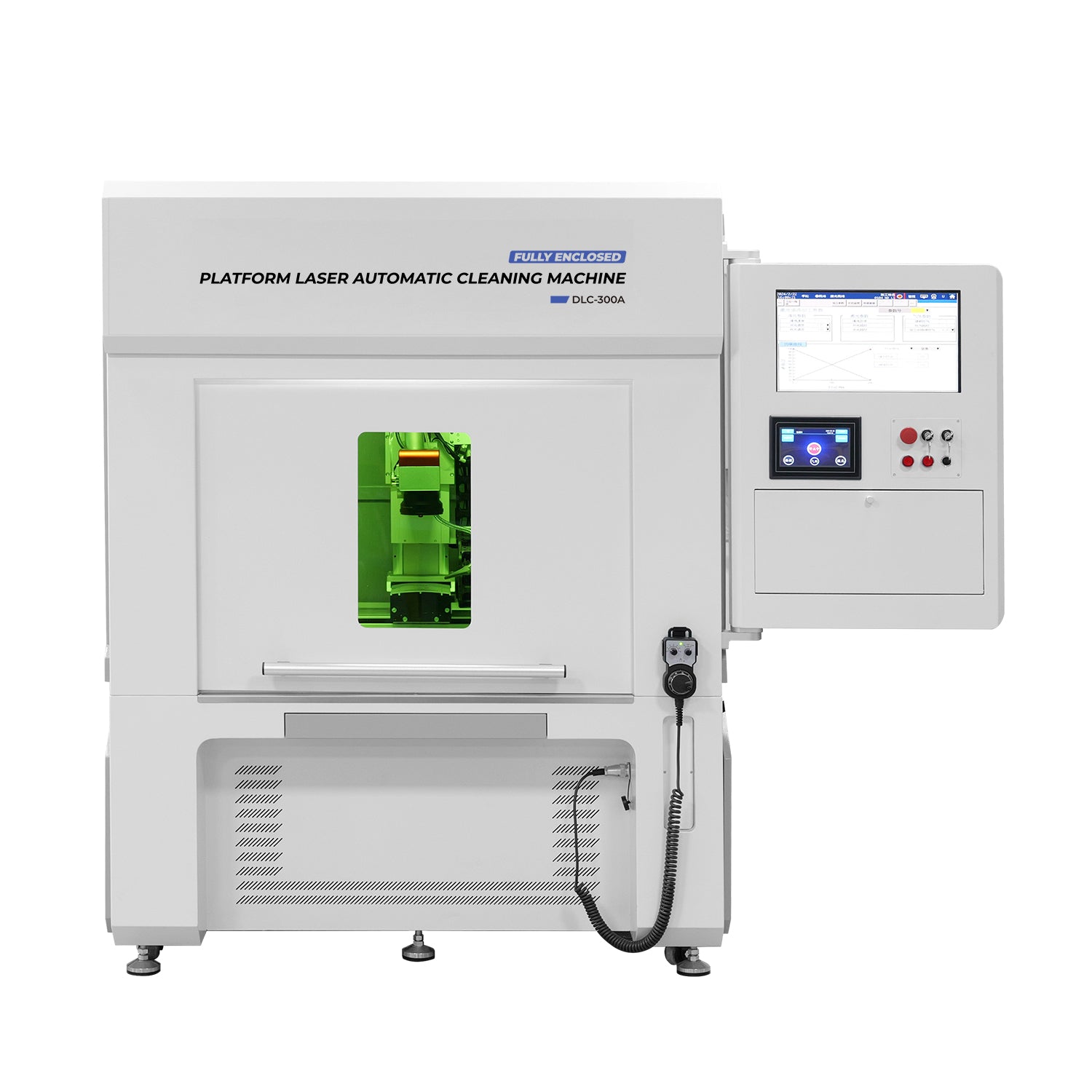

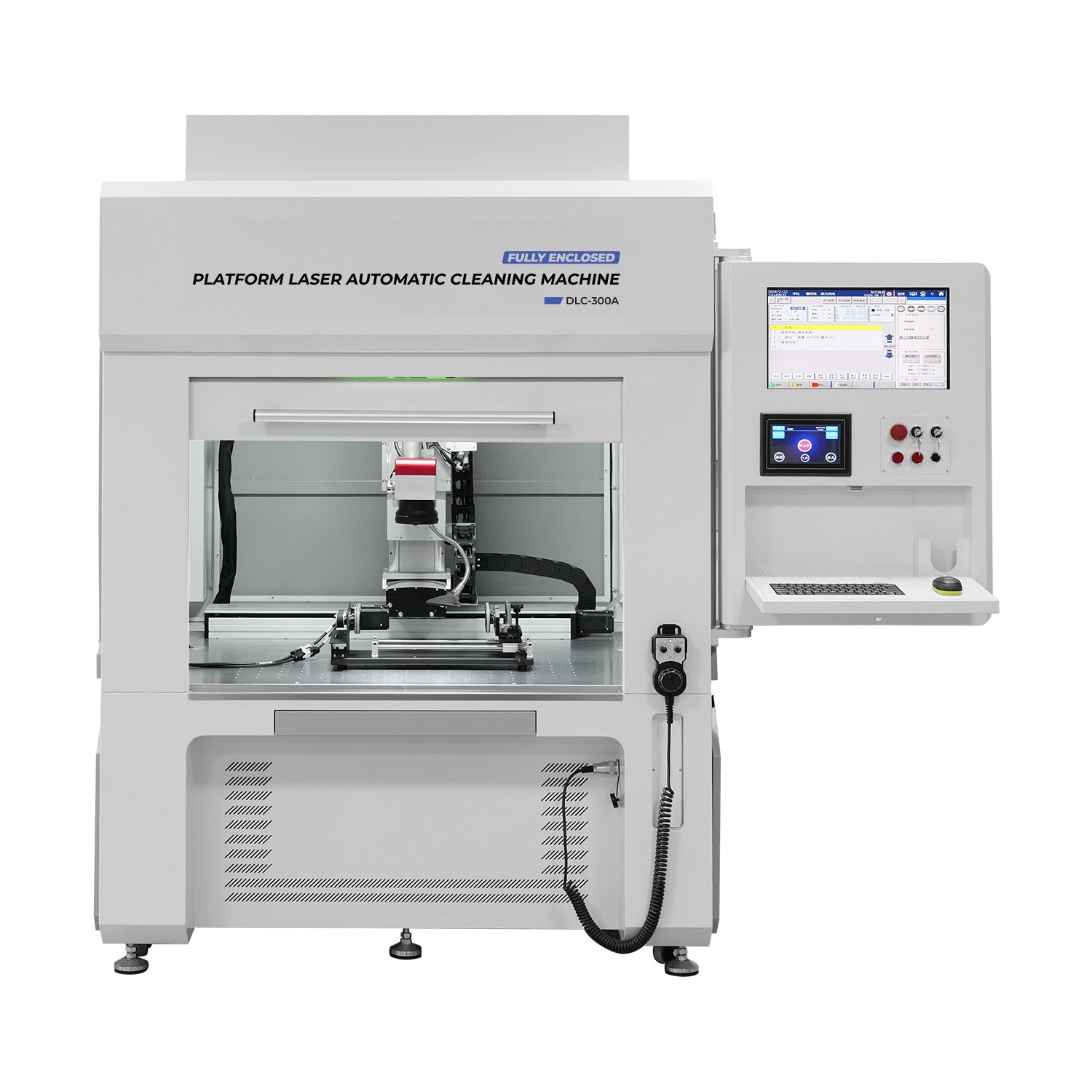

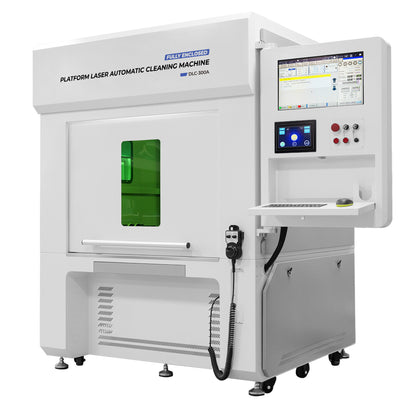

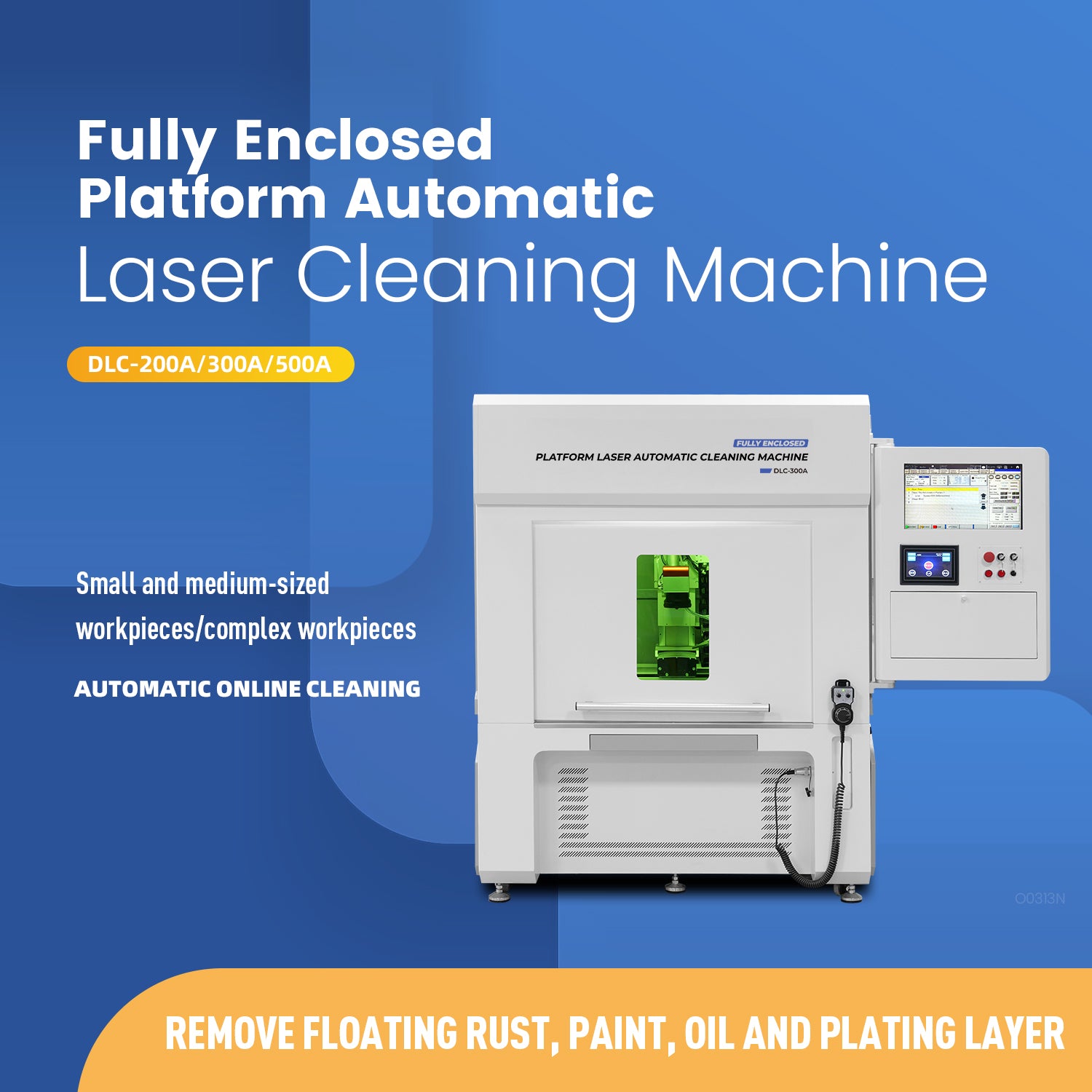

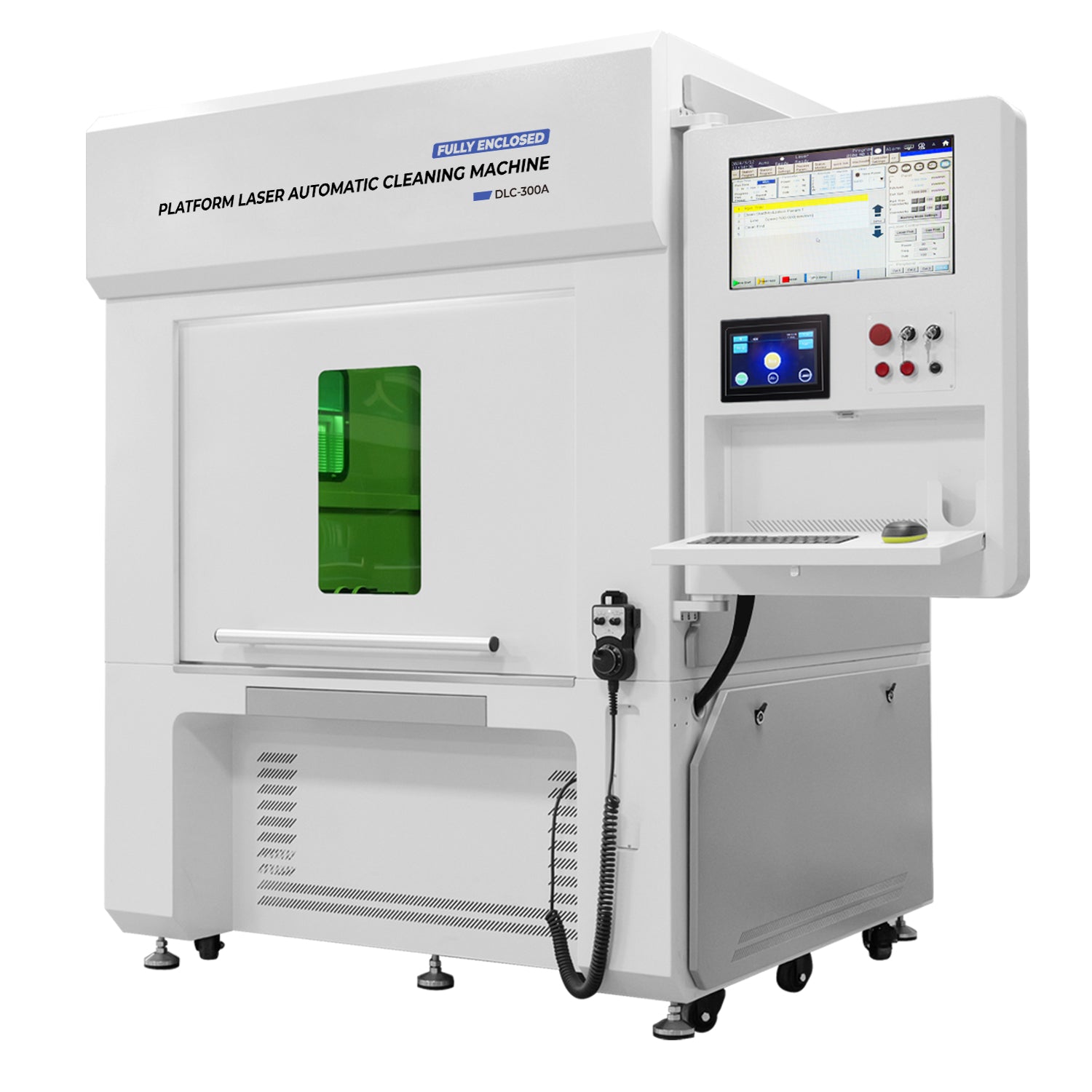

Automatic Fiber Laser Cleaning Machine 300/500W Fully Enclosed Platform 3/5 Axis Linkage Automatic Fiber Laser Cleaner

Robotic Automatic Laser Cleaning Machine 300/500W 3/5 Axis Linkage Automatic fiber laser cleaner for Industrial Use laser paint/rust/oil/coating removal tool.

Advantages:

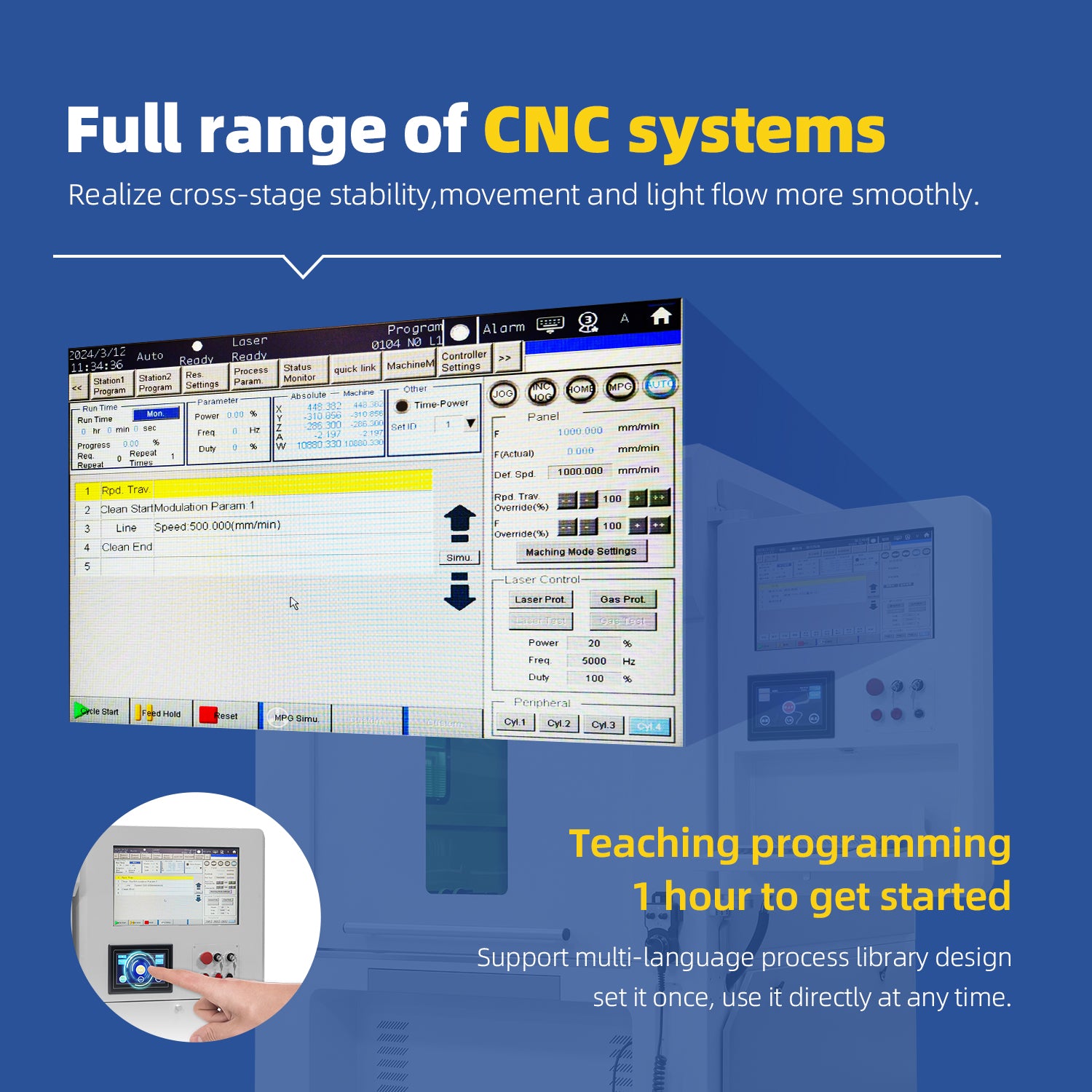

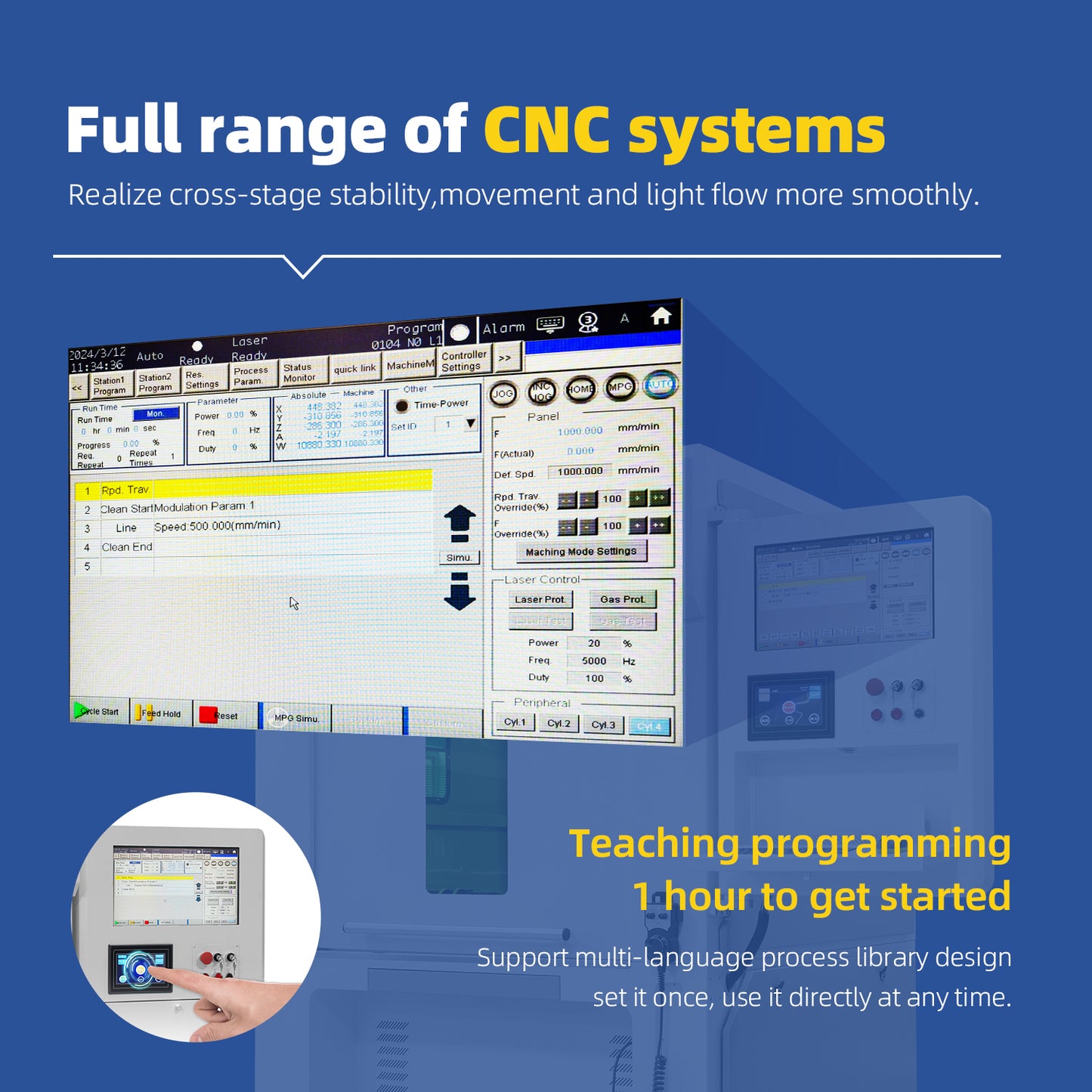

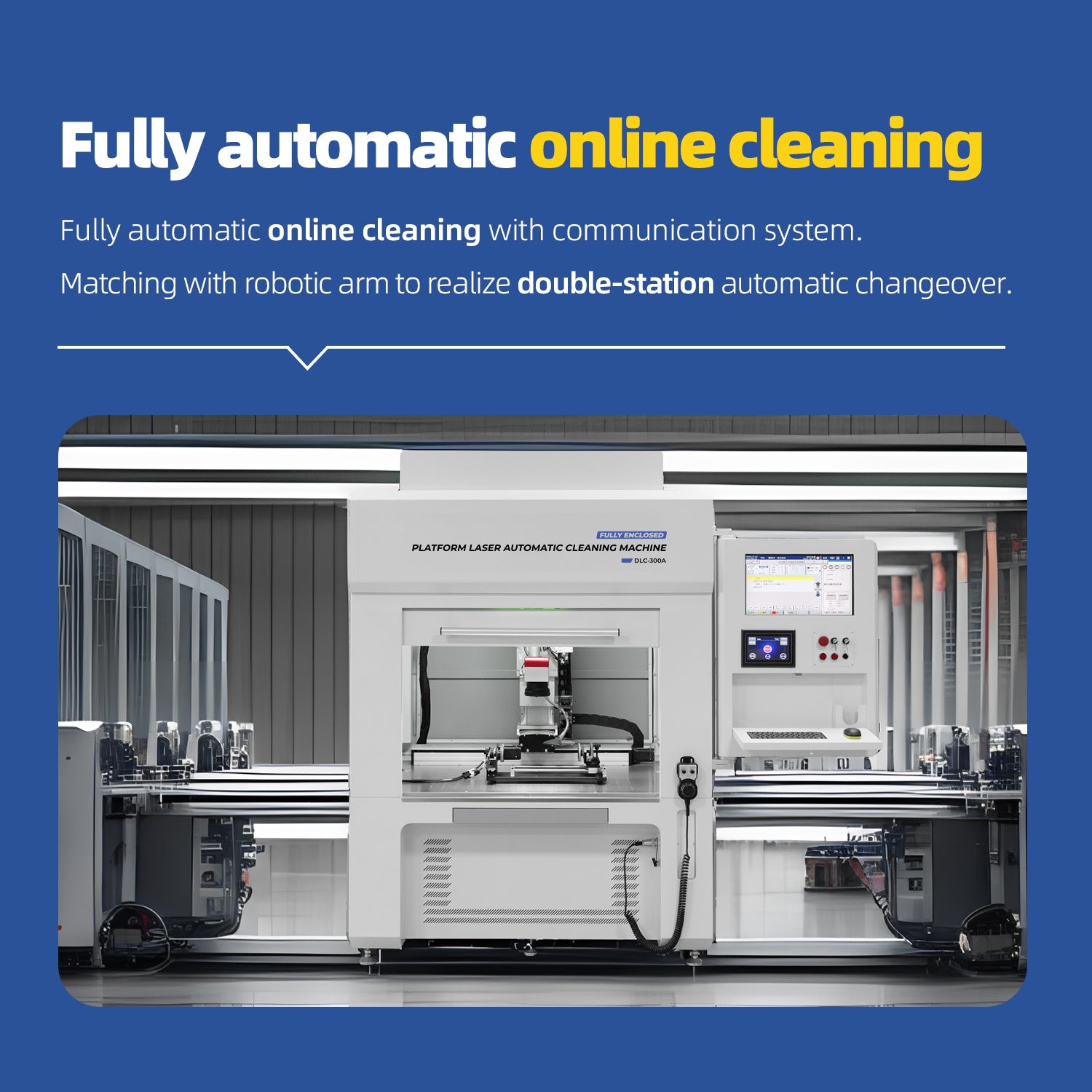

• Featuring a state-of-the-art fully automatic online cleaning system, this machine comes with a robotic arm and communication system, enabling seamless double-station automatic changeover. Say goodbye to interruptions during cleaning processes with this innovative design that ensures continuous and hassle-free operations.

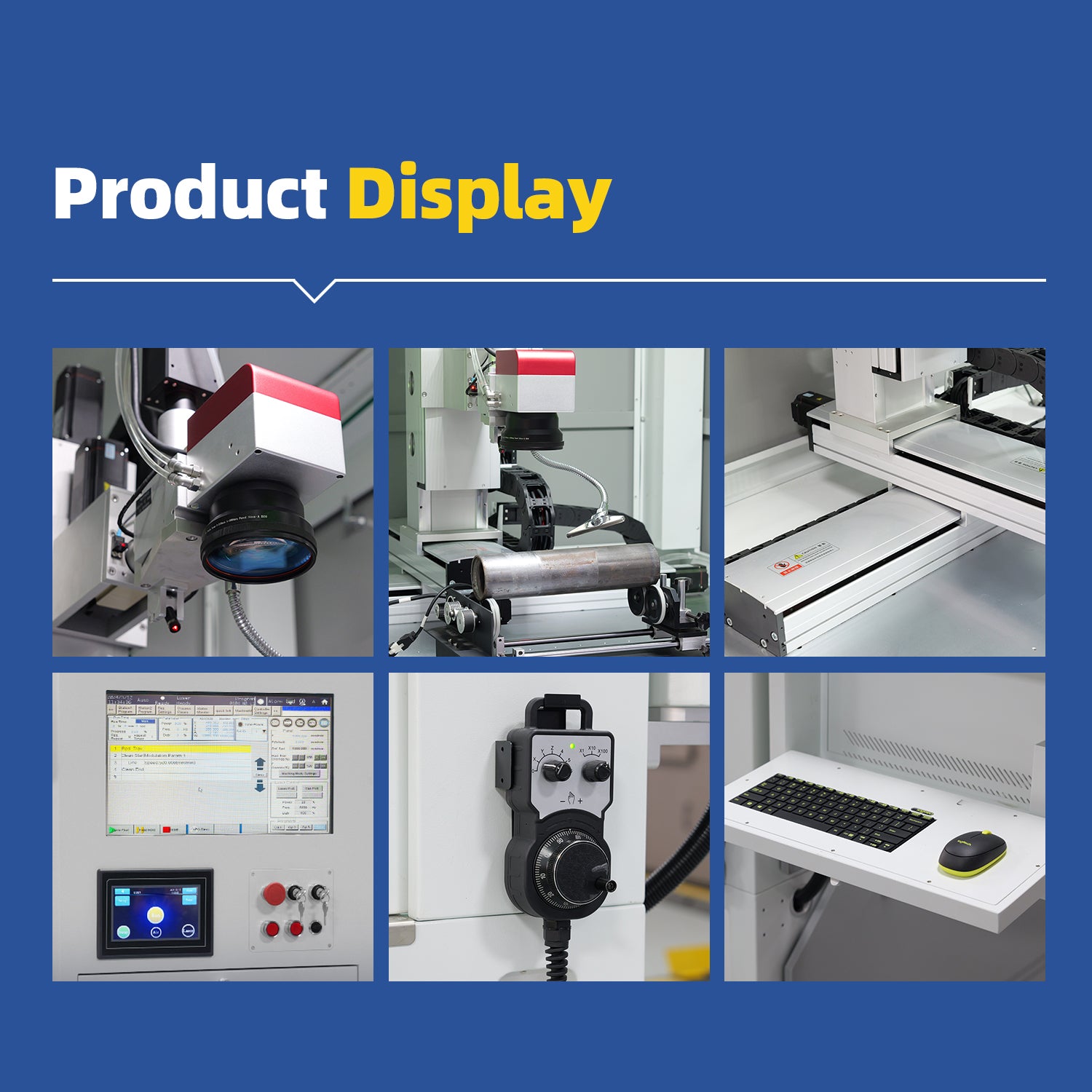

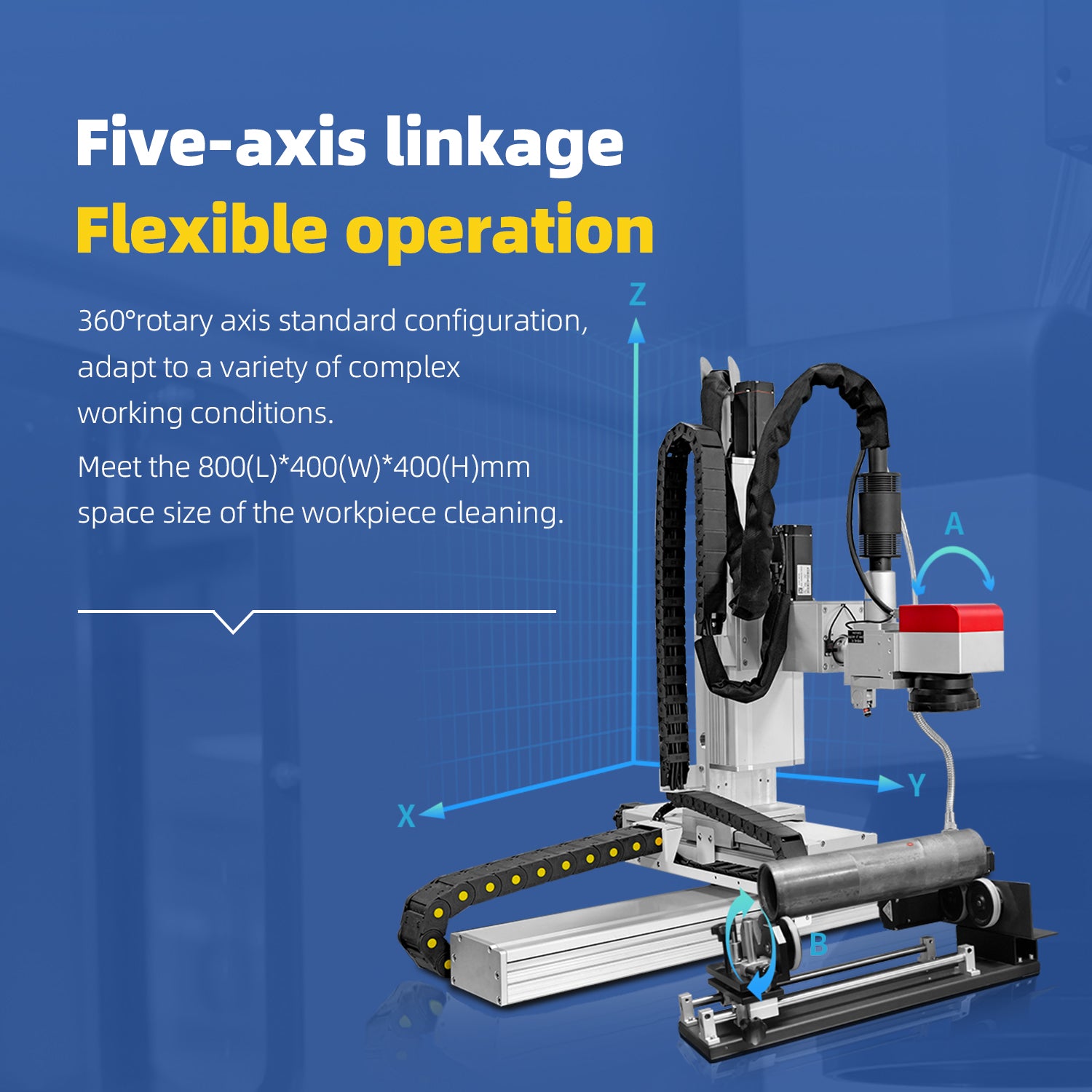

• Equipped with a 360° rotary axis as standard, our platform automatic cleaning machine offers unparalleled flexibility for various complex working conditions. It can handle workpieces up to 800(L)*400(W)*400(H)mm, opening up a wide range of cleaning possibilities.

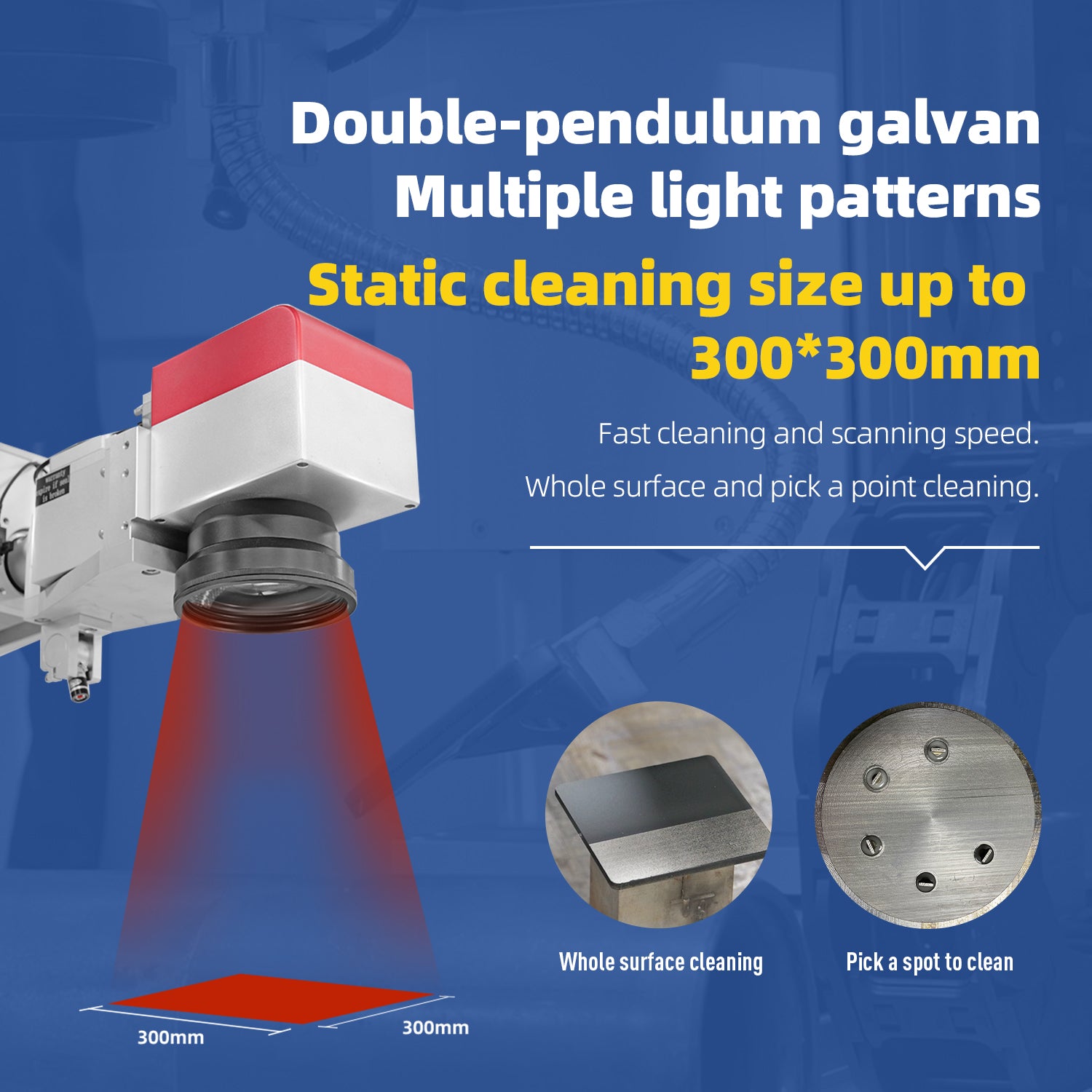

• Achieve flawless surface finishes with precise spot cleaning capabilities. Utilizing our unique double-pendulum galvan multiple light patterns static cleaning technology, it enables both full-surface cleaning and accurate positioning.

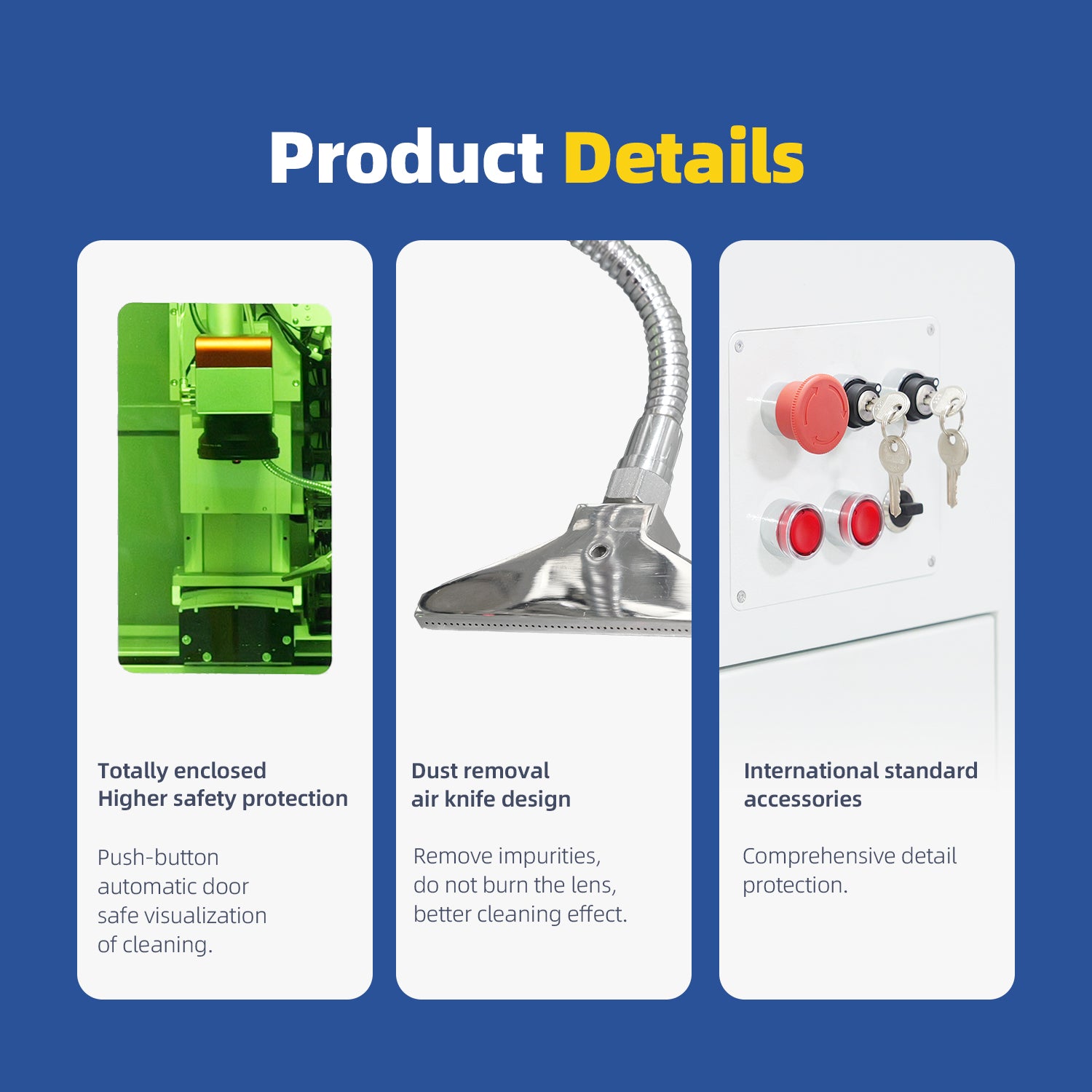

• Enclosed fully automatic design enhances safety, efficiency, and consistency, making it the ultimate solution for industrial cleaning needs.
• Customized solutions available: We can tailor the machine according to your specific requirements, including power, working space, scanning area, and other functional options.

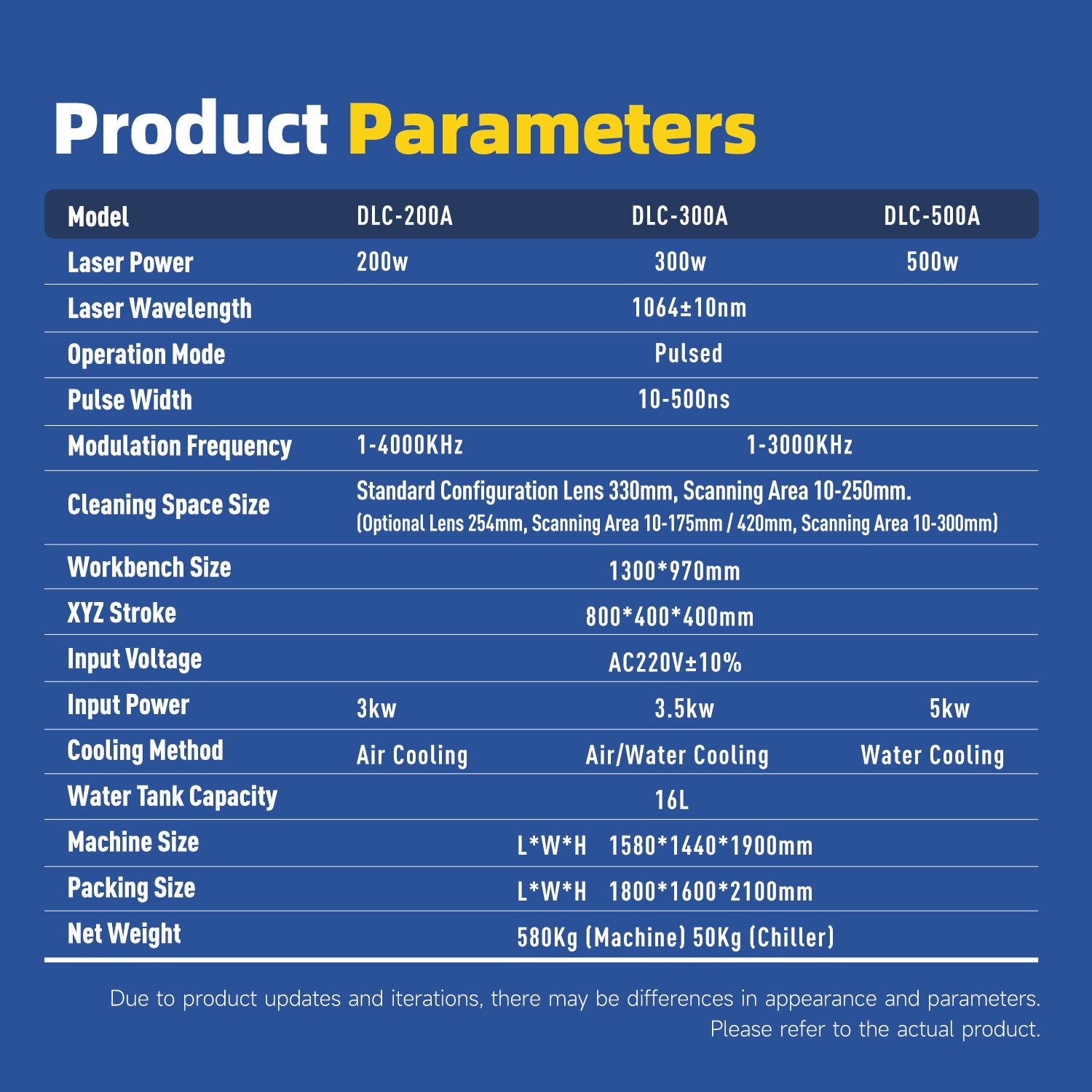

Parameters:

Model: DLC-300A/DLC-500A

Laser Power: 300W/500W

Laser Wavelength:1064±10nm

Operation Mode: Pulsed

Pulse Width: 10-500ns

Modulation Frequency: 1-3000khz

Lens & Scanning Area: Standard lens 330mm with 10–250mm scanning area; optional lenses include 254mm (10–175mm) and 420mm (10–300mm).

XYZ Stroke: 800*400*400mm

Input Voltage: AC220v±10%

Input Power: 3.5KW/5KW

Cooling Method: Air/Water Cooling for 300W, Water Cooling for 500W

Water Tank Capacity: 16L

Machine Seize: L*W*H 1580*1440*1990mm

Packing Size: L*W*H 1800*1600*2100mm

Net Weight: 580kg(Machine), 50kg(Chiller)

Warranty and Service:

(1) One year warranty for the whole SFX Laser Cleaning Machine and two years warranty for the laser source. During the warranty period, if the spare part is sent back for repair, we will pay for the returning shipping cost and fees, repair them for free including the new parts that needed.

(2) Professional technical support. English user manual, operation video sending together with the SFX laser rust removal machine.

(3) Remote technical assistance is also available.

(4) We provide lifelong after-sales service and technical support.

(5) US after-sales service center.

Delivery:

Production time: approximately 15–20 days.

Shipping time: 20–30 days to your door via sea and truck.
