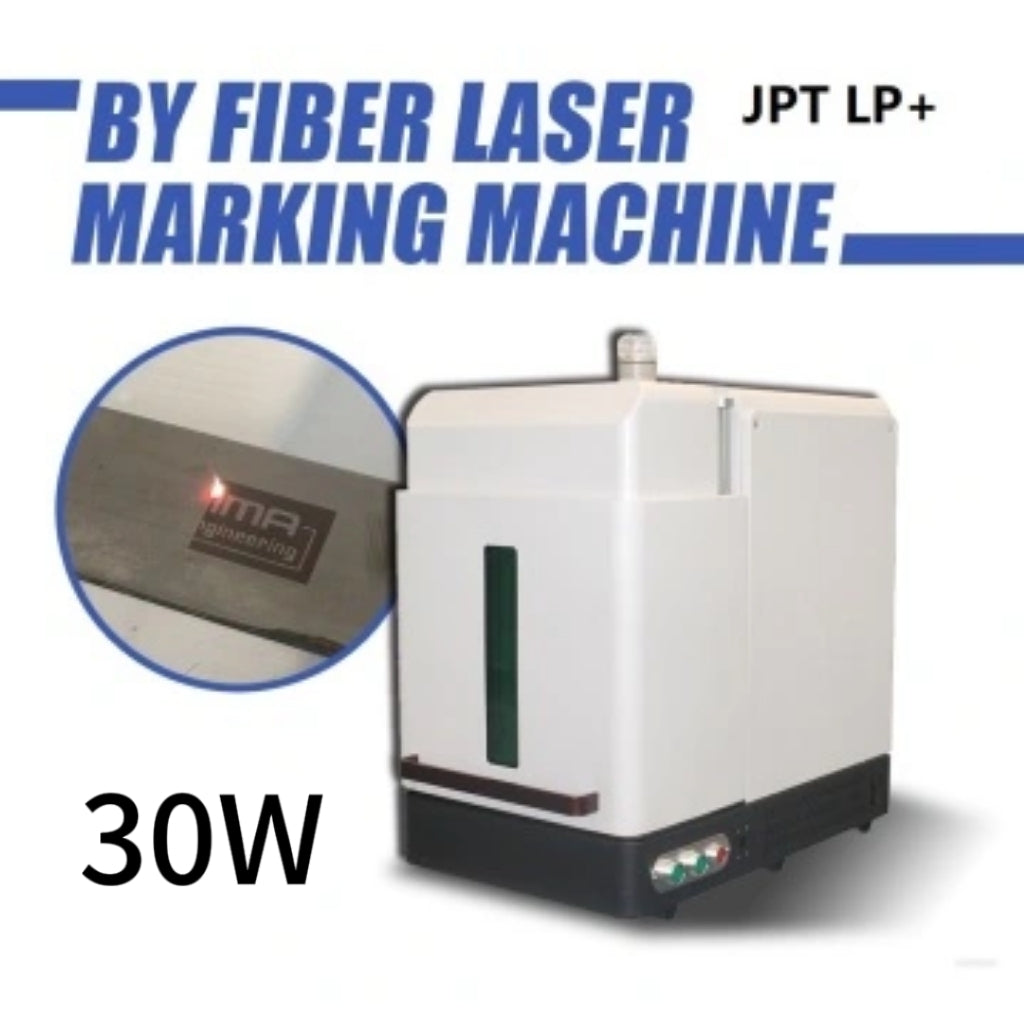

30W SFX Fiber Laser Enclosed Mopa Fiber Laser Marking Machine Fiber Laser Engraver Laser Marker with Rotary Axis

30W SFX Fiber Laser Enclosed Mopa Fiber Laser Marking Machine Fiber Laser Engraver Laser Marker with Rotary Axis

SFX Laser

Regular price $5,799.00 USD
Regular price Sale price $5,799.00 USD
Sale Sold out

Free Shipping!

Model
Rotary Axis
Quantity

Advantages:

 1. Totally-closed type with observation window; Safe and easy operation

 2. Color marking on stainless steel

 3. Anodized alumina blacked

 4. Strip the anode from the surface of the thin aluminium oxide plate

 5. Electronic, semiconductor, ITO precision processing applications.

Warranty:

2 Years, remote assistance, customer and technical support. English user manual and demo video offered by USB flash disk along with the machine.

Shipping:

The machine will be shipped within 10 days after received your full payment by sea transportation.

Technical Parameter:

Laser Power: 30W JPT MOPA M7

Repetition Rate Frequency: 1-600 KHZ

Pulse Duration: 2-350 ns

Control board: BJ JCZ board(Original)

Soft Program: EZCAD2 (Compatible with Windows XP/Vista/7/8/10)

Output power adjustment range: 10%-100%

Laser Wavelength: 1064 nm

Marking Speed:≤7000 mm/s(275.6 in/s)

Engraving Depth: ≤0.4mm(0.0157in)

Min. Line Width: 0.01 mm(0.0004 in) Depends on the material

Min.Character: 0.2 mm(0.008 in) Depends on the material

Electrical Requirements: 110V-240V/50Hz-60Hz

Applicable material:

Aluminum,Stainless Steel, Brass, Copper etc. Also some of nonmetal such as nylon ,light button, ABS, PVC, PES etc.

Applicable Industry:

Hardware industry,wrenches,measuring tools, jewelry, sanitary ware,stainless steel ,luggage gifts, table bottom, glasses frames.
