SFX Air-Cooled Pulse Laser Cleaning Machine 300W 500W Laser Cleaner Rust Paint Varnish Coating Removal for Metal Wood and Stone

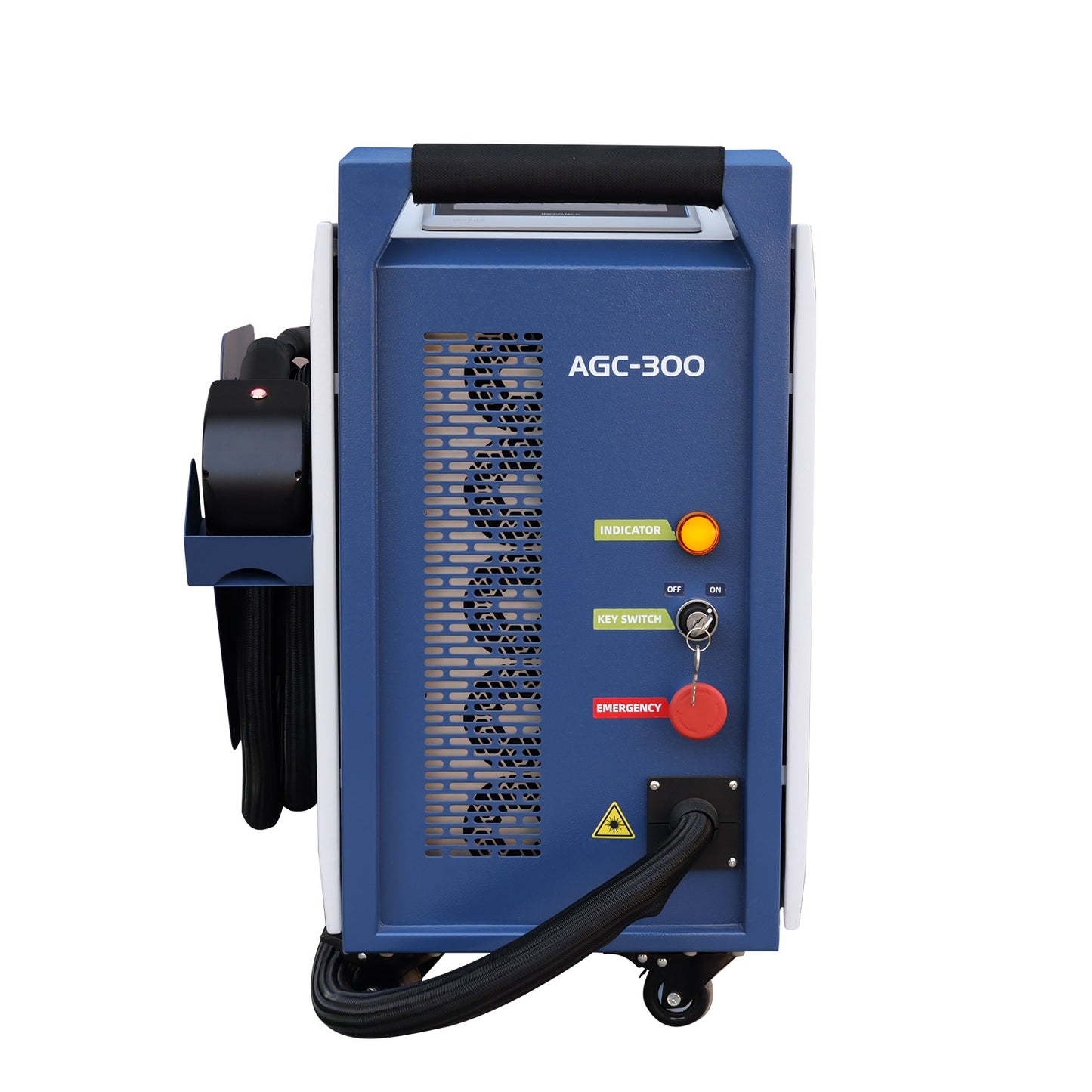

SFX Laser 300W/500W Pulse Laser Cleaning Machine

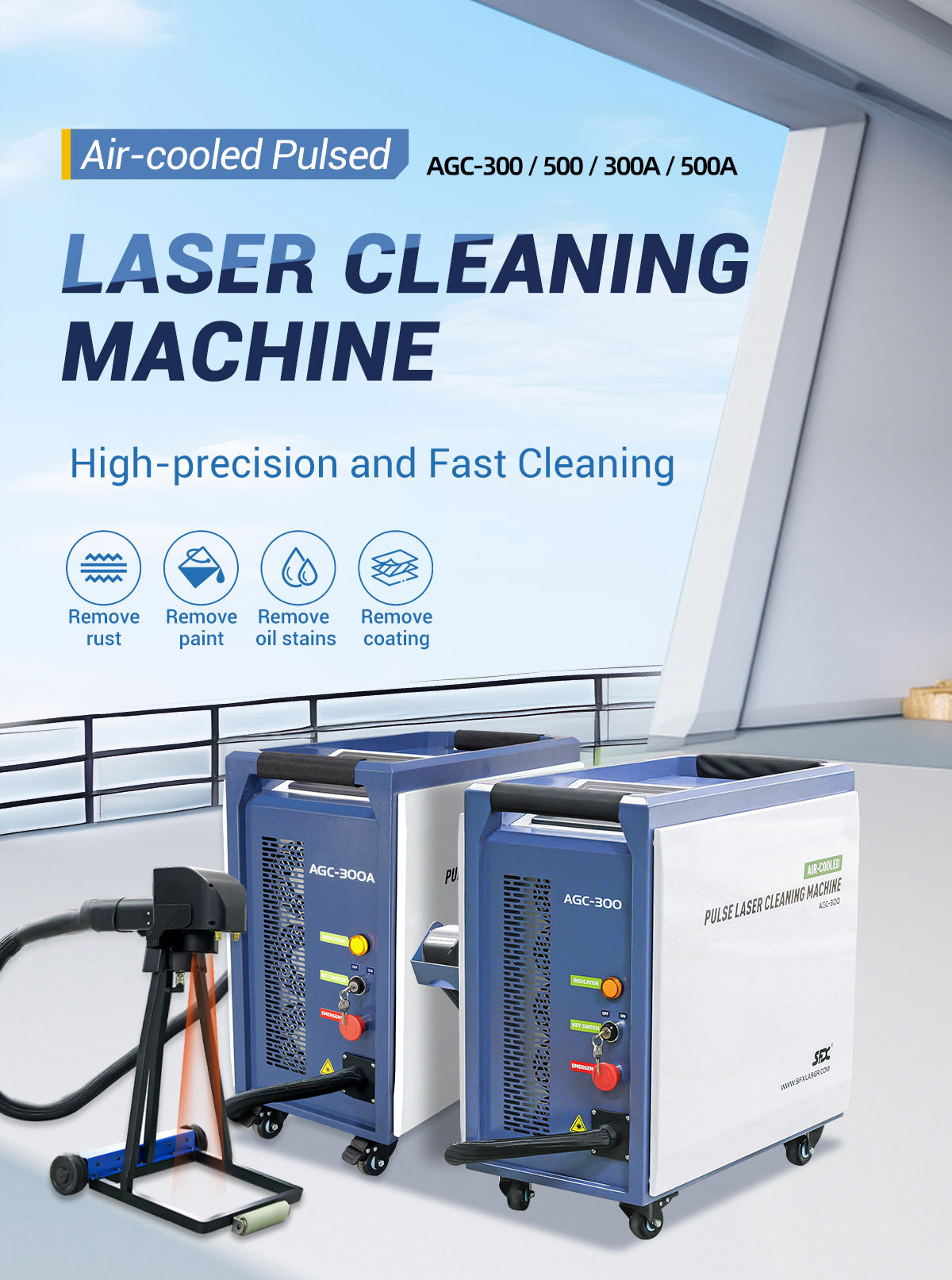

The AGC-300 and AGC-500 Air-Cooled Pulse Laser Cleaning Machine is the perfect solution for high-precision, non-contact cleaning across various industrial applications. Utilizing powerful 300W or 500W pulse laser technology, this innovative cleaner effectively removes rust, paint, coatings, and oil stains without damaging the underlying material. Environmentally friendly and free of chemicals, water, and consumables, this laser cleaning machine ensures sustainable cleaning with zero secondary pollution.

This handheld laser cleaner is designed for ease of use with its lightweight, energy-saving, and maintenance-free air-cooled structure. Weighing only 67kg, it’s one-third the size of conventional 500W models, making it highly portable and ideal for demanding environments. The machine’s customizable and preset cleaning modes allow operators to easily adapt to different tasks, including rust, oil, and paint removal on metal and wood surfaces. With its double-wobble cleaning head and a scanning width of up to 190mm, it efficiently handles even the most stubborn cleaning challenges.

Built for versatility, the AGC series operates reliably in a range of industrial applications such as shipbuilding, automotive repair, rail transportation, and heavy machinery maintenance. The wide voltage range (AC110-220V) and ability to run continuously for up to 8 hours in temperatures up to 40°C make this laser cleaning machine a durable and practical choice for professionals.

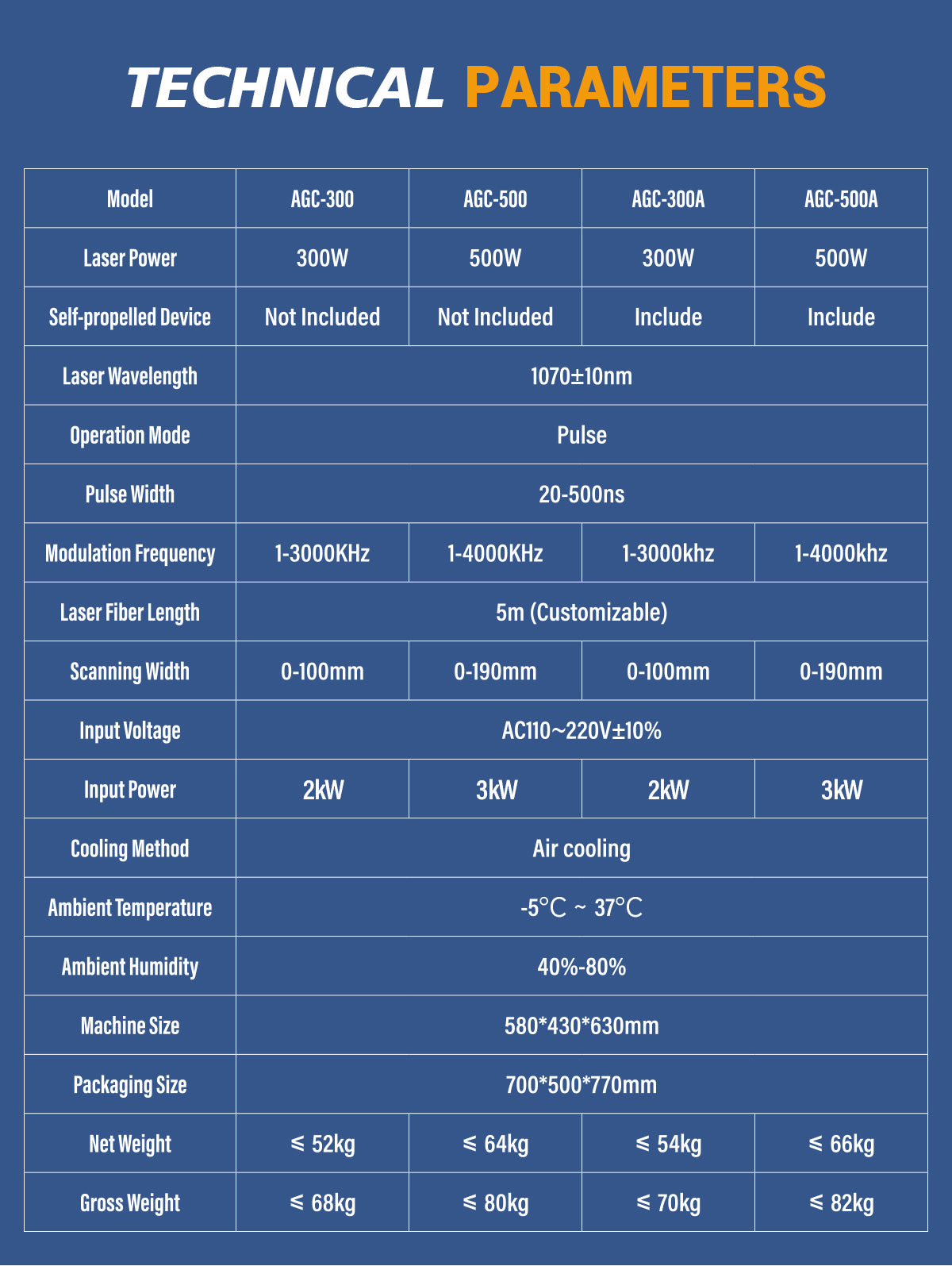

Parameters:

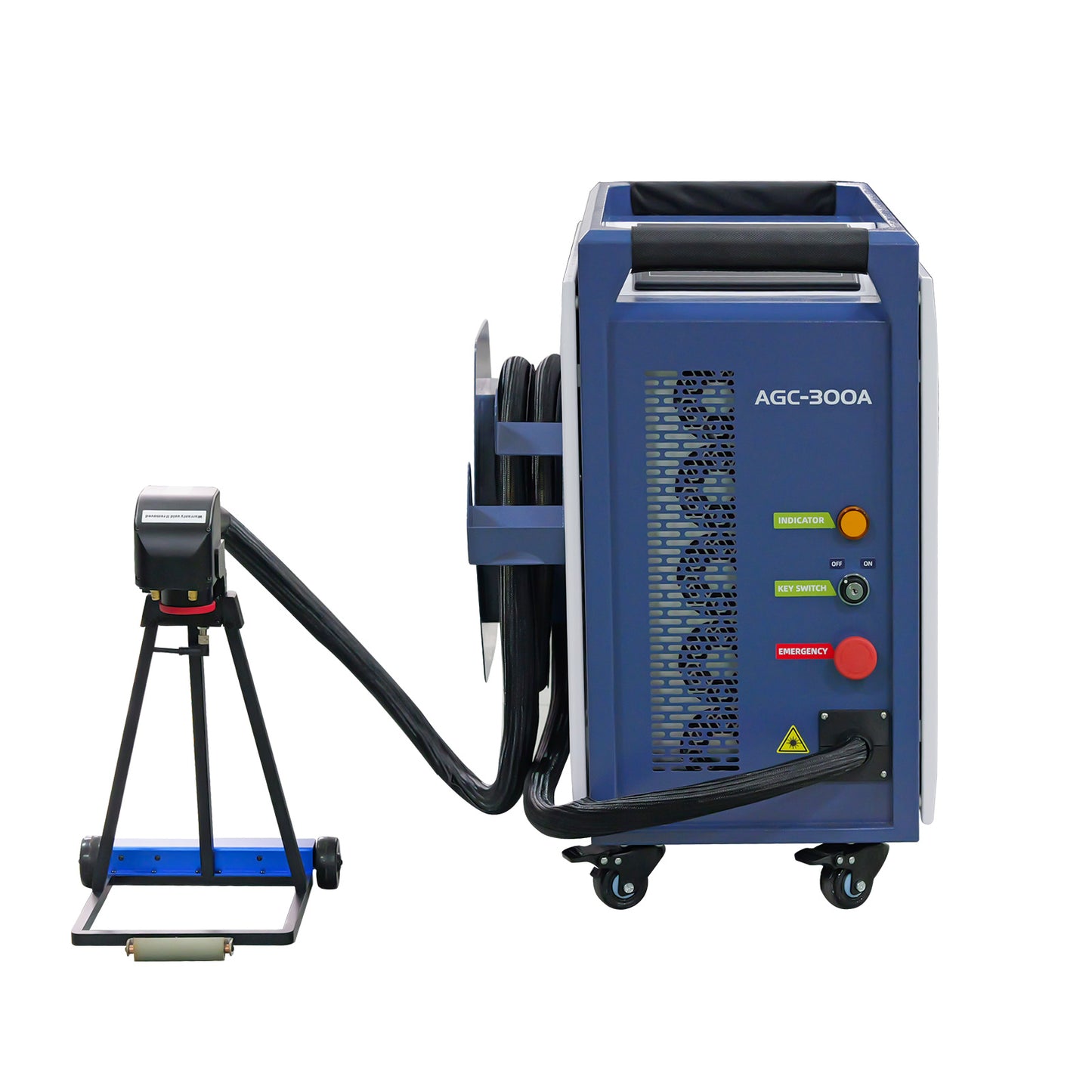

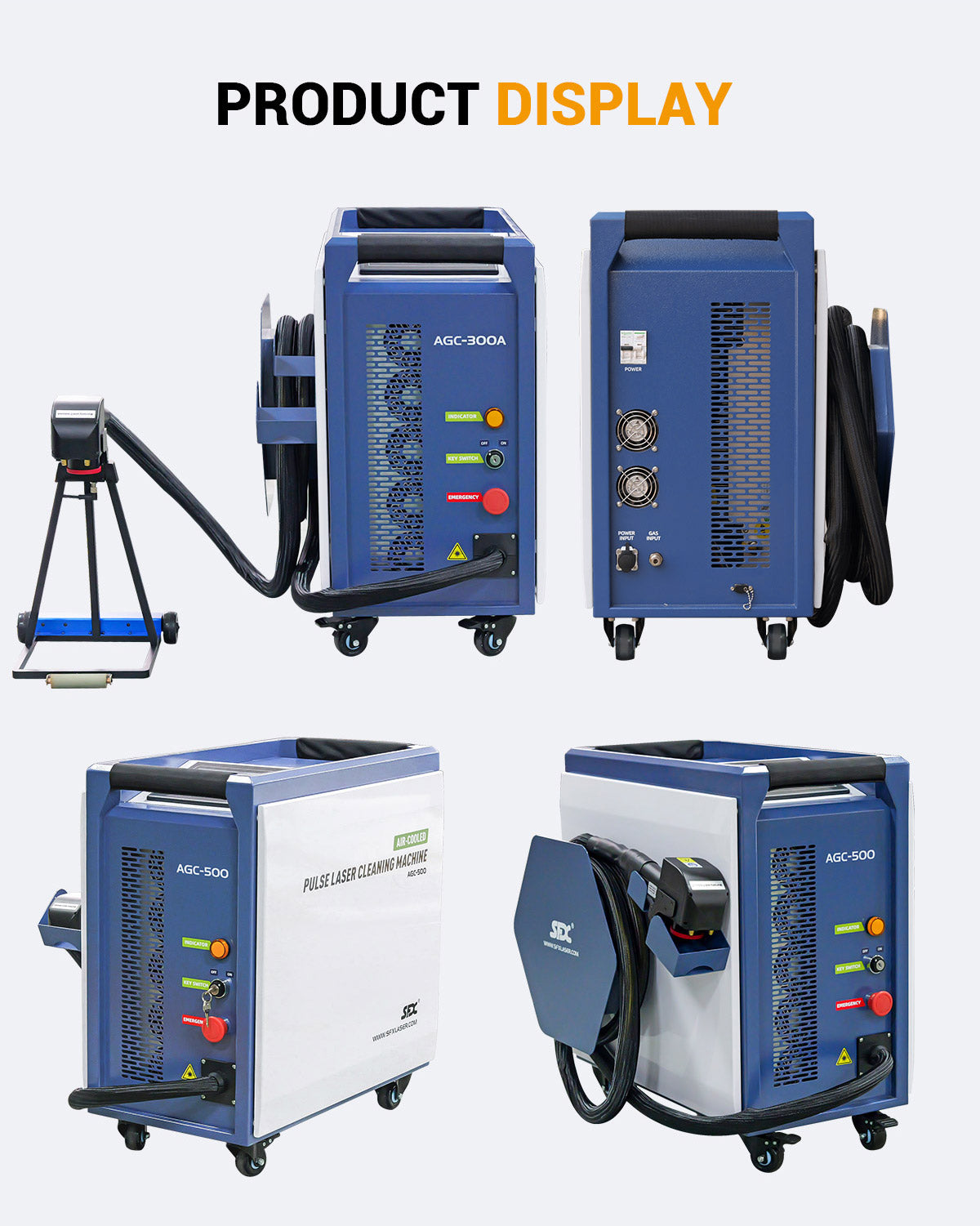

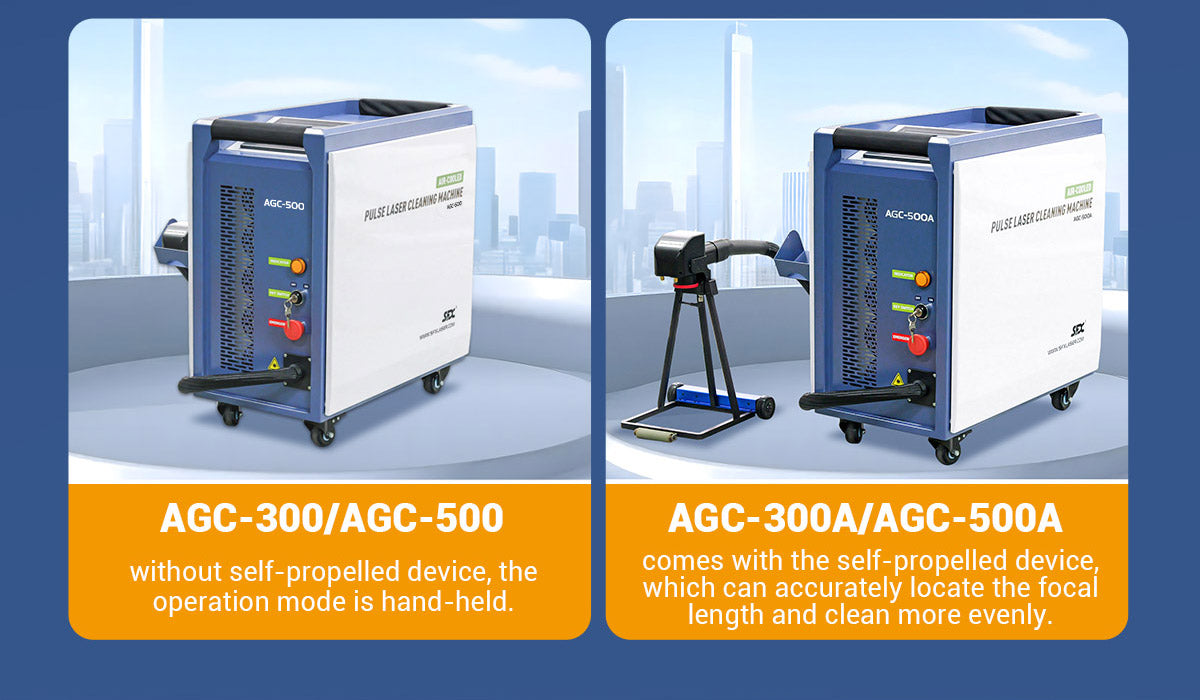

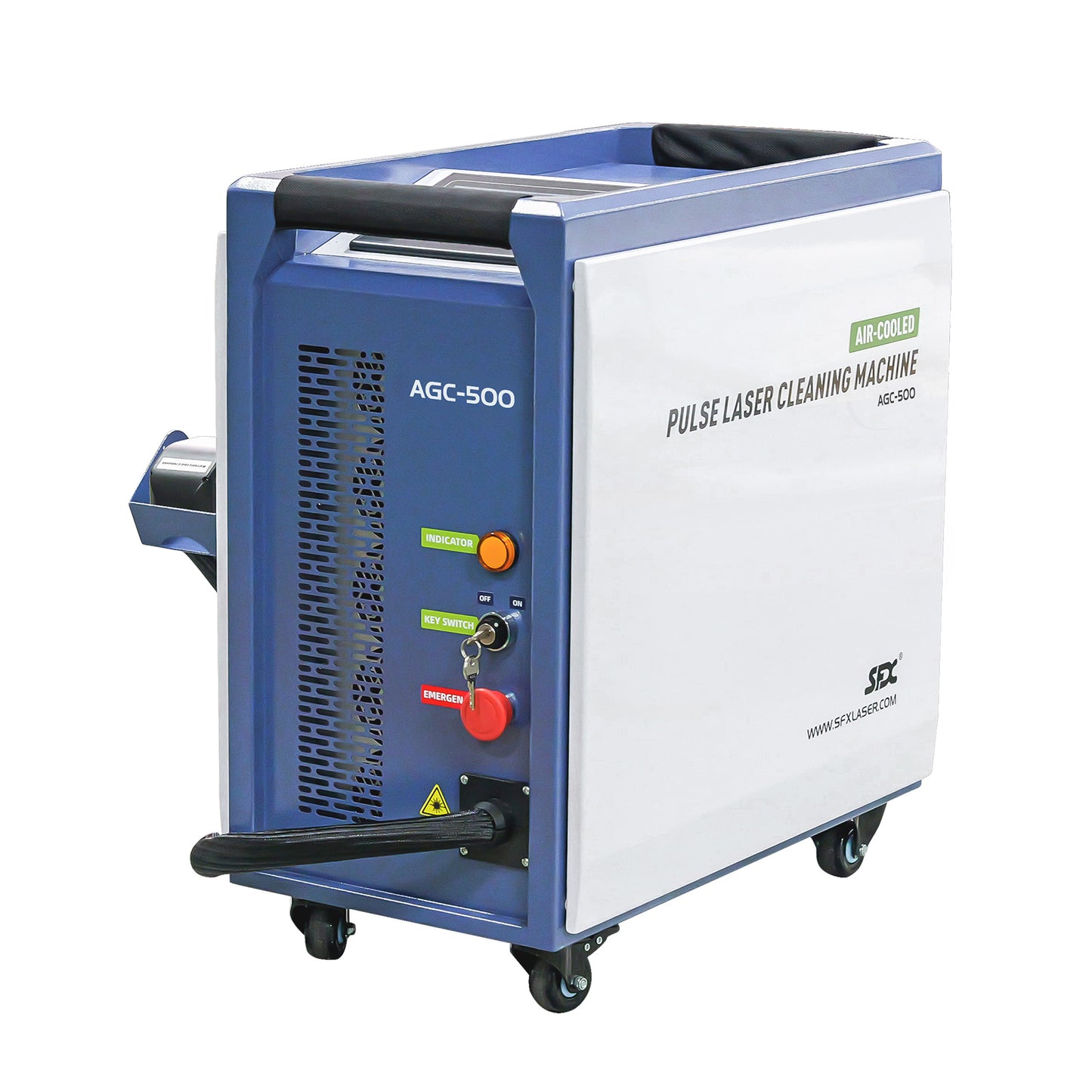

Model: AGC-300/ AGC-300A/AGC-500/AGC-500A

Laser Power: 300W/500W

Laser Wavelength: 1070±10nm

Operation Mode: Pulse

Pulse Width: 20-500ns

Modulation Frequency: 1-3000KHz for AGC-300A Laser Rust Removal and AGC-300 1-4000KHz for AGC-500 and AGC-500A Laser Rust Removal

Laser Fiber Length: 5m (Customizable)

Scanning Width: 0-100mm for AGC-300A and AGC-300,0-190mm for AGC-500 and AGC-500A

Input Voltage: AC110~220V±10%

Input Power: 2KW for AGC-300A and AGC-300, 3KW for AGC-500 and AGC-500A

Cooling Method: Air cooling

Ambient Temperature: 0℃~35℃

Ambient Humidity: 40%-80%

Machine Size: 580*430*630mm

Packaging Size: 700*500*770mm

Net Weight:52kg for AGC-300,54kg for AGC-300A,64KG for AGC-500,66KG for AGC-500A

Gross Weight:68kg for AGC-300,70kg for AGC-300A,80kg for AGC-500,80KG for AGC-500A

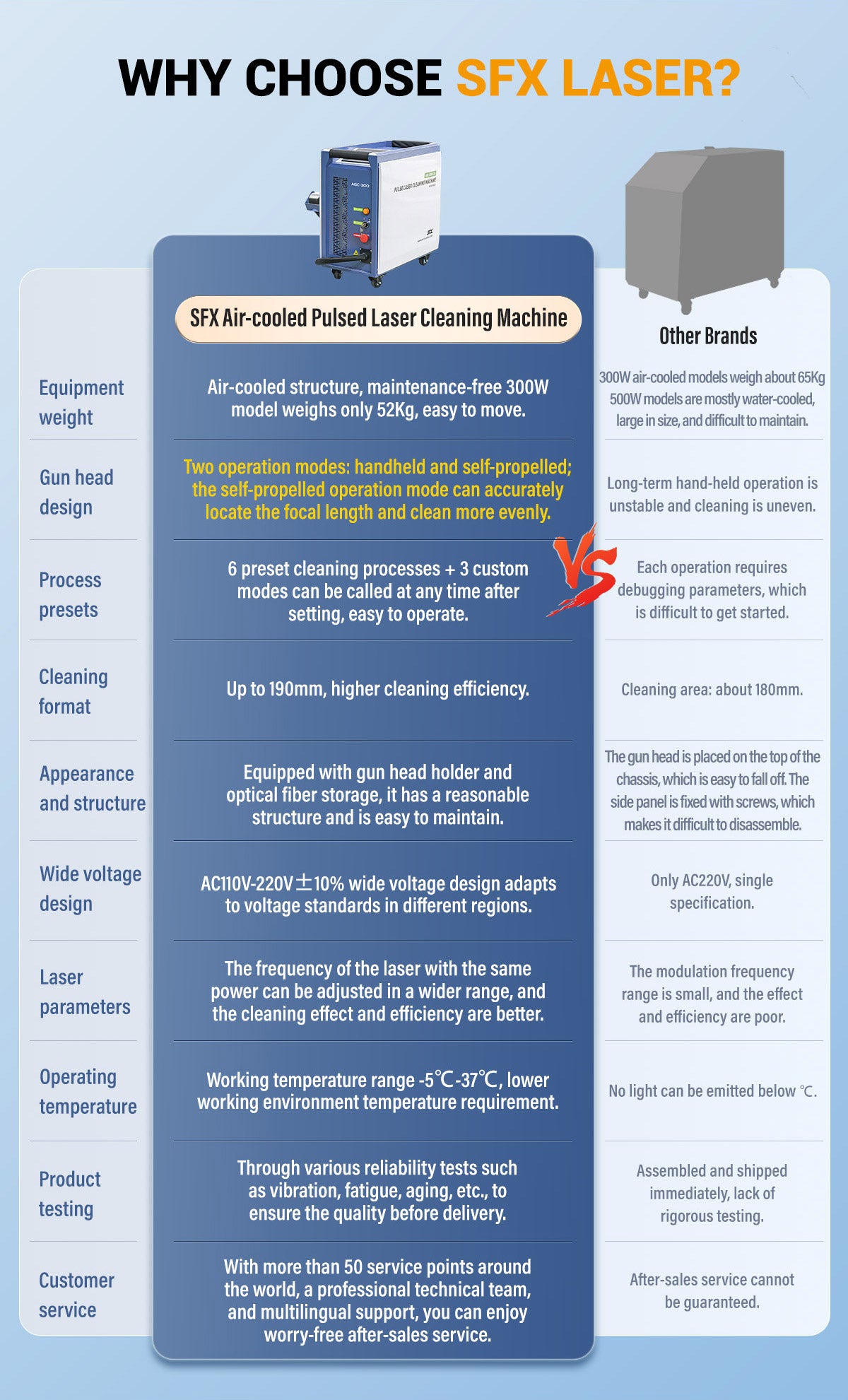

Advantages:

Advanced Pulse Laser Cleaning Technology

Equipped with powerful 300W and 500W pulse lasers cleaner, this machine ensures efficient removal of rust, paint, coatings, and oil stains from various surfaces, including metal and wood, without causing any damage to the base material.

Non-Contact, Precision Cleaning

The non-contact cleaning method eliminates the risk of surface damage while providing high-precision results. This makes the air cooled laser cleaning machine ideal for delicate surfaces that require gentle yet thorough cleaning.

Environmentally Friendly Solution

No need for chemical reagents, water, or consumables. This laser cleaner ensures a green, environmentally friendly cleaning process, eliminating secondary pollution and significantly reducing operating costs.

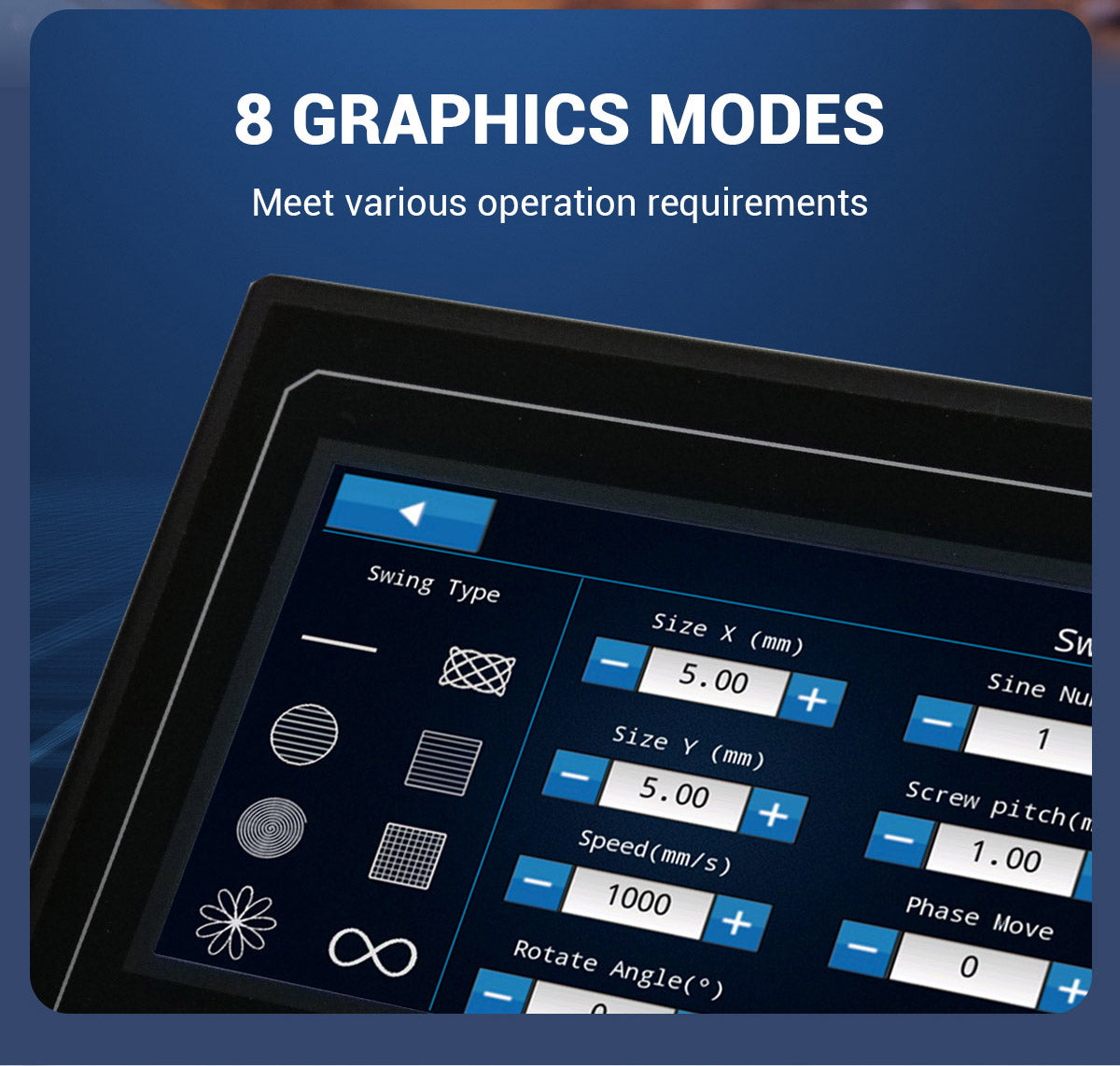

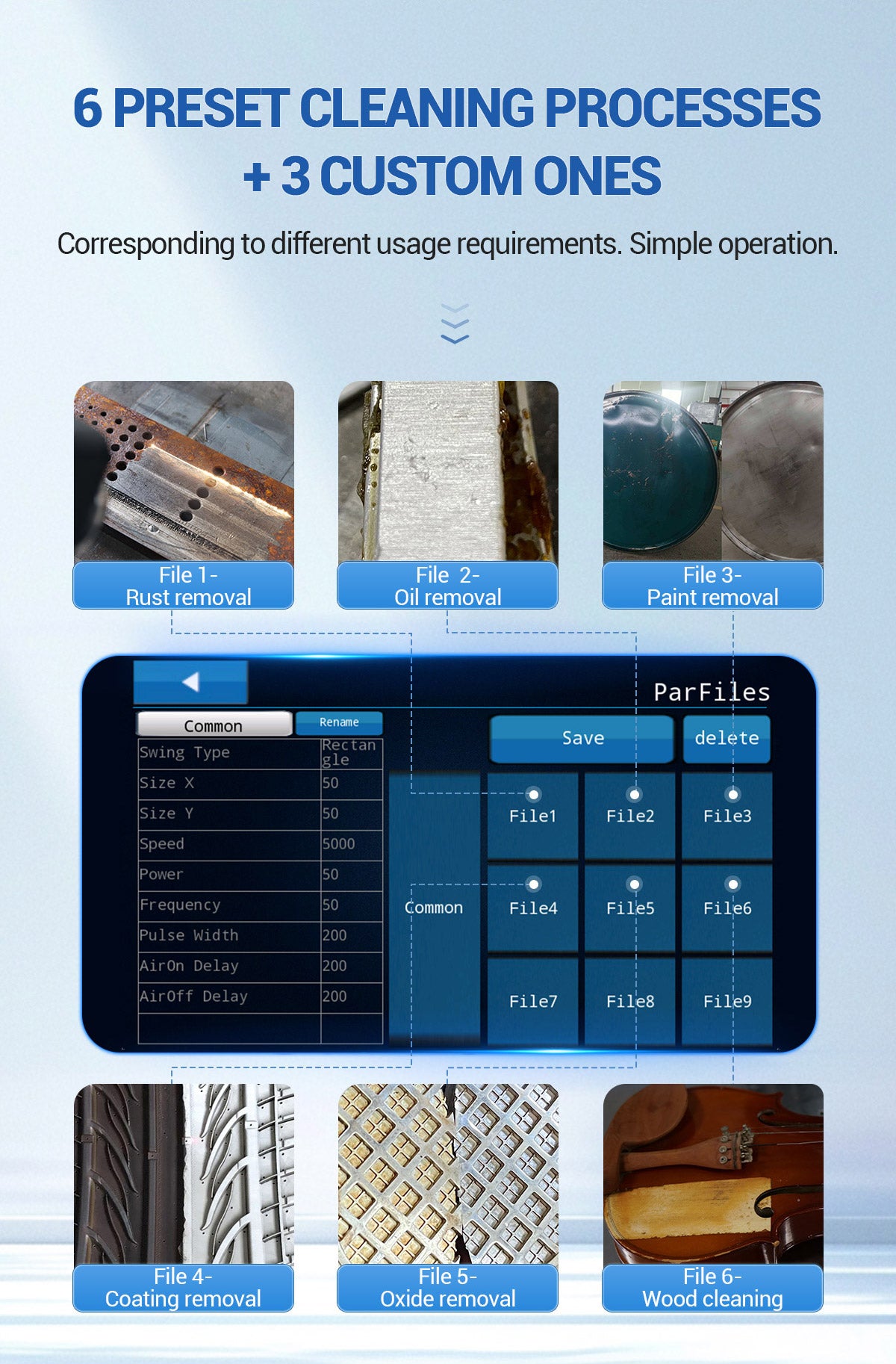

Customizable and Versatile Cleaning Modes

The laser rust removal machine comes with 6 preset cleaning modes and 3 customizable ones, making it easy to operate and significantly reducing training time.

Compact and Portable Design

With a volume of just 0.15m³ and a total weight of 67kg, this air-cooled laser cleaner is lightweight and highly portable, allowing easy movement and setup in a variety of work environments

Energy-Saving and Maintenance-Free

Thanks to its integrated air-cooled structure, the machine operates with minimal energy consumption and requires virtually no maintenance, saving time and resources in long-term use.

Double-Wobble Cleaning Head

The innovative double-wobble cleaning head offers a scanning width of up to 190mm, providing a broader cleaning area and increasing efficiency, especially in industrial applications requiring fast, wide-area cleaning.

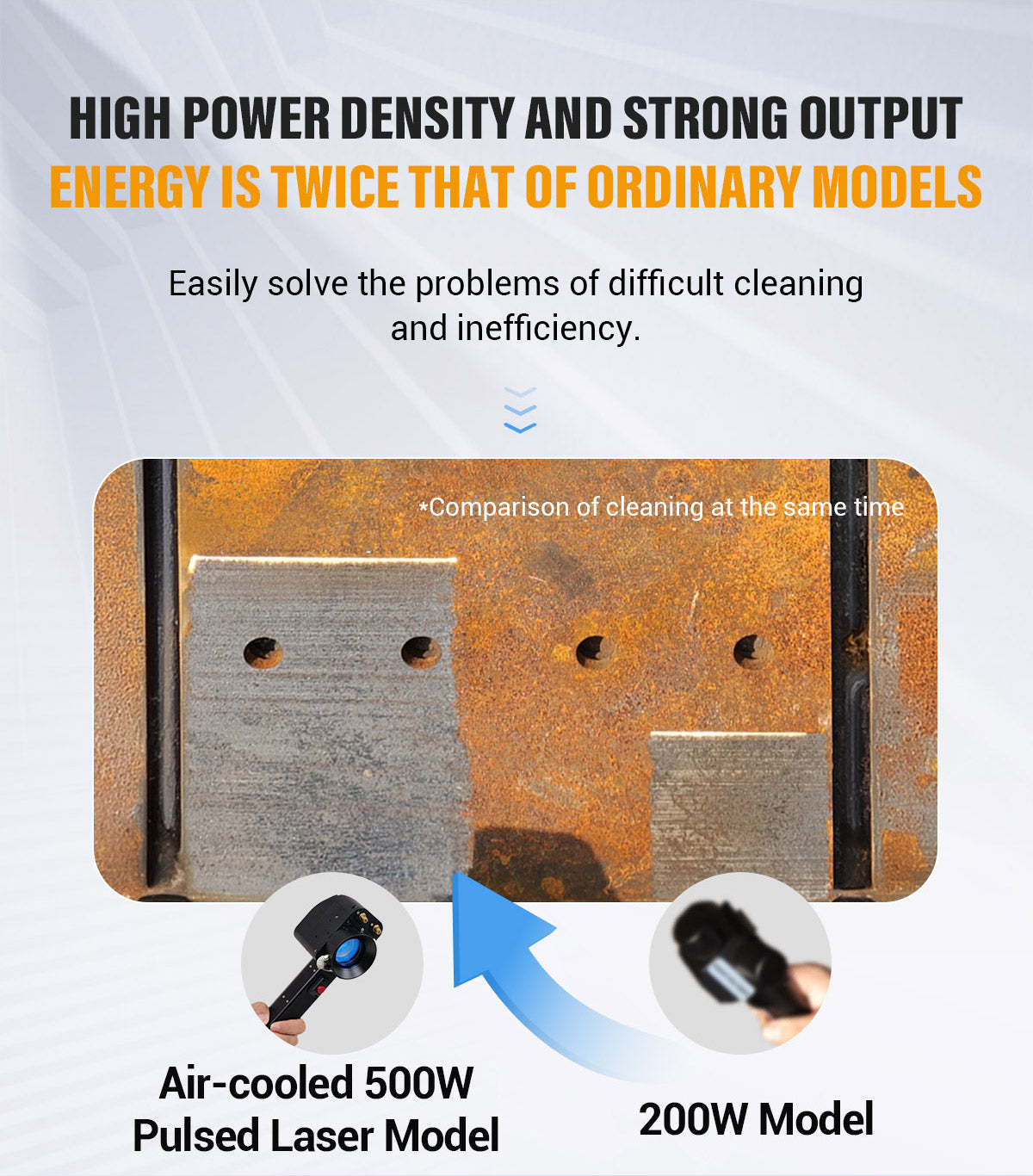

High Power Density and Strong Output Energy

With a power density twice that of standard models, this laser cleaner tackles even the most challenging cleaning tasks, such as heavily rusted surfaces or thick paint layers.

Durability and Reliable Performance

The laser paint removal is designed to work continuously for up to 8 hours, even in temperatures as high as 40°C, without power attenuation. This makes it an ideal solution for demanding industrial environments.

Wide Voltage Range for Various Power

Scenarios With an AC110-220V wide voltage design, the machine accommodates different power supply conditions, making it highly adaptable to diverse locations and operational needs.

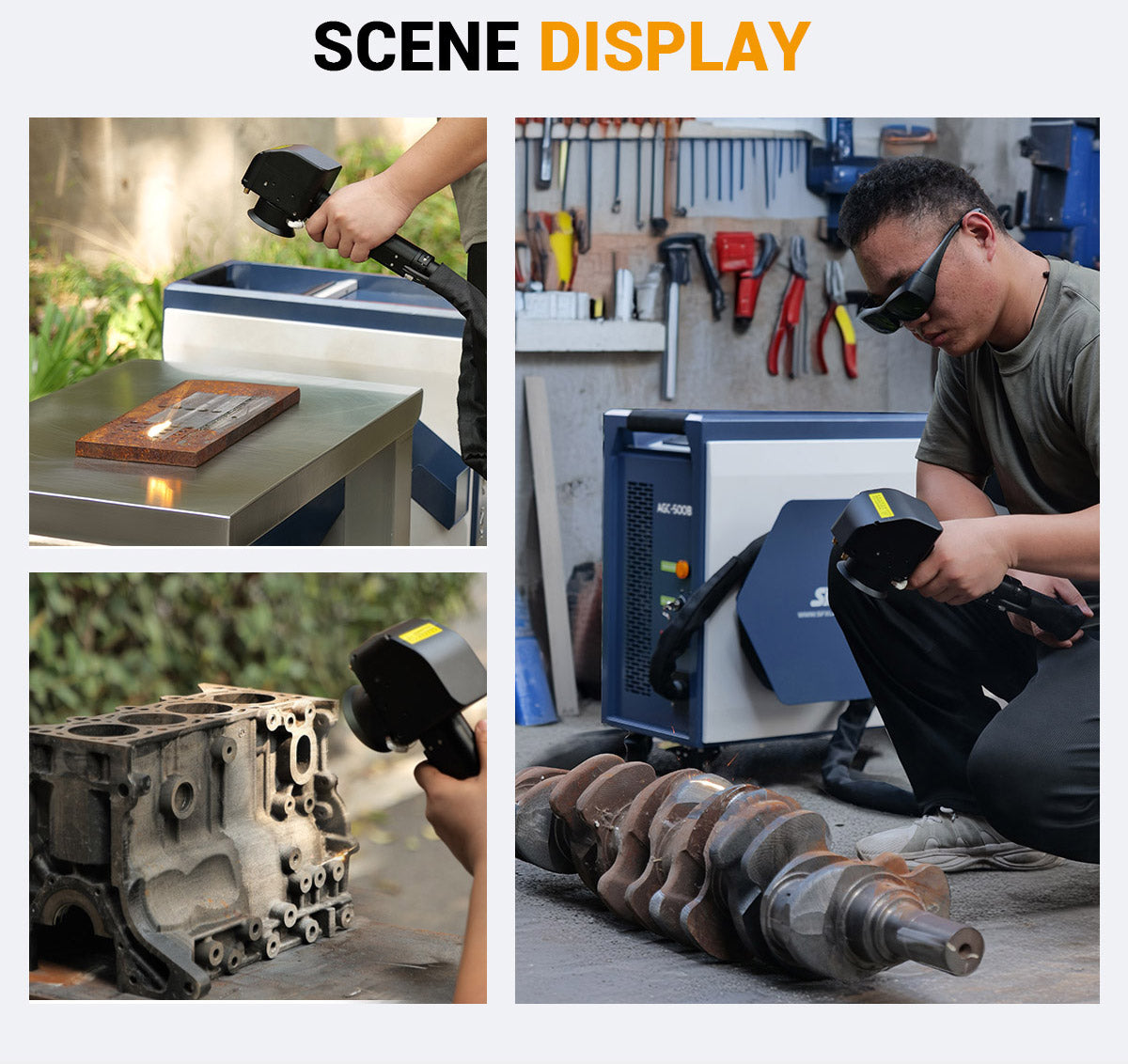

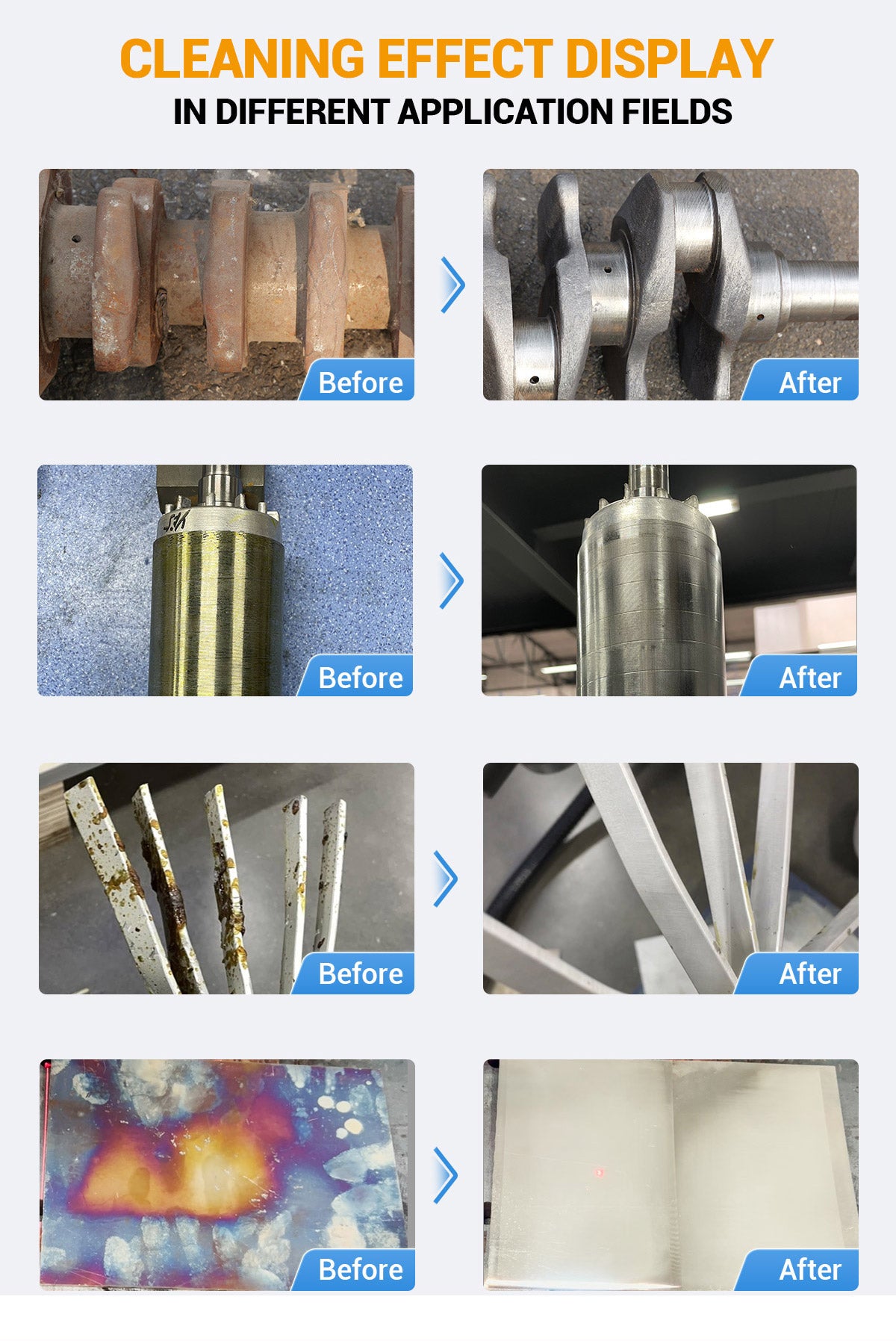

Applicable to Multiple Industries

The air cooled laser cleaner is widely used in industries such as shipbuilding, automotive repairs, rubber mold cleaning, rail transportation, and high-end machinery maintenance, providing versatile cleaning solutions for different sectors.
