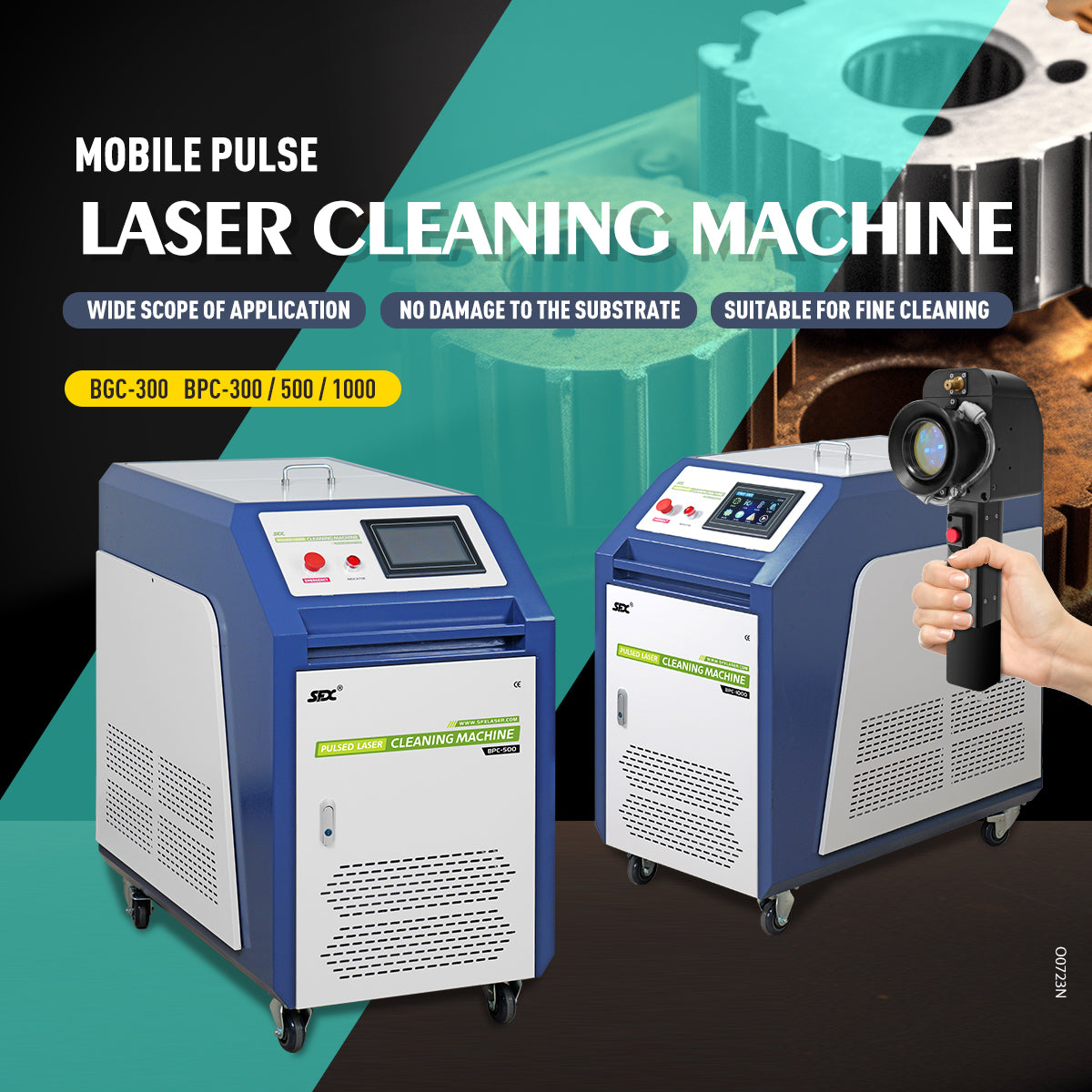

300/500/1000W SFX Laser Cleaner Machine Pulse Laser Cleaning Machine System for Wood Mold Coating

300W 500W 1000W SFX Laser Cleaner Machine Pulse Laser Cleaning System for Wood Mold Coating

How to choose Multi mode or Single Mode?

SFX Multi Pulse Laser Cleaning Machine is suitable for precision cleaning, such as light adhesion, easy to remove, light rust, dust, paint, coating, mold and so on.

SFX Single Pulse Laser Cleaning Machine is suitable for strong adhesion, difficult to remove, heavy rust, oxide layer, and applicable to thick paint, stone, wood, plastic and other substrate.

Application:

Remove rust, paint, Oxide, Stains, Grease, Soot, Graffiti, Dirt and can be used in mold, metal, wood, brick, wall, cement and other material.

Remove paint from wood and the wood will not be burn.

Parts pre-coating

Pre-welding treatment operations  (such as remove Zinc from Galvanized steel sheets prior to welding)

Remove welding seam

Remove rubber and other mold residues

Feature:

8 kinds of cleaning modes, applicable to complex scenes.

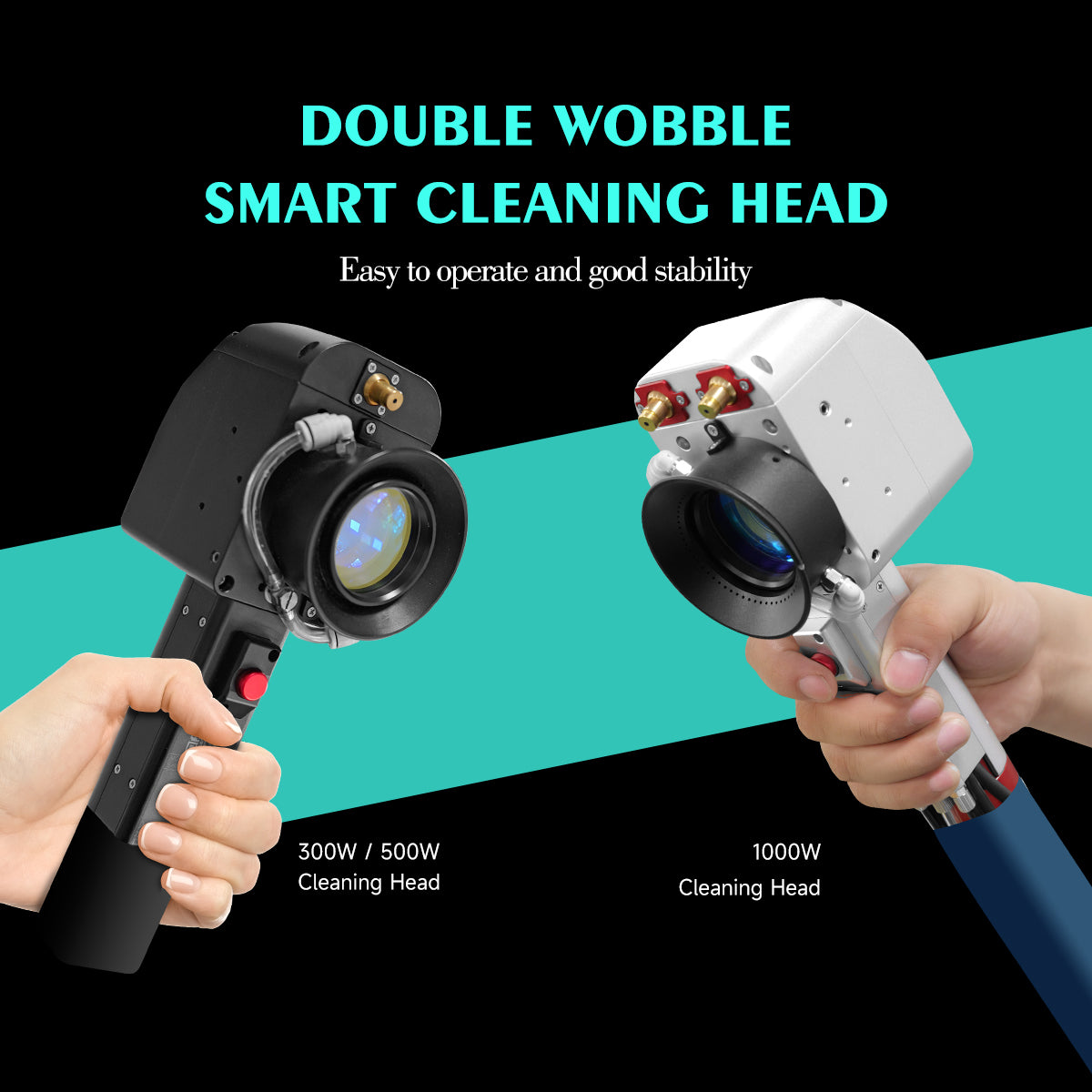

Double wobble smart cleaning head, Stable cleaning quality and good stability.

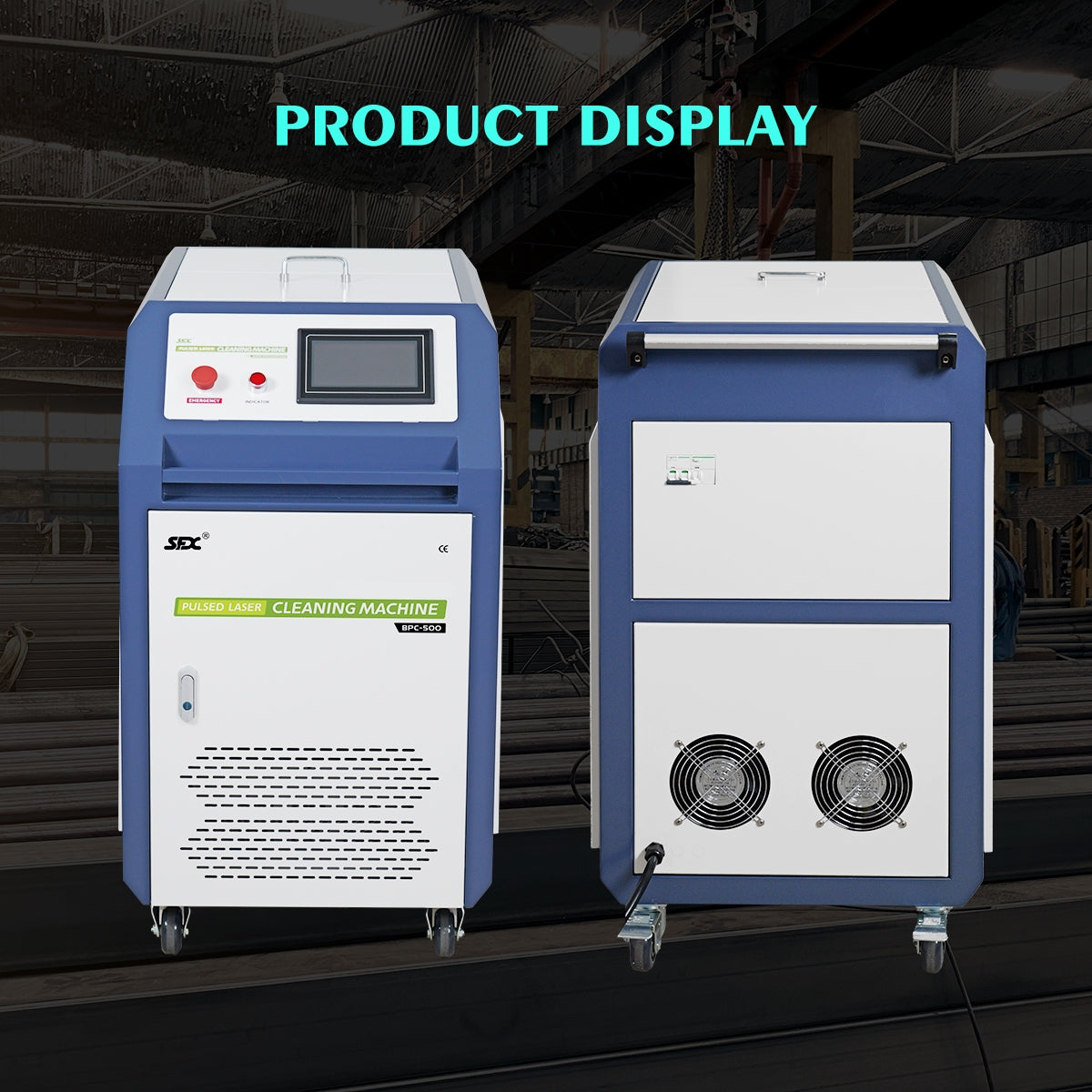

Thick sheet metal chassis,  strong structure, anti-deformation, and good heat dissipation.

with 10m Fiber cable and 4 wheels, can meet your different cleaning requirements.

High Cleaning efficiency, no damage to the substrate.

no pollution, environment friendly, easy to operate.

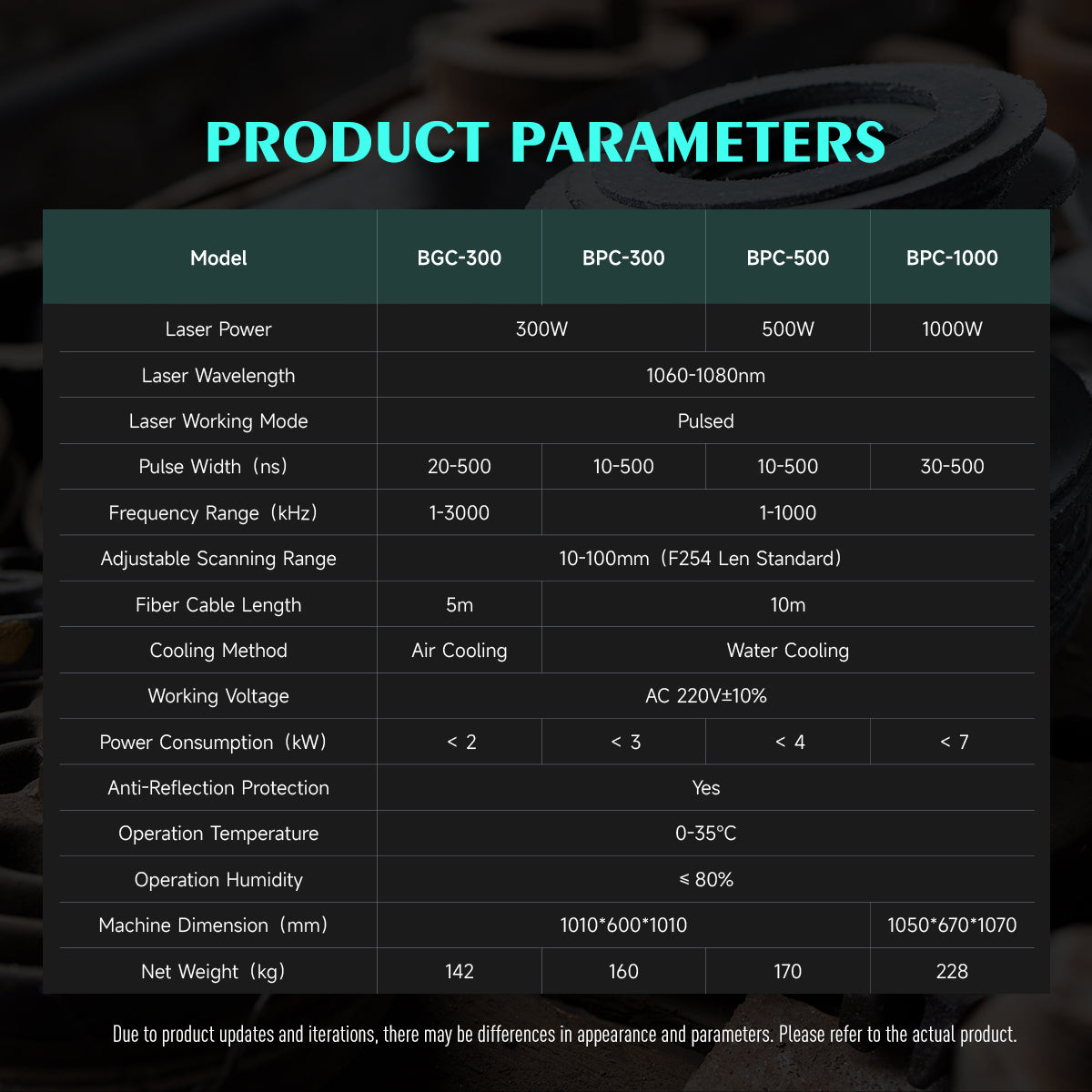

Technical Parameter:

Laser Power: Pulse Laser 300W/500/1000W

Model:BGC-300,BPC-300,BPC-500,BPC-1000

Laser Wavelength: 1060-1080nm

Pulse Width: 20-500ns for BGC-300,10-500ns for BPC-300/BPC-500,30-500ns for BPC-1000

Frequency Range: 1-3000kHz for BGC-300,1-1000KHZ for BPC-300/BPC-500/BPC-1000

Fiber Cable Length: 5m for 300W Single Mode, 10m for  BPC-300/BPC-500/BPC-1000

Adjustable Scanning Range: 10-100mm

Cooling Method: Air Cooling for BGC-300,Water Cooling for BPC-300/BPC-500/BPC-1000

Working Voltage: AC220V±10%，1-Phase

Power Consumption: 2kw/3KW/4KW/7KW

Anti-Reflection Protection: Yes

Operation Temperature: 0-35°C

Operation Humidity: ≤80%

Machine Dimension: 1010*600*1000mm

Net Weight: 142kg/160kg/170kg/228kg

What size generator do you recommend to run that machine?
The total power of 300W multi mode laser cleaning is 3KW, the current is 15amp, and the volatge is 220V±10%. If you use the mobile generator, the total power of the generator must be greater than 3KW and the current must be greater than 15amp.
